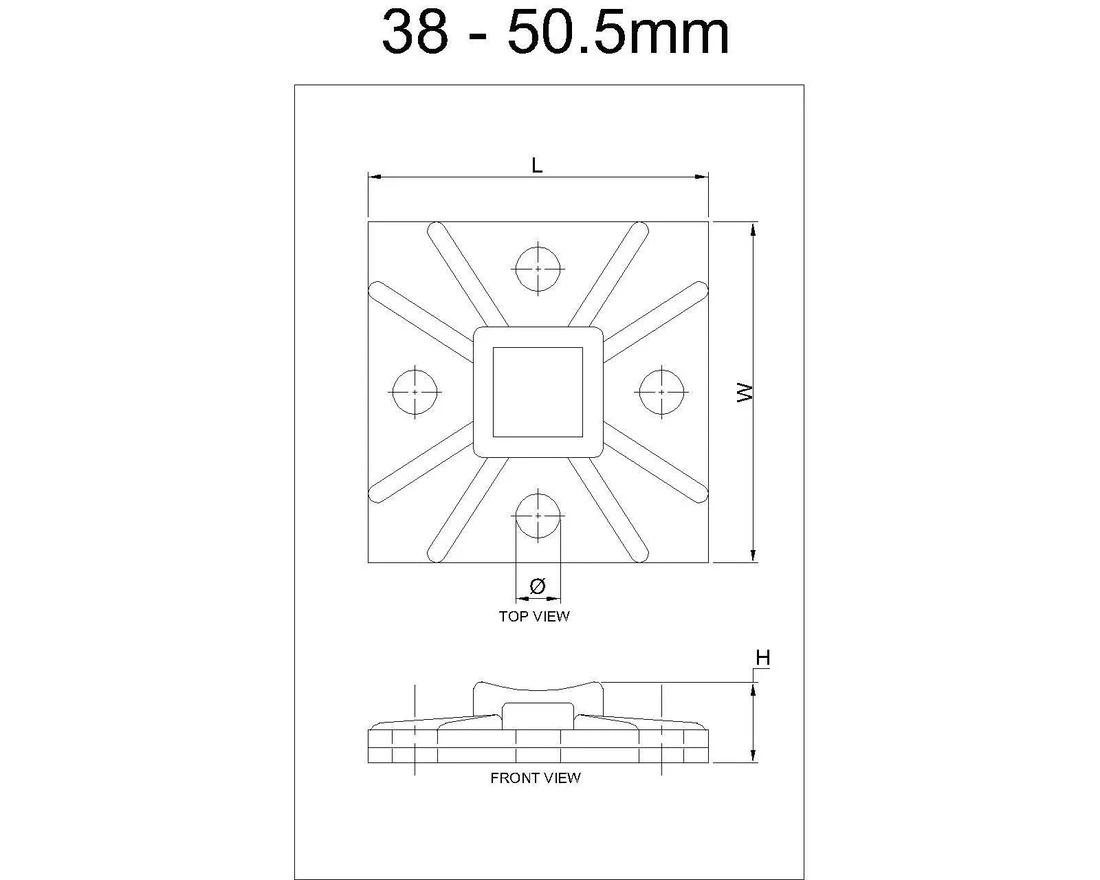

Self Adhesive Tie Mount for Cable Tie Technical Drawing

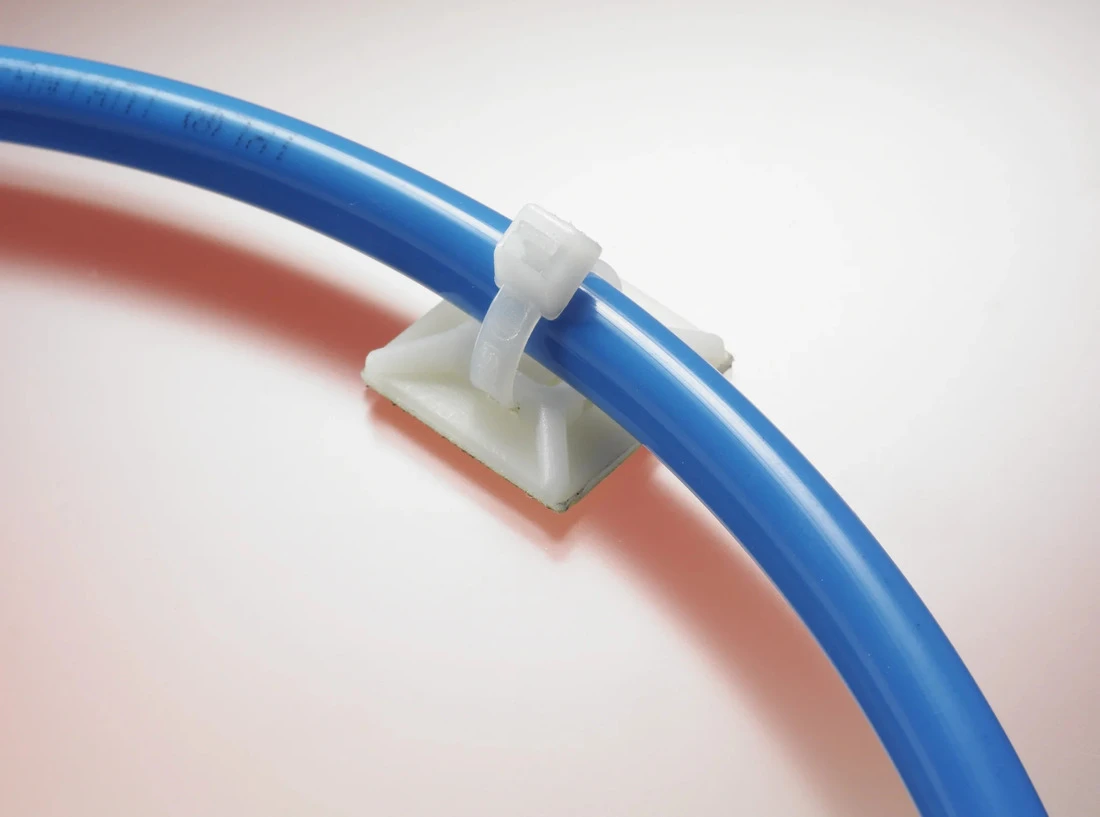

Self Adhesive Tie Mount for Cable Tie Application

Self Adhesive Tie Mount for Cable Tie

Material : Nylon 6
Fire Rating : UL 94 V-2
Operating Temperature (Continuous) : -29°C to +49°C
Intermittent Temperature : 70°C (Less than 2 hours)
Colour : Natural
Backing : Double sided rubber adhesive tape
Adhesive Type : Rubber based closed cell foam adhesive (Four Pillar Make)
Packing : 100 Pcs/Pkt
Tolerances : Length ±1mm, Width ±1mm, Height ±0.5mm, Slot ±1mm

Curved walls allow the wire bundles to seat firmly in position after installing with cable ties
Rubber based closed cell foam adhesive is used for better surface adhesion
Designed to support light weight wire bundles
Self-adhesive mounting base for easy installation without tools
Compatible with various cable tie widths for flexible applications
UL 94 V-2 fire rating for safety compliance
Wide operating temperature range suitable for diverse environments
No metal parts - ideal for applications requiring non-conductive materials

Precision-engineered self-adhesive tie mounts with multiple size options, compatible with various cable tie widths for your specific wire management requirements.

Engineered for Superior Cable Management

Secure Wire Bundle Support

Curved walls allow wire bundles to seat firmly in position after installing with cable ties, ensuring stable and organized cable management.

Superior Adhesive Technology

Rubber based closed cell foam adhesive from Four Pillar provides better surface adhesion for long-lasting mounting on various surfaces.

Light Weight Design

Specifically designed to support light weight wire bundles with optimal balance between strength and minimal footprint.

Tool-Free Installation

Self-adhesive mounting eliminates the need for drilling, screws, or specialized tools - simply peel and stick for instant installation.

Fire Safety Compliance

UL 94 V-2 fire rating ensures compliance with safety standards for electrical and electronic applications.

Wide Temperature Range

Operating temperature from -29°C to +49°C continuous, with intermittent capability up to 70°C for diverse environmental conditions.

Frequently Asked Questions

What are the key applications for Self Adhesive Tie Mount?

Self Adhesive Tie Mounts are designed for supporting and holding cable/wire bundles in various applications including Electrical/Electronics, Locomotive, Solar, White Goods & Appliances, and Windmill industries.

What is the operating temperature range for Self Adhesive Tie Mount?

The continuous operating temperature range is -29°C to +49°C. For intermittent use (less than 2 hours), the maximum temperature is 70°C.

What material is the Self Adhesive Tie Mount made from?

The tie mount is made from Nylon 6 material with UL 94 V-2 fire rating, and features a double-sided rubber adhesive tape backing with Four Pillar brand rubber based closed cell foam adhesive.

How do I choose the right size Self Adhesive Tie Mount?

Choose based on your cable tie width requirements. Sizes range from TM-12 (compatible with 2.5mm cable ties) to TM-50 (compatible with 7.8mm cable ties). Extended 'L' versions are available for longer mounting requirements.

What are the dimensional tolerances for Self Adhesive Tie Mount?

The tolerances are: Length ±1mm, Width ±1mm, Height ±0.5mm, and Slot ±1mm, ensuring precise fit with compatible cable ties.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Locomotive

Solar

White Goods & Appliances

Windmill

What Our Clients Say About Us

Perfect for White Goods Assembly

The self-adhesive tie mounts are excellent for our appliance manufacturing line. The tool-free installation saves time and the curved walls keep wire bundles perfectly organized.

Excellent Adhesive Strength

We use these tie mounts in solar panel installations. The Four Pillar adhesive provides outstanding surface bonding even in outdoor conditions with temperature variations.

Reliable Wire Organization

For locomotive wiring harnesses, these mounts deliver consistent performance. The curved design keeps bundles secure even with constant vibration and movement.

Multiple Sizes Available

Having various sizes from TM-12 to TM-50 allows us to match the exact cable tie width needed for each application in our electronics assembly process.

UL Compliance Matters

The UL 94 V-2 fire rating ensures we meet safety standards for electrical installations. The Nylon 6 material quality is consistently high across all batches.

Time-Saving Installation

No drilling or tools required means faster installation in windmill nacelles where working space is limited. The adhesive holds firmly on metal and composite surfaces.
