Self Adhesive Round Cable Clamp Technical Drawing

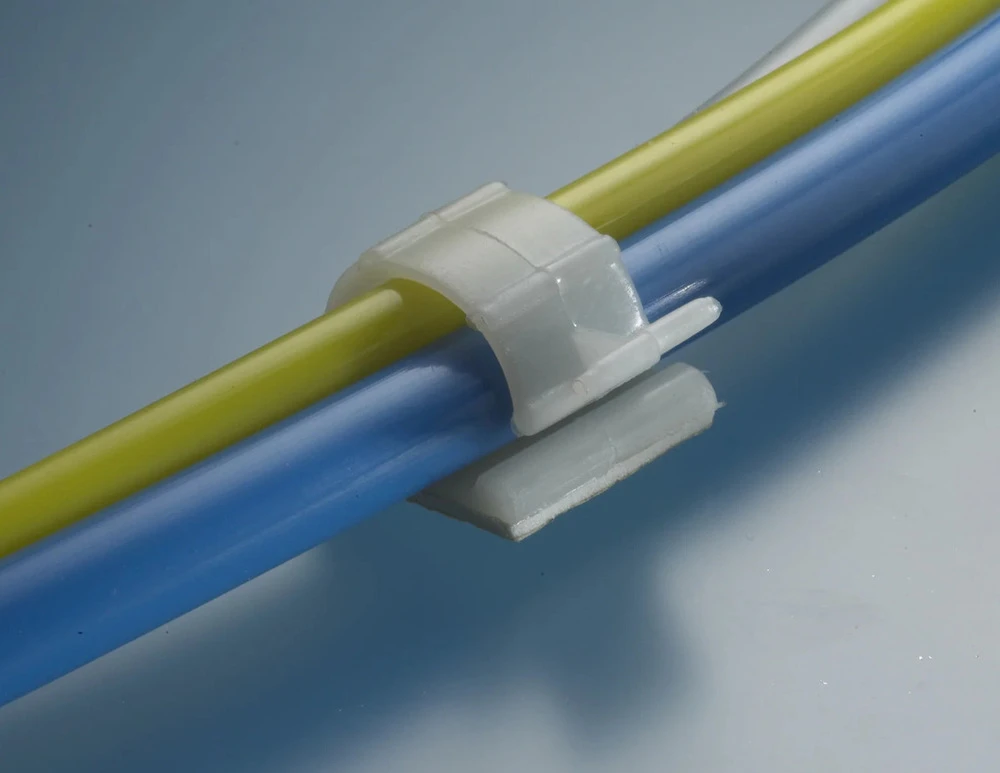

Self Adhesive Round Cable Clamp Application

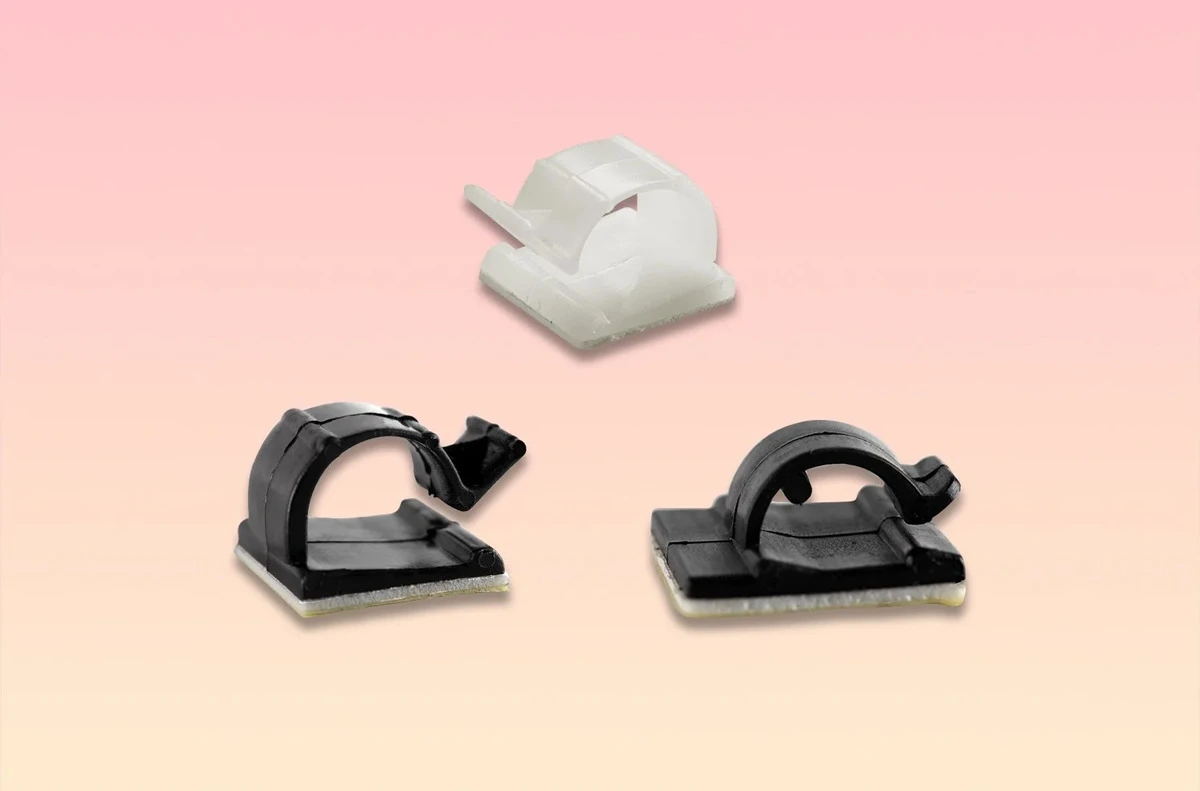

Self Adhesive Round Cable Clamp

Material : Nylon 6 with UL 94 V-2 Fire Rating
Operating Temperature : -29°C to +49°C (Continuous)
Max Intermittent Temperature : 70°C (less than 2 hours)
Color : Natural
Adhesive Type : Rubber based closed cell foam adhesive
Packing : 100 Pcs. bag
Unit : 100 Pcs/Pkt
Tolerances : Length ±2mm, Width ±2mm, Height ±3mm

Snap-in action design allows securing the cable in minimal time
Rubber based closed cell foam adhesive provides better surface adhesion
Lightweight support design for wire bundles, round pipes, tubes
Four Pillar adhesive tape configuration for enhanced stability and holding power
Easy installation - peel off backing paper and apply to clean surface
Suitable for fixed diameter round cables, pipes, and tubes
No tools required for installation
UL 94 V-2 Fire Rating for safety compliance

Precision-engineered options with multiple variants, lengths, widths, and heights for your specific flat cable management requirements.

Engineered for Superior Cable Management

Snap-In Action Design

Allows securing the cable in minimal time with quick snap-in action, enabling fast and efficient installation without the need for additional tools.

Superior Adhesion

Rubber based closed cell foam adhesive provides better surface adhesion on clean, smooth, grease-free surfaces for reliable long-term mounting.

Lightweight Support

Specifically designed to support lightweight wire bundles, round pipes, tubes and cables with optimal weight distribution and stability.

Four Pillar Design

Four Pillar adhesive tape configuration provides enhanced stability and holding power for secure cable management in various applications.

Wide Temperature Range

Continuous operating temperature range from -29°C to +49°C with intermittent capability up to 70°C ensures reliable performance in various environments.

Fire Safety Rated

UL 94 V-2 fire rating provides safety compliance for use in electrical and electronics applications where fire resistance is critical.

Frequently Asked Questions

What are the key applications for Self Adhesive Round Cable Clamp?

Self Adhesive Round Cable Clamp is designed for supporting and holding fixed diameter of round cables, pipes, and tubes. It's ideal for lightweight wire bundles in electrical/electronics, locomotive, solar, white goods & appliances, and windmill industries.

What is the operating temperature range for Self Adhesive Round Cable Clamp?

Self Adhesive Round Cable Clamp operates reliably in continuous temperatures from -29°C to +49°C, with maximum intermittent temperature capability up to 70°C (for less than 2 hours).

What materials are Self Adhesive Round Cable Clamps made from?

Self Adhesive Round Cable Clamps are made from Nylon 6 material with UL 94 V-2 fire rating. The adhesive backing is rubber based closed cell foam adhesive that provides excellent surface bonding.

How do I install the Self Adhesive Round Cable Clamp?

Installation is simple: (1) Peel off the backing paper, (2) Apply mount to any clean, smooth, grease-free surface, (3) Place round pipe/cable/wire in the nylon clamp. The snap-in action design allows securing cables in minimal time.

What sizes are available for Self Adhesive Round Cable Clamp?

We offer two variants: TMR-12 (Small Round Support: 25×25×12mm) and TMR-17 (Big Round Support: 25×25×17mm), both featuring Four Pillar adhesive tape configuration for enhanced stability.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Locomotive

Solar

White Goods & Appliances

Windmill
