Self Adhesive Flat Cable Clamp Technical Drawing

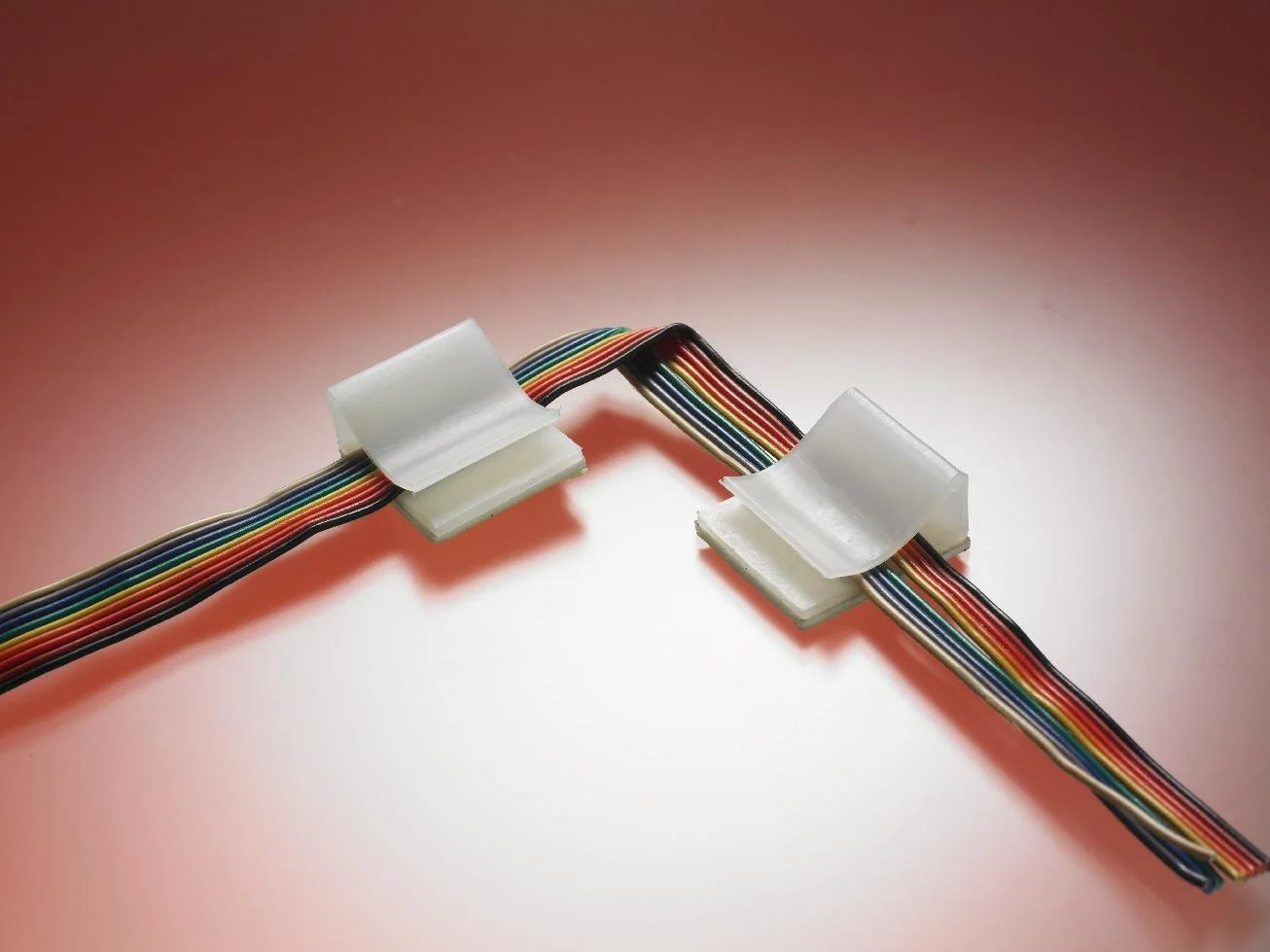

Self Adhesive Flat Cable Clamp Application

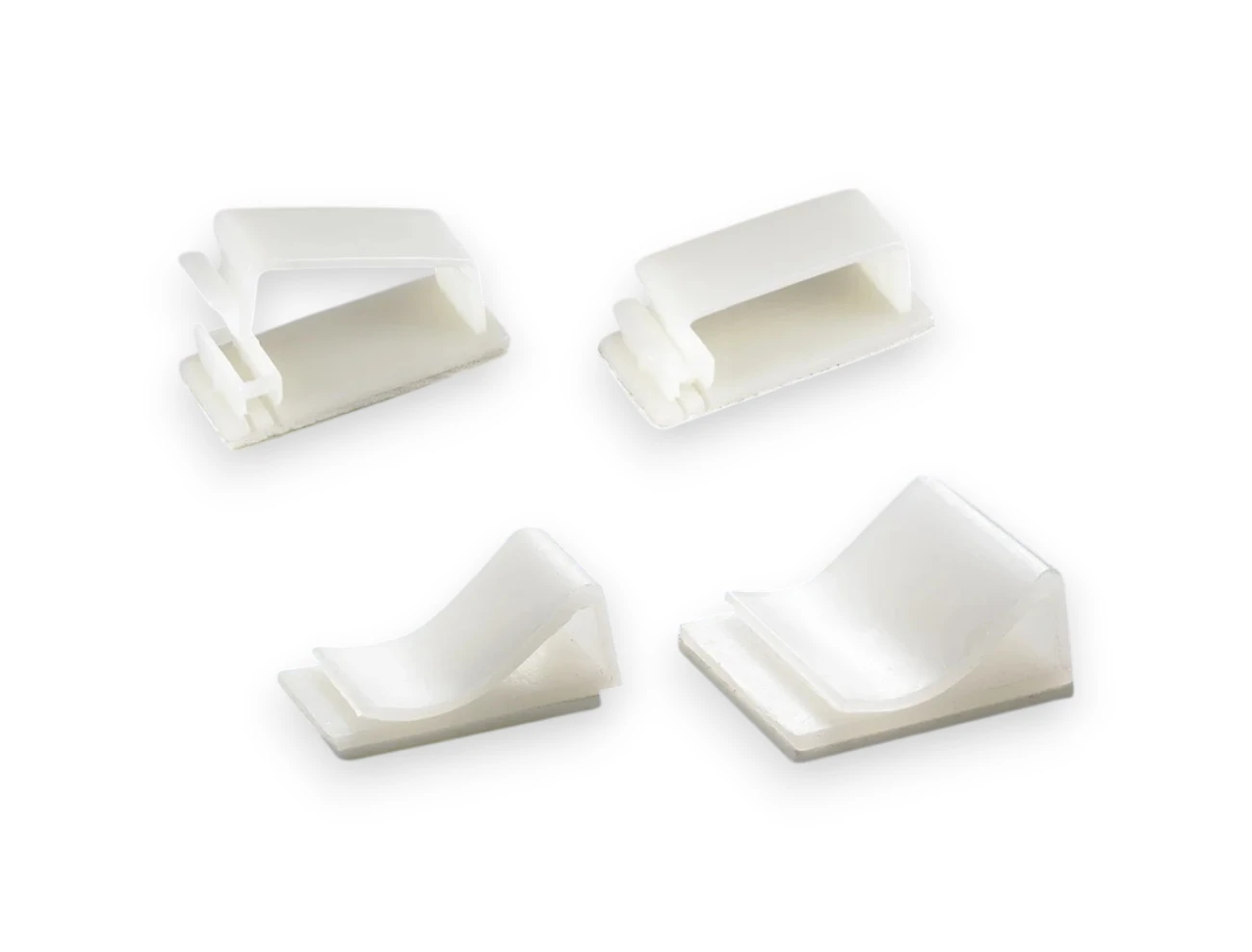

Self Adhesive Flat Cable Clamp

Material : Nylon 6: UL 94 V-2 (backed with double sided rubber adhesive tape)
Operating Temperature : -29°C to +49°C (Continuous)
Max. Intermittent Temp. : 70°C (less than 2 hours)
Colour : Natural
Adhesive Type : Rubber based closed cell foam adhesive
Packing : 100 Pcs/Pkt
Unit : 100 Pcs/Pkt
Adhesive Configuration : Four Pillar

Low profile & flexible top allows easy removal & replacement of desired cables
Rubber based closed cell foam adhesive provides better surface adhesion
Holds single or multiple layers of flat ribbon cable neatly & firmly

Precision-engineered options with multiple variants, lengths, widths, and heights for your specific flat cable management requirements.

Engineered for Superior Cable Management

Low Profile & Flexible Top

The low profile design with flexible top allows for easy removal and replacement of cables without disturbing other wiring, ideal for maintenance and cable management.

Superior Adhesive

Rubber based closed cell foam adhesive provides better surface adhesion on various materials, ensuring secure mounting without the need for drilling or screws.

Multi-Layer Cable Holding

Designed to hold single or multiple layers of flat ribbon cable neatly and firmly, preventing cable sag and maintaining organized wiring systems.

Wide Temperature Range

Operating temperature range from -29°C to +49°C for continuous use, with intermittent capability up to 70°C, suitable for various environmental conditions.

Fire Retardant Material

Manufactured from Nylon 6 with UL 94 V-2 fire rating, providing enhanced safety for electrical and electronic applications in critical installations.

No Tools Required

Self-adhesive mounting eliminates the need for drilling, screws, or special tools, allowing for quick and easy installation on clean, smooth surfaces.

Frequently Asked Questions

What are the key applications for Self Adhesive Flat Cable Clamp?

Self Adhesive Flat Cable Clamp is designed for supporting and holding flat ribbon cables. It's ideal for electrical/electronics, locomotive, solar, white goods & appliances, and windmill industries where flat cable management is required.

What is the operating temperature range for Self Adhesive Flat Cable Clamp?

Self Adhesive Flat Cable Clamp operates reliably in temperatures from -29°C to +49°C for continuous use. Maximum intermittent temperature (less than 2 hours) is 70°C.

What materials are Self Adhesive Flat Cable Clamps made from?

Self Adhesive Flat Cable Clamps are made from Nylon 6 with UL 94 V-2 fire rating, backed with double sided rubber adhesive tape using rubber based closed cell foam adhesive for superior bonding.

How do I install the Self Adhesive Flat Cable Clamp?

Simply clean the mounting surface, remove the adhesive backing, and press firmly onto the surface. The rubber based closed cell foam adhesive provides strong bonding without requiring any drilling or screws.

What variants are available for Self Adhesive Flat Cable Clamp?

Available variants include TMF-28 (Small Flat Support), TMF-28B (Big Flat Support), and TMF-50 (Big Clip Support), each with different dimensions to accommodate various flat cable configurations and sizes.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Locomotive

Solar

White Goods & Appliances

Windmill

What Our Clients Say About Us

Perfect for Control Panel Wiring

The flat cable clamps work perfectly for our control panel applications. The low profile design and easy cable removal feature saves us significant time during maintenance.

Excellent Adhesive Quality

We use these clamps for ribbon cable management in our solar installations. The rubber based adhesive holds strong even in outdoor conditions, and the natural color blends well.

No-Drill Installation is a Game Changer

For our locomotive wiring projects, these self-adhesive clamps are ideal. No drilling required means faster installation and no damage to panels or surfaces.

Great for Multiple Cable Layers

The ability to hold multiple layers of flat cables is exactly what we needed for our appliance manufacturing. The flexible top makes it easy to add or remove cables during assembly.

Multiple Sizes for Different Needs

Having different size options (TMF-28, TMF-28B, TMF-50) allows us to choose the right clamp for each cable configuration. The technical drawings are very helpful for planning installations.

UL Rated Material is Important

The UL 94 V-2 fire rating on the Nylon 6 material gives us confidence in using these clamps for our electrical panel assemblies. Safety is our top priority.
