Screw Fastened PCB Support Screw Fastened PCB Support Technical Drawing

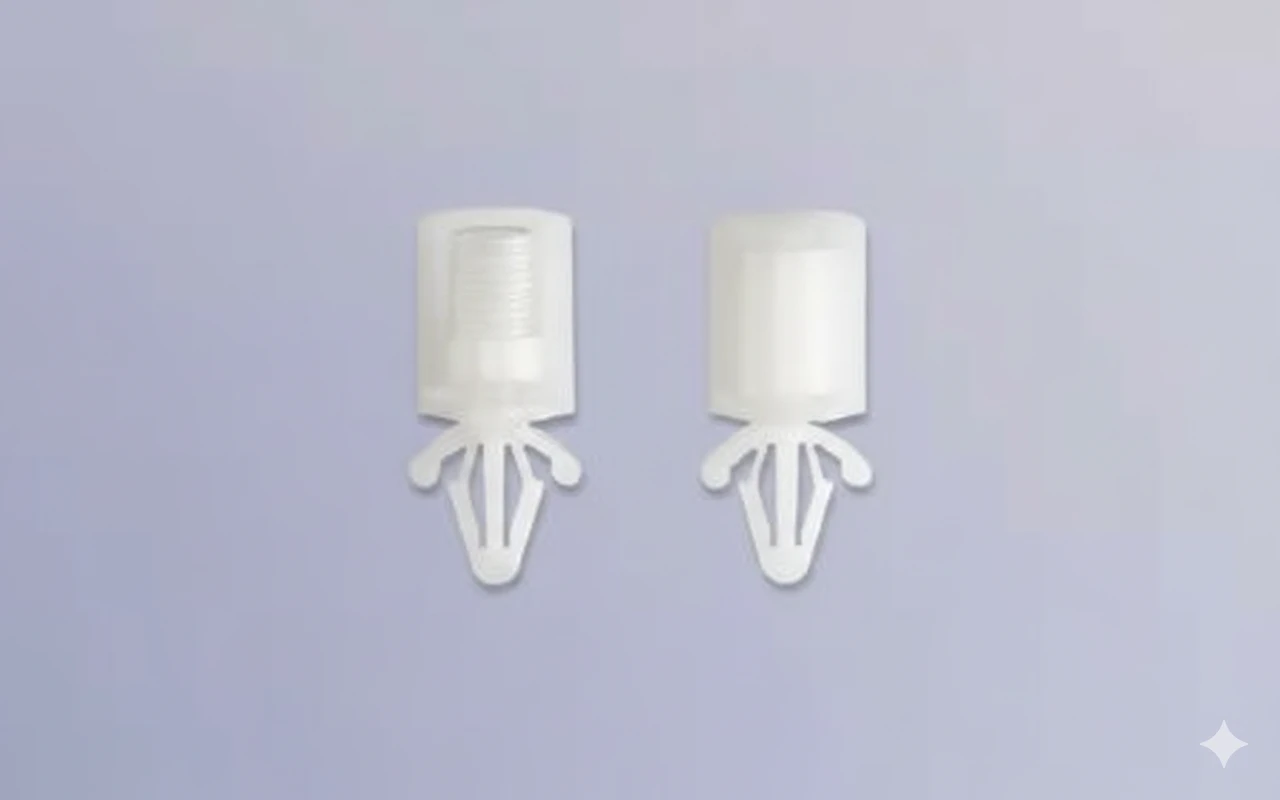

Screw Fastened PCB Support
Screw Fastened PCB Support Technical Drawing

Screw Fastened PCB Support

Screw Fastened PCB Support Screw Fastened PCB Support Technical Drawing
Screw Fastened PCB Support
Screw Fastened PCB Support Technical Drawing
  • Material : Nylon 66, UL 94V-2
  • Color : Natural
  • Operating Temp : -40°C to +85°C
  • Unit : 100 Pcs/Pkt
  • Tolerance : Spacing Height ±1mm, C ±0.5mm, D ±0.5mm
  • Screw lock supports steady

Precision-engineered perforated adjustable P clips with multiple size options for wide range of cable diameter clamping requirements.

A Spacing Height
A Spacing Height(mm)
0 1010
C Height
C Height(mm)
0 13
Height
Height (mm)
0 250

Apply Filters

A Spacing Height (mm)
0 1010
C Head Height (mm)
0 13
Height (mm)
0 250

Most Versatile Cable & Tube Clamps

Screw Lock Support

Screw lock design supports PCBs steadily with secure fastening, providing reliable and stable mounting for circuit board assemblies in electronics applications.

PCB Spacing Solution

Designed to use between PCB to PCB or PCB to chassis as a spacer, maintaining proper clearance and preventing electrical shorts in electronic assemblies.

Secure Threaded Mounting

Threaded design allows screw fastening for permanent, vibration-resistant installation. Provides superior stability compared to snap-fit alternatives in demanding applications.

Fire-Retardant Material

Made from Nylon 66 with UL 94V-2 flammability rating, ensuring safety compliance for electrical/electronics and white goods & appliances applications.

Wide Temperature Range

Operating temperature from -40°C to +85°C ensures reliable performance in various electronics, appliances, and industrial environments.

Six Height Options

Available in 6 spacing heights from 4.8mm to 35mm to accommodate various PCB clearance requirements. Natural color, packaged 100 pieces per bag.

Frequently Asked Questions

What are Screw Fastened PCB Supports and how do they work?
Screw Fastened PCB Supports are threaded spacers used between PCB to PCB or PCB to chassis configurations. They feature screw lock design that supports PCBs steadily, providing secure, vibration-resistant mounting through threaded fastening. Ideal for electrical/electronics and white goods & appliances industries where permanent, stable installation is required.
How do I install Screw Fastened PCB Supports?
Installation requires screwing the support into the threaded mounting holes on the PCB or chassis. The screw lock design provides steady support and can be tightened to the desired torque for secure fastening. This threaded approach offers superior stability and permanence compared to snap-fit or push-through spacers, especially in applications with vibration.
What spacing heights are available?
Screw Fastened PCB Supports are available in 6 spacing heights: 4.8mm (PBS-4), 9.6mm (PBS-9), 12.5mm (PBS-12), 19.1mm (PBS-19), 28.2mm (PBS-28), and 35mm (PBS-35). All feature screw diameter (D) of 3-3.20mm and come in Natural color, packaged 100 pieces per bag.
What material are these supports made from?
The supports are made from Nylon 66 with UL 94V-2 flammability rating, providing excellent electrical insulation properties, mechanical strength, and fire resistance. They operate reliably from -40°C to +85°C, making them suitable for demanding electronics and appliance applications.
When should I use screw fastened supports instead of snap-fit supports?
Choose screw fastened supports for permanent installations requiring maximum stability and vibration resistance. They're ideal for applications with significant movement, shock, or vibration, or where the PCB assembly must withstand handling during maintenance. The threaded design provides superior holding strength and cannot accidentally dislodge like snap-fit alternatives.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.
