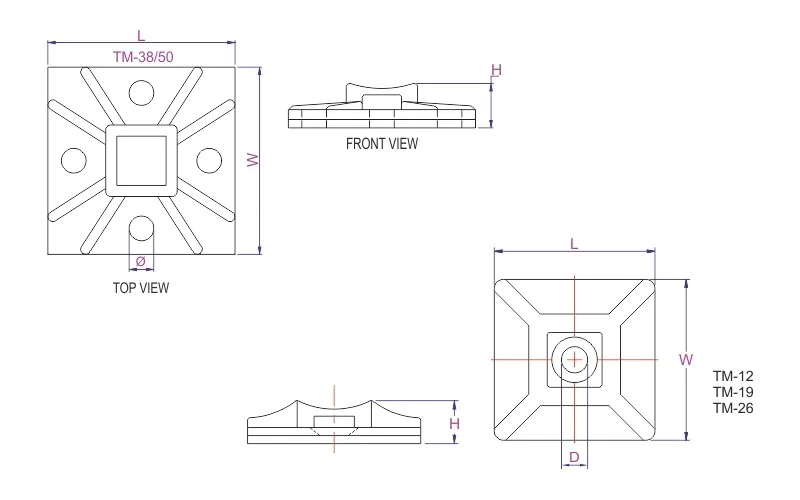

Nylon Screw Mounting Support Technical Drawing

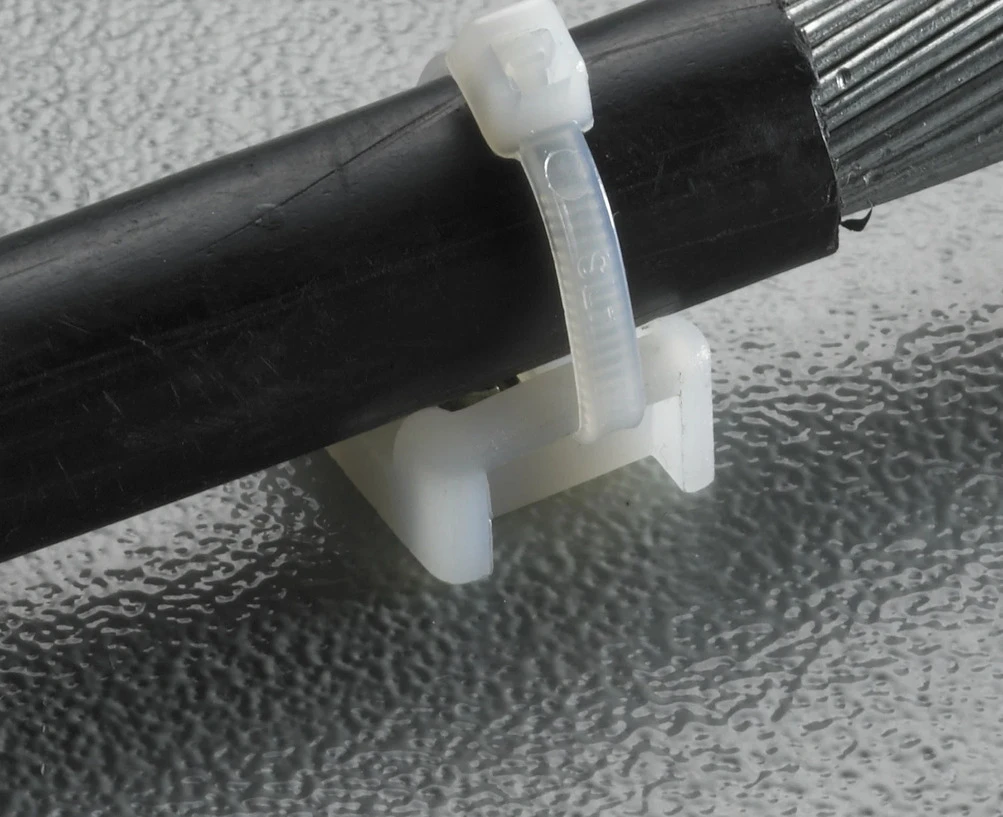

Nylon Screw Mounting Support Application

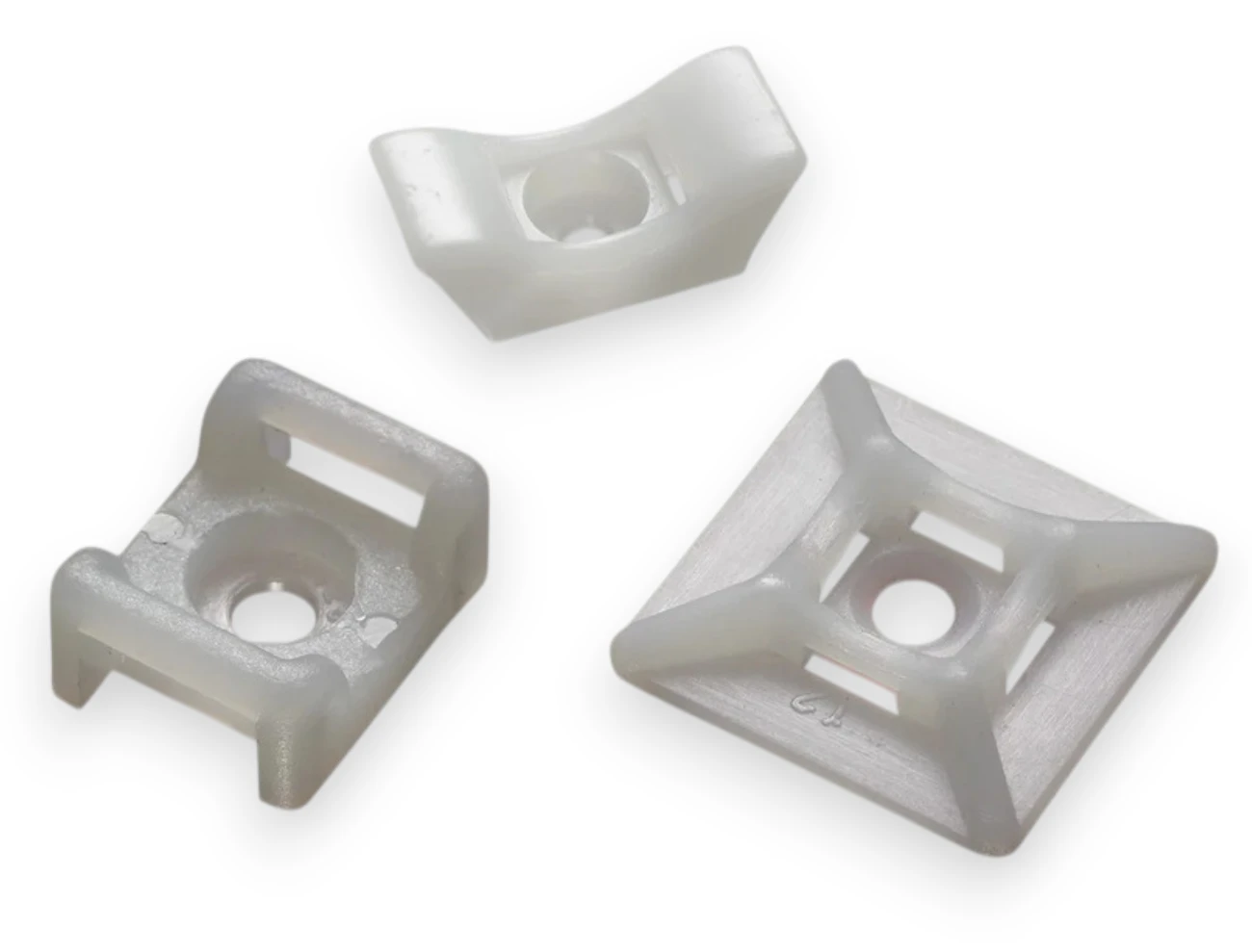

Nylon Screw Mounting Support

Material : Nylon 6: UL 94 V-2
Operating Temperature : -40°C to +85°C (-40°F to +185°F)
Colour : Natural
Installation : Screw fastened mounting for cable tie insertion
Packing : 100 pcs/pkt in all sizes
Unit : 100 Pcs/Pkt
Certifications : UL Approved, UL 94 V-2 rated
Tolerances : Length ±1mm, Width ±0.5mm, Height ±0.5mm, Slot ±1mm, Mounting Hole ±0.6mm

Unique design provides maximum stability to wire bundles for secure cable management
Hold wire/cable bundles and help routing of the same as desired for flexible installation
Allow multiple cables to run in parallel (NS-8, 8A, 8B variants) for versatile applications
UL Approved with UL 94 V-2 flammability rating for safety compliance
Wide operating temperature range from -40°C to +85°C for diverse environments
Screw mounting design ensures permanent and reliable fixing
Compatible with various cable tie widths for flexible cable management
Precision tolerances ensure consistent quality and fit

Precision-engineered mounting supports with multiple dimension options, slot sizes, and mounting hole diameters for your specific cable management requirements.

Engineered for Superior Performance

Maximum Stability Design

Unique design provides maximum stability to wire bundles, ensuring secure cable management even in vibration-prone environments.

Flexible Cable Routing

Hold and route wire/cable bundles as desired, providing complete flexibility in cable management layouts and configurations.

Parallel Cable Support

Certain variants allow multiple cables to run in parallel, maximizing space efficiency in complex wiring applications.

UL Approved Quality

UL approved with UL 94 V-2 flammability rating, ensuring compliance with international safety standards and regulations.

Wide Temperature Range

Operating temperature range from -40°C to +85°C ensures reliable performance in various environmental conditions.

Easy Screw Installation

Screw mounting design ensures permanent and reliable fixing with easy installation using standard tools and hardware.

Frequently Asked Questions

What are the key applications for Nylon Screw Mounting Support?

Nylon Screw Mounting Support is designed for supporting and holding cable/wire bunches in electrical/electronics, locomotive, solar, and white goods & appliances industries. It provides stable mounting and flexible routing for wire bundles.

What is the operating temperature range for Nylon Screw Mounting Support?

Nylon Screw Mounting Support operates reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making them suitable for various environmental conditions.

What material is Nylon Screw Mounting Support made from?

Nylon Screw Mounting Support is made from Nylon 6 material with UL 94 V-2 flammability rating, providing excellent mechanical properties and fire safety compliance.

Are Nylon Screw Mounting Supports UL approved?

Yes, Nylon Screw Mounting Supports are UL Approved and meet UL 94 V-2 material rating standards, ensuring compliance with international safety requirements.

What cable tie widths are compatible with these mounting supports?

Different variants support various cable tie widths ranging from 3.6mm to 12.5mm. Some variants like NS-9 support multiple cable tie widths (7.8mm, 8.1mm, 9.1mm) for versatile applications.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Locomotive

Solar

White Goods & Appliances

What Our Clients Say About Us

Perfect for Control Panel Wiring

The nylon screw mounting supports provide excellent stability for our control panel wire bundles. The UL approval gives us confidence in meeting safety standards.

Excellent for Locomotive Applications

We use these mounting supports extensively in our railway projects. The wide temperature range and robust construction handle the demanding locomotive environment perfectly.

Great for Solar Installations

The screw mounting supports work great in our solar panel installations. They withstand outdoor conditions and provide reliable cable management for years.

Multiple Variants for Different Needs

Having multiple variants with different dimensions and slot sizes allows us to choose the perfect fit for each application in our appliance manufacturing.

Easy Installation Process

The screw mounting design makes installation quick and secure. Our technicians appreciate how easy they are to work with compared to other mounting methods.

Parallel Cable Support Feature

The variants that support multiple cables running in parallel are incredibly useful for our complex wiring installations, saving both space and time.
