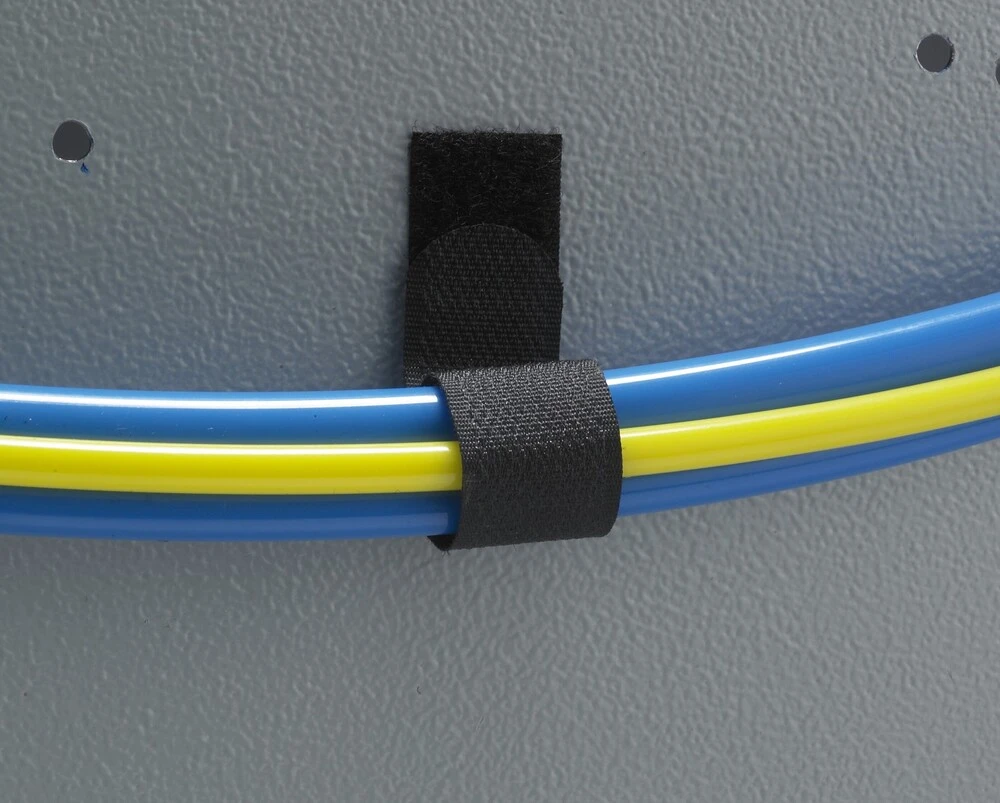

Hook 'N' Loop Adhesive Tie Mount Hook 'N' Loop Adhesive Tie Mount Technical Drawing
Hook 'N' Loop Adhesive Tie Mount
Hook 'N' Loop Adhesive Tie Mount Technical Drawing

Hook 'N' Loop Adhesive Tie Mount

Hook 'N' Loop Adhesive Tie Mount Hook 'N' Loop Adhesive Tie Mount Technical Drawing
Hook 'N' Loop Adhesive Tie Mount
Hook 'N' Loop Adhesive Tie Mount Technical Drawing
  • Material : Hook: Nylon - 66 (PA-66) monofilaments woven
    Material: Loop: Nylon - 6 (PA-6) multifilaments woven
  • Flammability Rating : UL 94 HB
  • Color : Black (std. color), other colours available against order
  • Operating Temp : -20°C to +85°C
  • Unit : 100 Pcs/Pkt
  • Tolerances : Length: ±2mm, Width: ±0.5mm
  • The Hook ‘N’ Loop adhesive mount organizes cables on a variety of plain / clean surfaces. Adhesive backed eliminates screwing or riveting for holding bundles.

Designed to hold single or multiple wires/cables with a low-profile soft steel hook for easy press-pull fixing/removal and strong long-term adhesion on various surfaces.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Tensile Strength
Tensile Strength (kgs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kgs)
0 250

Engineered for Superior Management

Adhesive Backing Convenience

Rubber-based adhesive eliminates screwing or riveting for holding bundles. Easy attachment to desks, walls, computers, and various equipment surfaces.

Reusable Hook & Loop System

Woven Nylon 66 hook and Nylon 6 loop construction allows unlimited opening and reclosing for flexible cable management without cutting ties.

Versatile Surface Mounting

Organizes cables on a variety of plain and clean surfaces. Perfect for networking and telecom applications on desks, walls, and equipment.

Tool-Free Installation

No tools, screws, or drilling required. Simply peel and stick the adhesive backing, then wrap and secure cables with the hook-and-loop fastener.

Temperature Resistance

Operating temperature range from -20°C to +85°C with UL 94 HB flammability rating ensures reliable performance in various networking and telecom environments.

Two Size Options

Available in 130mm length with two width options: 20mm (22kg tensile strength) and 25mm (25kg tensile strength) for 28mm max bundle diameter. Black color, 100 pieces per pack.

Frequently Asked Questions

What is Hook 'N' Loop Adhesive Tie Mount and how does it work?
Hook 'N' Loop Adhesive Tie Mount features an adhesive-backed base that sticks to surfaces combined with a hook-and-loop cable tie. Simply peel and stick the base onto desks, walls, computers, or equipment, then wrap the hook-and-loop strap around your cables and press together. Ideal for networking and telecom cable management applications.
What surfaces can the adhesive mount stick to?
The rubber-based adhesive backing works on a variety of plain and clean surfaces including desks, walls, computers, monitors, networking equipment, telecom devices, and other smooth surfaces. For best adhesion, ensure the surface is clean, dry, and free from dust or oil before application.
What are the advantages over traditional screw-mounted tie mounts?
Adhesive backing eliminates the need for screwing or riveting, making installation quick and tool-free. This preserves surface integrity (no drilling holes), allows easy repositioning if needed, and is perfect for rental spaces or equipment where permanent mounting isn't desired. The hook-and-loop system also provides reusability unlike one-time-use cable ties.
What sizes are available for Hook 'N' Loop Adhesive Tie Mounts?
Available in 130mm length with two width options: 20mm width (HLM-20) with 22kg tensile strength, and 25mm width (HLM-25) with 25kg tensile strength. Both accommodate up to 28mm maximum bundle diameter. Standard color is Black, packaged 100 pieces per bag.
What materials are used in the construction?
The hook side is made from woven Nylon 66 (PA-66) monofilaments, while the loop side is made from woven Nylon 6 (PA-6) multifilaments. This combination provides reliable grip strength and reusability with a UL 94 HB flammability rating, operating from -20°C to +85°C for demanding networking and telecom environments.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Networking

Networking

Telecom

Telecom

What Our Clients Say About Us

Perfect for Solar Panel Installation

The adjustable cable clamps work excellently for our solar panel wiring. The multistage locking design allows us to manage different cable sizes with a single clamp type, reducing inventory complexity.

RK

Rajesh Kumar

Installation Manager, Solar Solutions

Excellent Adhesion Quality

We use these clamps extensively in our white goods manufacturing. The rubber-based foam adhesive provides superior surface adhesion, and the clamps stay firmly in place even in high-vibration environments.

AS

Amit Singh

Quality Manager, Appliance Manufacturing

Easy Installation, No Tools Needed

For our locomotive wiring projects, these self-adhesive clamps are a game-changer. Installation is quick without drilling, and the adjustable design means we can modify configurations easily during maintenance.

MP

Meena Patel

Technical Lead, Railway Systems

Great for Temporary Bundling

We appreciate the flexibility these clamps offer. Perfect for our electronics assembly where cable configurations change frequently. The adhesive holds well but can be repositioned when needed.

VG

Vikram Gupta

Production Engineer, Electronics Manufacturing

Multiple Variants for Different Needs

Having both TMRA-L and TMRA-C options allows us to choose based on bundle diameter requirements. The Ladder Support works perfectly for larger bundles while Crick Support handles smaller diameter applications.

SK

Suresh Kumar

Procurement Manager, Industrial Solutions

Reliable Temperature Performance

We use these clamps in windmill installations where temperature variations are common. The operating range from -29°C to +49°C continuous ensures they perform reliably in all weather conditions.

NT

Neha Tiwari

Field Engineer, Renewable Energy
