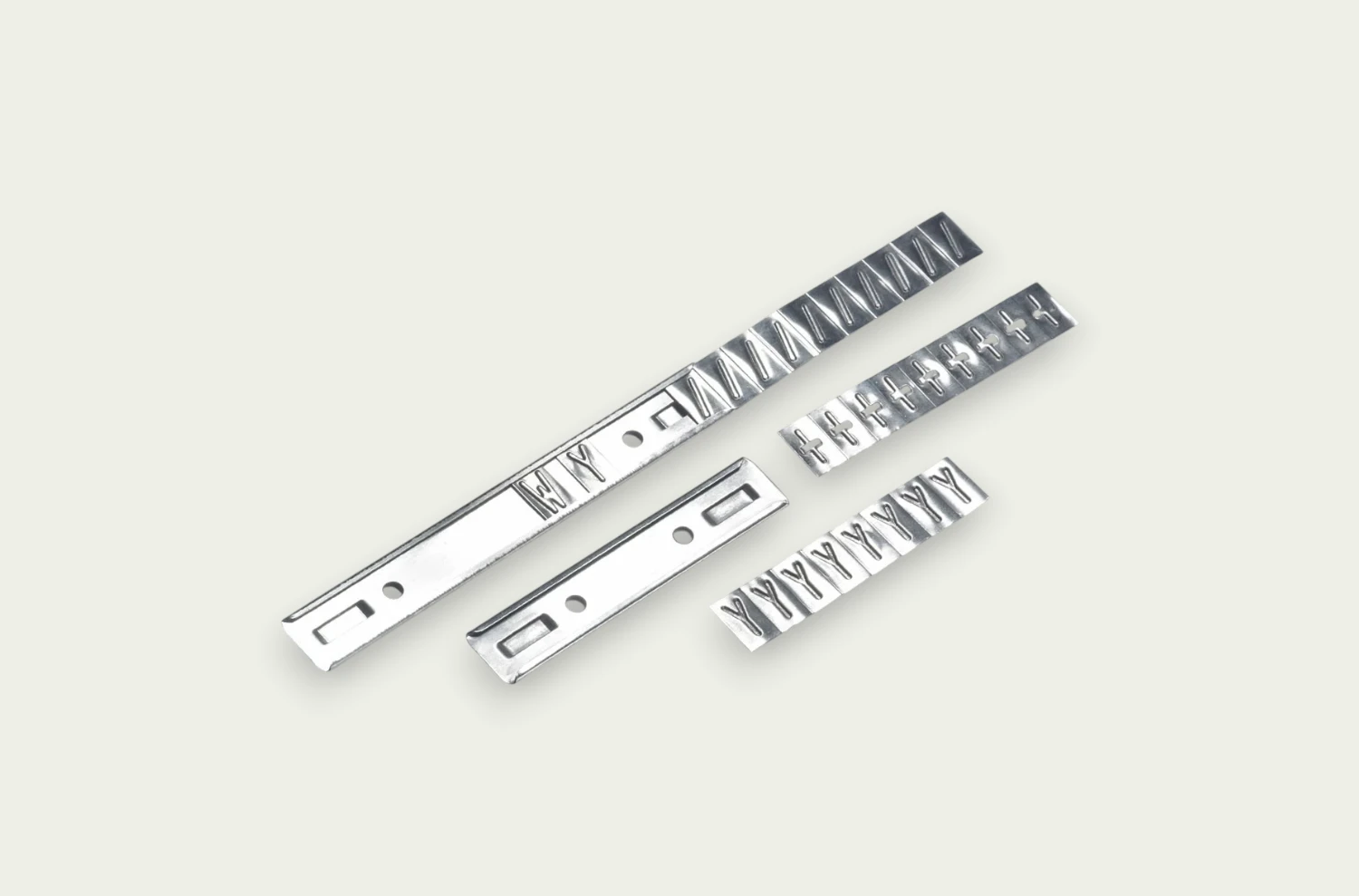

Slide On Carrier Rails & Slide On Steel Markers

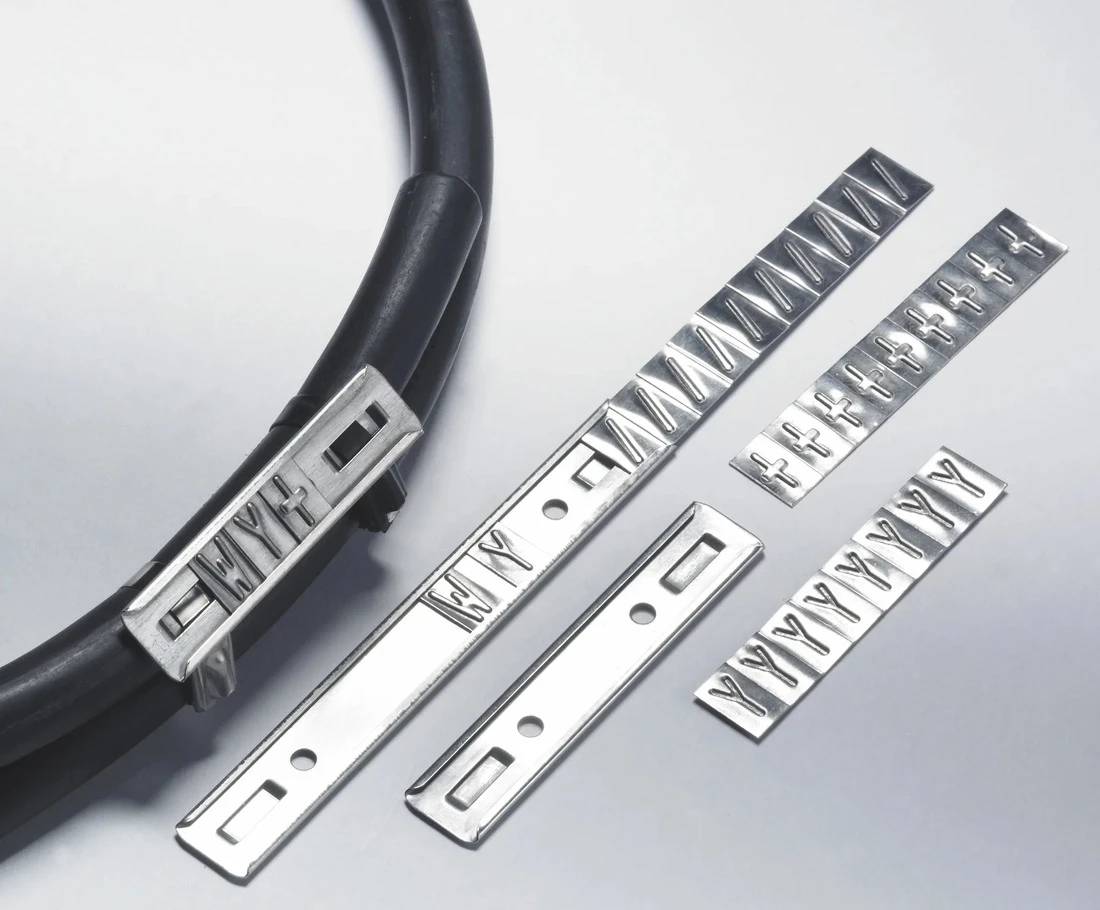

Slide On Carrier Rails & Slide On Steel Markers Technical Drawing
Slide On Carrier Rails & Slide On Steel Markers Application

Slide On Carrier Rails & Slide On Steel Markers

Slide On Carrier Rails & Slide On Steel Markers Slide On Carrier Rails & Slide On Steel Markers Technical Drawing Slide On Carrier Rails & Slide On Steel Markers Application
Slide On Carrier Rails & Slide On Steel Markers
Slide On Carrier Rails & Slide On Steel Markers Technical Drawing
Slide On Carrier Rails & Slide On Steel Markers Application
  • Material : Stainless Steel SS 316 / SS 304
  • Operating Temperature : -80°C to +538°C (-112°F to +1000°F)
  • Width : 11 mm (standard for all variants)
  • Mounting Hole Diameter : Ø 3 mm
  • Available Character Types : Numbers (0-9), Letters (A-Z), Symbols (+, -, /, ., Blank, Earth/Ground)
  • Installation : Slide-on design with screw mounting holes
  • Packing : 100 pcs bag in all sizes
  • Unit : 100 Pcs/Pkt
  • Unique slide-on design enables quick and easy assembly with screw mounting holes (Ø 3 mm)
  • Premarked marker strips slide inside carrier rails and break-off from precut divisions with thumb pressure
  • Available in alphabets (A-Z), numbers (0-9), and symbols (+, -, /, ., Blank, Earth/Ground)
  • Stainless Steel SS 316 and SS 304 material options for different corrosion resistance requirements
  • Extreme operating temperature range from -80°C to +538°C for harsh environments
  • Customizable marking with easy break-off capability from precut divisions
  • Standard 11mm width with Ø 3mm mounting holes for consistent installation
  • Multiple length options with varying marker capacities (5 to 44 markers per rail)

Comprehensive range of Slide On Carrier Rails & Slide On Steel Markers with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Tensile Strength
Tensile Strength(kbs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Superior Performance

Quick Slide-On Design

Unique slide-on design enables quick and easy assembly with screw mounting holes (Ø 3 mm), reducing installation time and labor costs.

Break-Off Marker Strips

Premarked marker strips slide inside carrier rails and easily break-off from precut divisions with thumb pressure for precise marking requirements.

Comprehensive Character Set

Available in complete alphabets (A-Z), numbers (0-9), and symbols including +, -, /, ., blank spaces, and earth/ground symbols for versatile identification.

Extreme Temperature Range

Operating temperature range from -80°C to +538°C (-112°F to +1000°F) ensures reliable performance in the most demanding environmental conditions.

Corrosion Resistant Materials

Available in marine-grade Stainless Steel SS 316 and standard SS 304 for superior corrosion resistance in harsh, corrosive climatic conditions.

Multiple Length Options

Five length options (46mm to 286mm) with marker capacities ranging from 5 to 44 markers per rail, providing flexibility for various cable identification applications.

Frequently Asked Questions

What are the key applications for Slide On Carrier Rails & Steel Markers?
Slide On Carrier Rails & Steel Markers are designed for cable identification in corrosive climatic conditions. They're ideal for oil & gas, offshore, ship & marine, solar, telecom, utility, and windmill industries where permanent, durable cable marking is essential.
What is the operating temperature range for these marker systems?
The carrier rails and steel markers operate reliably in extreme temperatures from -80°C to +538°C (-112°F to +1000°F), making them suitable for harsh environmental conditions in various industrial applications.
What materials are available for the carrier rails?
Carrier rails are available in two material options: marine-grade Stainless Steel SS 316 for maximum corrosion resistance, and standard Stainless Steel SS 304, both providing excellent performance for cable identification in corrosive environments.
What characters are available on the marker strips?
Marker strips are available with complete alphabets (A-Z), numbers (0-9), and various symbols including +, -, /, ., blank spaces, and earth/ground symbols. This comprehensive character set allows for flexible cable identification and marking requirements.
How easy is it to install and customize these markers?
The unique slide-on design enables quick and easy assembly. Premarked marker strips slide inside the carrier rails and can be broken off from precut divisions with simple thumb pressure to match your specific marking requirements. Installation is done through Ø 3mm screw mounting holes.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Oil, Gas & Offshore

Oil, Gas & Offshore

Ship & Marines

Telecom

Telecom

Ship & Marines

Solar

Solar

Utility

Utility

windmill

windmill

What Our Clients Say About Us

Perfect for Offshore Cable Marking

The slide-on design makes installation incredibly fast, and the SS 316 material holds up perfectly in our marine environment. The break-off markers are genius for custom labeling.

RK

Rajesh Kumar

Marine Engineering Manager, Offshore Operations

Extreme Temperature Performance

We use these markers in both extreme cold and heat conditions at our utility sites. The wide temperature range and stainless steel construction provide reliable identification year-round.

AS

Amit Singh

Operations Head, Utility Infrastructure

Comprehensive Character Options

Having alphabets, numbers, and symbols available makes cable identification straightforward. The break-off design lets us create any marking combination we need quickly.

MP

Meena Patel

Installation Supervisor, Telecom Networks

Corrosion Resistance is Excellent

Working in corrosive environments at our solar installations, we need markers that last. The SS 316 option provides outstanding corrosion resistance and durability.

VG

Vikram Gupta

Project Manager, Solar Energy Systems

Multiple Length Options

Having five different length options with varying marker capacities gives us flexibility for different cable bundles. We can choose the exact size needed for each application.

SK

Suresh Kumar

Procurement Manager, Oil & Gas

Quick Installation Saves Time

The slide-on design with screw mounting reduces installation time significantly. Our technicians appreciate how easy these are to install and adjust on windmill cable systems.

NT

Neha Tiwari

Technical Lead, Windmill Energy
