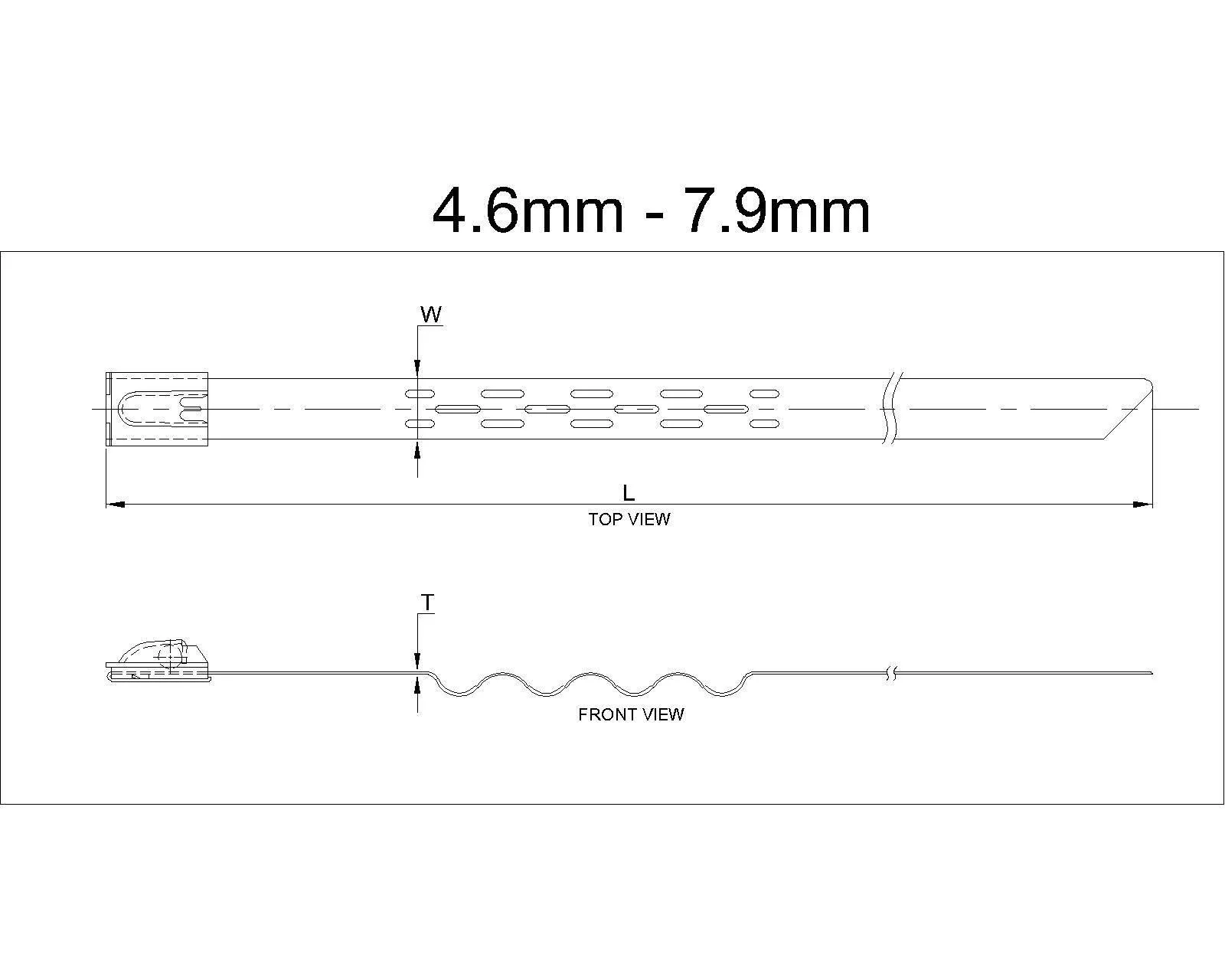

Ball Lock Zigzag Tie Uncoated Technical Drawing

Ball Lock Zigzag Tie Uncoated Application

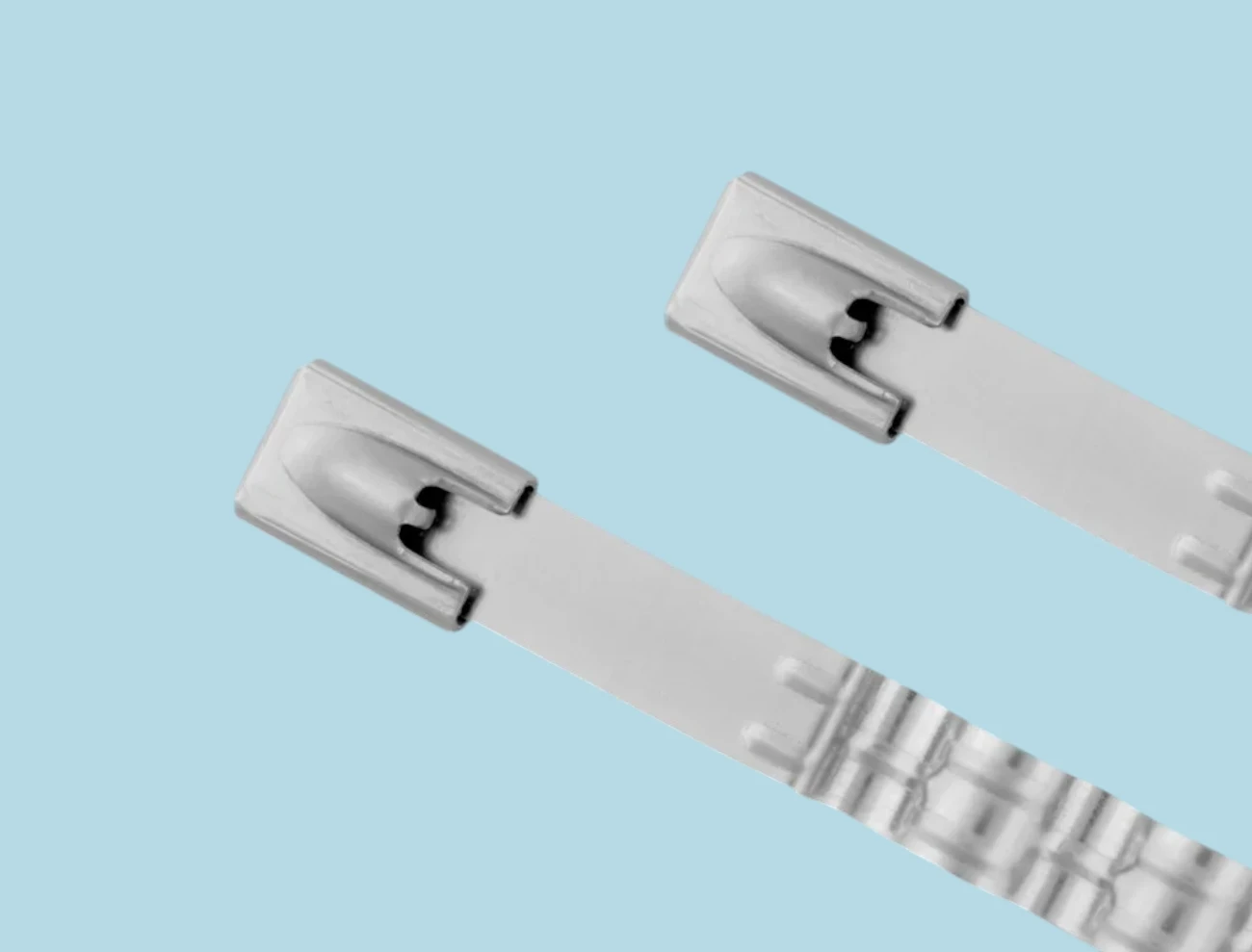

Ball Lock Zigzag Tie Uncoated

Material : Stainless Steel (SS 316 / SS 304)
Operating Temperature : -80°C to +538°C (-112°F to +1000°F)
Coating : Uncoated
Installation : By hand, With tool STT1, With tool STT2
Packing : 100 pcs bag
Unit : 100 Pcs/Pkt
Test Certificate : Available

Modified wave form design clamps where no other steel ties retain tension
Grips firmly on solid object at low applied forces
Smooth edges of ties provide utmost safety while installation

Comprehensive range of Ball Lock Zigzag Tie Uncoated with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Engineered for Superior Vibration Resistance

Modified Wave Form Design

Unique modified wave form design clamps where no other steel ties retain tension, providing superior holding power in high-vibration environments.

High Grip Strength

Grips firmly on solid objects at low applied forces, ensuring secure cable bundling even with minimal installation tension.

Safe Installation

Smooth edges of ties provide utmost safety while installation, reducing the risk of injury during handling and application.

Extreme Temperature Range

Operating temperature range from -80°C to +538°C ensures reliable performance in extreme environmental conditions from arctic to high-heat industrial applications.

Corrosion Resistant

Uncoated stainless steel construction provides excellent corrosion resistance in harsh environments including marine and offshore installations.

Superior Heat Resistance

Uncoated design provides maximum heat resistance up to 538°C, ideal for high-temperature industrial and aerospace applications.

Frequently Asked Questions

What are the key applications for Ball Lock Zigzag Tie Uncoated?

Ball Lock Zigzag Tie Uncoated is designed for applications where extensive vibration is present and positive locking is required. They're ideal for aerospace, oil & gas offshore, ship & marines, solar installations, telecom towers, utility infrastructure, and windmill energy systems requiring extreme temperature resistance.

What is the operating temperature range for Ball Lock Zigzag Tie Uncoated?

Ball Lock Zigzag Tie Uncoated operates reliably in temperatures from -80°C to +538°C (-112°F to +1000°F), making them suitable for extreme high-temperature and cryogenic applications.

What material grades are Ball Lock Zigzag Tie Uncoated available in?

Ball Lock Zigzag Tie Uncoated are available in both SS 316 (marine grade) and SS 304 (standard grade) stainless steel for excellent corrosion resistance without any coating.

What are the advantages of uncoated versus coated cable ties?

Uncoated stainless steel cable ties provide maximum heat resistance up to 538°C, making them ideal for high-temperature applications where coated ties would fail. They also offer pure metal-to-metal contact and are suitable for environments where coating degradation is a concern.

What width series and tensile strengths are available?

Available in two width series: Standard 4.6mm (60kg tensile strength) and Heavy Duty 7.9mm (170kg tensile strength). Lengths range from 200mm to 1000mm with both SS 316 and SS 304 material options.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Aerospace

Oil, Gas & Offshore

Telecom

Ship & Marines

Solar

Utility

windmill

What Our Clients Say About Us

Perfect for High Temperature Applications

The uncoated Ball Lock Zigzag ties are essential for our high-temperature industrial processes. They withstand temperatures up to 538°C without any degradation, which coated ties simply cannot handle.

Exceptional Vibration Resistance

We use these uncoated zigzag ties in our aerospace applications. The wave form design prevents any slippage even with constant vibration and movement. The extreme temperature range is perfect for our needs.

No Coating Degradation Concerns

For our marine applications, uncoated stainless steel is ideal. No concerns about coating degradation in salt water environments. The SS 316 grade provides excellent corrosion resistance with pure metal construction.

Two Width Options Perfect

Having both 4.6mm standard and 7.9mm heavy duty options allows us to choose the right strength for each application. The heavy duty series with 170kg strength is incredibly robust for demanding installations.

Cryogenic to High Heat Performance

The -80°C to +538°C operating range is unmatched. These uncoated ties perform consistently in both our cryogenic storage facilities and high-temperature process areas. Pure stainless steel construction is key.

Industrial Grade Quality

We require the highest quality cable ties for critical infrastructure. These uncoated zigzag ties meet all our requirements with excellent grip strength and the smooth edges make installation safe for our technicians.
