Ball Lock Steel Tie Uncoated Technical Drawing

Ball Lock Steel Tie Uncoated Application

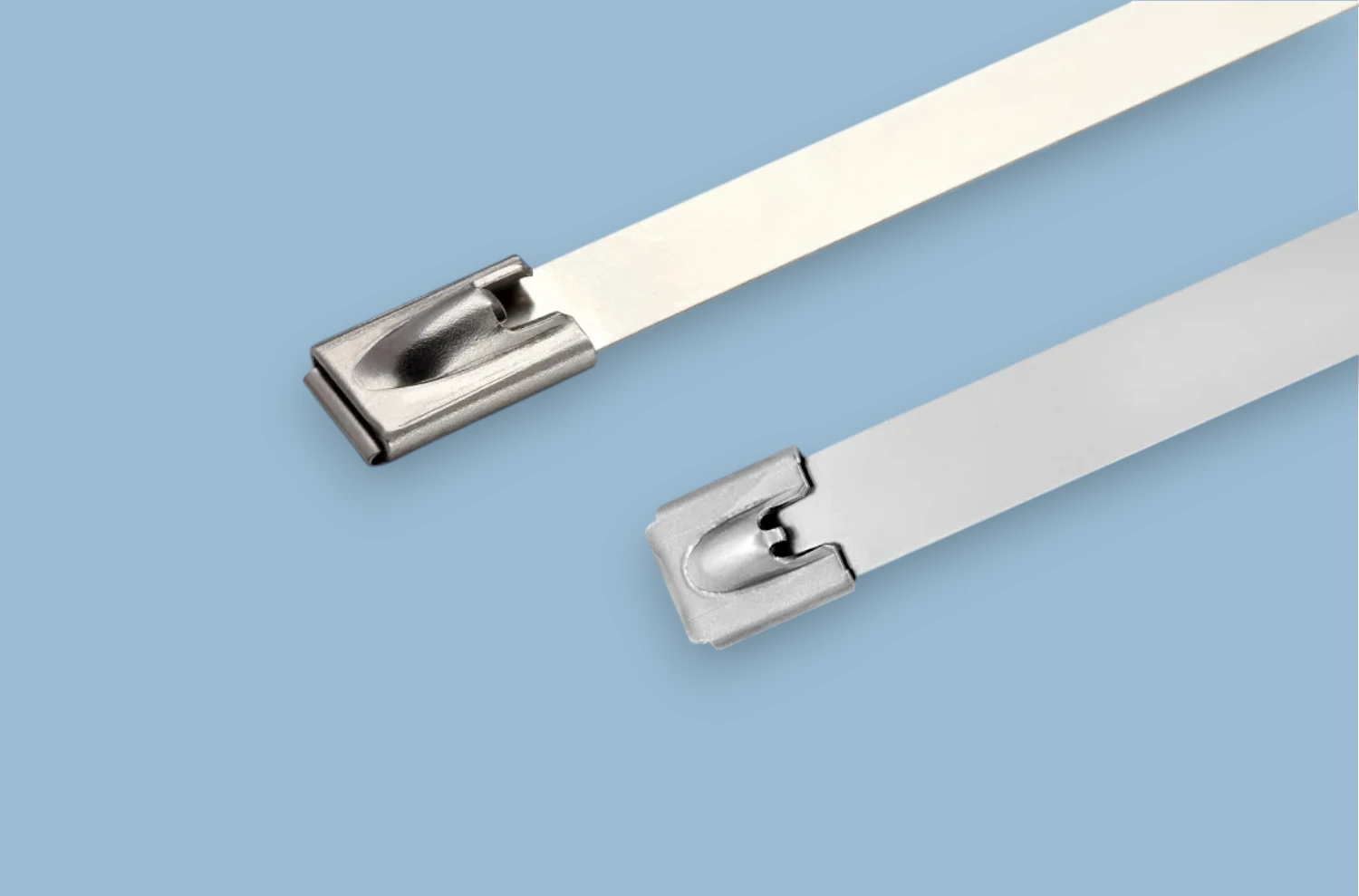

Ball Lock Steel Tie Uncoated

Material : Stainless Steel 316 or 304
Operating Temperature : -80°C to +538°C (-112°F to +1000°F)
Coating : Uncoated
Installation Method : By hand or with tool SST1, SST2
Locking Mechanism : Ball lock self-locking system
Packing : 100 pcs/bag in all sizes
Unit : 100 Pcs/Bag
Test Certificate : Available on request

Ball lock steel ties are self-locking. Fast & easy to install
When locked on bundles, the ball inside the angled ramp of the head provides positive locking
Smooth edges of ties provide utmost safety during installation
Suitable for corrosive climates, higher temperatures, and higher tensile strength requirements
Available in both SS 316 and SS 304 grades for different application needs
Wide operating temperature range from -80°C to +538°C
Available in 5 series (BL, BLH, BLEH, BLEHT, BLSH) with varying widths and strengths
Loop tensile strength ranging from 60kg to 400kg depending on series

Comprehensive range of Ball Lock Steel Tie Uncoated with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Engineered for Superior Performance

Self-Locking Ball Mechanism

Fast and easy to install with ball lock system. When locked on bundles, the ball inside the angled ramp of the head provides positive locking for permanent secure bundling.

Extreme Temperature Range

Operating temperature range from -80°C to +538°C ensures reliable performance in the most demanding environmental conditions from arctic to high-heat applications.

Corrosion Resistant

Available in SS 316 and SS 304 grades, suitable for corrosive climate conditions including marine, chemical, and offshore environments where corrosion resistance is critical.

Smooth Safe Edges

Smooth edges of ties provide utmost safety during installation, protecting installers from cuts and injuries while handling and managing cables.

Versatile Installation

Can be installed by hand for quick applications or with professional tools SST1 and SST2 for high-tension requirements and repetitive installations.

Multiple Series Options

Available in 5 series (BL, BLH, BLEH, BLEHT, BLSH) with widths from 4.6mm to 15.9mm and loop tensile strength from 60kg to 400kg for various bundling requirements.

Frequently Asked Questions

What are the key applications for Ball Lock Steel Tie Uncoated?

Ball Lock Steel Tie Uncoated is designed for corrosive climate conditions, higher temperature environments, and higher tensile strength requirements. They're ideal for aerospace, oil & gas, offshore, ship & marine, solar, telecom, utility, and windmill industries.

What is the operating temperature range for Ball Lock Steel Ties?

Ball Lock Steel Ties operate reliably in extreme temperatures from -80°C to +538°C (-112°F to +1000°F), making them suitable for arctic conditions, high-heat environments, and everything in between.

What material grades are Ball Lock Steel Ties available in?

Ball Lock Steel Ties are available in both Stainless Steel 316 (SS 316) and Stainless Steel 304 (SS 304) grades. Both are uncoated and feature a ball lock self-locking mechanism for positive locking.

How are Ball Lock Steel Ties installed?

These ties are self-locking and can be installed quickly by hand for convenience. For high-tension applications or repetitive installations, they can be installed with the help of tools SST1 or SST2 for professional results.

What series and tensile strengths are available?

Available in 5 series: BL Series (4.6mm, 60kg), BLH Series (7.9mm, 170kg), BLEH Series (12.7mm, 267kg), BLEHT Series (12.7mm thick, 310kg), and BLSH Series (15.9mm, 400kg). Lengths range from 100mm to 1000mm.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Aerospace

Oil, Gas & Offshore

Telecom

Ship & Marines

Solar

Utility

windmill

What Our Clients Say About Us

Perfect for Offshore Applications

The coated stainless steel ties provide excellent corrosion resistance for our offshore installations. The protective coating withstands harsh marine environments perfectly.

Excellent Temperature Range

We use these coated steel ties in extreme temperature conditions from -60°C to +130°C. The coating remains intact and the ties maintain their strength throughout.

Safe and Easy Installation

The smooth edges on these coated ties make installation much safer for our technicians. Combined with the STT tools, the installation process is fast and reliable.

Heavy Duty Strength

The 12mm heavy duty series with 111kg tensile strength is perfect for our wind turbine cable management. They handle the constant vibration without any issues.

Multiple Material Options

Having both SS 316 and SS 304 options with Polyester or Nylon coating allows us to choose based on specific corrosive environment requirements. Very versatile product line.

UV Resistant Coating

The UV resistant coating protects the ties in our outdoor utility installations. After two years of sun exposure, the coating still looks and performs like new.
