SS Band Fixed Length Coated Technical Drawing

SS Band Fixed Length Coated

Material : Stainless Steel (SS 316 / SS 201)
Operating Temperature : -80°C to +150°C (-112°F to +302°F)
Coating Type : Black Polyester
Coating Properties : Non-toxic, Halogen free, Low smoke, UV resistant
Standard Thickness : 0.5mm (0.019")
Packing : 50 Pcs box / 25 Pcs box
Unit : Per Box
Application : Clamps hose, poles, pipes, cables etc.

Ready to use & pre-assembled band with a clip
Speedy installation thus saves time & labour
Coated band provides long term life in corrosive climate condition
Smooth edges of band provide utmost safety while installation
Coating material is non-toxic, halogen free, low smoke and UV resistant

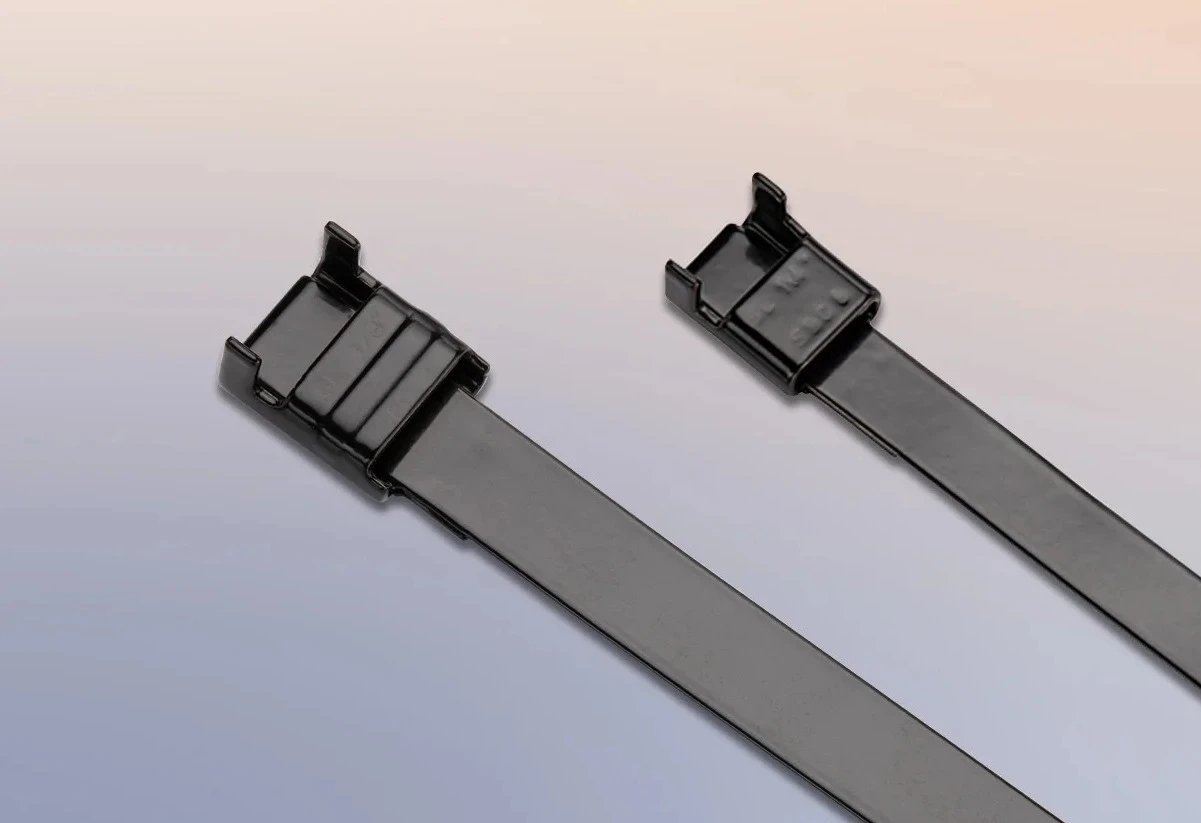

Pre-assembled stainless steel band with clip, coated with black polyester for corrosion resistance. Available in multiple width options (1/4", 1/2", 5/8", 3/4") and lengths from 12" to 41" in both SS 316 and SS 201 grades for various clamping applications.

Pre-Assembled for Fast Installation

Ready to Use

Pre-assembled band with clip ready for immediate use, eliminating preparation time and ensuring consistent quality in every installation.

Speedy Installation

Quick installation process saves valuable time and labour costs, making it ideal for high-volume clamping applications.

Safe Handling

Smooth edges of band provide utmost safety during installation, reducing the risk of injury to installers and maintenance personnel.

UV Resistant Coating

Non-toxic, halogen-free, low smoke coating material with exceptional UV resistance for long-lasting outdoor performance.

Corrosion Resistant

Coated stainless steel construction provides long-term life in corrosive climate conditions including marine and offshore environments.

Wide Temperature Range

Operating temperature range from -80°C to +150°C ensures reliable performance in extreme environmental conditions from arctic to desert climates.

Frequently Asked Questions

What are the key applications for SS Band Fixed Length Coated?

SS Band Fixed Length Coated is ideal for clamping hose, poles, pipes, cables and similar applications in oil & gas offshore, ship & marines, utility infrastructure, and windmill energy systems where corrosion resistance is critical.

What is the operating temperature range for SS Band Fixed Length Coated?

SS Band Fixed Length Coated operates reliably in temperatures from -80°C to +150°C (-112°F to +302°F), making them suitable for extreme environmental conditions.

What material grades are SS Band Fixed Length Coated available in?

SS Band Fixed Length Coated are available in both SS 316 and SS 201 stainless steel grades with black polyester coating for enhanced corrosion resistance.

What makes the coating special on these bands?

The black polyester coating is non-toxic, halogen-free, low smoke, and UV resistant. This provides long-term life in corrosive climate conditions while meeting safety standards for various industrial applications.

What width and length options are available?

Available in four width options: 1/4" (6.3mm), 1/2" (12.7mm), 5/8" (15.9mm), and 3/4" (19.0mm). Lengths range from 12" (305mm) to 41" (1041mm) with tensile strengths from 140kg to 408kg.
