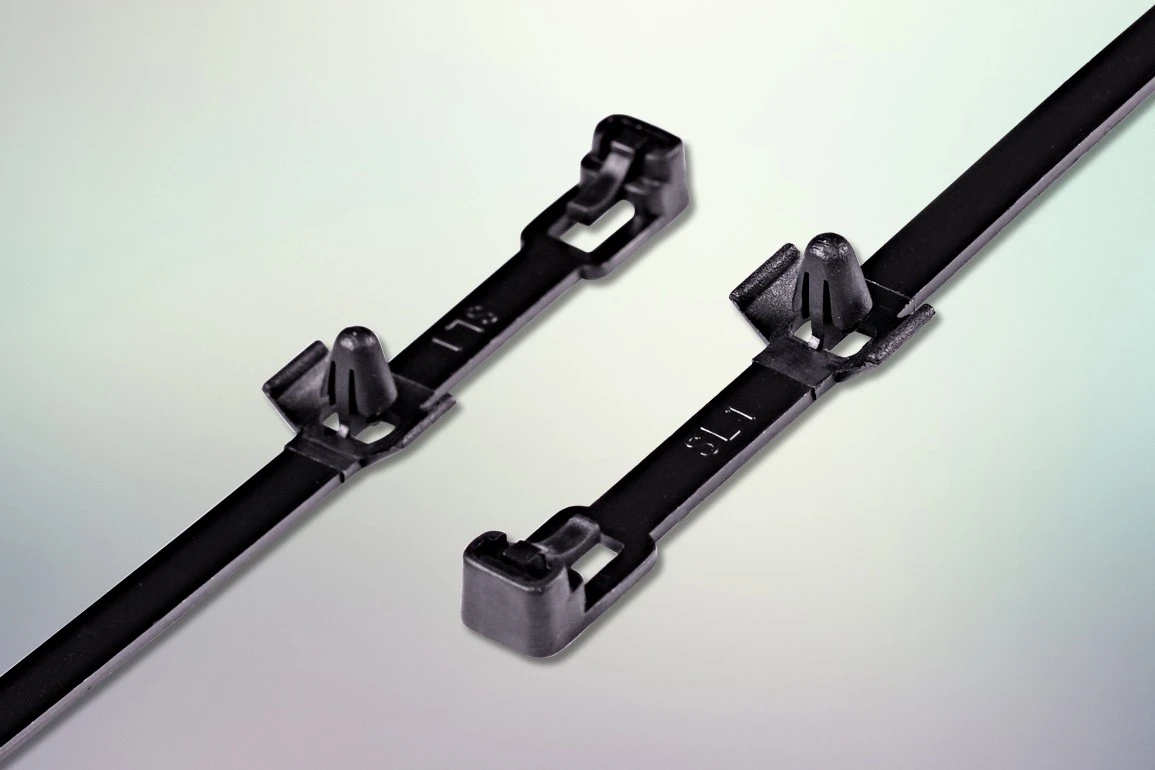

Inside Push Mount Releasable Tie Thumb Release

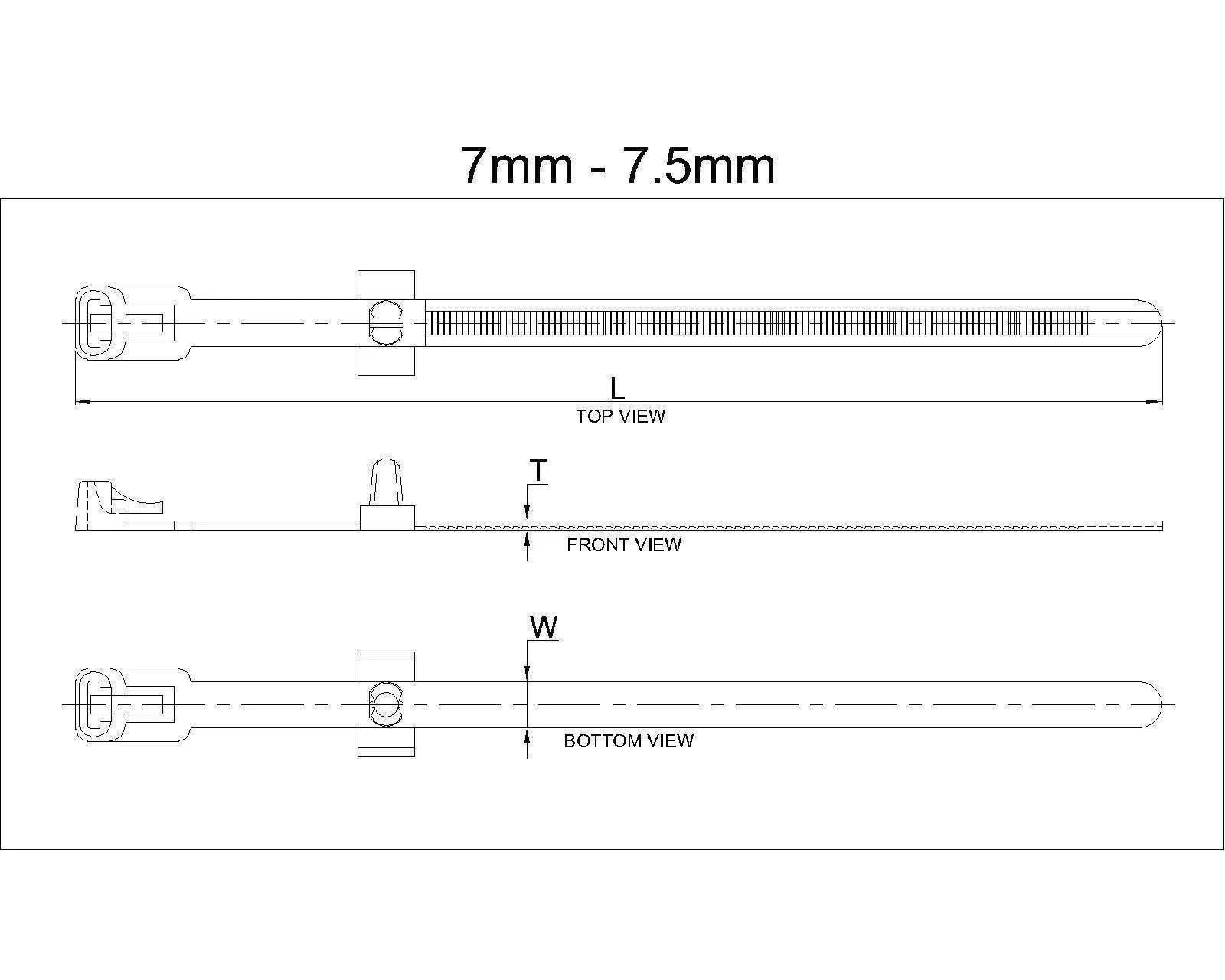

Inside Push Mount Releasable Tie Thumb Release Technical Drawing

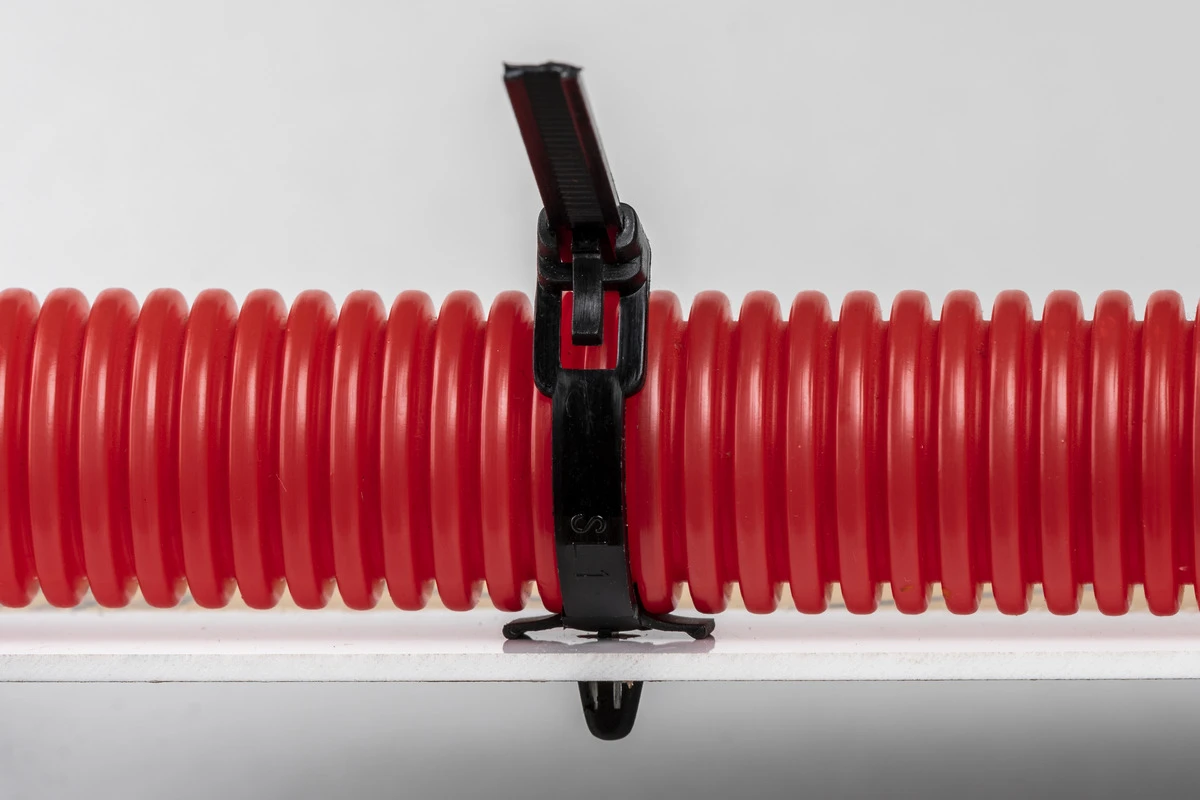

Inside Push Mount Releasable Tie Thumb Release Application

Inside Push Mount Releasable Tie Thumb Release

Material : Nylon 66
Operating Temperature : -40°C to +85°C (-40°F to +185°F)
Colour : Natural, Black
Installation : By hand - push mount tie head pressed into pre-drilled hole
Packing : 100 pcs bag in all sizes
Unit : 100 Pcs/Pkt
Flammability Rating : UL 94V-2
Mount Type : Inside Push Mount

Quick and simple cable mounting
One piece construction design eliminates the use of screw or adhesive mounts, providing secure hold for bundles on chassis
Push mount tie head can be easily pressed into pre-drilled hole and hold wire bunch securely
Thumb release button allows easy opening and repositioning of wire bundles when changes are required

Comprehensive range of Inside Push Mount Releasable Tie Thumb Release with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Engineered for Superior Performance

Thumb Release Function

Thumb release button allows easy opening of wire bundles when changes are required, enabling reusability and flexibility for maintenance and modifications.

Inside Push Mount Design

Push mount tie head easily presses into pre-drilled hole from inside. One-piece construction eliminates screws or adhesive mounts for quick installation.

Reusable & Adjustable

Unlike non-releasable ties, the thumb release mechanism allows opening and reclosing multiple times, ideal for applications requiring frequent adjustments or modifications.

Vibration Resistant

Designed for harness assembly where constant vibration occurs. Perfect for automobile, electrical/electronics, and white goods industries requiring secure mounting.

Wide Temperature Range

Operating temperature from -40°C to +85°C with UL 94V-2 flammability rating ensures reliable performance in automotive and appliance environments.

Extended Size Range

Available in 5 sizes from 150mm to 380mm length with 22kg tensile strength, accommodating bundle diameters from 32mm to 105mm with 6.0mm hole diameter.

Frequently Asked Questions

What is the thumb release feature in these cable ties?

The thumb release button allows you to easily open and reclose the wire bundle when changes are required. This makes the tie reusable and ideal for applications where you need to add, remove, or reorganize cables during maintenance or modifications without cutting the tie.

How does the inside push mount installation work?

The push mount tie head is easily pressed by hand into a pre-drilled hole (6.0mm diameter) from the inside of the surface. The one-piece construction eliminates the need for screws or adhesive mounts, providing quick installation and secure holding of wire bunches on chassis of vehicles, ACs, and coolers.

What are the advantages of releasable ties over non-releasable ones?

Releasable ties with thumb release can be opened and reclosed multiple times, making them reusable and cost-effective for applications requiring frequent changes. This is especially valuable in maintenance scenarios, prototyping, or installations where cable configurations may need adjustment without replacing the tie.

What sizes are available for Inside Push Mount Releasable Ties?

Available in 5 sizes: 150mm (32mm bundle), 200mm (50mm bundle), 250mm (65mm bundle), 300mm (80mm bundle), and 380mm (105mm bundle). All sizes have 22kg tensile strength, require 6.0mm hole diameter, and come in Natural or Black colors.

Where are Inside Push Mount Releasable Ties commonly used?

These ties are ideal for automobile, electrical/electronics, and white goods & appliances industries. They're used for harness assembly on chassis of vehicles, ACs, coolers, and other applications where constant vibration occurs and where the ability to release and adjust bundles is valuable.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Automobile

White Goods & Appliances

What Our Clients Say About Us

Perfect for Automotive Assembly

The inside push mount easy release ties are ideal for our automotive harness assembly lines. The easy release feature saves us significant time during rework and the vibration resistance is excellent.

One-Piece Design Saves Time

We switched to these push mount ties for our appliance assembly. The one-piece design eliminated the need for separate mounts and screws, significantly reducing our assembly time and costs.

Easy Installation, No Tools

The tool-free installation is a game-changer for our technicians. They can quickly press these ties into place without carrying additional tools, making fieldwork much more efficient.

Excellent for Maintenance

The easy release mechanism is invaluable for maintenance operations. We can quickly access wiring without cutting ties, then reuse the same ties after completing the work.

Reliable Under Vibration

We use these ties extensively in our commercial vehicle wiring harnesses. They remain secure even under constant engine vibration and temperature changes - absolutely reliable.

UL Rated Quality

The UL 94V-2 flammability rating gives us confidence in using these ties for all our electrical enclosures. Quality is consistent and meets all our safety requirements.
