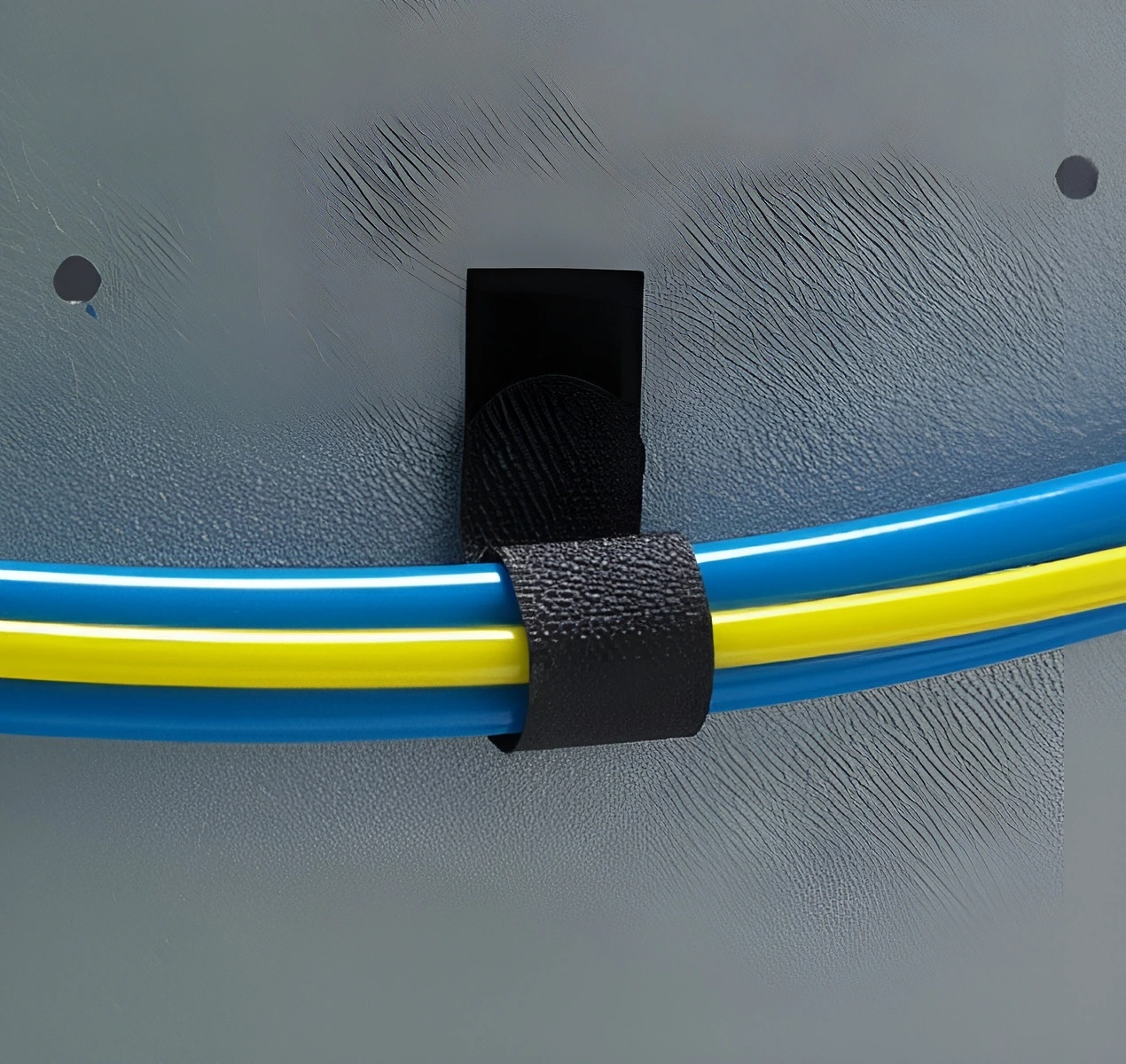

Hook 'N' Loop Wrap Strap (Back to Back) Technical Drawing

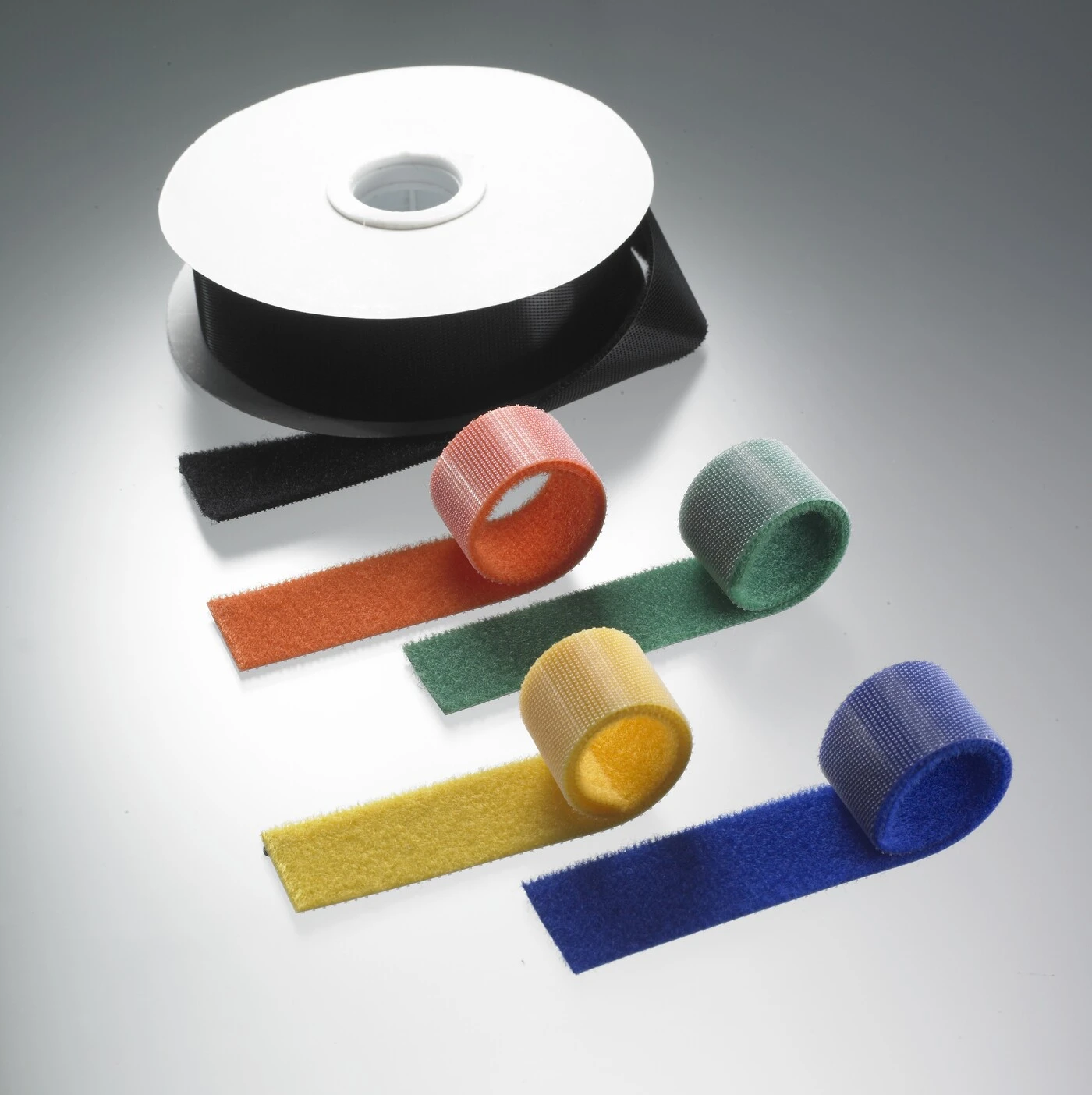

Hook 'N' Loop Wrap Strap (Back to Back) Application

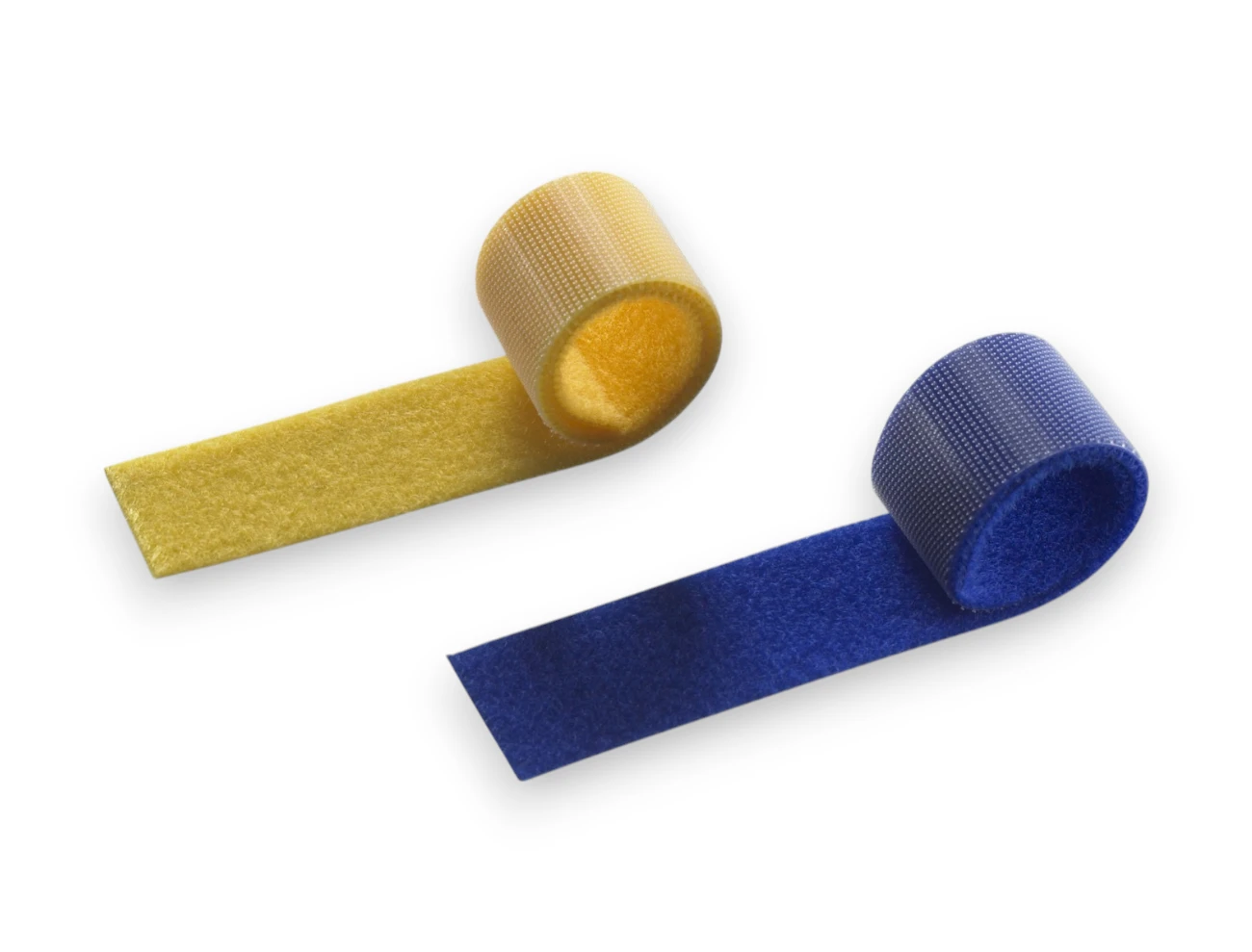

Hook 'N' Loop Wrap Strap (Back to Back)

Material (Hook) : Nylon 66 (PA-66) monofilaments woven
Material (Loop) : Nylon 6 (PA-6) multifilaments woven
Flammability Rating : UL 94 HB
Color : Black (standard), other colors available against order
Operating Temperature : -20°C to +85°C
Peel-off Strength : 25N/cm (initial), 2.12N/cm (after 5000 cycles)
Shear Strength : 10N/cm (initial), 7.5N/cm (after 5000 cycles)
Packing : 5 meters per roll
Tolerance (Width) : ±0.5mm

Our economical design features a quick & easy bundling of cables & wires
Premium Nylon 66 construction

Comprehensive range of Hook 'N' Loop Wrap Strap with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Engineered for Cable Identification

Reusable & Adjustable

Hook and loop fastening system allows unlimited opening and reclosing, providing economical and flexible cable management without cutting ties.

Gentle on Cables

Soft woven material designed for sensitive cable bunching that doesn't require industrial strength. Ideal for delicate wiring in networking and telecom applications.

Quick & Easy Installation

Economical design features quick and easy bundling of cables and wires. Simply wrap around bundle and press together for instant secure hold.

Long-Lasting Durability

Maintains strong holding power even after 5000 cycles. Peel-off strength: 25N/cm initial, 2.12N/cm after 5000 cycles. Shear strength: 10N/cm initial, 7.5N/cm after 5000 cycles.

Temperature Resistance

Operating temperature range from -20°C to +85°C with UL 94 HB flammability rating ensures reliable performance in various networking and telecom environments.

Customizable Lengths

Supplied in 5-meter rolls in three widths (16mm, 20mm, 25mm) with tensile strengths from 19kg to 25kg. Cut to any length needed for your application.

Frequently Asked Questions

What is Hook 'N' Loop Wrap Strap and how does it work?

Hook 'N' Loop Wrap Strap (Back to Back) features a woven fastening system with hooks on one side and loops on the other. Simply wrap it around your cable bundle and press the ends together for instant secure hold. It's designed for sensitive cable bunching in networking and telecom applications that don't require industrial-strength ties.

What are the advantages of Hook 'N' Loop straps over plastic cable ties?

Hook 'N' Loop straps are reusable and adjustable, allowing unlimited opening and reclosing without cutting. They're gentle on sensitive cables, economical for long-term use, and perfect for applications requiring frequent changes or adjustments. The soft woven material won't damage cable insulation or delicate wiring.

What materials are Hook 'N' Loop Wrap Straps made from?

The hook side is made from woven Nylon 66 (PA-66) monofilaments, while the loop side is made from woven Nylon 6 (PA-6) multifilaments. This combination provides optimal grip strength and durability with a UL 94 HB flammability rating.

How many times can Hook 'N' Loop straps be reused?

Hook 'N' Loop Wrap Straps maintain reliable performance after 5000 open/close cycles. Initial peel-off strength is 25N/cm (2.12N/cm after 5000 cycles), and shear strength is 10N/cm initially (7.5N/cm after 5000 cycles), demonstrating excellent long-term durability.

What sizes are available for Hook 'N' Loop Wrap Straps?

Available in 5-meter rolls in three widths: 16mm (19kg tensile strength), 20mm (22kg tensile strength), and 25mm (25kg tensile strength). Standard color is Black, with other colors available against order. Cut to any length needed for your specific application.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Telecom

Networking
