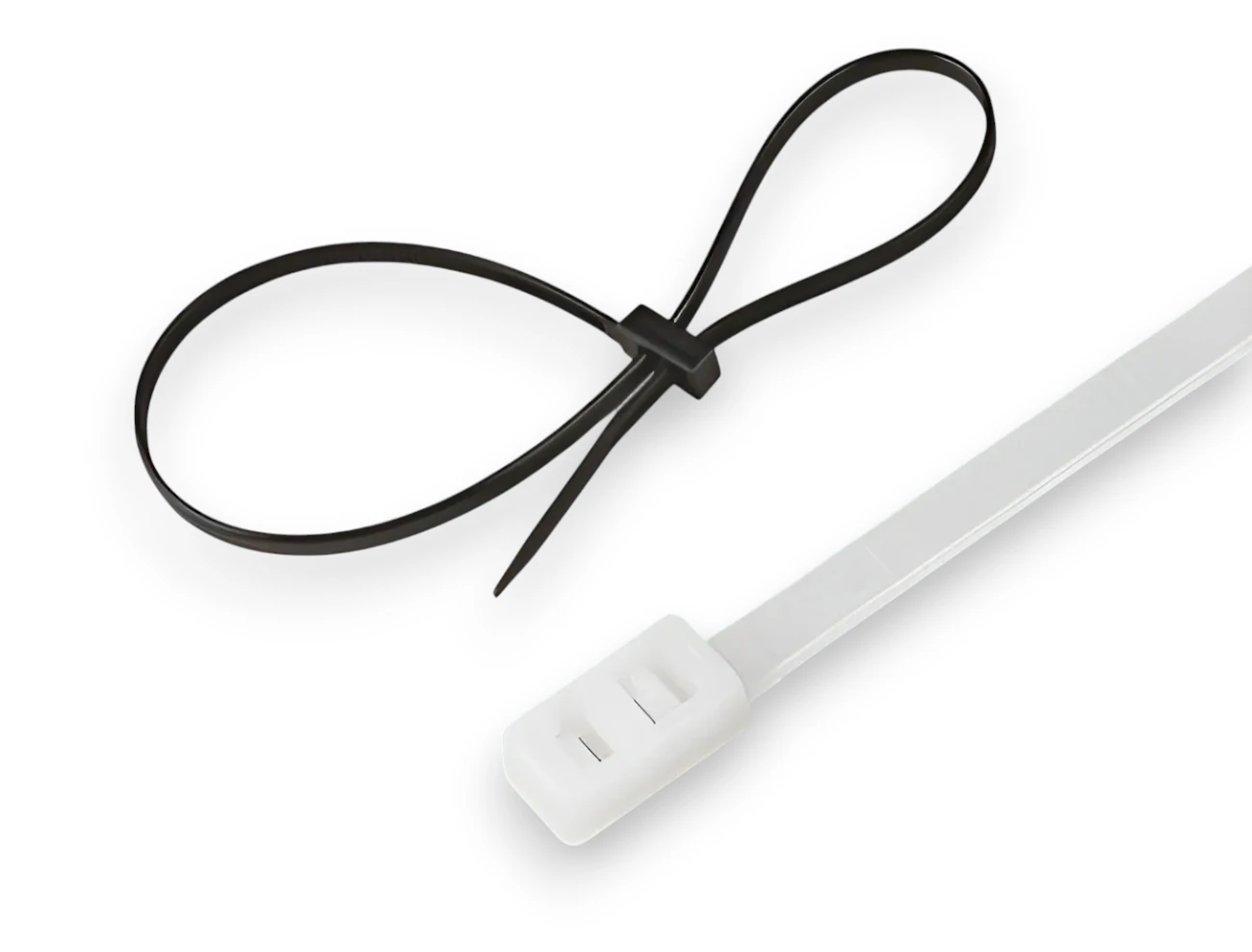

Double Loop Tie

Material : Nylon 66
Operating Temperature : -40°C to +85°C (-40°F to +185°F)
Colour : Natural, Black
Installation : By hand or tool cat no.TT3, TT4, TT5
Packing : 100 pcs bag in all sizes
Unit : 100 Pcs/Pkt
Flammability Rating : UL 94V-2
Test Certificate: : CE Recognized / ROHS Compliance

Possibility to separate bundles with only one cable tie
Allows to hold different diameter bundles

Comprehensive range of Double Loop Tie with varying lengths, widths, and tensile strengths for diverse applications.

Engineered for Superior Performance

Dual Loop Design

Two independent loops in one cable tie allow separation of bundles while using only one tie, providing efficient cable management for parallel routing applications.

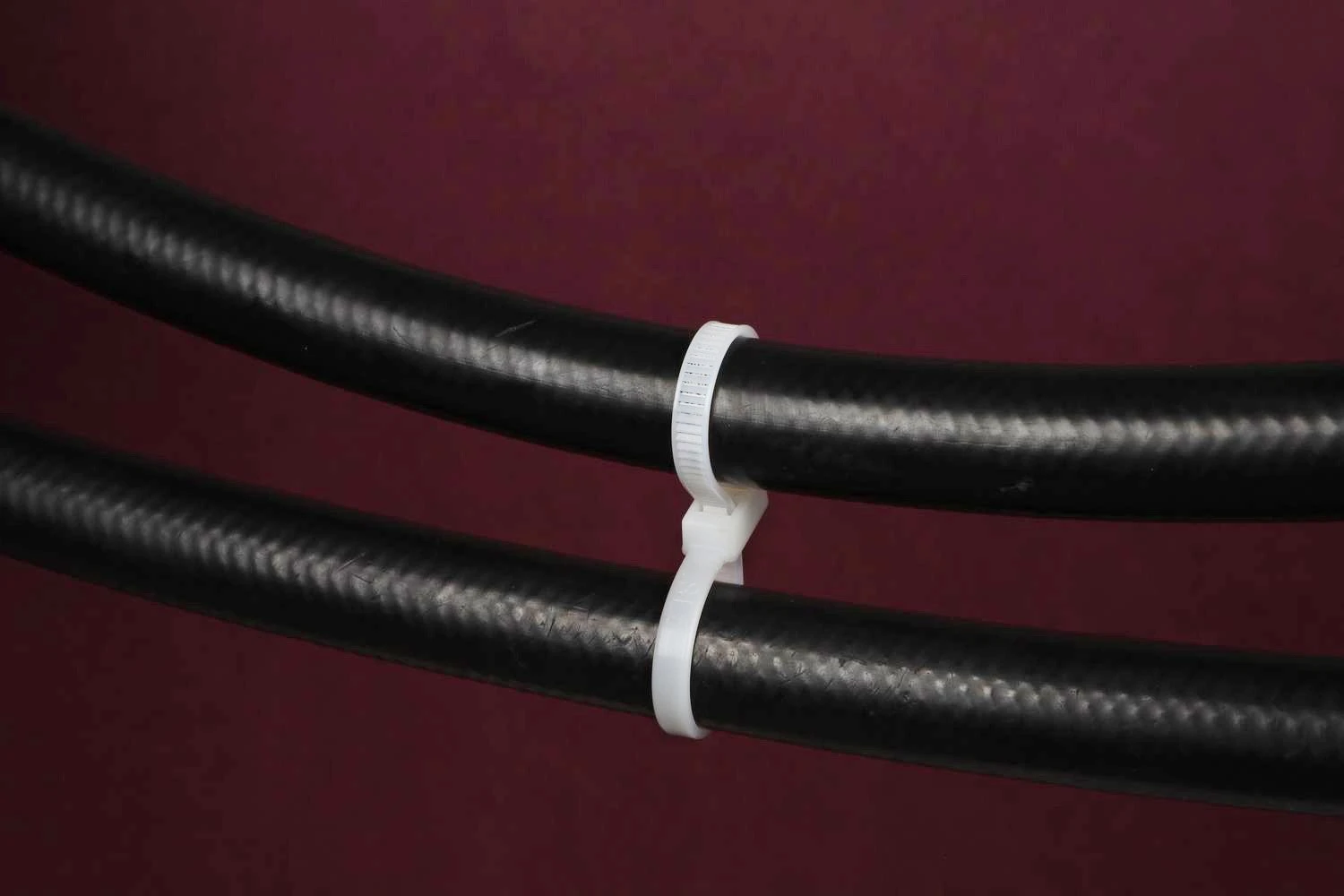

Parallel Cable Routing

Ideal for tying two parallel routing cables or packing bags, keeping cables organized side-by-side while maintaining separation between different wire groups.

Different Diameter Bundles

Allows holding bundles of different diameters in each loop. 1st loop: 22kg tensile strength, 2nd loop: 18kg tensile strength for versatile bundling options.

CE Recognized & ROHS Compliant

CE recognized with ROHS compliance, meeting international quality and safety standards. Made from high-strength Nylon 66 for reliable performance.

Wide Temperature Range

Operating temperature from -40°C to +85°C with UL 94V-2 flammability rating ensures reliable performance in automobile, solar, telecom, and electronics applications.

Multiple Size Options

Available in 3 sizes from 225mm to 373mm length, accommodating bundle diameters from 57mm to 103mm in Natural and Black colors.

Frequently Asked Questions

What are Double Loop Ties and how do they work?

Double Loop Ties feature two independent loops in a single cable tie, allowing you to separate and secure two different cable bundles side-by-side. This design enables parallel routing of cables while maintaining organization and separation, ideal for automobile, electrical/electronics, solar, and telecom applications.

What are the advantages of using Double Loop Ties?

Double Loop Ties allow you to separate bundles using only one cable tie instead of two, reducing material costs and installation time. Each loop can hold different diameter bundles, providing versatility for mixed cable management applications such as tying parallel routing cables or packing bags.

What are the tensile strength specifications for Double Loop Ties?

Double Loop Ties have different tensile strengths for each loop: the 1st loop has 22 kg (49 lbs) tensile strength, while the 2nd loop has 18 kg (40 lbs) tensile strength. This allows for secure bundling of different cable sizes within the same tie.

What sizes are available for Double Loop Ties?

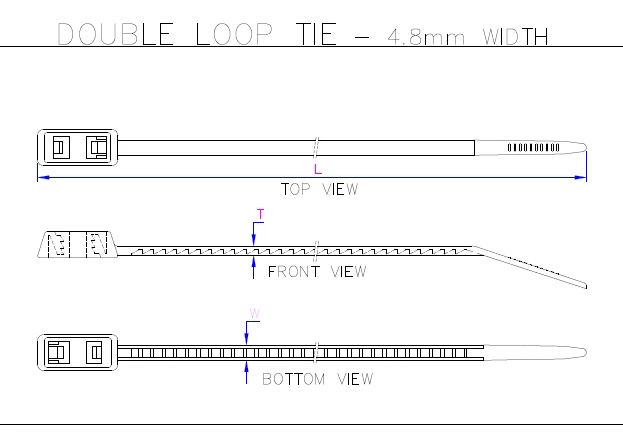

Double Loop Ties are available in 3 sizes: 225mm (57mm max bundle diameter), 300mm (81mm max bundle diameter), and 373mm (103mm max bundle diameter). All sizes are 4.8mm wide and available in Natural or Black colors with 100 pieces per pack.

In which industries are Double Loop Ties commonly used?

Double Loop Ties are ideal for automobile, electrical/electronics, solar, and telecom industries. They're perfect for applications requiring parallel cable routing, keeping different wire groups organized side-by-side, and any situation where two separate bundles need to be secured with proper separation.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Automobile

White Goods & Appliances

What Our Clients Say About Us

Perfect for Automotive Assembly

The inside push mount easy release ties are ideal for our automotive harness assembly lines. The easy release feature saves us significant time during rework and the vibration resistance is excellent.

One-Piece Design Saves Time

We switched to these push mount ties for our appliance assembly. The one-piece design eliminated the need for separate mounts and screws, significantly reducing our assembly time and costs.

Easy Installation, No Tools

The tool-free installation is a game-changer for our technicians. They can quickly press these ties into place without carrying additional tools, making fieldwork much more efficient.

Excellent for Maintenance

The easy release mechanism is invaluable for maintenance operations. We can quickly access wiring without cutting ties, then reuse the same ties after completing the work.

Reliable Under Vibration

We use these ties extensively in our commercial vehicle wiring harnesses. They remain secure even under constant engine vibration and temperature changes - absolutely reliable.

UL Rated Quality

The UL 94V-2 flammability rating gives us confidence in using these ties for all our electrical enclosures. Quality is consistent and meets all our safety requirements.
