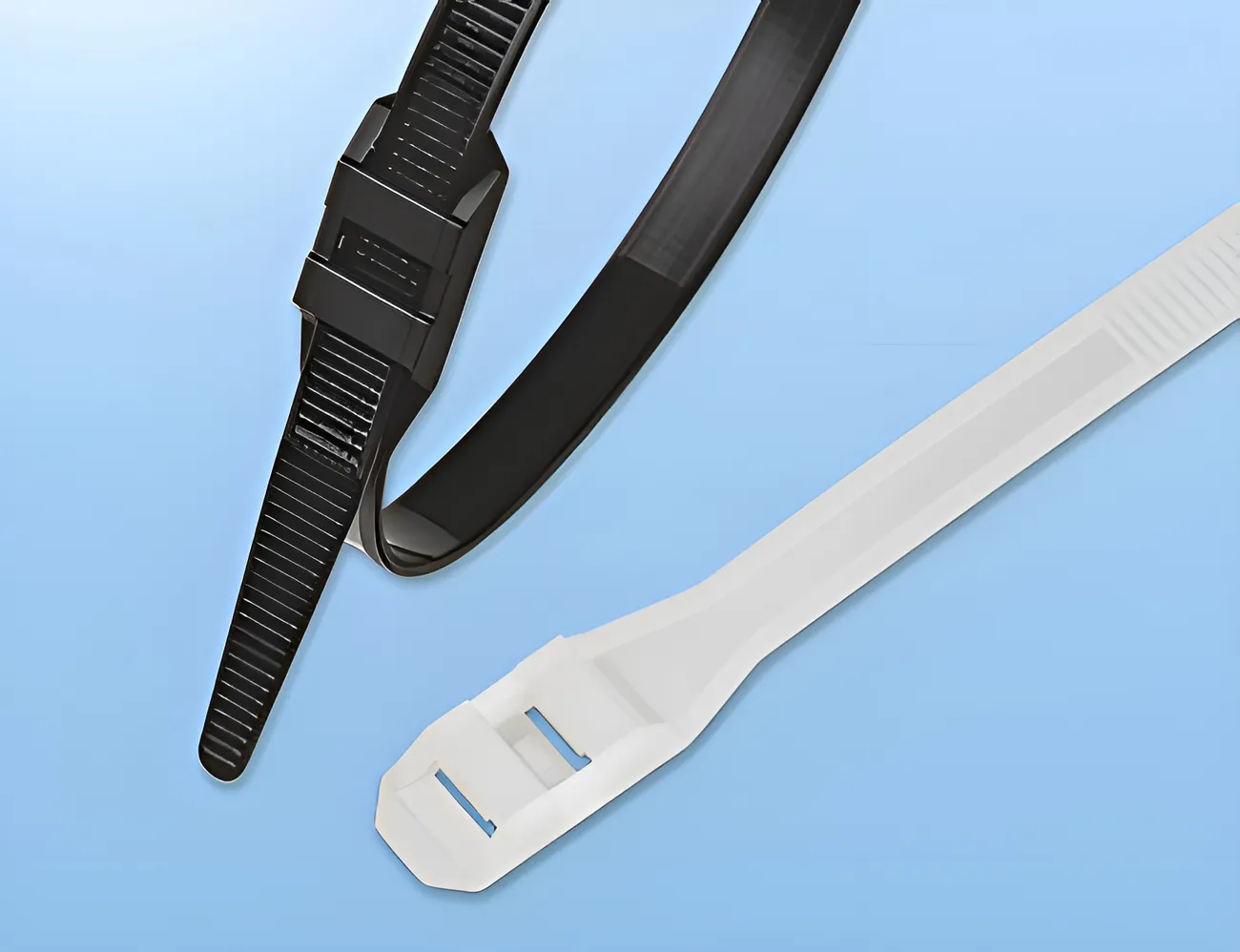

Double Lock Tie

Material : Nylon 66
Operating Temperature : -40°C to +85°C (-40°F to +185°F)
Colour : Natural, Black ,UV Black
Installation : By hand or tool cat no.TT5
Packing : 100 pcs bag in all sizes
Unit : 100 Pcs/Pkt
Flammability Rating : UL 94V-2
Test Certificate: : CE Recognized / ROHS Compliance

Provides better tensile strength as compared to standard ties.
Outer side serrations on tie eliminates the risk of damaging cables
Double locking head offers firm gripping without sliping

Comprehensive range of Double Lock Tie with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Engineered for Superior Performance

Double Locking Head

Double locking head offers firm gripping without slipping, providing superior hold and security for heavy-duty bundling in utility and construction industries.

Superior Tensile Strength

Provides 55 kg (121 lbs) tensile strength—better than standard ties. Ideal for demanding applications requiring extra holding power and reliability.

Cable Protection Design

Outer side serrations eliminate the risk of damaging cables during bundling, ensuring safe wire management without cutting or abrading cable insulation.

CE Recognized & ROHS Compliant

CE recognized with ROHS compliance, meeting international quality standards. Made from high-strength Nylon 66 for reliable heavy-duty performance.

Three Color Options

Available in Natural, Black, and UV Black colors. UV Black option provides enhanced weather resistance for outdoor applications in solar, telecom, and windmill installations.

Heavy-Duty Size Range

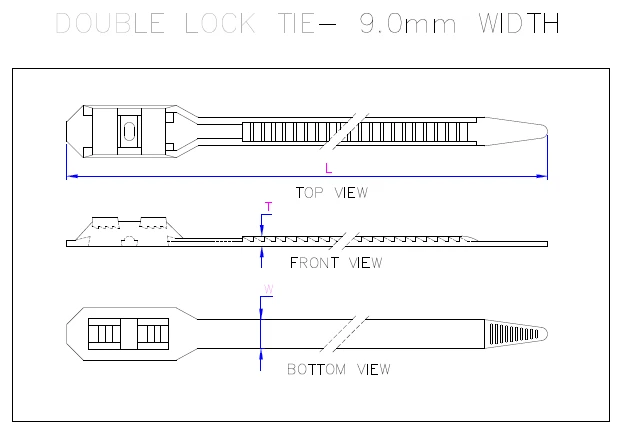

Available in 4 sizes from 235mm to 510mm length with 9mm width, accommodating bundle diameters from 52mm to 139mm for large cable bundles.

Frequently Asked Questions

What makes Double Lock Ties different from standard cable ties?

Double Lock Ties feature a double locking head mechanism that offers firm gripping without slipping and provides superior tensile strength (55 kg) compared to standard ties. The outer side serrations protect cables from damage, making them ideal for utility, construction, automobile, locomotive, solar, telecom, and windmill applications.

How does the double locking mechanism work?

The double locking head design provides two points of engagement with the tie strap, ensuring a firm grip that prevents slipping even under heavy loads. This mechanism delivers superior holding power and reliability, especially important for heavy-duty bundling in construction and utility industries.

Why do Double Lock Ties have outer side serrations?

The outer side serrations (teeth on the outside of the tie) eliminate the risk of damaging cables during installation and use. Unlike standard ties with inner serrations that can potentially cut or abrade cable insulation, this design protects wire integrity while maintaining secure bundling.

What sizes and colors are available for Double Lock Ties?

Double Lock Ties are available in 4 sizes: 235mm (52mm bundle), 300mm (72mm bundle), 360mm (91mm bundle), and 510mm (139mm bundle). All are 9mm wide with 55kg tensile strength and come in Natural, Black, or UV Black colors, packaged 100 pieces per bag.

What industries use Double Lock Ties?

Double Lock Ties are designed for securing and bundling cables in utility and construction industries. They're widely used in automobile, electrical/electronics, locomotive, solar, telecom, utility, and windmill sectors where heavy-duty performance, cable protection, and reliable holding power are essential.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Automobile

Locomotive

Solar

Telecom

Windmill

What Our Clients Say About Us

Perfect for Automotive Assembly

The inside push mount easy release ties are ideal for our automotive harness assembly lines. The easy release feature saves us significant time during rework and the vibration resistance is excellent.

One-Piece Design Saves Time

We switched to these push mount ties for our appliance assembly. The one-piece design eliminated the need for separate mounts and screws, significantly reducing our assembly time and costs.

Easy Installation, No Tools

The tool-free installation is a game-changer for our technicians. They can quickly press these ties into place without carrying additional tools, making fieldwork much more efficient.

Excellent for Maintenance

The easy release mechanism is invaluable for maintenance operations. We can quickly access wiring without cutting ties, then reuse the same ties after completing the work.

Reliable Under Vibration

We use these ties extensively in our commercial vehicle wiring harnesses. They remain secure even under constant engine vibration and temperature changes - absolutely reliable.

UL Rated Quality

The UL 94V-2 flammability rating gives us confidence in using these ties for all our electrical enclosures. Quality is consistent and meets all our safety requirements.
