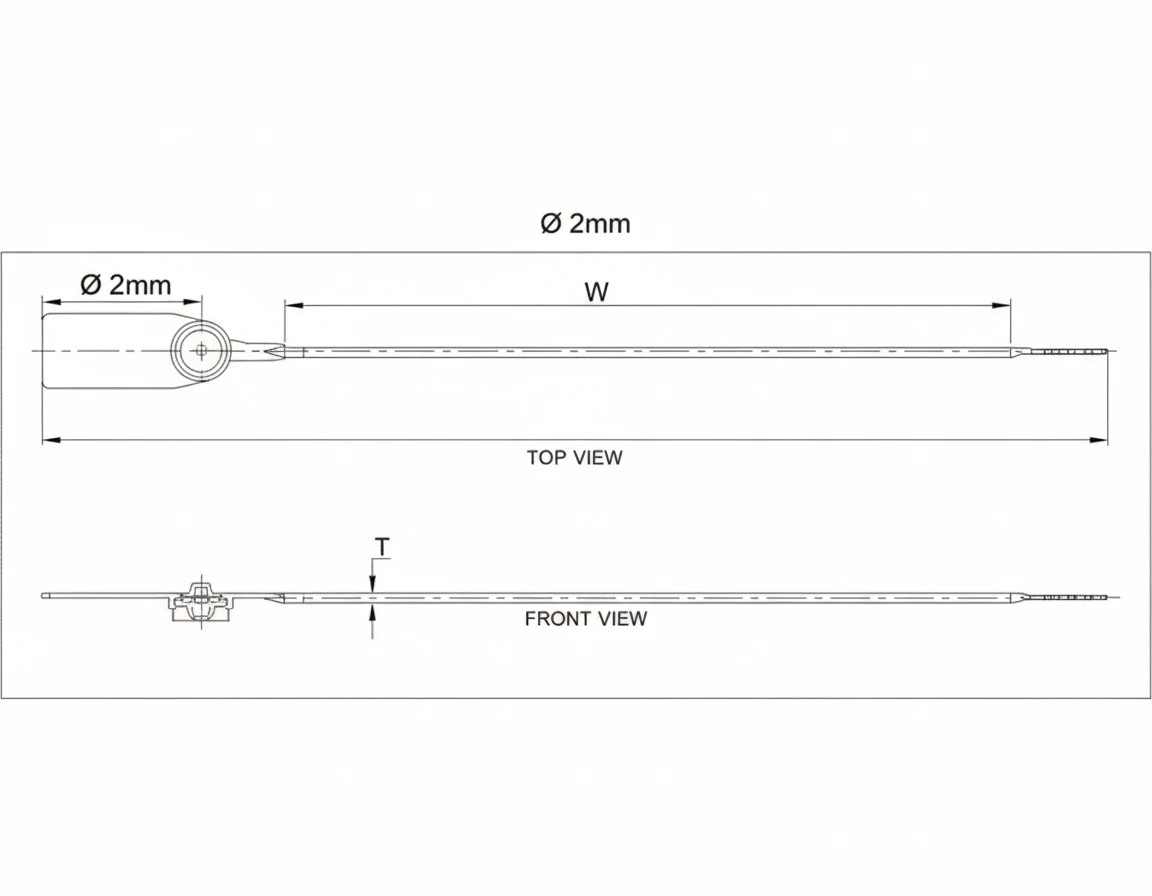

Round Metal Lock Security Seal Technical Drawing

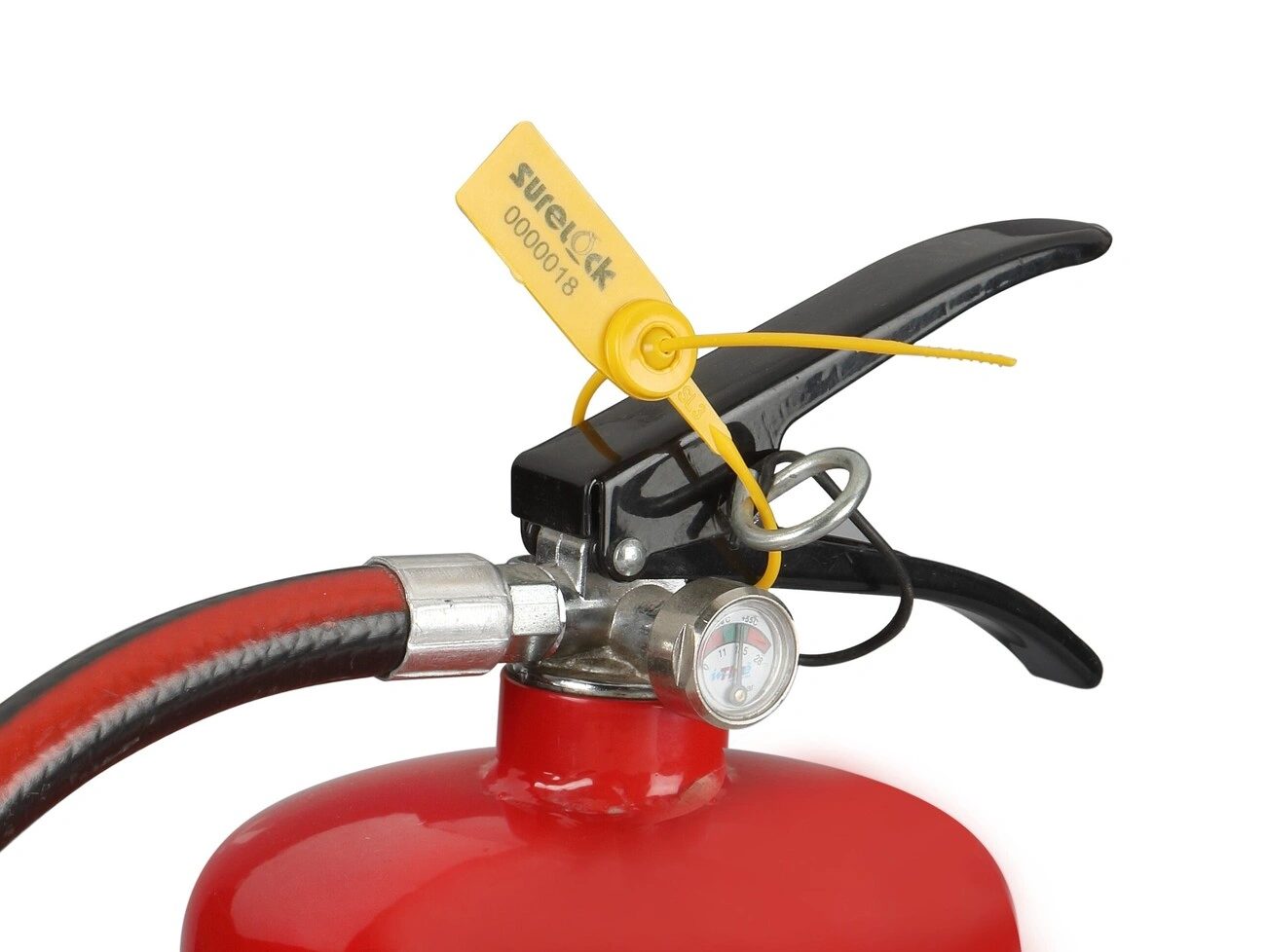

Round Metal Lock Security Seal Application

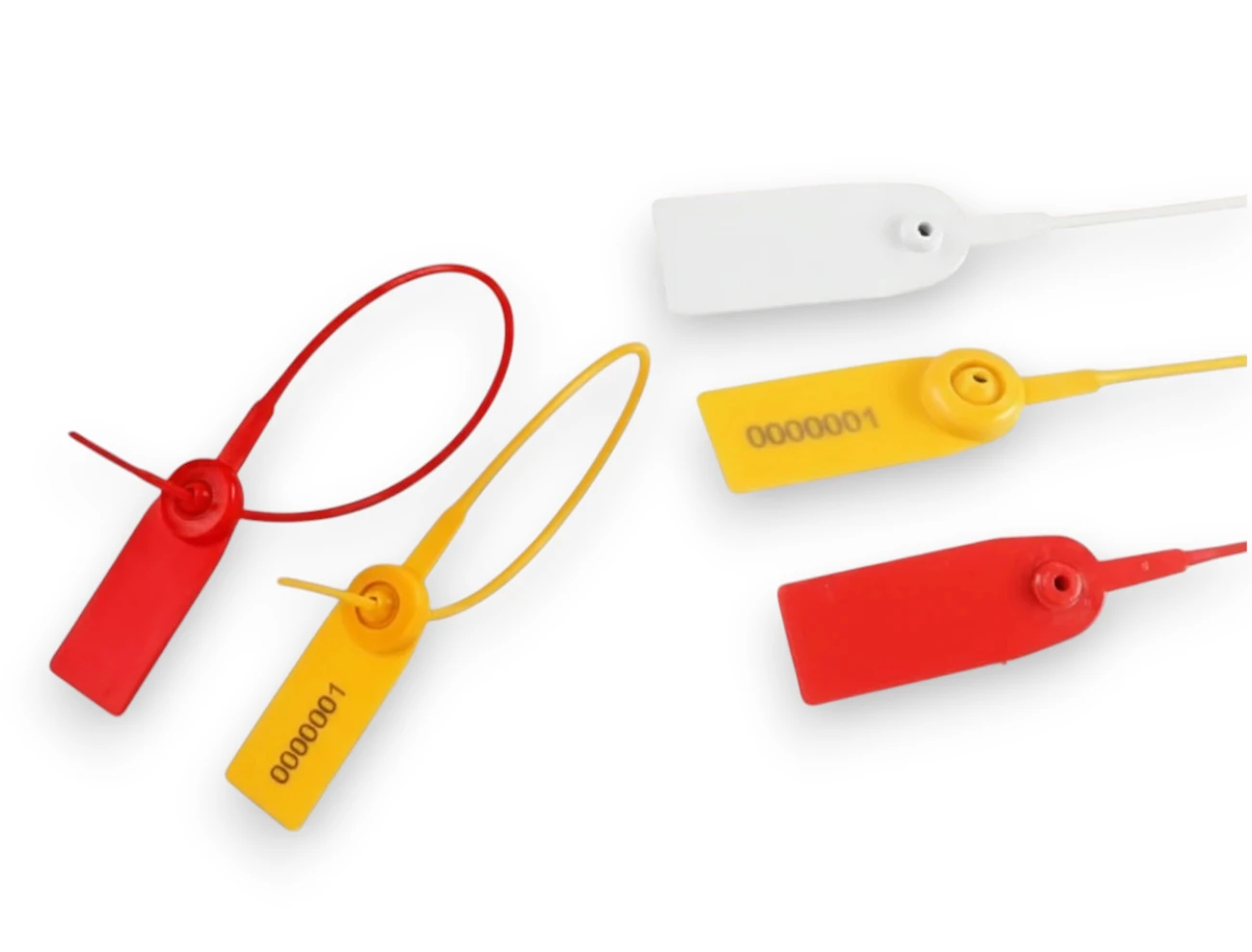

Round Metal Lock Security Seal

Material : Polypropylene (PP) and Metal for Insert lock
Colour : Red, Yellow, Blue, Green, Orange, White (Other colors available upon request)
Operating Temperature : -40°C to +85°C
Unit : 100 Pcs/Pkt

Thin round sealing strap designed to fit most locking rings and equipment locks
Ultrasonic welding makes seal secure and tamper proof
Gripping spike provided for use on canvas or plastic bags

Comprehensive range of Round Metal Lock Security Seal with varying lengths, widths, and tensile strengths for diverse applications.

Engineered for Superior Performance

Thin Round Strap Design

Thin round sealing strap (2.0mm diameter) designed to fit most locking rings and equipment locks, ideal for sealing doors, boxes, cabins, or eyelets with medium breaking force.

Ultrasonic Welded Security

Ultrasonic welding makes the seal secure and tamper-proof, ensuring any unauthorized access attempts leave visible evidence for aviation, bank, chemicals & refineries, drug & pharma, and logistics applications.

Metal Insert Lock

Metal insert lock provides firm locking with 8kg tensile strength, suitable for medium breaking force applications requiring reliable tamper-evident security across multiple industries.

Canvas & Bag Compatible

Gripping spike provided for secure use on canvas and plastic bags, ensuring firm attachment to various bag materials used in aviation, banking, courier, pharmaceutical, and chemical transport.

Compact Marking Space

28mm x 14mm marking space on both front and back provides identification area for serial numbers, logos, and tracking information while maintaining the seal's compact, versatile design.

Two Size Options

Available in 2 sizes (268mm, 300mm) with 2.0mm diameter, both with 8kg tensile strength. Standard colors: Red, Yellow, Blue, Green, Orange, White, plus custom options.

Frequently Asked Questions

What are Round Metal Lock Security Seals and where are they used?

Round Metal Lock Security Seals are tamper-evident seals designed for sealing doors, boxes, cabins, or eyelets with medium breaking force. They're used in aviation, bank, chemicals & refineries, drug & pharma, and logistics & couriers industries. The thin round strap design fits most locking rings and equipment locks for versatile security applications.

What makes the round strap design special?

The thin round sealing strap with 2.0mm diameter is specifically designed to fit most locking rings and equipment locks, making it ideal for applications where standard flat seals may not be suitable. This includes sealing doors, boxes, cabins, or eyelets that require medium breaking force and have circular or small diameter locking mechanisms.

How does ultrasonic welding enhance security?

Ultrasonic welding makes the seal secure and tamper-proof by creating a permanent bond that cannot be opened without visible evidence of tampering. This technology ensures the seal's integrity cannot be compromised, making it suitable for highly secure applications in aviation, banking, pharmaceuticals, and logistics where tamper evidence is critical.

What sizes and specifications are available?

Available in two sizes: 268mm x 2.0mm diameter (Cat No. SSMR-2682PL) and 300mm x 2.0mm diameter (Cat No. SSMR-3002PL), both with 8kg tensile strength. Marking space is 28mm x 14mm on both front and back. Standard colors include Red, Yellow, Blue, Green, Orange, and White, with other colors available upon request.

What material are these seals made from and what temperature range do they support?

Made from polypropylene (PP) with a metal insert for the locking mechanism, providing 8kg tensile strength suitable for medium breaking force applications. Operating from -40°C to +85°C, they combine: (1) thin round strap design for fitting most locking rings, (2) ultrasonic welding for tamper-proof security, and (3) gripping spike for canvas/plastic bags. Packaged 100 pieces per packet.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Aviation

Bank

Chemicals & Refineries

Drug & Pharma

Logistics & Couriers
