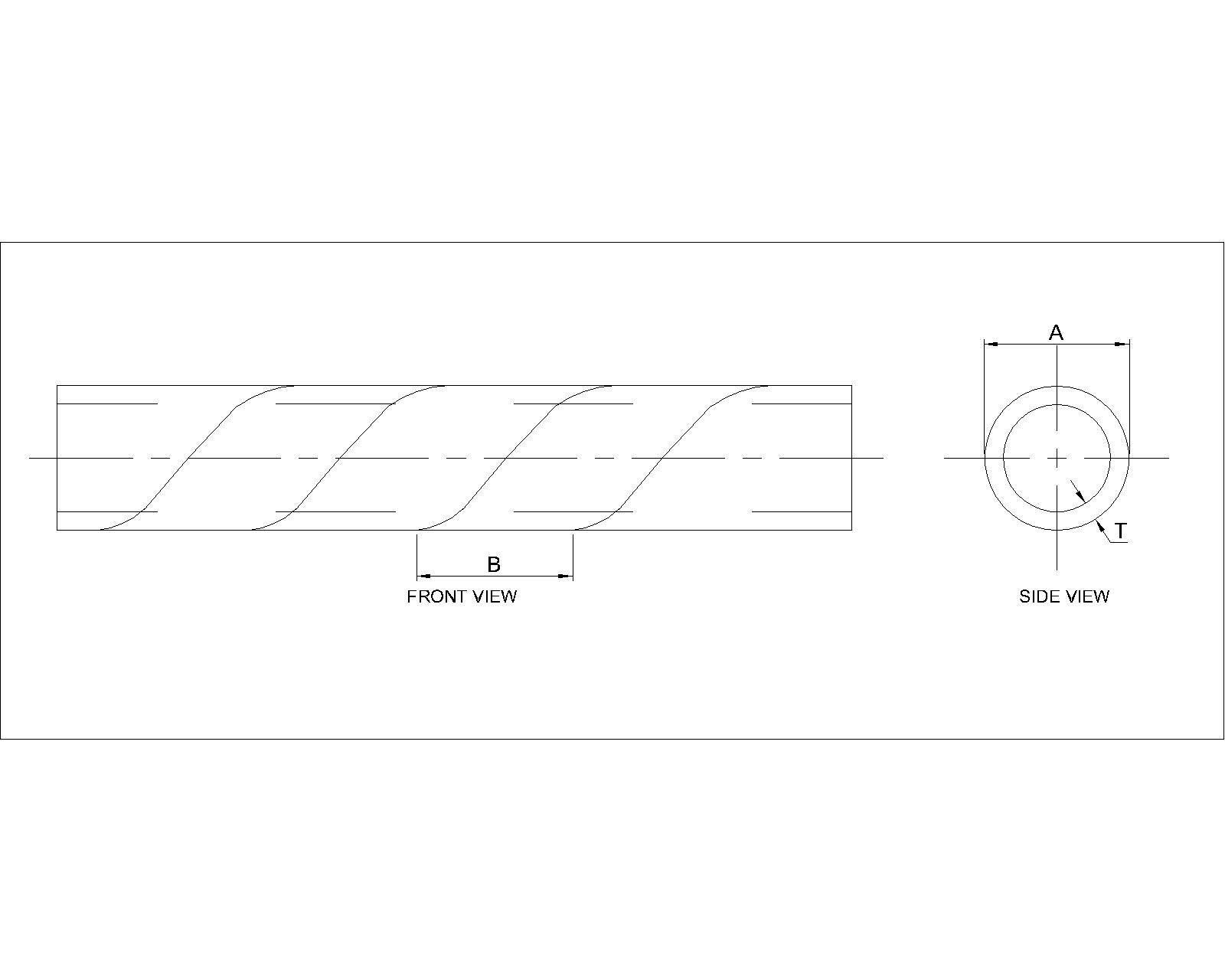

SPIRAL WRAPPING TUBE LD Technical Drawing

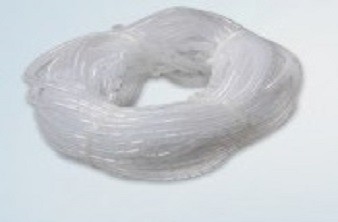

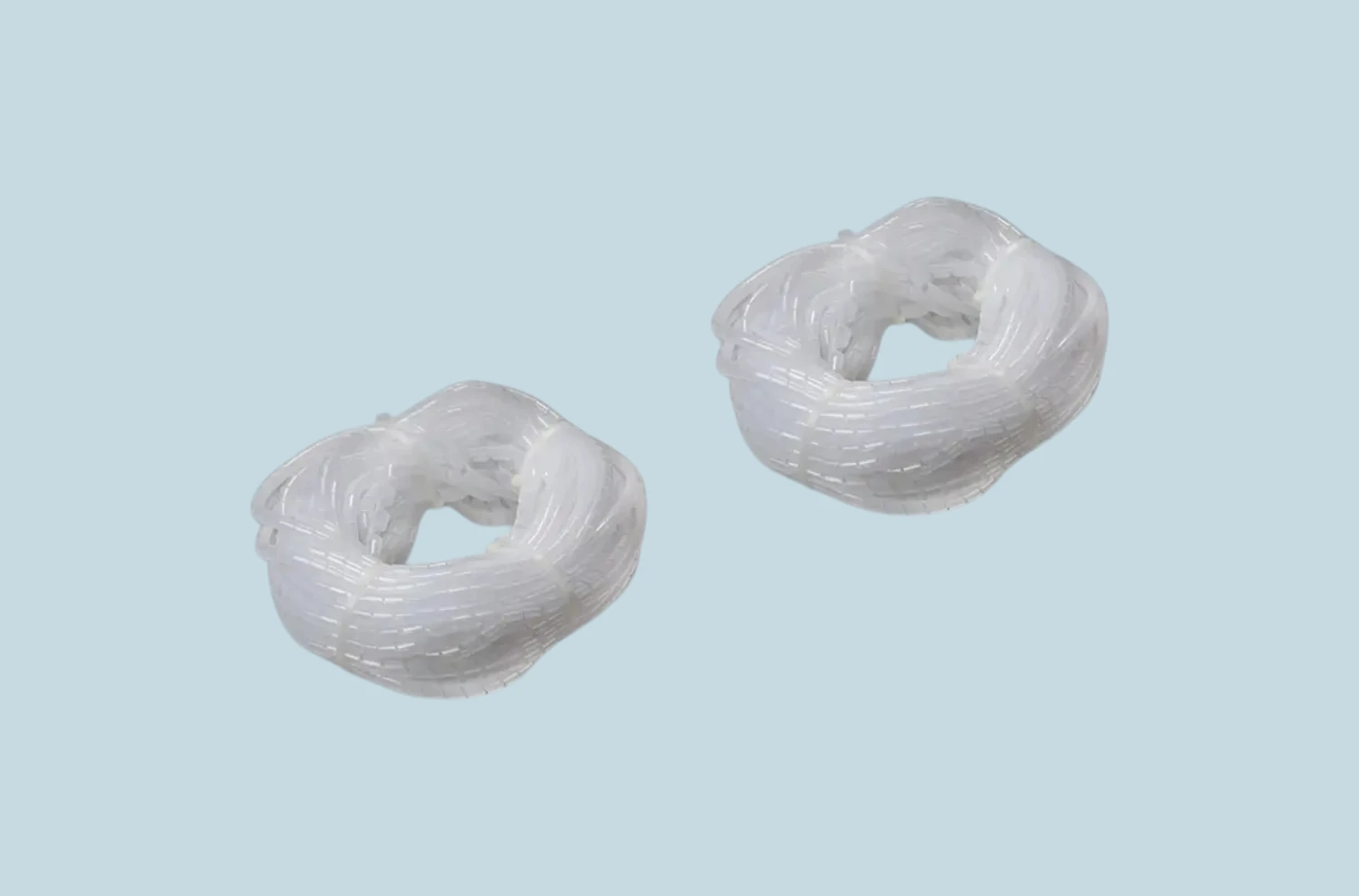

SPIRAL WRAPPING TUBE LD

Material : P.E. (Polyethylene)
Operating Temperature : -40°C to +85°C (-40°F to +185°F)
Color Options : Natural, Black
Packing Options : 50 Mtrs Roll, 25 Mtrs Roll, 10 Mtrs Roll
Tolerances : I D: ±1mm, O D: ±1mm, Pitch: ±1mm, Thickness: ±0.2mm
Primary Application : Abrasion protection of wire & cable insulation & hydraulic or pneumatic tubing
Installation Methods : Gapped manner, Butted manner

Reusable design - can reuse when the change are required in bundle
Gapped installation - can use in gapped manner where flexibility, breakouts & economy is required
Butted installation - can use in butted manner where rigidity & protection is required against continuously abrasion
Wide operating temperature range from -40°C to +85°C for diverse applications
Available in natural and black colors for various aesthetic requirements

Heavy duty spiral wrapping tubes engineered for abrasion protection of wire & cable insulation and hydraulic or pneumatic tubing. Available in 8 sizes from 1/8" to 1 1/2" with both Natural and Black color options for flexible and rigid installation applications.

Engineered for Flexible Cable Protection

Reusable Design

Can be reused when changes are required in the bundle, providing long-term value and flexibility for evolving cable management needs.

Gapped Installation

Use in gapped manner where flexibility, breakouts and economy is required, ideal for applications needing cable access points.

Butted Installation

Use in butted manner where rigidity and protection is required against continuous abrasion for maximum cable protection.

Wide Temperature Range

Operating temperature range from -40°C to +85°C ensures reliable performance in diverse environmental conditions.

Color Options

Available in natural and black colors to meet various aesthetic requirements and application environments.

Multiple Packing Options

Available in 50 meters, 25 meters, and 10 meters rolls to suit different project sizes and reduce material waste.

Frequently Asked Questions

What are the key applications for SPIRAL WRAPPING TUBE LD?

SPIRAL WRAPPING TUBE LD is designed for abrasion protection of wire & cable insulation and hydraulic or pneumatic tubing. It's ideal for automobile, electrical/electronics, white goods & appliances, and windmill industries.

What is the operating temperature range for SPIRAL WRAPPING TUBE LD?

SPIRAL WRAPPING TUBE LD operates reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making it suitable for a wide range of environmental conditions.

What material is SPIRAL WRAPPING TUBE LD made from?

SPIRAL WRAPPING TUBE LD is made from P.E. (Polyethylene) material, available in natural and black color options to suit different application requirements.

What are the different installation methods available?

The spiral tube can be installed in gapped manner (for flexibility, breakouts & economy) or butted manner (for rigidity & protection against continuous abrasion), providing versatility for different applications.

Is the spiral wrapping tube reusable?

Yes, SPIRAL WRAPPING TUBE LD features a reusable design, allowing you to reuse the tube when changes are required in the cable bundle, providing long-term value and flexibility.
