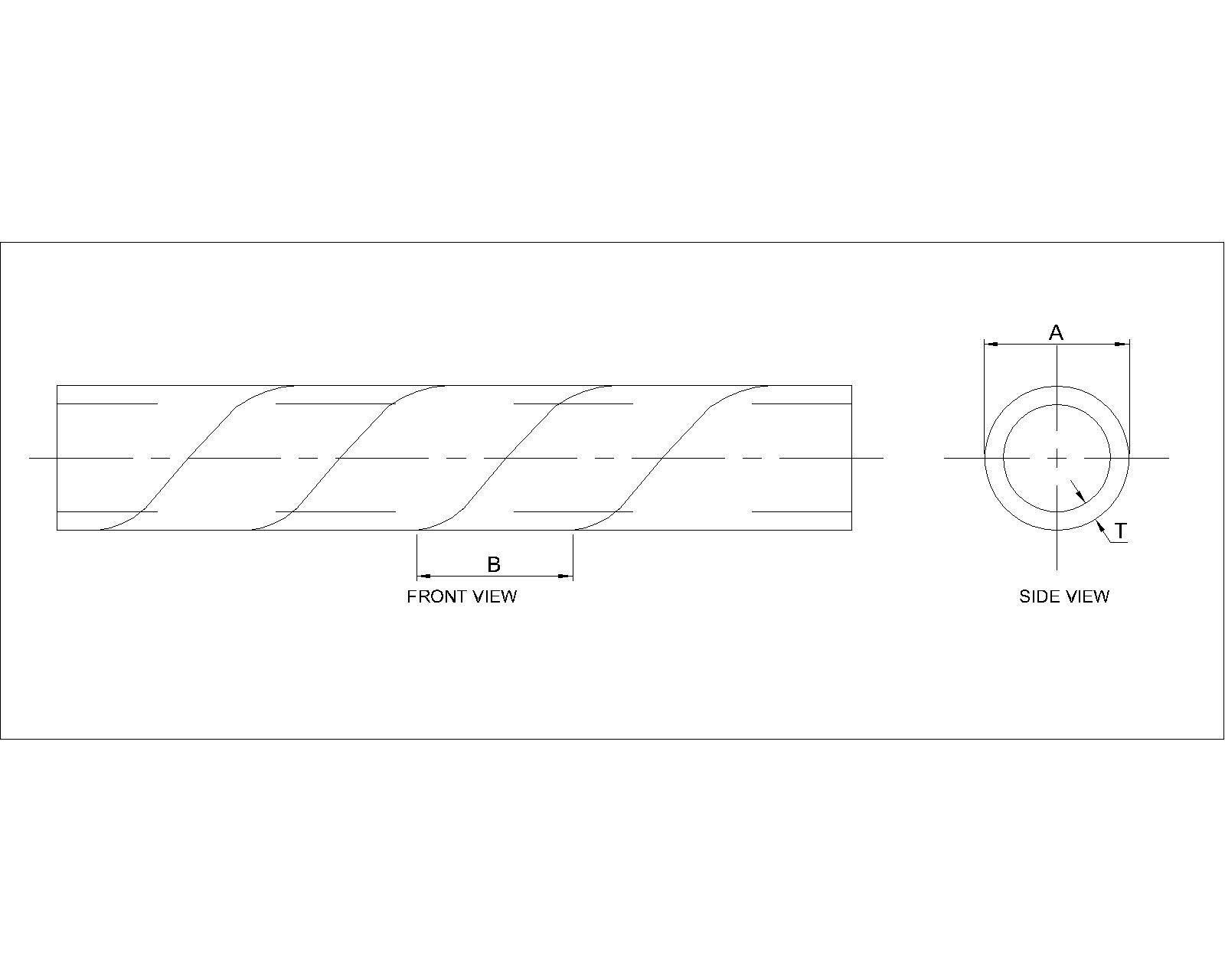

SPIRAL WRAPPING TUBE HD Technical Drawing

SPIRAL WRAPPING TUBE HD

Material : Polyethylene (P.E.)
Operating Temperature : -40°C to +85°C (-40°F to +185°F)
Available Colors : Natural, Black
Tolerances : I D: ±2mm, O D: ±2mm, Pitch: ±2mm, Thickness: ±0.2mm
Packaging : 50 Mtrs., 25 Mtrs., 10 Mtrs. Roll
Certifications : ROHS Compliance
Test Certificate : Available

Reusable design - Can be reused when changes are required in the bundle
Flexible installation - Can be used in a gapped manner where flexibility, breakouts & economy is required
Rigid installation - Can be used in a butted manner where rigidity & protection is required against continuous abrasion

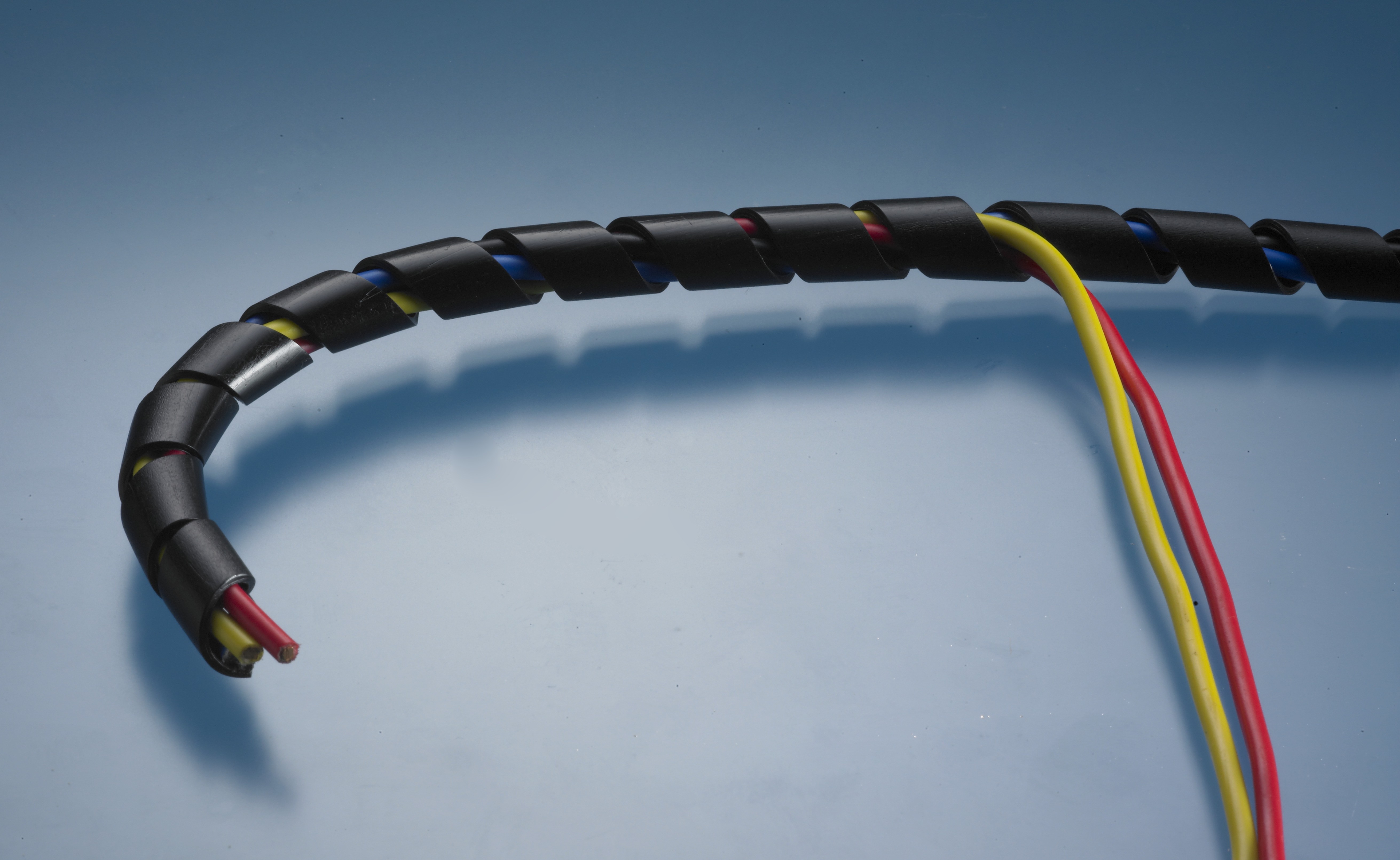

Heavy duty spiral wrapping tubes engineered for abrasion protection of wire & cable insulation and hydraulic or pneumatic tubing. Available in 8 sizes from 1/8" to 1 1/2" with both Natural and Black color options for flexible and rigid installation applications.

Engineered for Superior Cable Protection

Reusable Design

Can reuse when the change are required in bundle, providing long-term value and flexibility for evolving cable management needs.

Flexible Installation

Can use in gapped manner where flexibility, breakouts & economy is required, ideal for applications requiring frequent access.

Rigid Protection

Can use in butted manner where rigidity & protection is required against continuously abrasion, ensuring maximum cable safety.

Wide Temperature Range

Operating temperature range from -40°C to +85°C ensures reliable performance in extreme environmental conditions.

ROHS Compliant

Test certificated ROHS compliance ensures environmental safety and meets international quality standards.

Multiple Packaging Options

Available in 50, 25, and 10 meter rolls to suit different project requirements and minimize material waste.

Frequently Asked Questions

What are the key applications for Spiral Wrapping Tube HD?

Spiral Wrapping Tube HD is designed for abrasion protection of wire & cable insulation and hydraulic or pneumatic tubing. It's ideal for automobile, electrical/electronics, white goods & appliances, and windmill industries where cable protection is critical.

What is the operating temperature range for Spiral Wrapping Tube HD?

Spiral Wrapping Tube HD operates reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making it suitable for diverse environmental conditions.

What material is the Spiral Wrapping Tube HD made from?

Spiral Wrapping Tube HD is made from durable Polyethylene (P.E.) and is available in both Natural and Black colors. It is ROHS compliant with test certification available.

What are the different installation methods available?

The tube can be installed in two ways: Gapped installation provides flexibility, breakouts & economy; Butted installation provides rigidity & protection against continuous abrasion. Both methods offer reusable design.

What sizes are available and what are the packaging options?

Available in 8 sizes from 1/8" to 1 1/2" (2.1mm to 34.1mm inner diameter). Each size comes in Natural and Black colors. Standard packaging includes 50 Meters, 25 Meters, and 10 Meters Roll options.
