SELF ADHESIVE ROUND CABLE CLAMP

Applications

For supporting & holding fix diameter of round cables, pipes, tubes

Key Industries:

Automobile

Electrical / Electronics

Locomotive

Telecom

White Goods & Appliances

Windmill

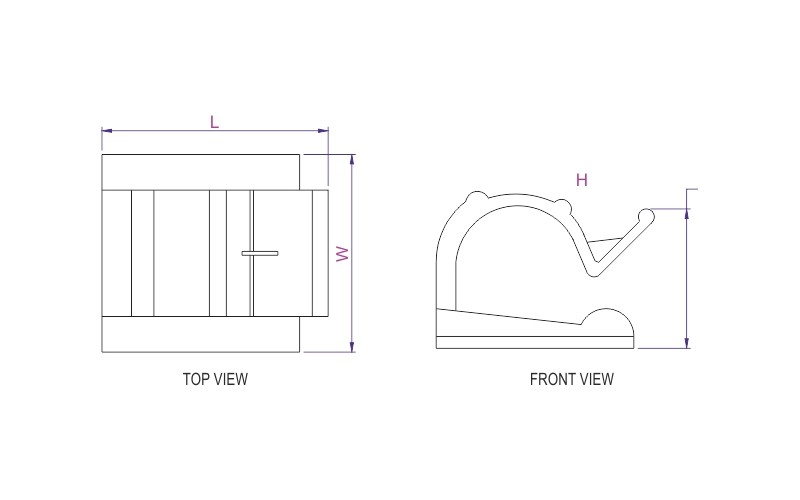

Line Drawing - Round Adjustable Cable Clamp

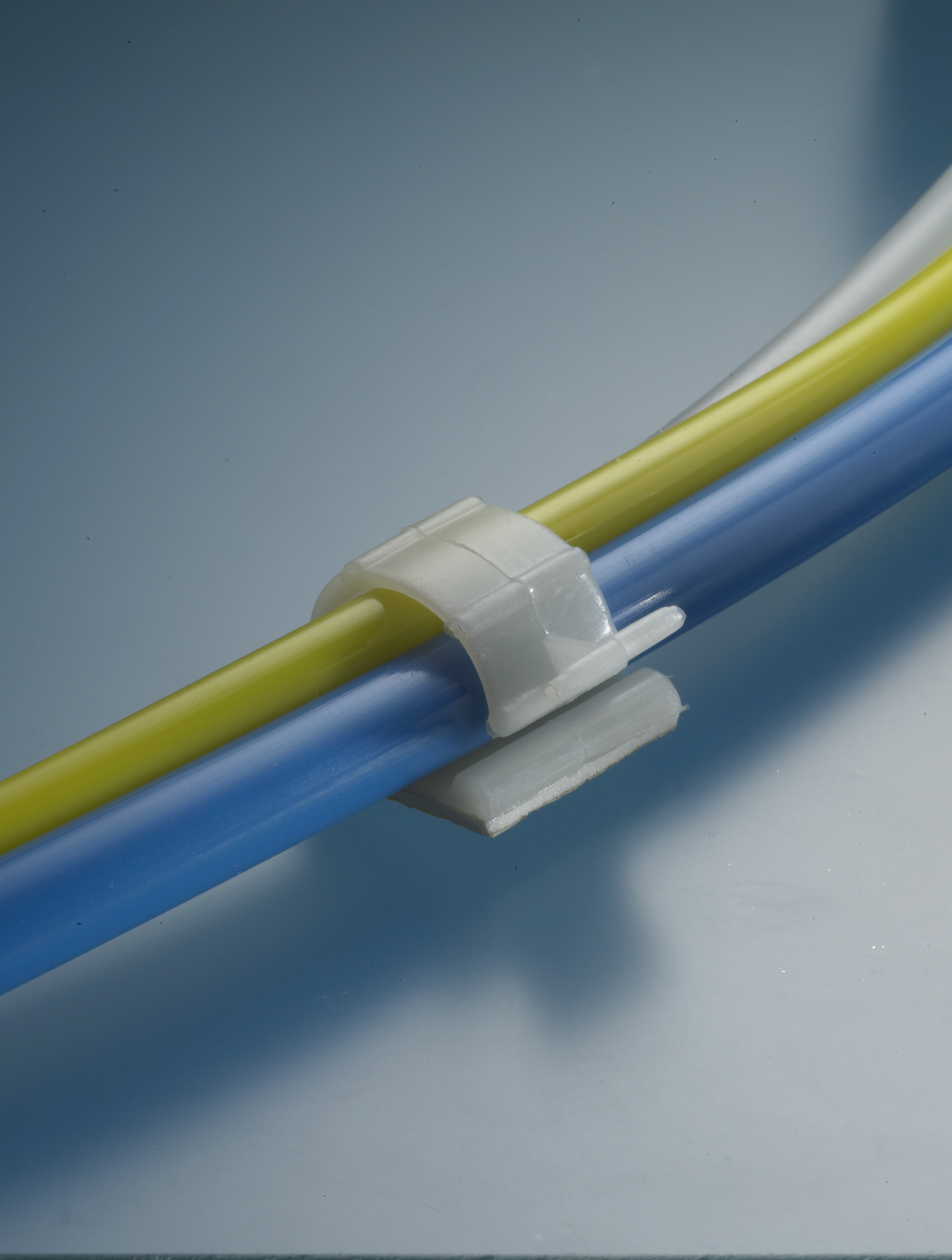

End Application - Round Adjustable Cable Clamp

Specifications

Material: Nylon 6: UL 94 V-2 (backed with adhesive tape)
Color: Natural
Operating Temp: -29°C to +49°C (Max. Intermittent Temp. i.e. less than 2 hrs. 70ºC)
Packing: 100 Pcs. bag
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±2mm
Width: ±2mm
Height: ±3mm

Features

* The snap-in action design clamp allows securing the cable in mini time
* Rubber based closed cell foam adhesive is used for better surface adhesion
* Design to support lightweight wire bundles, round pipes, tubes etc

How to use:
* To apply, simply peel off the backing paper and apply mount to any clean smooth, grease-free surface
* Place round pipe /wire in nylon clamp

Download Brochure

Description

Adhesive Tape

A Length (mm)

B Width (mm)

C Height (mm)

Adh. Tape

Cat No.

PDF Drawing

Small Round Support

Four Pillar

Yellow
