Nylon 'P' Clip

Applications

Most versatile clamp to hold cable, tubes, components

Key Industries:

Electrical / Electronics

White Goods & Appliances

Black and Natural Nylon P Clips

Black and Natural Nylon P Clips

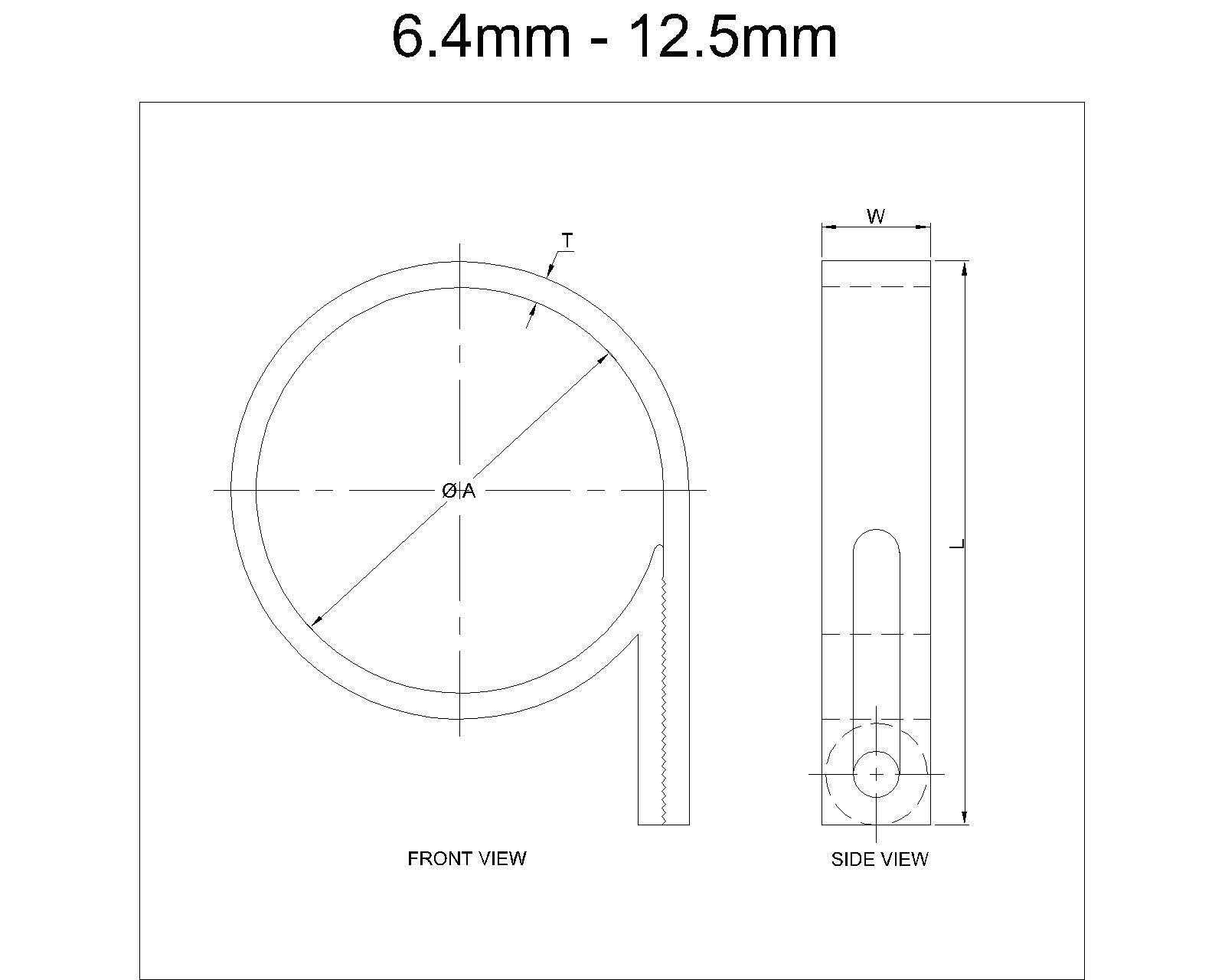

Line Drawing - P Clips

End Application - P Clips

Specifications

Material: Nylon 6: UL 94 V-2
Color: Natural
Operating Temp: -40°C to +85°C
Packing: 100 Pcs. bag
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±1mm
Width: ±1mm
Thickness: ±0.5mm
Hole Dia: ±1mm

Features

* Offer fix & adjustable design for various wire/cable diameter
* Easy mounting with screw

Download Brochure

Size No.

A Suitable wire O.D. inch (mm)

L Length (mm)

W Width (mm)

T Thickness (mm)

H Hole (mm)

Cat No.

PDF Drawing

No.0 Fix

1/8 (3.0)

13.45

6.05

1.00

4.00

PC-3

No.00 Fix

3/16 (4.5)

17.20

7.40

0.75

3.80

PC-4

No.1 Fix

1/4 (6.0)

18.30

8.30

1.75

4.05

PC-6

No.2 Fix

5/16 (7.5)

22.10

9.55

1.00

4.15

PC-7

No.3 Fix

3/8 (9.0)

23.45

9.65

0.95

4.40

PC-9

No.4 Fix

7/16 (10.0)

25.15

9.70

1.05

4.50

PC-10

No.5 Fix

1/2 (12.5)

28.70

11.35

1.30

4.30

PC-12

No.5A Fix

5/8 (15.0)

32.35

11.00

1.50

4.40

PC-15

No.6A Fix

3/4 (19.0)

38.50

12.05

1.60

5.20

PC-19

No.10A Fix

1 (25.0)

45.20

13.00

1.85

5.15

PC-25

No.000 Adjustable

1/4 (4.5 to 7)

21 to 16

6.40

0.80

3.00

PC-7A

No.6 Adjustable

7/8 (15 to 22)

52 to 42

13.00

1.30

5.05

PC-22A

No.7 Adjustable

1 1/4 (22 to 30)

62 to 52

12.95

2.05

5.30

PC-30A

No.8 Adjustable

1 1/2 (30 to 38)

73 to 62

14.00

2.05

5.80

PC-38A

No.9 Adjustable

1 3/4 (38 to 46)

84 to 72

14.00

2.30

5.55

PC-46A
