HOOK 'N' LOOP ADHESIVE TIE MOUNT

Applications

The rubber base adhesive allows for attachment to desks, walls, computers & many such kind of equipment.

Key Industries:

Adhesive Tie Mount Hook & Loop

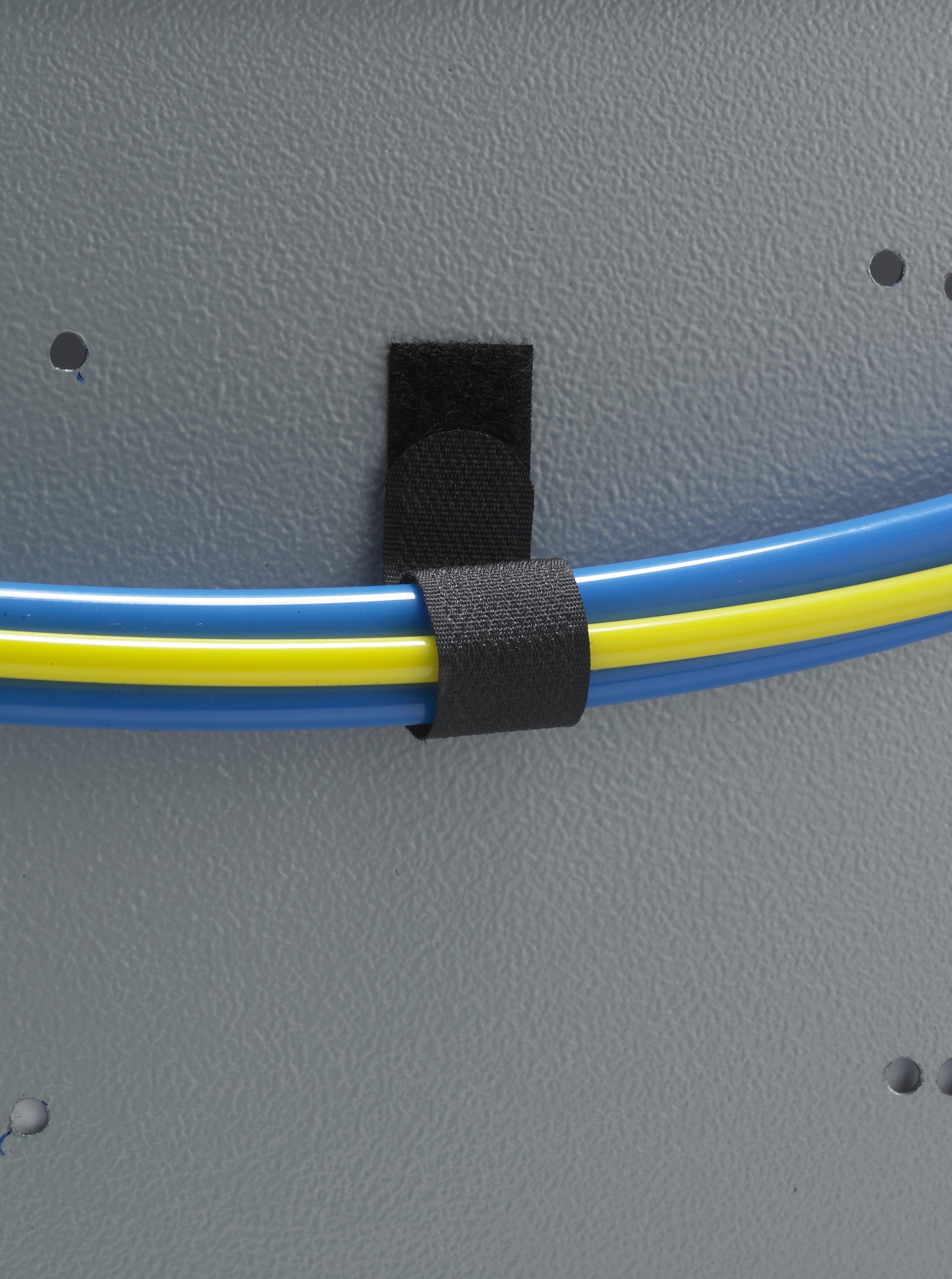

Adhesive Tie Mount Hook & Loop End Application - Hook & Loop Adhesive Tie Mount Hook & Loop Adhesive Tie Mount

Material: Hook: Nylon - 66 (PA-66) monofilaments woven
Material: Loop: Nylon - 6 (PA-6) multifilaments woven
Flammability Rating: UL 94 HB
Color: Black (std. color) other colours against the order
Operating Temp: -20°C to +85°C
Peel off Strength: 25N/cm (initial). 2.12N/cm (After 5000 Cycles)
Shear Strength: 10N/cm (initial). 7.5N/cm (After 5000 Cycles)
Packing: 100 Pcs. bag
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±2mm
Width: ±0.5mm

 The Hook ‘N’ Loop adhesive mount organizes cables on a variety of plain / clean surfaces. Adhesive backed eliminates screwing or riveting for holding bundles.
Length (mm) Width (mm) Max. Bundle Dia (mm) Tensile Strength Kgs (lbs) Cat No. PDF Drawing
130 20.0 28 22 (49)
HLM-20
130 25.0 28 25 (55)
HLM-25
