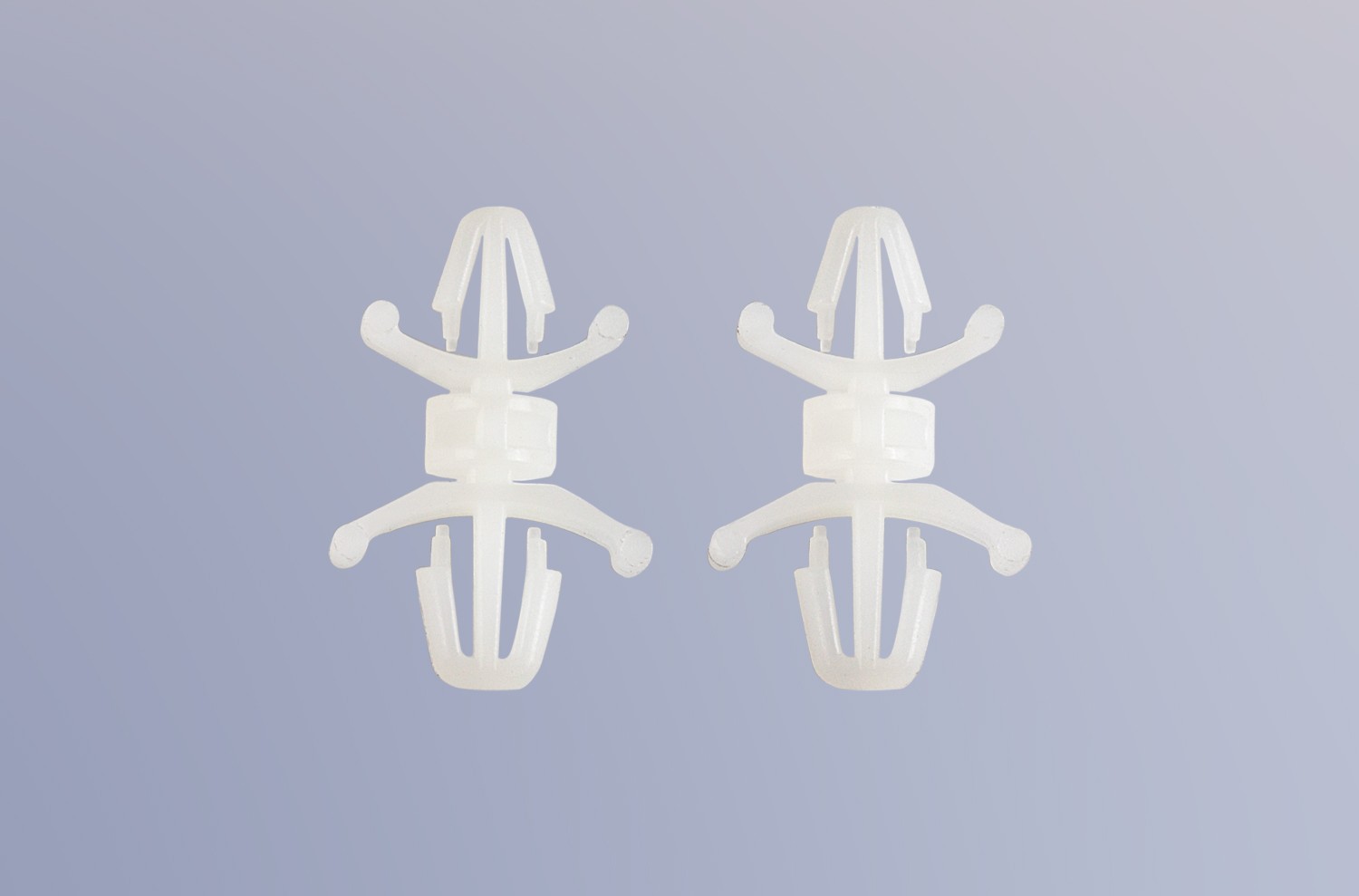

Dual Locking PCB Support Spacer
Dual Locking PCB Support Spacer Technical Drawing

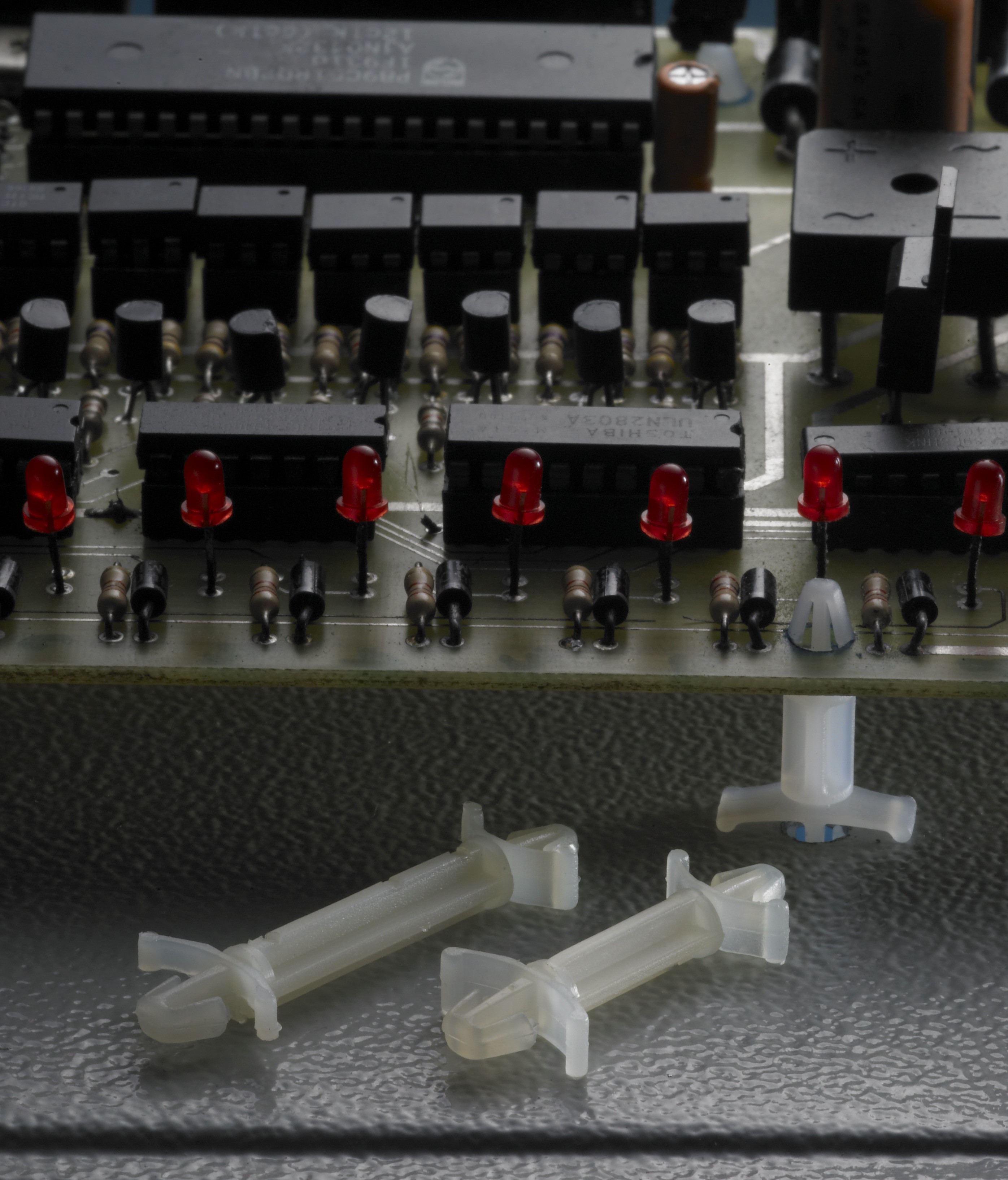

Dual Locking PCB Support Spacer Application

Dual Locking PCB Support Spacer

Dual Locking PCB Support Spacer Dual Locking PCB Support Spacer Technical Drawing Dual Locking PCB Support Spacer Application
Dual Locking PCB Support Spacer
Dual Locking PCB Support Spacer Technical Drawing
Dual Locking PCB Support Spacer Application
  • Material : Nylon 66, UL 94V-2
  • Color : Natural
  • Operating Temp : -40°C to +85°C
  • Packing : 100 Pcs. bag
  • Unit : 100 Pcs/Pkt
  • Tolerance : Spacing Height ±1mm, C ±1mm
  • Barbed arrow mounts on both ends locking securely

Precision-engineered perforated adjustable P clips with multiple size options for wide range of cable diameter clamping requirements.

A Spacing Height
A Spacing Height(mm)
0 1010
C Height
C Height(mm)
0 13
Height
Height (mm)
0 250

Apply Filters

A Spacing Height (mm)
0 1010
C Head Height (mm)
0 13
Height (mm)
0 250

Most Versatile Cable & Tube Clamps

Dual Locking Design

Barbed arrow mounts on both ends lock securely, providing stable support between PCB to PCB or PCB to chassis configurations without additional hardware.

PCB Spacing Solution

Designed specifically as spacers between circuit boards or between PCB and chassis, maintaining proper clearance and preventing electrical shorts in electronic assemblies.

Tool-Free Installation

Push-through design with barbed ends eliminates the need for screws, nuts, or tools. Quick snap-fit installation saves assembly time in electronics manufacturing.

Fire-Retardant Material

Made from Nylon 66 with UL 94V-2 flammability rating, ensuring safety compliance for electrical/electronics and white goods applications.

Wide Temperature Range

Operating temperature from -40°C to +85°C ensures reliable performance in various electronics, appliances, and industrial environments.

Multiple Height Options

Available in 8 spacing heights from 4.8mm to 28.2mm to accommodate various PCB clearance requirements. Natural color, packaged 100 pieces per bag.

Frequently Asked Questions

What are Dual Locking PCB Support Spacers and how do they work?
Dual Locking PCB Support Spacers are specialized spacers used between PCB to PCB or PCB to chassis configurations. They feature barbed arrow mounts on both ends that lock securely when pushed through mounting holes, providing stable support and proper spacing without requiring screws or additional hardware. Ideal for electrical/electronics and white goods & appliances industries.
How do I install Dual Locking PCB Support Spacers?
Installation is simple: align the spacer with the mounting holes, then push it through. The barbed arrow design on both ends automatically locks in place as it passes through the hole, securing both the top and bottom connections. No tools, screws, or additional fasteners are required, making assembly quick and efficient.
What spacing heights are available?
Dual Locking PCB Support Spacers are available in 8 spacing heights: 4.8mm (PBD-4), 6.4mm (PBD-6), 9.6mm (PBD-9), 12.7mm (PBD-13), 15.9mm (PBD-16), 19.1mm (PBD-19), 22.1mm (PBD-22), and 28.2mm (PBD-28). All sizes come in Natural color, packaged 100 pieces per bag.
What material are PCB Support Spacers made from?
The spacers are made from Nylon 66 with UL 94V-2 flammability rating, providing excellent electrical insulation properties, mechanical strength, and fire resistance. They operate reliably from -40°C to +85°C, making them suitable for demanding electronics and appliance applications.
What are the advantages of dual locking design over single-sided supports?
The dual locking design with barbed arrows on both ends provides superior stability by securing at two points—both where it enters and exits the mounting hole. This prevents loosening from vibration, eliminates the need for additional fasteners, and ensures consistent spacing in PCB assemblies. It's particularly valuable in applications with movement or vibration.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Electrical / Electronics

White Goods & Appliances

White Goods & Appliances
