Cable Marker Straight Cut & Chevron Cut Cable Marker Straight Cut & Chevron Cut Technical Drawing Cable Marker Straight Cut & Chevron Cut Application
Cable Marker Straight Cut & Chevron Cut

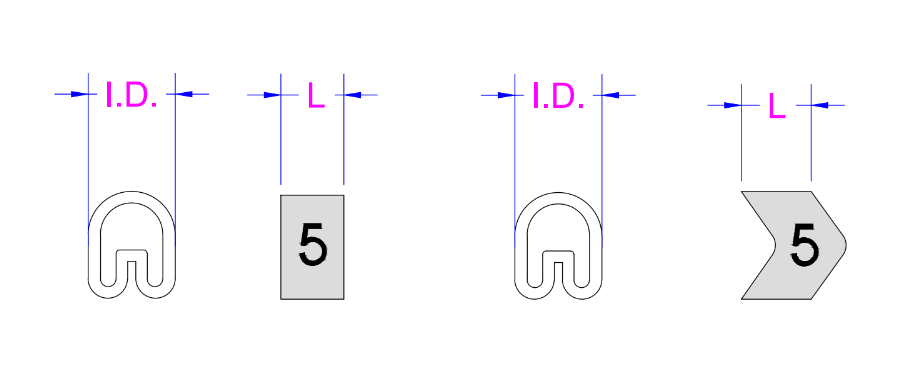

Cable Marker Straight Cut & Chevron Cut Technical Drawing

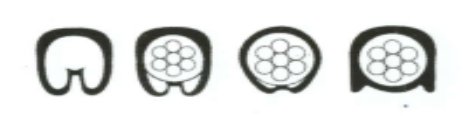

Cable Marker Straight Cut & Chevron Cut Application

Cable Marker Straight Cut & Chevron Cut

Cable Marker Straight Cut & Chevron Cut Cable Marker Straight Cut & Chevron Cut Technical Drawing Cable Marker Straight Cut & Chevron Cut Application
Cable Marker Straight Cut & Chevron Cut
Cable Marker Straight Cut & Chevron Cut Technical Drawing
Cable Marker Straight Cut & Chevron Cut Application
  • Material : Soft PVC
  • Color : Yellow body with Black marking
  • Operating Temp : Up to 85°C
  • Packing : In Spool of 1000/500/350 Pcs
  • Designed to accommodate a wider range of wires, and reduce inventory of many sizes.
  • Chevron cut (Inter-locking) design ensures markers stay attached to each other, doesn't allow to rotate and maintain entire Identification on the line

Comprehensive wire identification markers in straight cut and chevron cut designs, covering wire dimensions from 0.75 to 16 sq.mm for electrical, electronics, and auto wiring applications.

A Spacing Height
A Spacing Height(mm)
0 1010
C Height
C Height(mm)
0 13
Height
Height (mm)
0 250

Apply Filters

A Spacing Height (mm)
0 1010
C Head Height (mm)
0 13
Height (mm)
0 250

Most Versatile Cable & Tube Clamps

Dual Design Options

Available in both straight cut and chevron cut designs. Chevron (inter-locking) design ensures markers stay attached, prevent rotation, and maintain complete identification on the wire.

Wide Wire Range Coverage

Designed to accommodate a wider range of wires from 0.75 sq.mm to 16 sq.mm, reducing inventory requirements by covering wire OD from 2mm to 9mm with just 4 sizes.

High Visibility Marking

Yellow body with black marking provides exceptional visibility and readability in electrical panels, locomotive systems, and telecom installations for quick wire identification.

Comprehensive Character Set

Complete marking range includes 0-9 numbers, A-Z letters, and symbols (+, -, /, .) enabling flexible wire labeling for electrical, electronics, and auto wiring applications.

Temperature Resistant Material

Made from soft PVC operating up to 85°C, ensuring reliable performance in electrical/electronics, locomotive, and telecom environments with elevated temperatures.

Convenient Spool Packaging

Available in spools of 1000, 500, or 350 pieces depending on size, providing efficient handling and organization for large electrical installation projects.

Frequently Asked Questions

What are Cable Marker Straight Cut & Chevron Cut and where are they used?
Cable Marker Straight Cut & Chevron Cut are wire identification markers designed for electrical, electronics, and auto wiring applications. They're used in electrical/electronics, locomotive, and telecom industries. The chevron cut (inter-locking) design ensures markers stay attached to each other, preventing rotation and maintaining complete identification on the line.
What's the difference between straight cut and chevron cut cable markers?
Straight cut markers (Cat No. CM series) have standard edges, while chevron cut markers (Cat No. CMV series) feature inter-locking design. The chevron cut ensures markers stay attached to each other, prevents them from rotating on the wire, and maintains the entire identification visible, making them ideal for high-vibration or frequently-handled installations.
What wire sizes do these cable markers accommodate?
Four sizes available: CM-0/CMV-0 for 0.75-1.5 sq.mm (wire OD 2-3.5mm), CM-1/CMV-1 for 1.00-2.5 sq.mm (OD 3-4.5mm), CM-2/CMV-2 for 2.50-10.00 sq.mm (OD 3.6-7.0mm), and CM-3/CMV-3 for 10.00-16.00 sq.mm (OD 5.2-9.0mm). This range reduces inventory needs by covering wires from 2mm to 9mm OD with just 4 sizes.
What markings are available and how many come in each spool?
All sizes feature complete markings: numbers 0-9, letters A-Z, and symbols +, -, /, and . (period). Spool quantities vary by size: CM-0/CMV-0 and CM-1/CMV-1 come in 1000 pieces per spool, CM-2/CMV-2 in 500 pieces per spool, and CM-3/CMV-3 in 350 pieces per spool, providing efficient packaging for large installations.
What material are these markers made from and what temperature range do they support?
The markers are made from soft PVC material with yellow body and black marking for high visibility. They operate reliably up to 85°C, making them suitable for electrical/electronics, locomotive, and telecom applications. The soft PVC provides flexibility for easy installation while maintaining clear, durable markings.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Electrical / Electronics

Locomotive

Locomotive

Telecom

Telecom
