REUSABLE STEEL TIE UNCOATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement.

Key Industries:

Aerospace
Chemicals & Refineries
Dairy & Food Processing
Oil, Gas & Offshore
Ship & Marines
Solar
Telecom
Utility
Windmill

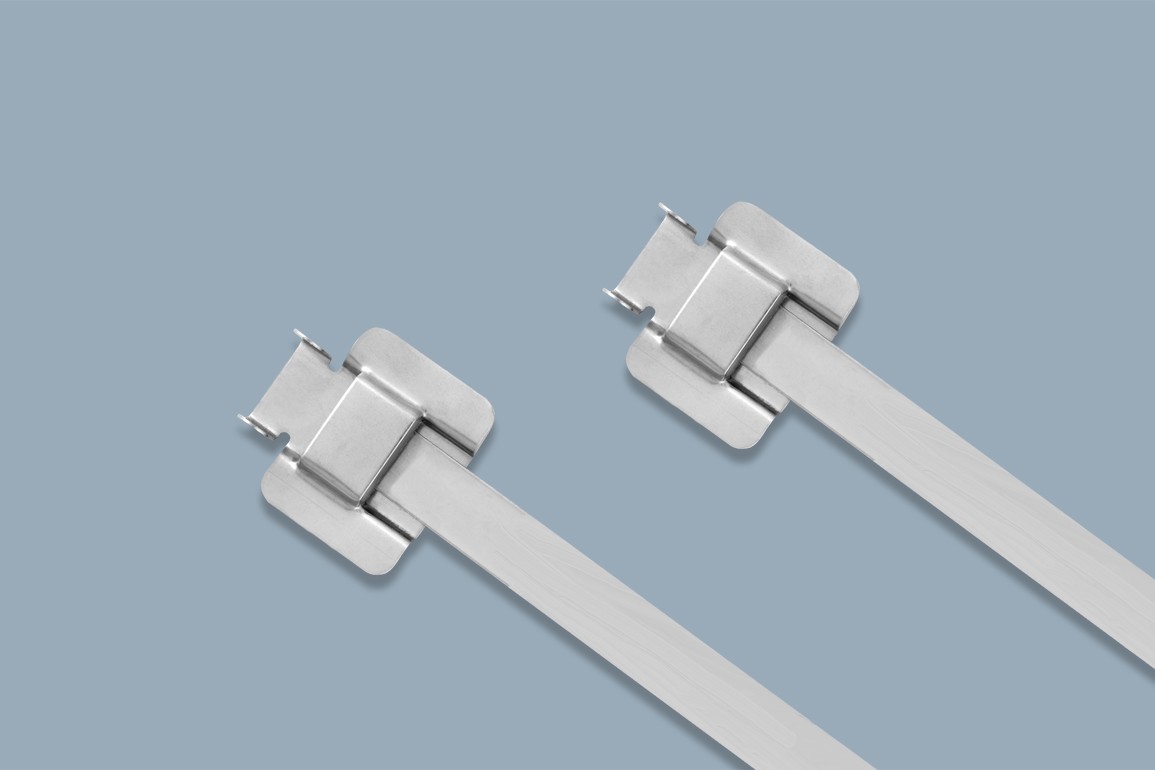

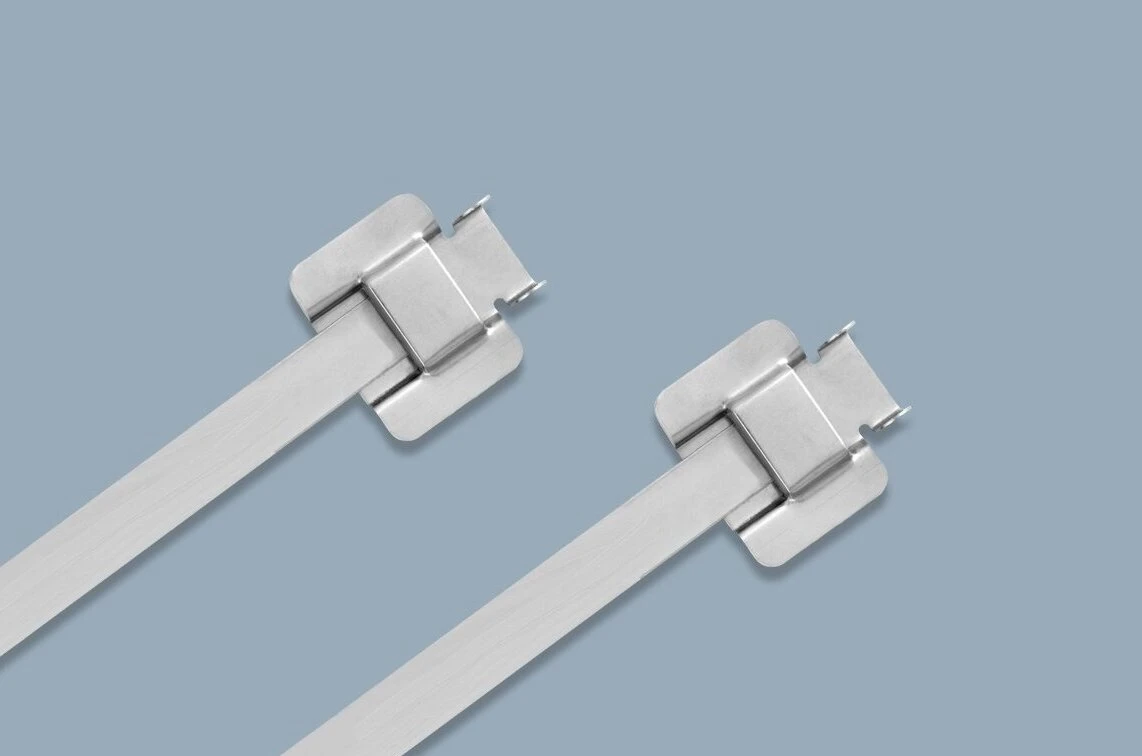

Uncoated Reusable Steel Tie

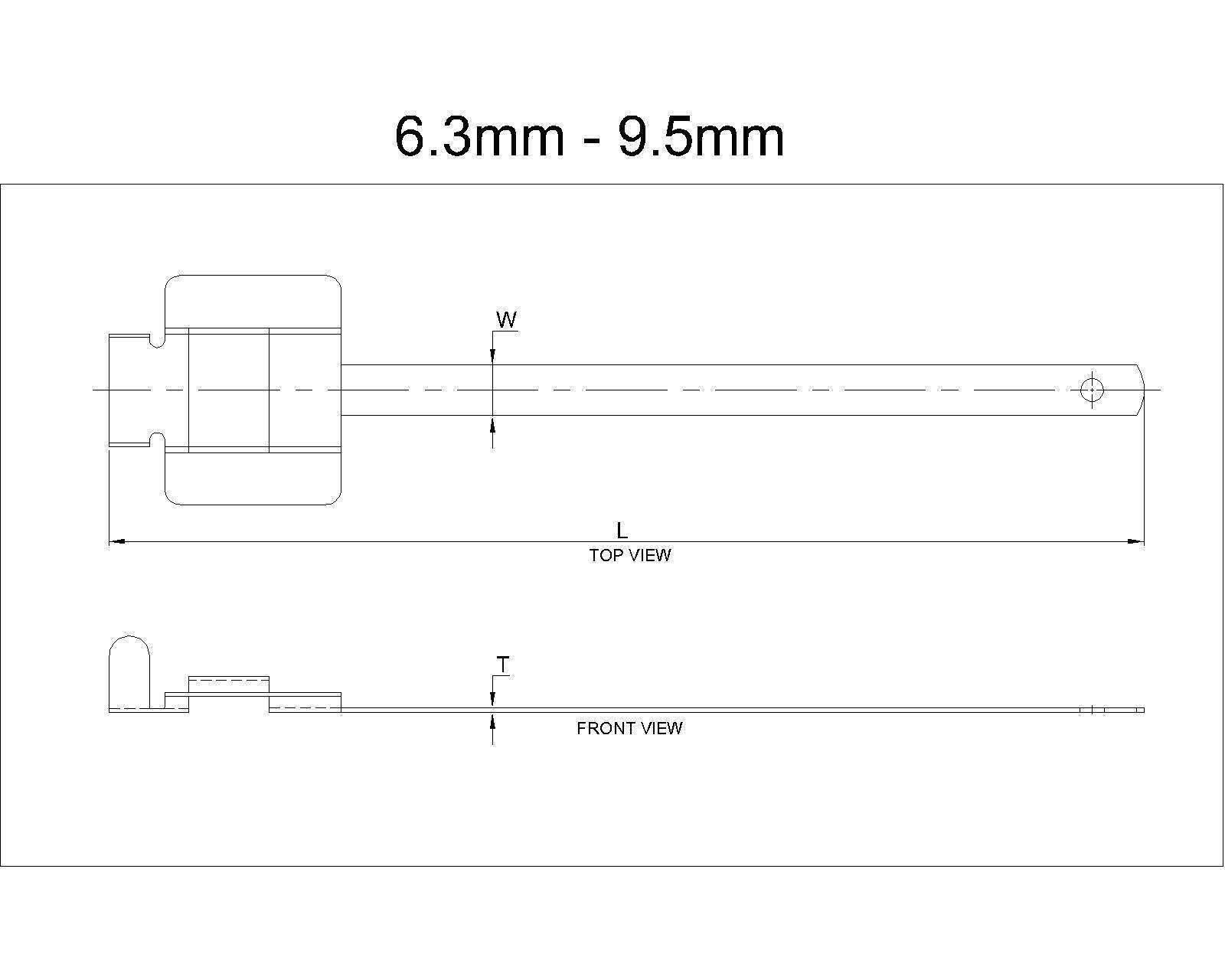

Uncoated Reusable Steel Tie Line Drawing - Reusable Steel Tie Uncoated Reusable Steel Tie Uncoated

Material: Stainless Steel SS 316, SS 304
Operating Temp:  -80°C to +538°C
Installation: By hand, tie tools (STT 4) & hook (STT 3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Reusable steel ties are designed for quick fastening of cables, tubes, pipes etc. & also can be unfastened for reuse
* It is designed to accommodate double wraps
* Smooth edges of ties provide utmost safety while installation.
Download Brochure
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) SS 316 SS 304 PDF Drawing
152 6.3 0.50 32 5.98 0.25 0.02 1.26 149 (329) 0.55 (1.21)
RT-152
RT-152/4
229 6.3 0.50 57 9.02 0.25 0.02 2.24 149 (329) 0.75 (1.65)
RT-229
RT-229/4
305 6.3 0.50 81 12.01 0.25 0.02 3.19 149 (329) 0.92 (2.02)
RT-305
RT-305/4
457 6.3 0.50 130 17.99 0.25 0.02 5.12 149 (329) 1.29 (2.84)
RT-457
RT-457/4
500 6.3 0.50 143 19.69 0.25 0.02 5.63 149 (329) 1.56 (3.43)
RT-500
RT-500/4
610 6.3 0.50 178 24.02 0.25 0.02 7.01 149 (329) 1.72 (3.79)
RT-610
RT-610/4
152 9.5 0.50 32 5.98 0.37 0.02 1.26 181 (399) 0.85 (1.87)
RTH-152
RTH-152/4
229 9.5 0.50 57 9.02 0.37 0.02 2.24 181 (399) 1.13 (2.49)
RTH-229
RTH-229/4
305 9.5 0.50 81 12.01 0.37 0.02 3.19 181 (399) 1.41 (3.10)
RTH-305
RTH-305/4
457 9.5 0.50 130 17.99 0.37 0.02 5.12 181 (399) 1.95 (4.29)
RTH-457
RTH-457/4
500 9.5 0.50 143 19.69 0.37 0.02 5.63 181 (399) 2.05 (4.52)
RTH-500
RTH-500/4
610 9.5 0.50 178 24.02 0.37 0.02 7.01 181 (399) 2.43 (5.35)
RTH-610
RTH-610/4
762 9.5 0.50 227 30.00 0.37 0.02 8.94 181 (399) 3.14 (6.92)
RTH-762
RTH-762/4
914 9.5 0.50 275 35.98 0.37 0.02 10.83 181 (399) 3.48 (7.67)
RTH-914
RTH-914/4
