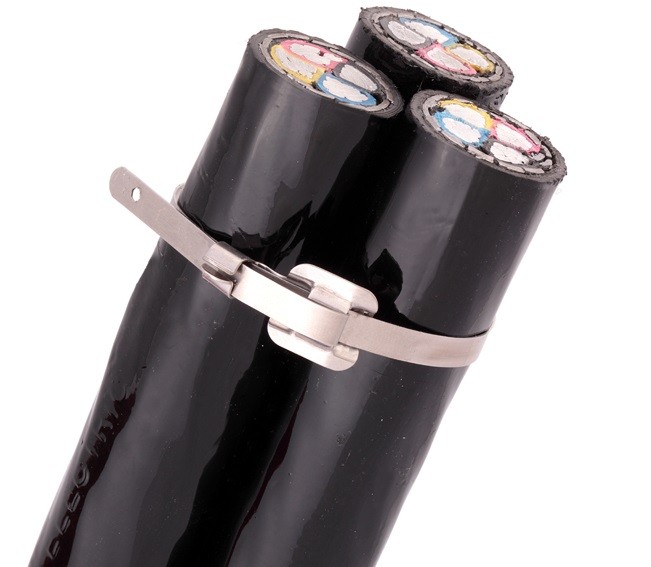

REUSABLE ECONOMY STEEL TIE UNCOATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement

Key Industries:

Economy Reusable Steel Tie Uncoated
Economy Reusable Steel Tie Uncoated Line Drawing - Reusable Economy Steel Tie Uncoated Reusable Economy Steel Tie Uncoated

Material: Stainless Steel SS 316, SS 304
Operating Temp: Uncoated: -80°C to +538°C
Installation: By hand tie tool (STT 4) and HOOK (STT3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Designed for low cost & low tensile applications.
* Smooth edges of ties provide utmost safety while installation
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (Inch) Width (Inch) Thickness (Inch) Max. Bundle Dia (Inch) Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) Cat No. SS 316 Cat No. SS 304 PDF Drawing
150 5.0 0.50 30 5.91 0.20 0.02 1.18 120 (265) 0.38 (0.85)
RTE-150
RTE-150/4
230 5.0 0.50 54 9.06 0.20 0.02 2.13 120 (265) 0.55 (1.21)
RTE-230
RTE-230/4
330 5.0 0.50 85 12.99 0.20 0.02 3.35 120 (265) 0.75 (1.65)
RTE-330
RTE-330/4
450 5.0 0.50 125 17.72 0.20 0.02 4.92 120 (265) 0.99 (2.18)
RTE-450
RTE-450/4
610 5.0 0.50 175 24.02 0.20 0.02 6.89 120 (265) 1.31 (2.88)
RTE-610
RTE-610/4
762 5.0 0.50 220 30.00 0.20 0.02 8.66 120 (265) 1.61 (3.551)
RTE-762
RTE-762/4
914 5.0 0.50 270 35.98 0.20 0.02 10.63 120 (265) 1.91 (4.220)
RTE-914
RTE-914/4
