EASY LOCK STEEL TIE COATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement.

Key Industries:

Aerospace
Chemicals & Refineries
Dairy & Food Processing
Oil, Gas & Offshore
Ship & Marines
Solar
Telecom
Utility
Windmill

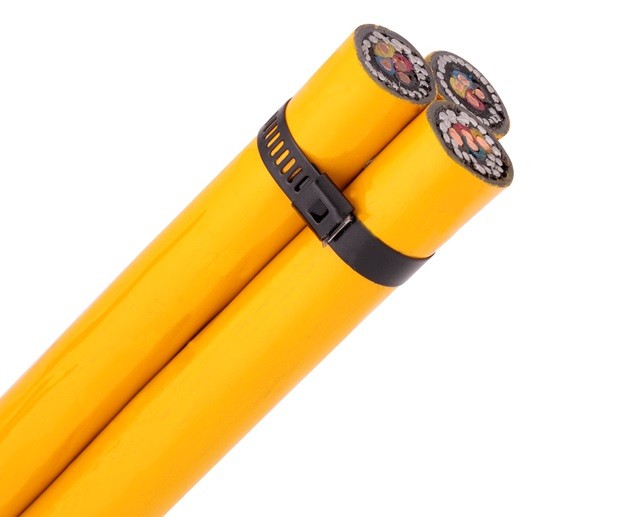

Easy Lock Steel Cable Tie Coated
Easy Lock Steel Cable Tie Coated Line Drawing - Easy Lock Steel Tie Coated Easy Lock Steel Tie Coated

Material: Stainless Steel SS 316, SS 304
Coating Material:
* Black Polyster– Polyster
* Black Nylon– Nylon
Operating Temp:  -80°C to +150°C
Installation:  By tie tools (STT 1 & 2) & hook (STT 3)
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Easy lock steel ties are self locking with multiple locking systems designed for fast, strong and secure Installation
* Smooth edges of ties provide utmost safety while installation
* Coating material is non-toxic, halogen free, low smoke and UV resistant
* Coated ties provide long term life in corrosive climate condition
Download Brochure
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Coating Type Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) SS 316 SS 304 PDF Drawing
150 7.0 0.40 35 5.91 0.28 0.02 1.38 Polyster 45 (99) 0.24 (0.52)
EL-150CP
EL-150/4CP
150 7.0 0.40 35 5.91 0.28 0.02 1.38 Nylon 45 (99) 0.24 (0.52)
EL-150CN
EL-150/4CN
200 7.0 0.40 51 7.87 0.28 0.02 2.01 Polyster 45 (99) 0.31 (0.68)
EL-200CP
EL-200/4CP
200 7.0 0.40 51 7.87 0.28 0.02 2.01 Nylon 45 (99) 0.31 (0.68)
EL-200CN
EL-200/4CN
225 7.0 0.40 60 8.86 0.28 0.02 2.36 Polyster 45 (99) 0.33 (0.72)
EL-225CP
EL-225/4CP
225 7.0 0.40 60 8.86 0.28 0.02 2.36 Nylon 45 (99) 0.33 (0.72)
EL-225CN
EL-225/4CN
250 7.0 0.40 65 9.84 0.28 0.02 2.56 Polyster 45 (99) 0.35 (0.77)
EL-250CP
EL-250/4CP
250 7.0 0.40 65 9.84 0.28 0.02 2.56 Nylon 45 (99) 0.35 (0.77)
EL-250CN
EL-250/4CN
300 7.0 0.40 80 11.81 0.28 0.02 3.15 Polyster 45 (99) 0.44 (0.96)
EL-300CP
EL-300/4CP
300 7.0 0.40 80 11.81 0.28 0.02 3.15 Nylon 45 (99) 0.44 (0.96)
EL-300CN
EL-300/4CN
360 7.0 0.40 100 14.17 0.28 0.02 3.94 Polyster 45 (99) 0.51 (1.12)
EL-360CP
EL-360/4CP
360 7.0 0.40 100 14.17 0.28 0.02 3.94 Nylon 45 (99) 0.51 (1.12)
EL-360CN
EL-360/4CN
450 7.0 0.40 125 17.72 0.28 0.02 4.92 Polyster 45 (99) 0.61 (1.34)
EL-450CP
EL-450/4CP
450 7.0 0.40 125 17.72 0.28 0.02 4.92 Nylon 45 (99) 0.61 (1.34)
EL-450CN
EL-450/4CN
600 7.0 0.40 175 23.62 0.28 0.02 6.89 Polyster 45 (99) 0.79 (1.74)
EL-600CP
EL-600/4CP
600 7.0 0.40 175 23.62 0.28 0.02 6.89 Nylon 45 (99) 0.79 (1.74)
EL-600CN
EL-600/4CN
610 7.0 0.40 180 24.02 0.28 0.02 7.09 Polyster 45 (99) 0.83 (1.82)
EL-610CP
EL-610/4CP
610 7.0 0.40 180 24.02 0.28 0.02 7.09 Nylon 45 (99) 0.83 (1.82)
EL-610CN
EL-610/4CN
750 7.0 0.40 225 29.53 0.28 0.02 8.86 Polyster 45 (99) 1.01 (2.22)
EL-750CP
EL-750/4CP
750 7.0 0.40 225 29.53 0.28 0.02 8.86 Nylon 45 (99) 1.01 (2.22)
EL-750CN
EL-750/4CN
1000 7.0 0.40 300 39.37 0.28 0.02 11.81 Polyster 45 (99) 1.28 (2.82)
EL-1000CP
EL-1000/4CP
1000 7.0 0.40 300 39.37 0.28 0.02 11.81 Nylon 45 (99) 1.28 (2.82)
EL-1000CN
EL-1000/4CN
150 12.0 0.40 35 5.91 0.47 0.02 1.38 Polyster 111 (245) 0.47 (1.03)
ELH-150CP
ELH-150/4CP
150 12.0 0.40 35 5.91 0.47 0.02 1.38 Nylon 111 (245) 0.47 (1.03)
ELH-150CN
ELH-150/4CN
200 12.0 0.40 51 7.87 0.47 0.02 2.01 Polyster 111 (245) 0.62 (1.36)
ELH-200CP
ELH-200/4CP
200 12.0 0.40 51 7.87 0.47 0.02 2.01 Nylon 111 (245) 0.62 (1.36)
ELH-200CN
ELH-200/4CN
225 12.0 0.40 60 8.86 0.47 0.02 2.36 Polyster 111 (245) 0.66 (1.45)
ELH-225CP
ELH-225/4CP
225 12.0 0.40 60 8.86 0.47 0.02 2.36 Nylon 111 (245) 0.66 (1.45)
ELH-225CN
ELH-225/4CN
250 12.0 0.40 65 9.84 0.47 0.02 2.56 Polyster 111 (245) 0.72 (1.58)
ELH-250CP
ELH-250/4CP
250 12.0 0.40 65 9.84 0.47 0.02 2.56 Nylon 111 (245) 0.72 (1.58)
ELH-250CN
ELH-250/4CN
300 12.0 0.40 80 11.81 0.47 0.02 3.15 Polyster 111 (245) 0.84 (1.85)
ELH-300CP
ELH-300/4CP
300 12.0 0.40 80 11.81 0.47 0.02 3.15 Nylon 111 (245) 0.84 (1.85)
ELH-300CN
ELH-300/4CN
360 12.0 0.40 100 14.17 0.47 0.02 3.94 Polyster 111 (245) 1.00 (2.20)
ELH-360CP
ELH-360/4CP
360 12.0 0.40 100 14.17 0.47 0.02 3.94 Nylon 111 (245) 1.00 (2.20)
ELH-360CN
ELH-360/4CN
450 12.0 0.40 125 17.72 0.47 0.02 4.92 Polyster 111 (245) 1.12 (2.46)
ELH-450CP
ELH-450/4CP
450 12.0 0.40 125 17.72 0.47 0.02 4.92 Nylon 111 (245) 1.12 (2.46)
ELH-450CN
ELH-450/4CN
600 12.0 0.40 175 23.62 0.47 0.02 6.89 Polyster 111 (245) 1.51 (3.32)
ELH-600CP
ELH-600/4CP
600 12.0 0.40 175 23.62 0.47 0.02 6.89 Nylon 111 (245) 1.51 (3.32)
ELH-600CN
ELH-600/4CN
610 12.0 0.40 180 24.02 0.47 0.02 7.09 Polyster 111 (245) 1.52 (3.35)
ELH-610CP
ELH-610/4CP
610 12.0 0.40 180 24.02 0.47 0.02 7.09 Nylon 111 (245) 1.52 (3.35)
ELH-610CN
ELH-610/4CN
750 12.0 0.40 225 29.53 0.47 0.02 8.86 Polyster 111 (245) 1.85 (4.07)
ELH-750CP
ELH-750/4CP
750 12.0 0.40 225 29.53 0.47 0.02 8.86 Nylon 111 (245) 1.85 (4.07)
ELH-750CN
ELH-750/4CN
1000 12.0 0.40 300 39.37 0.47 0.02 11.81 Polyster 111 (245) 2.48 (5.46)
ELH-1000CP
ELH-1000/4CP
1000 12.0 0.40 300 39.37 0.47 0.02 11.81 Nylon 111 (245) 2.48 (5.46)
ELH-1000CN
ELH-1000/4CN
