BALL LOCK STEEL TIE COATED

Applications

Suitable for corrosive climate condition, higher temperature and higher tensile strength requirement.

Key Industries:

Aerospace
Chemicals & Refineries
Dairy & Food Processing
Oil, Gas & Offshore
Ship & Marines
Solar
Telecom
Utility
Windmill

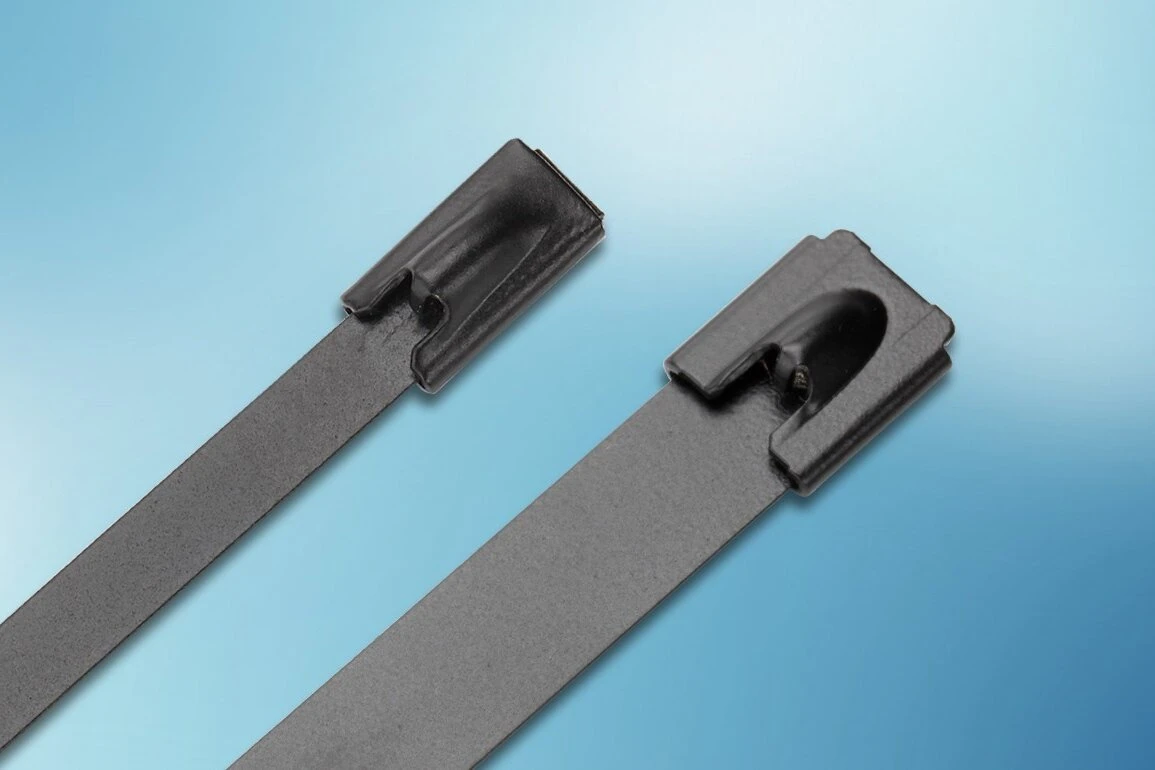

Ball Lock Steel Cable Tie Coated

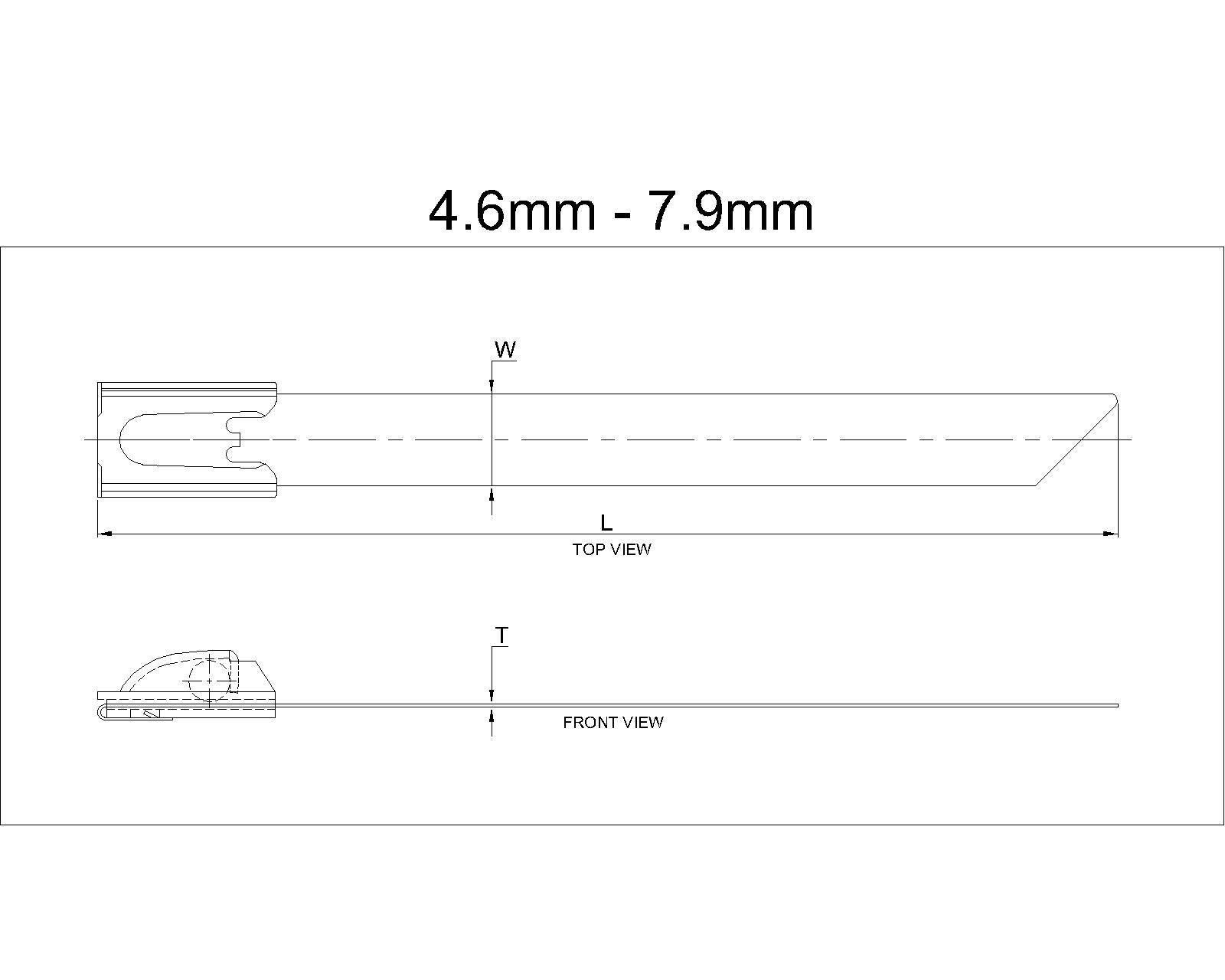

Ball Lock Steel Cable Tie Coated Line Drawing - Ball Lock Steel Tie Coated Ball Lock Steel Tie Coated

Material: Stainless Steel SS 316, SS 304
Coating:
* Black Polyester
* Black Nylon
Operating Temperature Range: -80°C to +150°C
Installation: By hand or with the help of tool STT1, STT2, STT3
Test Certificate:
Packing: 100 pcs bag
Unit: 100 Pcs/Pkt
* Ball lock steel ties are self locking. Fast & easy to install

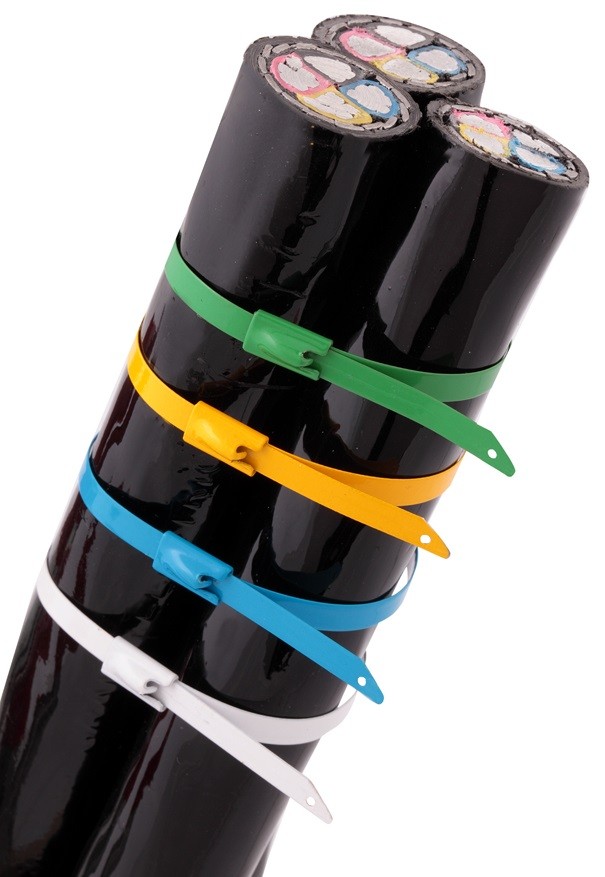

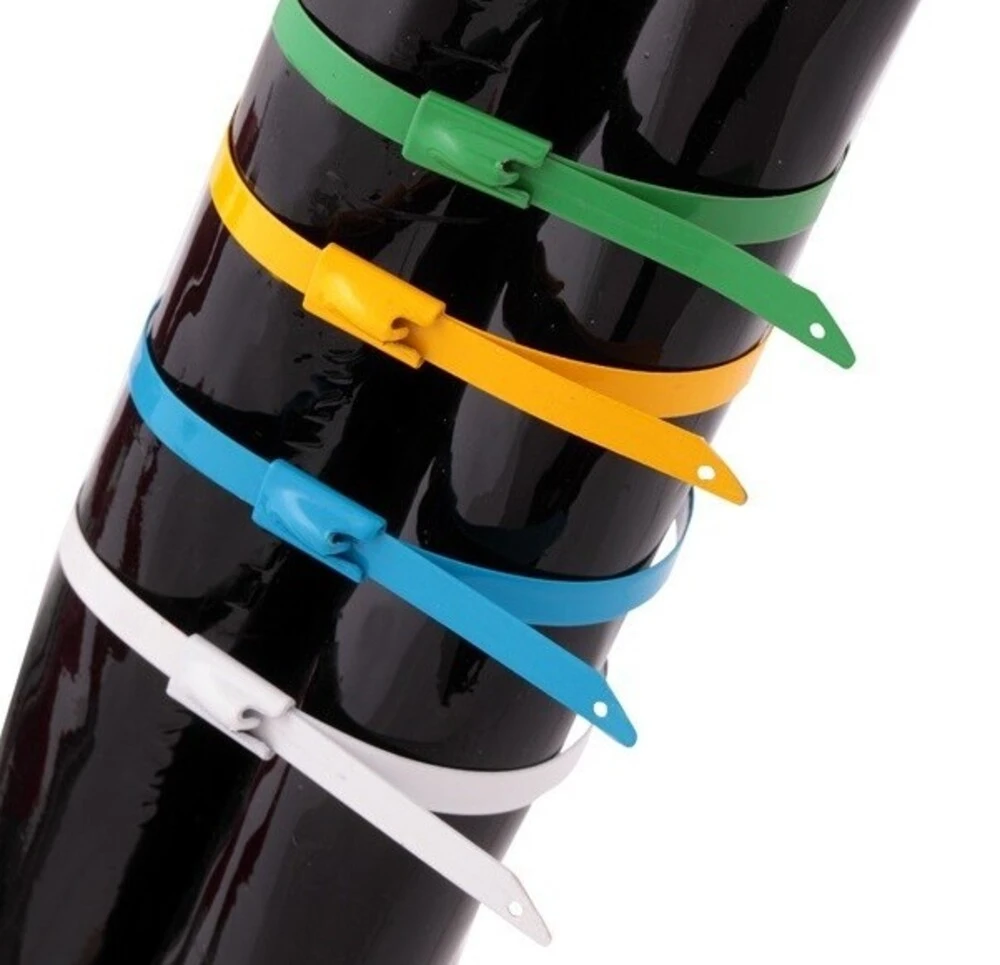

* When locked on bundles, the ball inside the angled ramp of the head provides positive locking
* Coating material is non-toxic, halogen free, low smoke and UV resistant
* Coated ties provides long term life in corrosive climate condition
Download Brochure
Length (mm) Width (mm) Thickness (mm) Max. Bundle Dia (mm) Length (inch) Width (inch) Thickness (inch) Max. Bundle Dia (inch) Coating Type Loop Tensile Strength Kgs (lbs) G.W. /100 pcs Kgs. (Lbs.) SS 316 SS 304 PDF Drawing
100 4.6 0.38 25 3.94 0.18 0.01 0.98 POLYESTER 60 (132) 0.18 (0.39)
BL-100CP
BL-100 /4CP
100 4.6 0.45 25 3.94 0.18 0.02 0.98 NYLON 60 (132) 0.18 (0.39)
BL-100CN
BL-100 /4CN
150 4.6 0.38 30 5.91 0.18 0.01 1.18 POLYESTER 60 (132) 0.22 (0.48)
BL-150CP
BL-150 /4CP
150 4.6 0.45 30 5.91 0.18 0.02 1.18 NYLON 60 (132) 0.22 (0.48)
BL-150CN
BL-150 /4CN
200 4.6 0.38 50 7.87 0.18 0.01 1.97 POLYESTER 60 (132) 0.27 (0.59)
BL-200CP
BL-200 /4CP
200 4.6 0.45 50 7.87 0.18 0.02 1.97 NYLON 60 (132) 0.27 (0.59)
BL-200CN
BL-200 /4CN
260 4.6 0.38 70 10.24 0.18 0.01 2.76 POLYESTER 60 (132) 0.34 (0.74)
BL-260CP
BL-260 /4CP
260 4.6 0.45 70 10.24 0.18 0.02 2.76 NYLON 60 (132) 0.34 (0.74)
BL-260CN
BL-260 /4CN
300 4.6 0.38 82 11.81 0.18 0.01 3.23 POLYESTER 60 (132) 0.36 (0.79)
BL-300CP
BL-300 /4CP
300 4.6 0.45 82 11.81 0.18 0.02 3.23 NYLON 60 (132) 0.36 (0.79)
BL-300CN
BL-300 /4CN
360 4.6 0.38 100 14.17 0.18 0.01 3.94 POLYESTER 60 (132) 0.42 (0.92)
BL-360CP
BL-360 /4CP
360 4.6 0.45 100 14.17 0.18 0.02 3.94 NYLON 60 (132) 0.42 (0.92)
BL-360CN
BL-360 /4CN
450 4.6 0.38 130 17.72 0.18 0.01 5.12 POLYESTER 60 (132) 0.49 (1.08)
BL-450CP
BL-450 /4CP
450 4.6 0.45 130 17.72 0.18 0.02 5.12 NYLON 60 (132) 0.49 (1.08)
BL-450CN
BL-450 /4CN
520 4.6 0.38 150 20.47 0.18 0.01 5.91 POLYESTER 60 (132) 0.59 (1.30)
BL-520CP
BL-520 /4CP
520 4.6 0.45 150 20.47 0.18 0.02 5.91 NYLON 60 (132) 0.59 (1.30)
BL-520CN
BL-520 /4CN
610 4.6 0.38 180 24.02 0.18 0.01 7.09 POLYESTER 60 (132) 0.67 (1.47)
BL-610CP
BL-610 /4CP
610 4.6 0.45 180 24.02 0.18 0.02 7.09 NYLON 60 (132) 0.67 (1.47)
BL-610CN
BL-610 /4CN
680 4.6 0.38 200 26.77 0.18 0.01 7.87 POLYESTER 60 (132) 0.71 (1.56)
BL-680CP
BL-680 /4CP
680 4.6 0.45 200 26.77 0.18 0.02 7.87 NYLON 60 (132) 0.71 (1.56)
BL-680CN
BL-680 /4CN
840 4.6 0.38 250 33.07 0.18 0.01 9.84 POLYESTER 60 (132) 0.87 (1.91)
BL-840CP
BL-840 /4CP
840 4.6 0.45 250 33.07 0.18 0.02 9.84 NYLON 60 (132) 0.87 (1.91)
BL-840CN
BL-840 /4CN
1000 4.6 0.38 300 39.37 0.18 0.01 11.81 POLYESTER 60 (132) 1.03 (2.27)
BL-1000CP
BL-1000 /4CP
1000 4.6 0.45 300 39.37 0.18 0.02 11.81 NYLON 60 (132) 1.03 (2.27)
BL-1000CN
BL-1000 /4CN
100 7.9 0.38 25 3.94 0.31 0.01 0.98 POLYESTER 170 (375) 0.35 (0.77)
BLH-100CP
BLH-100 /4CP
100 7.9 0.45 25 3.94 0.31 0.02 0.98 NYLON 170 (375) 0.35 (0.77)
BLH-100CN
BLH-100 /4CN
150 7.9 0.38 30 5.91 0.31 0.01 1.18 POLYESTER 170 (375) 0.42 (0.92)
BLH-150CP
BLH-150 /4CP
150 7.9 0.45 30 5.91 0.31 0.02 1.18 NYLON 170 (375) 0.42 (0.92)
BLH-150CN
BLH-150 /4CN
200 7.9 0.38 50 7.87 0.31 0.01 1.97 POLYESTER 170 (375) 0.51 (1.12)
BLH-200CP
BLH-200 /4CP
200 7.9 0.45 50 7.87 0.31 0.02 1.97 NYLON 170 (375) 0.51 (1.12)
BLH-200CN
BLH-200 /4CN
260 7.9 0.38 70 10.24 0.31 0.01 2.76 POLYESTER 170 (375) 0.63 (1.38)
BLH-260CP
BLH-260 /4CP
260 7.9 0.45 70 10.24 0.31 0.02 2.76 NYLON 170 (375) 0.63 (1.38)
BLH-260CN
BLH-260 /4CN
300 7.9 0.38 82 11.81 0.31 0.01 3.23 POLYESTER 170 (375) 0.69 (1.52)
BLH-300CP
BLH-300 /4CP
300 7.9 0.45 82 11.81 0.31 0.02 3.23 NYLON 170 (375) 0.69 (1.52)
BLH-300CN
BLH-300 /4CN
360 7.9 0.38 100 14.17 0.31 0.01 3.94 POLYESTER 170 (375) 0.80 (1.76)
BLH-360CP
BLH-360 /4CP
360 7.9 0.45 100 14.17 0.31 0.02 3.94 NYLON 170 (375) 0.80 (1.76)
BLH-360CN
BLH-360 /4CN
450 7.9 0.38 130 17.72 0.31 0.01 5.12 POLYESTER 170 (375) 0.94 (2.07)
BLH-450CP
BLH-450 /4CP
450 7.9 0.45 130 17.72 0.31 0.02 5.12 NYLON 170 (375) 0.94 (2.07)
BLH-450CN
BLH-450 /4CN
520 7.9 0.38 150 20.47 0.31 0.01 5.91 POLYESTER 170 (375) 1.08 (2.38)
BLH-520CP
BLH-520 /4CP
520 7.9 0.45 150 20.47 0.31 0.02 5.91 NYLON 170 (375) 1.08 (2.38)
BLH-520CN
BLBLH-520 /4CN
610 7.9 0.38 180 24.02 0.31 0.01 7.09 POLYESTER 170 (375) 1.24 (2.73)
BLH-610CP
BLH-610 /4CP
610 7.9 0.45 180 24.02 0.31 0.02 7.09 NYLON 170 (375) 1.24 (2.73)
BLH-610CN
BLH-610 /4CN
680 7.9 0.38 200 26.77 0.31 0.01 7.87 POLYESTER 170 (375) 1.32 (2.90)
BLH-680CP
BLH-680 /4CP
680 7.9 0.45 200 26.77 0.31 0.02 7.87 NYLON 170 (375) 1.32 (2.90)
BLH-680CN
BLH-680 /4CN
840 7.9 0.38 250 33.07 0.31 0.01 9.84 POLYESTER 170 (375) 1.62 (3.57)
BLH-840CP
BLH-840 /4CP
840 7.9 0.45 250 33.07 0.31 0.02 9.84 NYLON 170 (375) 1.62 (3.57)
BLH-840CN
BLH-840 /4CN
1000 7.9 0.38 300 39.37 0.31 0.01 11.81 POLYESTER 170 (375) 1.88 (4.14)
BLH-1000CP
BLH-1000 /4CP
1000 7.9 0.45 300 39.37 0.31 0.02 11.81 NYLON 170 (375) 1.88 (4.14)
BLH-1000CN
BLH-1000 /4CN
200 12.7 0.38 26 7.87 0.50 0.01 1.02 POLYESTER 267 (589) 1.39 (3.06)
BLEH-200CP
BLEH-200/4CP
200 12.7 0.45 26 7.87 0.50 0.02 1.02 NYLON 267 (589) 1.39 (3.06)
BLEH-200CN
BLEH-200/4CN
300 12.7 0.38 58 11.81 0.50 0.01 2.28 POLYESTER 267 (589) 1.65 (3.63)
BLEH-300CP
BLEH-300/4CP
300 12.7 0.45 58 11.81 0.50 0.02 2.28 NYLON 267 (589) 1.65 (3.63)
BLEH-300CN
BLEH-300/4CN
360 12.7 0.38 77 14.17 0.50 0.01 3.03 POLYESTER 267 (589) 1.81 (3.99)
BLEH-360CP
BLEH-360/4CP
360 12.7 0.45 77 14.17 0.50 0.02 3.03 NYLON 267 (589) 1.81 (3.99)
BLEH-360CN
BLEH-360/4CN
520 12.7 0.38 128 20.47 0.50 0.01 5.04 POLYESTER 267 (589) 2.25 (4.96)
BLEH-520CP
BLEH-520/4CP
520 12.7 0.45 128 20.47 0.50 0.02 5.04 NYLON 267 (589) 2.25 (4.96)
BLEH-520CN
BLEH-520/4CN
680 12.7 0.38 179 26.77 0.50 0.01 7.05 POLYESTER 267 (589) 2.69 (5.93)
BLEH-680CP
BLEH-680/4CP
680 12.7 0.45 179 26.77 0.50 0.02 7.05 NYLON 267 (589) 2.69 (5.93)
BLEH-680CN
BLEH-680/4CN
840 12.7 0.38 230 33.07 0.50 0.01 9.06 POLYESTER 267 (589) 3.13 (6.90)
BLEH-840CP
BLEH-840/4CP
840 12.7 0.45 230 33.07 0.50 0.02 9.06 NYLON 267 (589) 3.13 (6.90)
BLEH-840CN
BLEH-840/4CN
1000 12.7 0.38 280 39.37 0.50 0.01 11.02 POLYESTER 267 (589) 3.56 (7.84)
BLEH-1000CP
BLEH-1000/4CP
1000 12.7 0.45 280 39.37 0.50 0.02 11.02 NYLON 267 (589) 3.56 (7.84)
BLEH-1000CN
BLEH-1000/4CN
200 12.7 0.51 26 7.87 0.50 0.02 1.02 POLYESTER 310 (684) 1.69 (3.72)
BLEHT-200CP
BLEHT-200/4CP
200 12.7 0.58 26 7.87 0.50 0.02 1.02 NYLON 310 (684) 1.69 (3.72)
BLEHT-200CN
BLEHT-200/4CN
300 12.7 0.51 58 11.81 0.50 0.02 2.28 POLYESTER 310 (684) 2.10 (4.62)
BLEHT-300CP
BLEHT-300/4CP
300 12.7 0.58 58 11.81 0.50 0.02 2.28 NYLON 310 (684) 2.10 (4.62)
BLEHT-300CN
BLEHT-300/4CN
360 12.7 0.51 77 14.17 0.50 0.02 3.03 POLYESTER 310 (684) 2.35 (5.18)
BLEHT-360CP
BLEHT-360/4CP
360 12.7 0.58 77 14.17 0.50 0.02 3.03 NYLON 310 (684) 2.35 (5.18)
BLEHT-360CN
BLEHT-360/4CN
520 12.7 0.51 128 20.47 0.50 0.02 5.04 POLYESTER 310 (684) 3.01 (6.63)
BLEHT-520CP
BLEHT-520/4CP
520 12.7 0.58 128 20.47 0.50 0.02 5.04 NYLON 310 (684) 3.01 (6.63)
BLEHT-520CN
BLEHT-520/4CN
680 12.7 0.51 179 26.77 0.50 0.02 7.05 POLYESTER 310 (684) 3.67 (8.09)
BLEHT-680CP
BLEHT-680/4CP
680 12.7 0.58 179 26.77 0.50 0.02 7.05 NYLON 310 (684) 3.67 (8.09)
BLEHT-680CN
BLEHT-680/4CN
840 12.7 0.51 230 33.07 0.50 0.02 9.06 POLYESTER 310 (684) 4.33 (9.54)
BLEHT-840CP
BLEHT-840/4CP
840 12.7 0.58 230 33.07 0.50 0.02 9.06 NYLON 310 (684) 4.33 (9.54)
BLEHT-840CN
BLEHT-840/4CN
1000 12.7 0.51 280 39.37 0.50 0.02 11.02 POLYESTER 310 (684) 4.99 (11.0)
BLEHT-1000CP
BLEHT-1000/4CP
1000 12.7 0.58 280 39.37 0.50 0.02 11.02 NYLON 310 (684) 4.99 (11.0)
BLEHT-1000CN
BLEHT-1000/4CN
450 15.9 0.51 107 17.72 0.63 0.02 4.21 POLYESTER 400 (882) 3.28 (7.23)
BLSH-450CP
BLSH-450/4CP
450 15.9 0.58 107 17.72 0.63 0.02 4.21 NYLON 400 (882) 3.28 (7.23)
BLSH-450CN
BLSH-450/4CN
610 15.9 0.51 158 24.02 0.63 0.02 6.22 POLYESTER 400 (882) 4.11 (9.06)
BLSH-610CP
BLSH-610/4CP
610 15.9 0.58 158 24.02 0.63 0.02 6.22 NYLON 400 (882) 4.11 (9.06)
BLSH-610CN
BLSH-610/4CN
760 15.9 0.51 206 29.92 0.63 0.02 8.11 POLYESTER 400 (882) 4.90 (10.08)
BLSH-760CP
BLSH-760/4CP
760 15.9 0.58 206 29.92 0.63 0.02 8.11 NYLON 400 (882) 4.90 (10.08)
BLSH-760CN
BLSH-760/4CN
912 15.9 0.51 254 35.91 0.63 0.02 10.00 POLYESTER 400 (882) 5.69 (12.54)
BLSH-912CP
BLSH-912/4CP
912 15.9 0.58 254 35.91 0.63 0.02 10.00 NYLON 400 (882) 5.69 (12.54)
BLSH-912CN
BLSH-912/4CN
1000 15.9 0.51 282 39.37 0.63 0.02 11.10 POLYESTER 400 (882) 6.14 (13.53)
BLSH-1000CP
BLSH-1000/4CP
1000 15.9 0.58 282 39.37 0.63 0.02 11.10 NYLON 400 (882) 6.14 (13.53)
BLSH-1000CN
BLSH-1000/4CN
