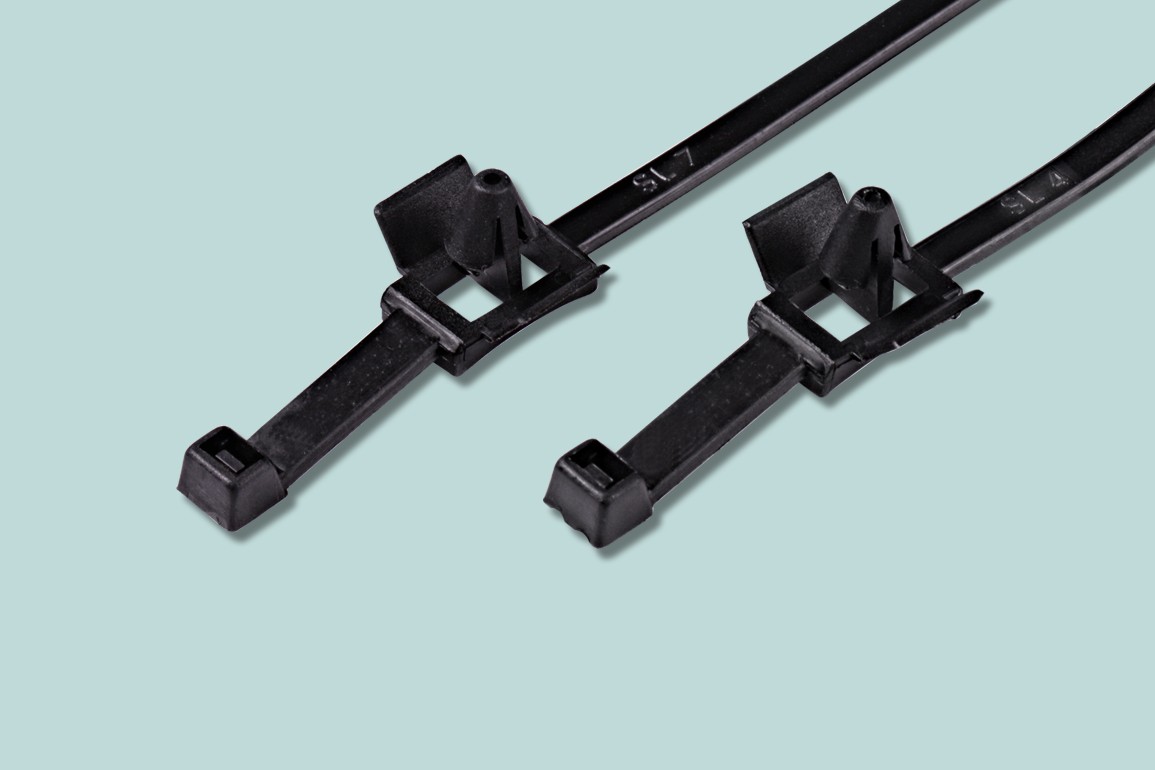

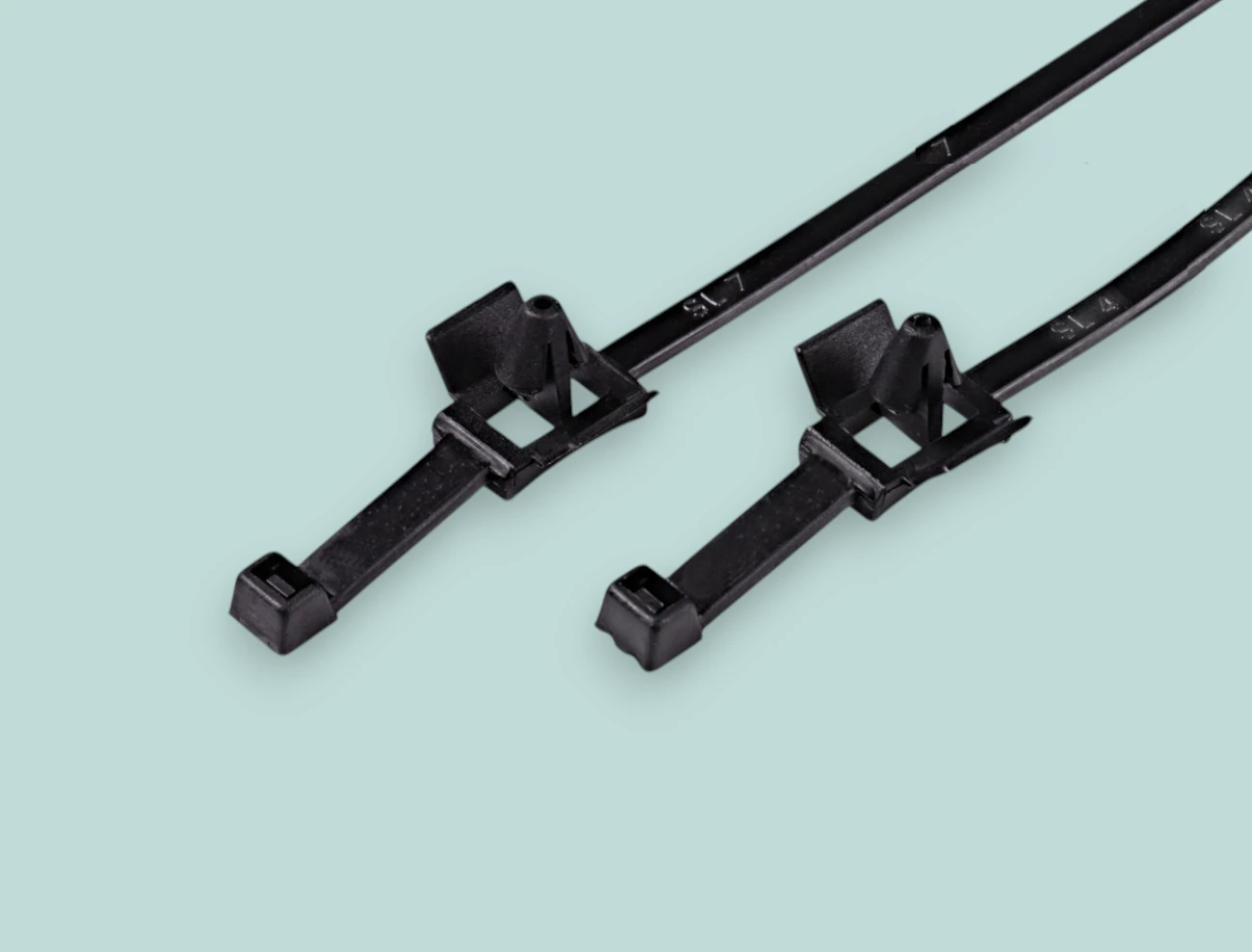

Inside Push Mount Tie

Material : Nylon 66
Color : Natural / Black
Operating Temperature : -40°C to +85°C
Flammability Rating : UL 94V-2
Installation : By hand
Test Certificate :
Packing : 100 pcs bag in all sizes

Quick and simple cable mounting solution
One piece construction design eliminates the use of screw or adhesive mounts which holds the bundles on chassis
Push mount tie head can be easily pressed into pre-drilled hole and can hold wire bunch
High-performance Nylon 66 material for durability

Comprehensive range of non releasable cable ties with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Engineered for Superior Performance

Inside Push Mount Design

Push mount tie head easily presses into pre-drilled hole from inside and securely holds wire bunches. One-piece construction eliminates screws or adhesive mounts.

Vibration Resistant

Specifically designed for harness assembly applications where constant vibration occurs, ideal for automobile, white goods, and electronics industries.

Simple Hand Installation

Quick and simple cable mounting by hand with no special tools required. Fast installation on chassis of vehicles, ACs, coolers, and other white goods.

Wide Temperature Range

Operating temperature from -40°C to +85°C with UL 94V-2 flammability rating ensures reliable performance in automotive and appliance environments.

Dual Color Options

Available in Natural and Black colors made from high-strength Nylon 66 for excellent durability, chemical resistance, and reliable performance in mounting applications.

Convenient Packaging

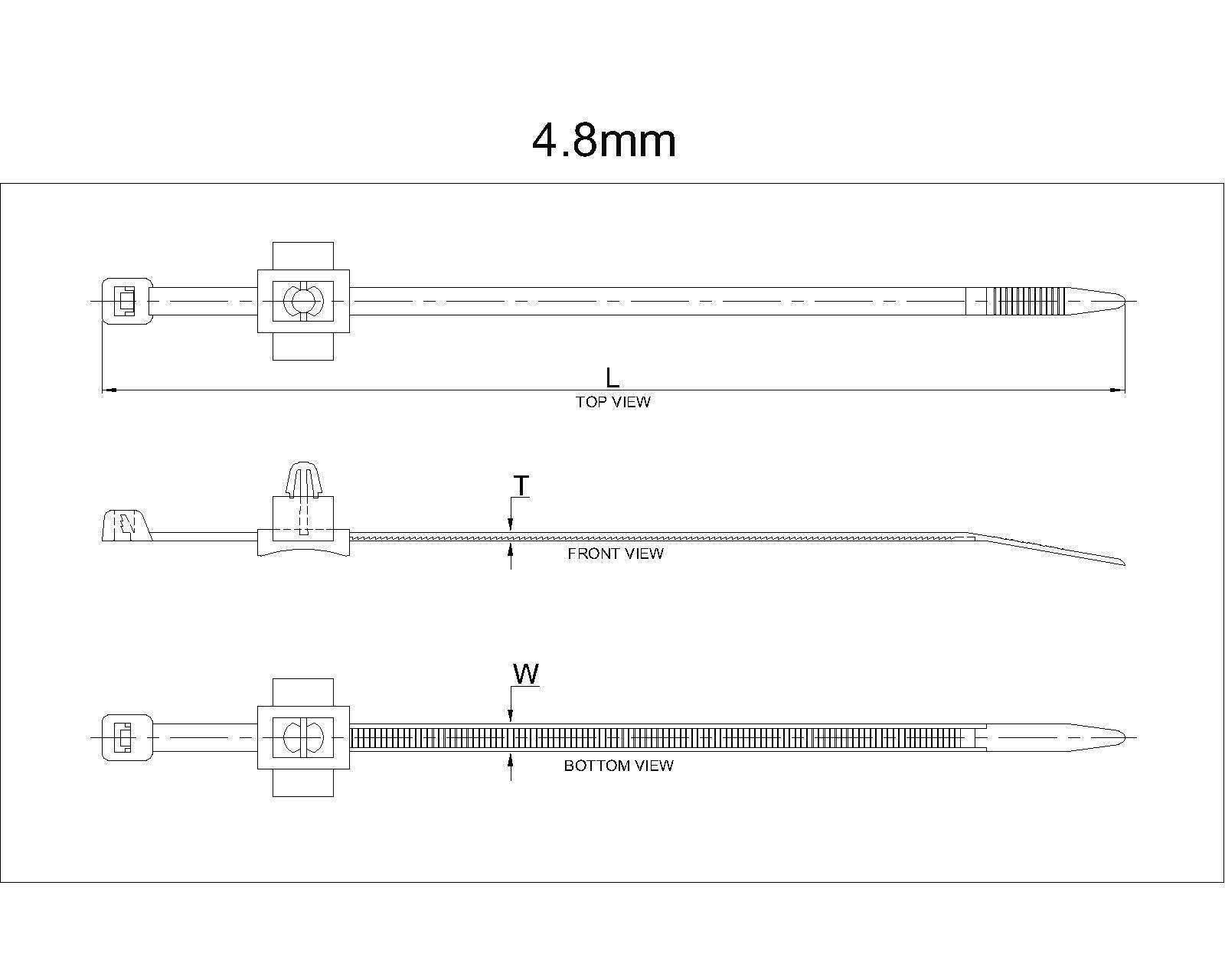

Packaged 100 pieces per bag in all sizes. Available in 2 sizes (143mm and 202mm) for bundle diameters 30mm to 50mm with hole diameter 5.6-6.4mm.

Frequently Asked Questions

What are Inside Push Mount Ties and where are they used?

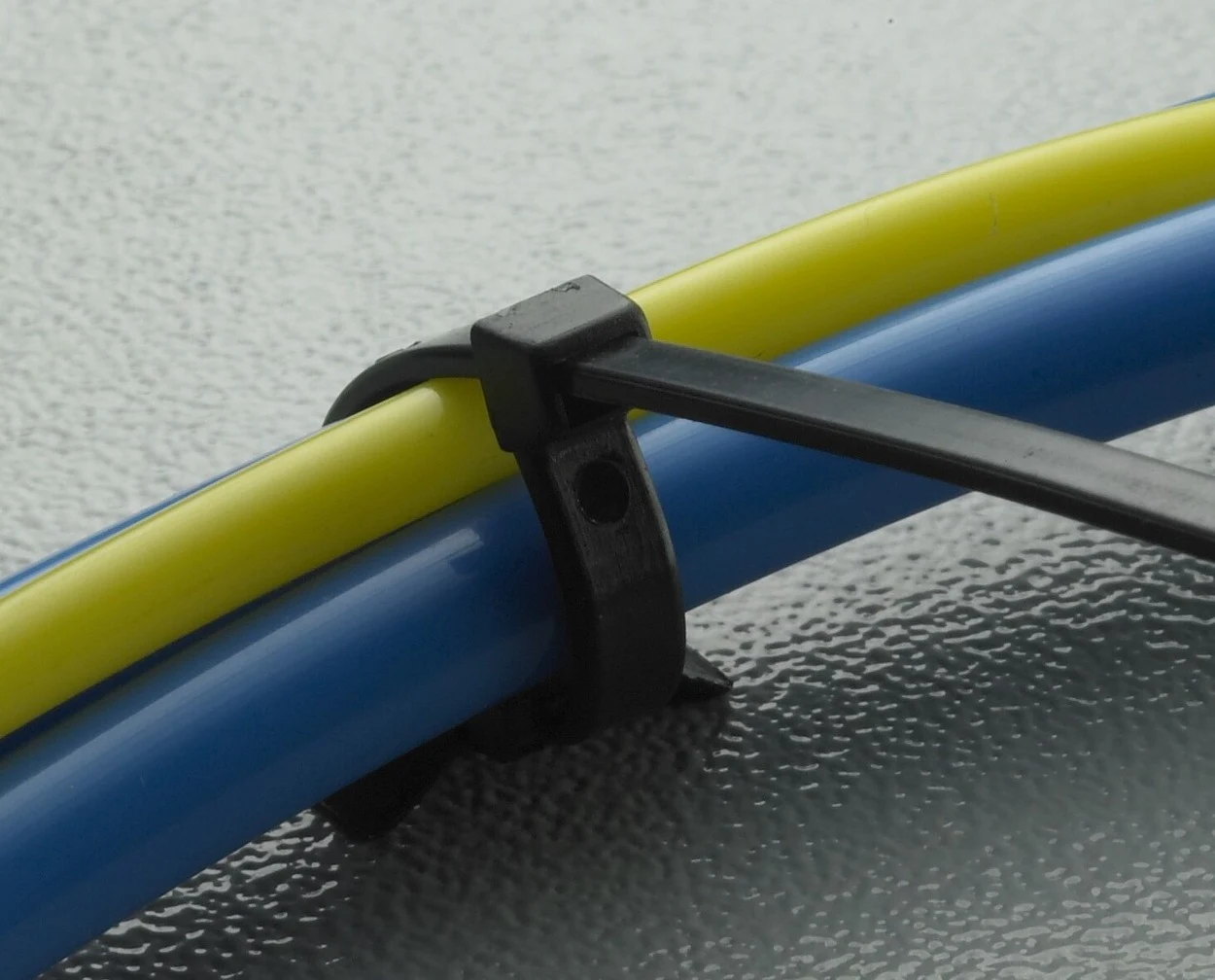

Inside Push Mount Ties are used to attach wire bundles to surfaces such as chassis of vehicles, ACs, coolers, and white goods. They're ideal for automobile, electrical/electronics, and white goods & appliances industries, particularly for harness assembly applications where there is constant vibration.

How do Inside Push Mount Ties differ from Outside Push Mount Ties?

Inside Push Mount Ties are installed from the inside of the surface, with the mounting head pressing into the pre-drilled hole from within. This provides a cleaner exterior appearance and secure mounting, while Outside Push Mount Ties are installed from the exterior surface.

What hole diameter is required for Inside Push Mount Ties?

Inside Push Mount Ties require a hole diameter of 5.6-6.4mm for proper installation. Both the 143mm and 202mm length models use the same hole diameter specification, ensuring compatibility across different bundle sizes.

What is the tensile strength of Inside Push Mount Ties?

Inside Push Mount Ties have a tensile strength of 22 kg (49 lbs) for both available sizes. The 143mm length accommodates bundle diameters up to 30mm, while the 202mm length accommodates bundles up to 50mm diameter.

What are the benefits of the one-piece construction design?

The one-piece construction design eliminates the need for screws or adhesive mounts, making installation quick and simple by hand. This design provides secure bundle holding on chassis while reducing installation time and eliminating additional fastening components.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Automobile

White Goods & Appliances

What Our Clients Say About Us

Perfect for Automotive Harness

The wing design push mount ties are excellent for our vehicle harness assemblies. They handle constant vibration perfectly and installation is quick without any tools.

Easy Installation

We use these push mount ties for AC unit wiring. The one-piece construction eliminates screws and adhesive mounts, saving us significant assembly time.

Reliable in Vibration

The wing design variants are specifically engineered for vibration resistance. We use them in all our vehicle chassis applications with complete confidence.

Great Size Range

The variety of lengths and bundle diameters means we can use the same product line for different applications - from small electronics to large cable bundles.

High Quality Material

Nylon 66 material with UL 94V-2 rating gives us confidence in product quality and safety. Temperature range is perfect for our refrigeration applications.

Cost Effective Solution

Eliminating the need for separate screws or adhesive mounts reduces our overall assembly costs while maintaining excellent bundle security.
