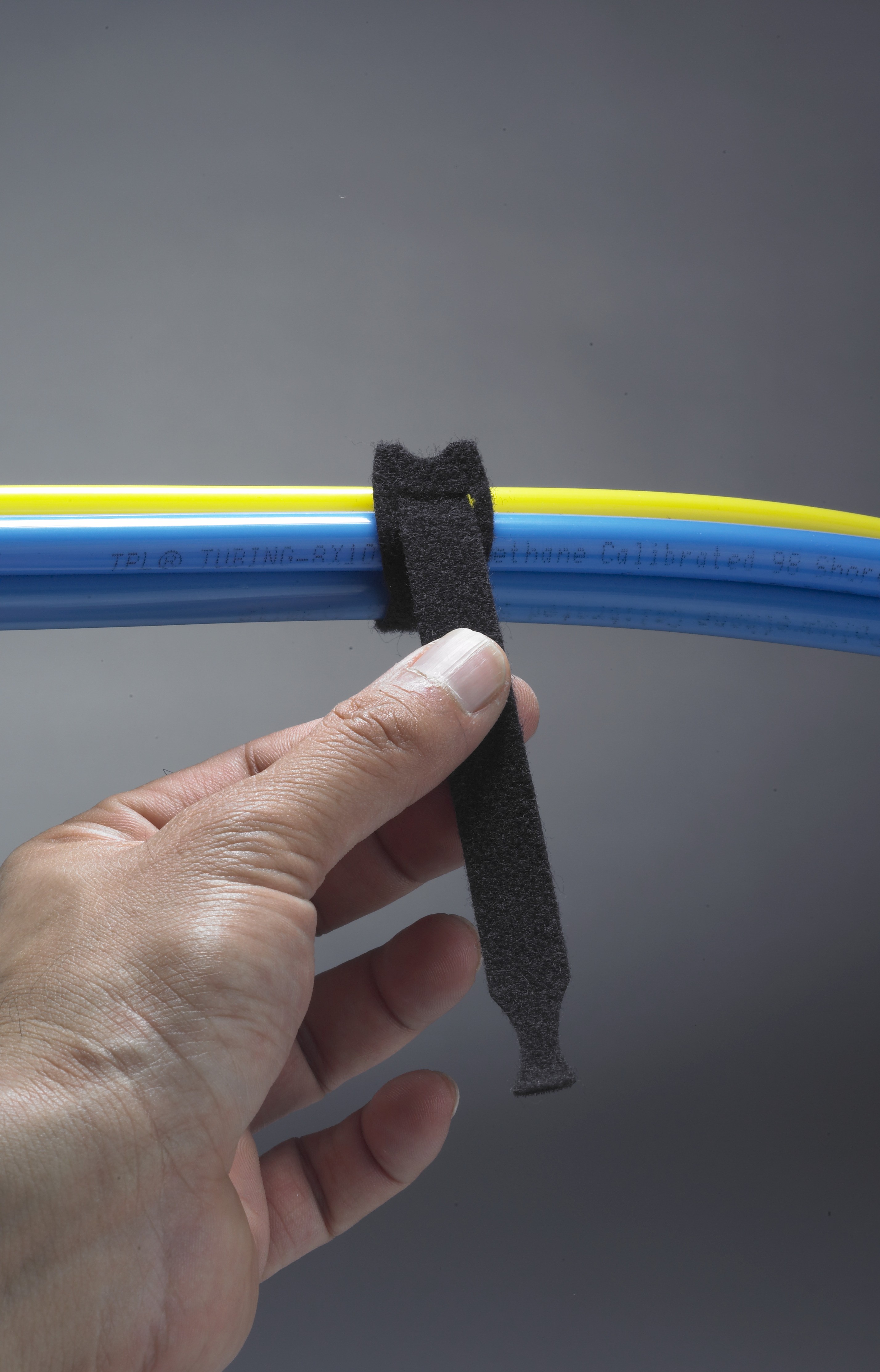

Hook 'N' Loop New Wrap Tie (Back to Back) Application

Hook 'N' Loop New Wrap Tie (Back to Back)

Hook 'N' Loop New Wrap Tie (Back to Back) Hook 'N' Loop New Wrap Tie (Back to Back) Technical Drawing Hook 'N' Loop New Wrap Tie (Back to Back) Application
Hook 'N' Loop New Wrap Tie (Back to Back)
Hook 'N' Loop New Wrap Tie (Back to Back) Technical Drawing
Hook 'N' Loop New Wrap Tie (Back to Back) Application
  • Material (Hook) : Nylon 6 (PA-6) molded
  • Material (Loop) : Nylon 6 (PA-6) multifilament knitted
  • Flammability Rating : UL 94 HB
  • Color : Black (standard), other colors available against order
  • Operating Temperature : -20°C to +85°C
  • Peel-off Strength : 1.25 N/cm (initial), 1 N/cm (after 5000 cycles)
  • Shear Strength : 9 N/cm² (initial), 1 N/cm (after 5000 cycles)
  • Packing : 100 pcs bag
  • Unit : 100 Pcs/Pkt
  • Tolerance (Length) : ±2mm
  • Tolerance (Width) : ±0.5mm
  • Slotted head ensures convenient application

Comprehensive range of Hook 'N' Loop New Wrap Tie with varying lengths, widths, and tensile strengths for diverse applications.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Tensile Strength
Tensile Strength(kbs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Cable Identification

Slotted Head Design

Slotted head ensures convenient application and secure attachment. Pre-cut individual ties offer precise length control for professional installations.

Reusable & Adjustable

Molded hook and knitted loop system allows unlimited opening and reclosing. Economical reusable design perfect for applications requiring frequent changes.

Gentle on Sensitive Cables

Designed for sensitive cable bunching that doesn't require industrial strength. Soft Nylon 6 material protects delicate wiring in networking and telecom applications.

Long-Lasting Durability

Maintains reliable performance after 5000 cycles. Initial peel-off strength 1.25 N/cm (1 N/cm after 5000 cycles), shear strength 9 N/cm² initially.

Temperature Resistance

Operating temperature range from -20°C to +85°C with UL 94 HB flammability rating ensures reliable performance in various networking and telecom environments.

Multiple Size Options

Available in 7 sizes from 125mm to 310mm with two width options (12mm and 16mm). Tensile strengths of 18kg or 28kg accommodate bundle diameters from 30mm to 85mm.

Frequently Asked Questions

What makes Hook 'N' Loop New Wrap Tie different from the standard wrap strap?
Hook 'N' Loop New Wrap Tie features a slotted head design for convenient application and comes as pre-cut individual ties (not rolls). The molded Nylon 6 hook and knitted Nylon 6 loop construction provides precise length control, making it ideal for professional installations in networking and telecom where consistency is important.
How does the slotted head design work?
The slotted head design allows for convenient and secure attachment to the cable bundle. Simply wrap the tie around the bundle, thread the end through the slotted head, and press the hook-and-loop surfaces together for instant secure hold. The design ensures consistent, professional-looking installations.
What materials are used in Hook 'N' Loop New Wrap Ties?
The hook side is made from molded Nylon 6 (PA-6), while the loop side is made from knitted Nylon 6 (PA-6) multifilaments. This combination provides optimal grip strength, gentle cable handling, and durability with a UL 94 HB flammability rating suitable for sensitive networking and telecom applications.
What sizes and strengths are available?
Available in 7 sizes: Four 12mm width options (125mm, 150mm, 210mm, 250mm) with 18kg tensile strength, and three 16mm width options (210mm, 250mm, 310mm) with 28kg tensile strength. Bundle diameters range from 30mm to 85mm. Standard color is Black, packaged 100 pieces per bag.
How many times can Hook 'N' Loop New Wrap Ties be reused?
Hook 'N' Loop New Wrap Ties maintain reliable performance after 5000 open/close cycles. Initial peel-off strength is 1.25 N/cm (1 N/cm after 5000 cycles), and initial shear strength is 9 N/cm² (1 N/cm after 5000 cycles), demonstrating excellent durability for reusable cable management applications.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Telecom

Telecom

Networking

Networking
