DOUBLE LOOP TIE

Applications

Ideal for tying two parellel routing cable , packing bags etc.

Key Industries:

Double Loop Tie Manufacturer

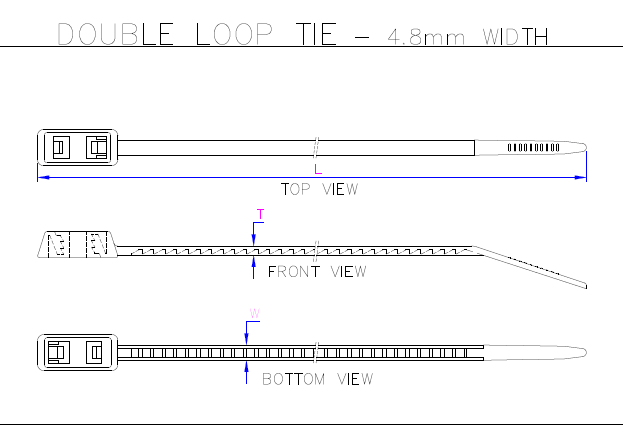

Double Loop Tie Manufacturer Line Drawing - Double Loop Tie Surelock Logo

Material: Nylon 66
Color: Natural, Black
Operating Temp: -40°C to +85°C
Flammability Rating: UL 94V-2
Installation: By hand or tool cat no.TT3, TT4, TT5
Test Certificate: CE Recognized / ROHS Compliance
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±2mm
Width: ±0.4mm
Thickness: ±0.3mm

* Possibility to separate bundles with only one cable tie
* Allows to hold different diameter bundles
Length (mm) Width (mm) Thickness (mm) Length (inch) Tensile Strength Kgs(lbs) 1st Loop Tensile Strength Kgs(lbs) 2nd Loop Max. bundle Dia (mm) Natural 100 pcs pack Cat No. Black 100 pcs pack Cat No. PDF Drawing
225 4.8 1.45 8.86 22 (49) 18 (40) 57
SLDL-225S
SLDL-225S/B
300 4.8 1.45 11.81 22 (49) 18 (40) 81
SLDL-300S
SLDL-300S/B
373 4.8 1.45 14.69 22 (49) 18 (40) 103
SLDL-373S
SLDL-373S/B
