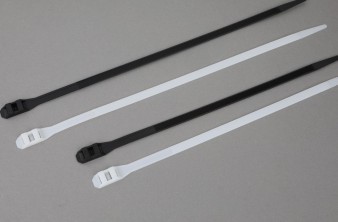

DOUBLE LOCK TIE

Applications

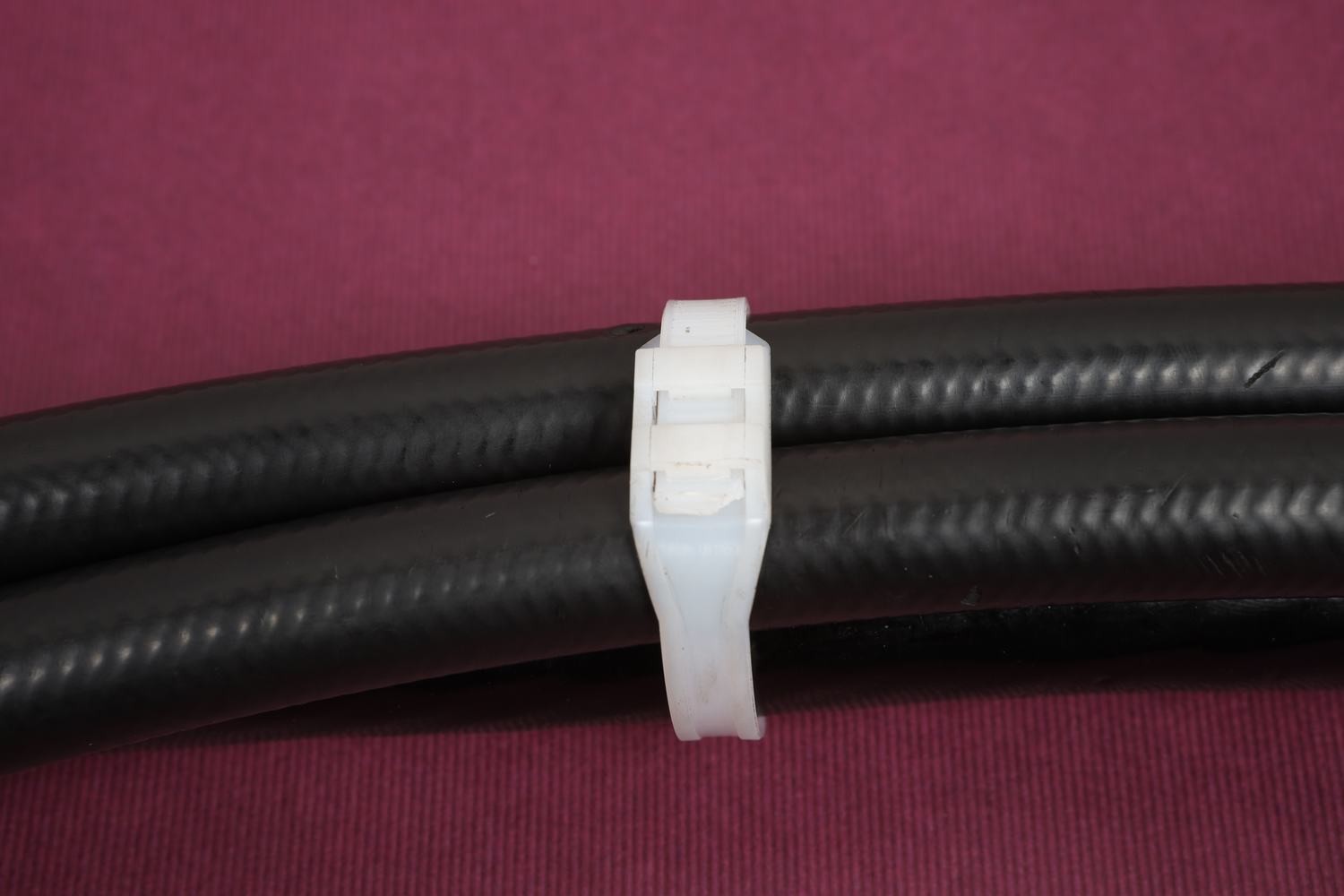

For securing & bundling of cables in utility and construction industries.

Key Industries:

Double Lock Tie Manufacturer

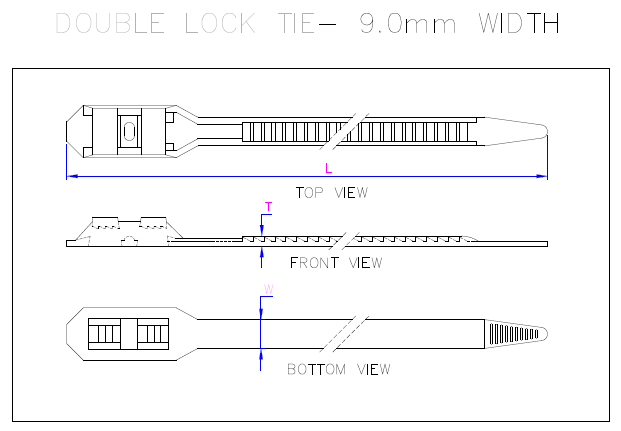

Double Lock Tie Manufacturer Line Drawing - Double Lock Tie Surelock Logo

Material: Nylon 66
Color: Natural, Black,UV Black
Operating Temp: -40°C to +85°C
Flammability Rating: UL 94V-2
Installation: By hand or tool cat no.TT5
Test Certificate: CE Recognized / ROHS Compliance
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±2mm
Width: ±0.4mm
Thickness: ±0.3mm

* Provides better tensile strength as compared to standard ties.
* Outer side serrations on tie eliminates the risk of damaging cables
* Double locking head offers firm gripping without sliping

Length (mm) Width (mm) Thickness (mm) Length (inch) Tensile Strength Kgs(lbs) Max. Bundle Dia (mm) Natural 100 pcs pack Cat No. Black 100 pcs pack Cat No. UV Black 100 pcs pack Cat No. PDF Drawing
235 9 1.85 9.25 55 (121) 52
SLD-235H
SLD-235H/B
SLD-235H/U
300 9 1.85 11.81 55 (121) 72
SLD-300H
SLD-300H/B
SLD-300H/U
360 9 1.85 14.17 55 (121) 91
SLD-360H
SLD-360H/B
SLD-360H/U
510 9 1.85 20.08 55 (121) 139
SLD-510H
SLD-510H/B
SLD-510H/U
