BELT TIE

Applications

Used where harness does not require high tensile strength

Key Industries:

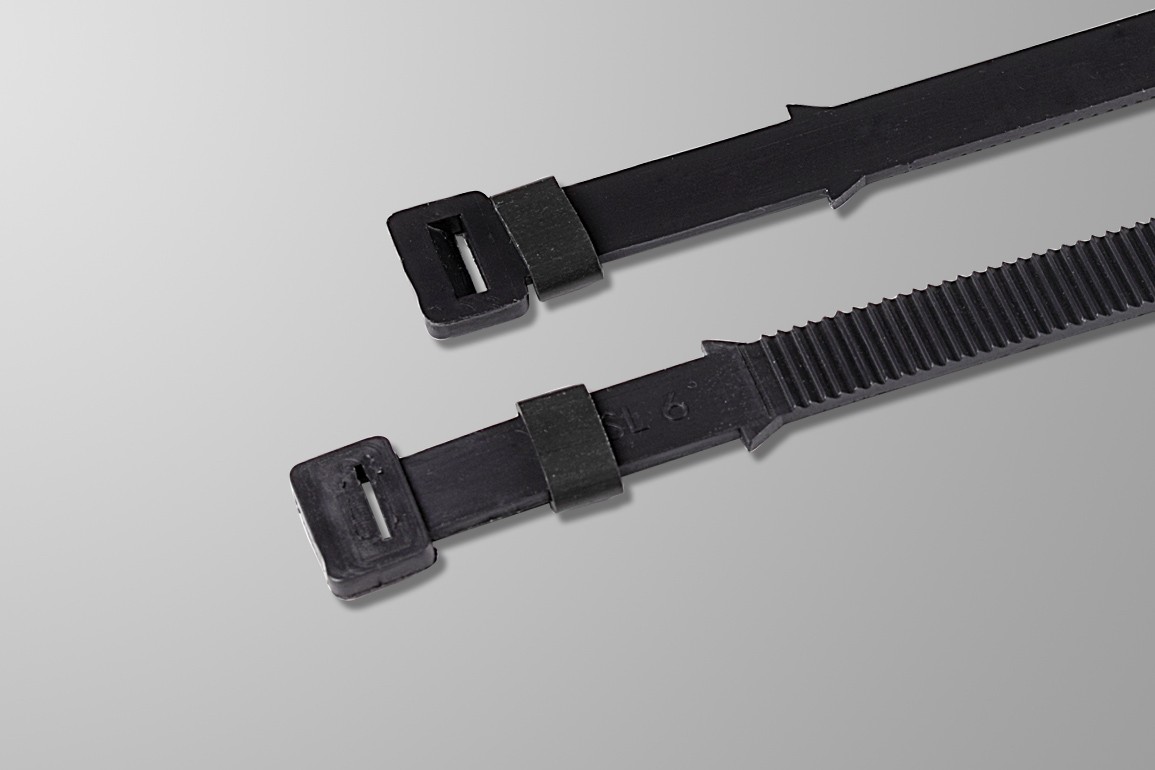

Belt Cable Ties

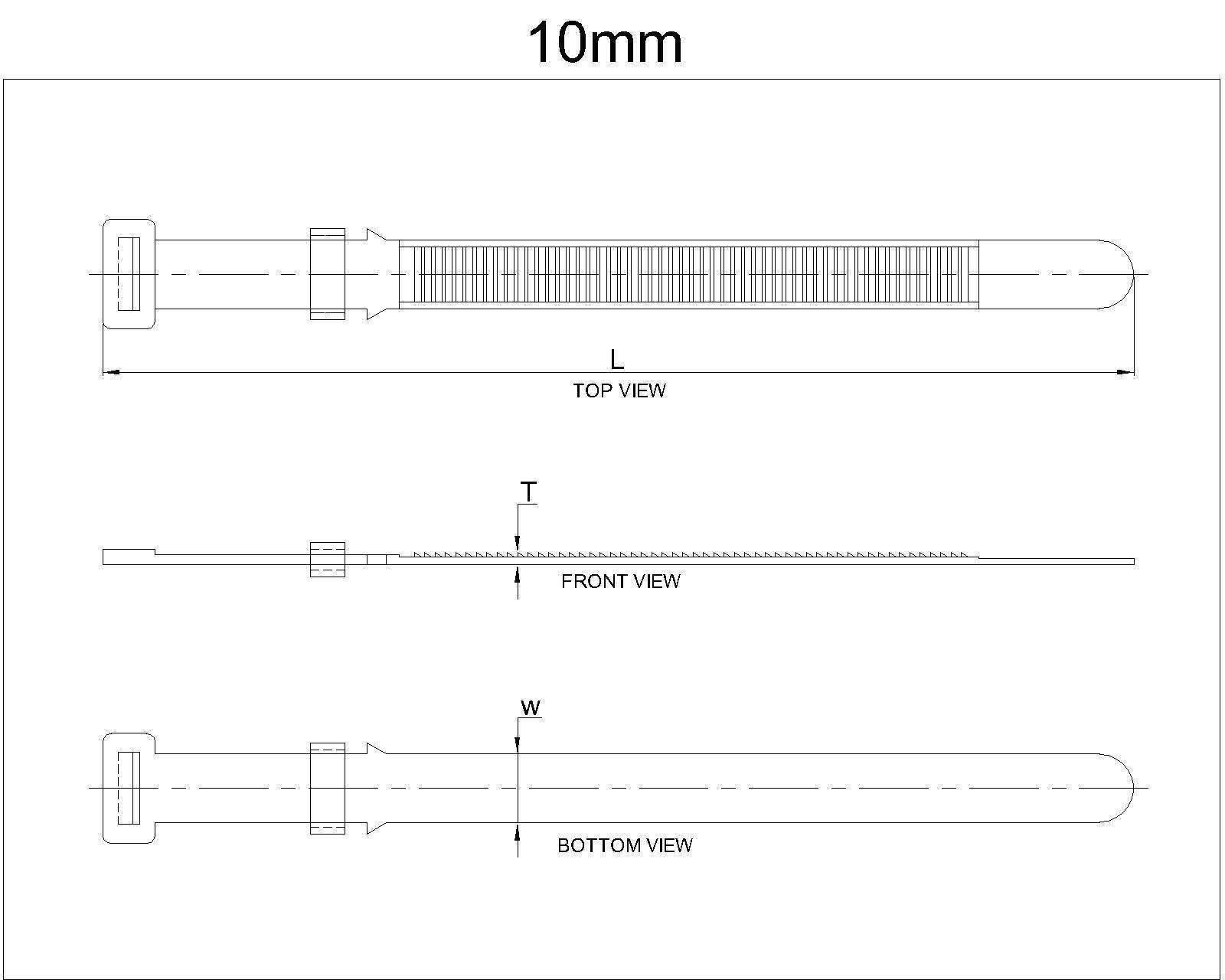

Belt Cable Ties Line Drawing - Belt Ties PVC Belt Tie

Material: Low Density Polyethylene (LDPE) & Polypropylene (PP)
Color: Black
Operating Temp: -40°C to +85°C
Flammability Rating:
Installation: By hand
Test Certificate:
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±3mm
Width: ±0.2mm
Thickness: ±0.2mm

* Suitable for low cost bunching application
Length (mm) Width (mm) Thickness (mm) Length (inch) Tensile Strength Kgs (lbs) Maxi. Bundle Dia (mm) Cat No. (For LDPE) Cat No. (For PP) PDF Drawing
150 10.0 1.88 5.9 8 (18) 30 (1.18)
SLBT-150
SLBT-150P
210 10.0 1.88 8.2 8 (18) 50 (1.96)
SLBT-210
SLBT-210P
