BOTTLE SEAL

Applications

Freight Containers, Truck Doors, Trailers and Goods Wagons, Logistic etc

Key Industries:

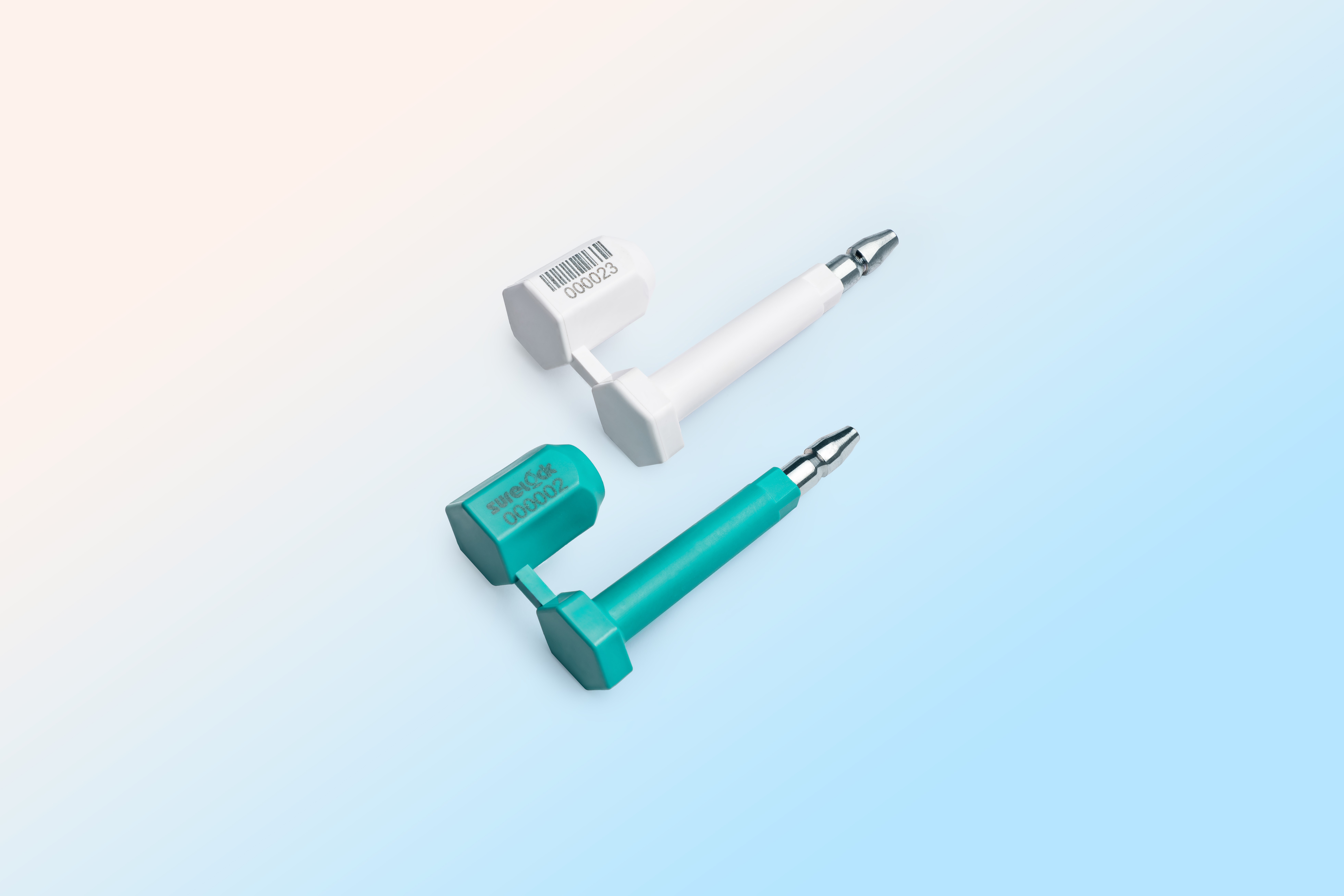

Bottle Lock Seal

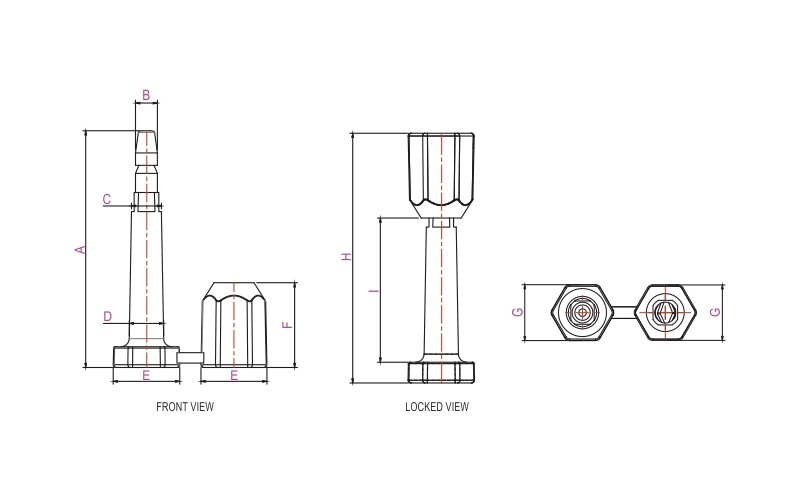

Bottle Lock Seal Line Drawing - Bottle Seal Bottle Seal

Material: ABS & steel with silver zinc plating
Color: Red, Yello, Blue, Orange, White, Black are standard colors (Special colors can be offered)
Operating Temp: -40°C to +85°C
Installation: By hand
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt
* The Bottle Seal is a barrier class bolt seal, designed for securing high value cargo. A solid steel bolt provides strength while a molded plastic coating provides tamper-evidence
* A Highly secured seal with superior tensile strength  prevents theft
* Steel locking body increases security level
* Individually numbered and laser print with company name
* Laser engraved numbering - impossible to change, increases security level
* Numbers on bolt and body prevents substitution of component parts
Pin Length A (mm) B (mm) C (mm) D (mm) Head Length E (mm) Head Dia F (mm) G (mm) H (mm) I (mm) Max. Size of Sr. no. on Product (L x W) Cat No. PDF Drawing
72 20 7.75 21.20 35.5 18.8 10 7.95 85.4 23 x 5
CSR-728
