6 Point Lock Metal Lock Security Seal Jumbo Tag 6 Point Lock Metal Lock Security Seal Jumbo Tag Technical Drawing 6 Point Lock Metal Lock Security Seal Jumbo Tag Application

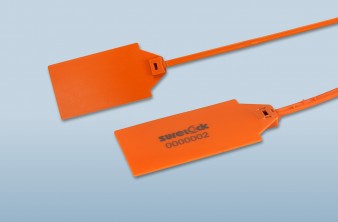

6 Point Lock Metal Lock Security Seal Jumbo Tag

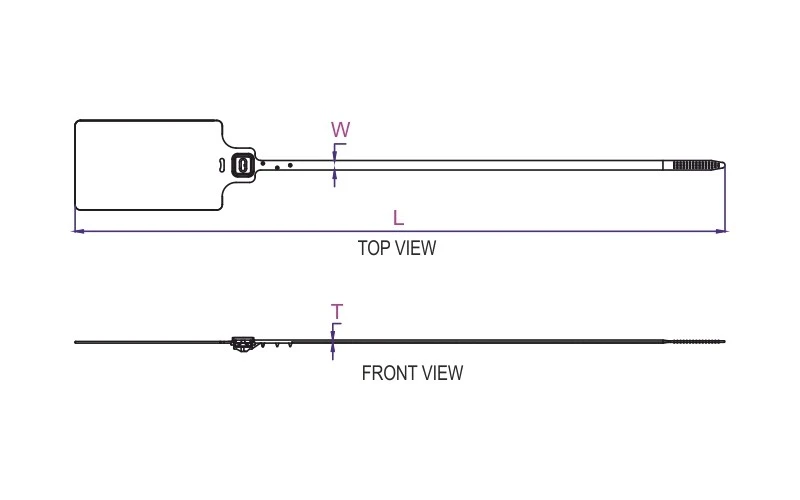

6 Point Lock Metal Lock Security Seal Jumbo Tag Technical Drawing

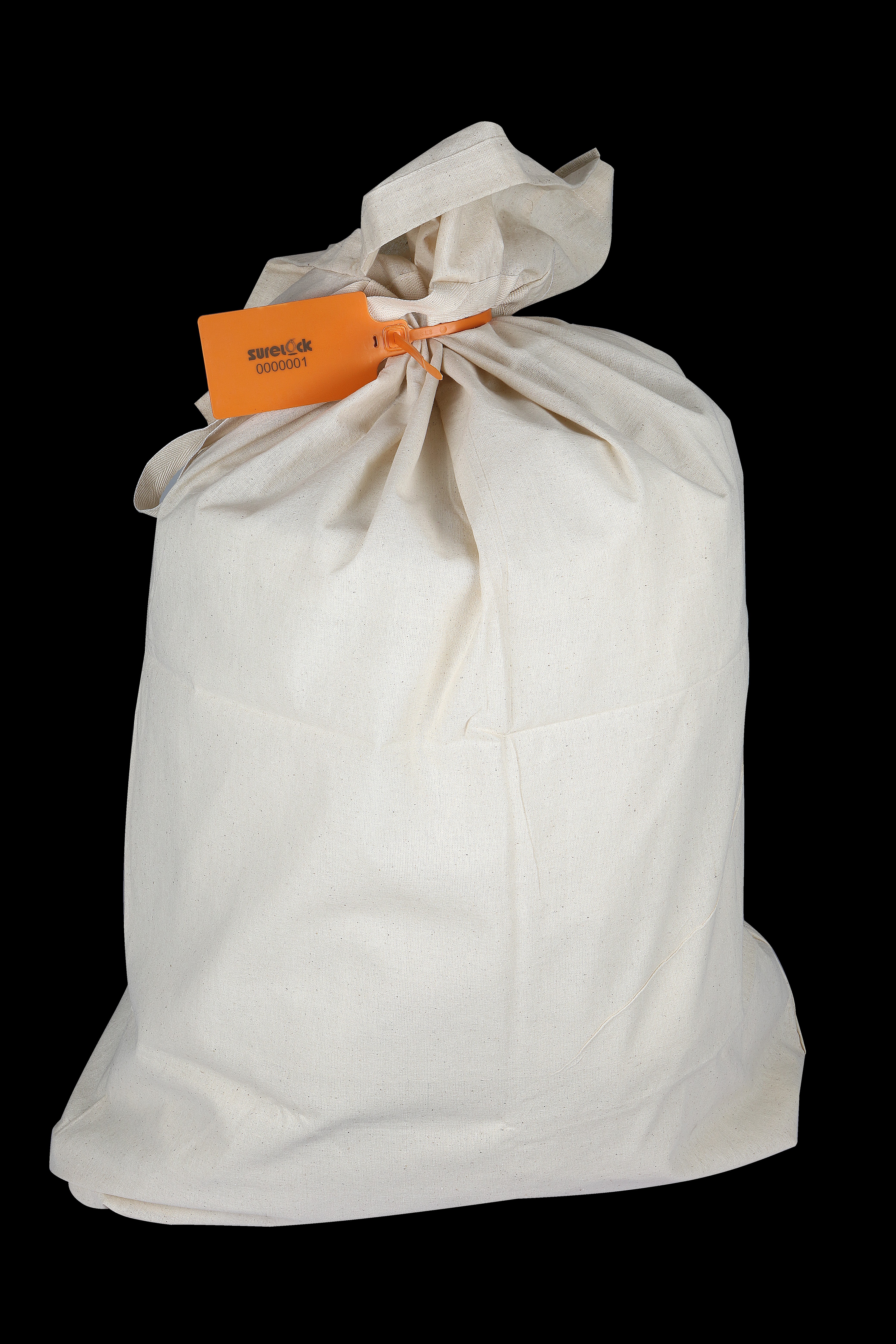

6 Point Lock Metal Lock Security Seal Jumbo Tag Application

6 Point Lock Metal Lock Security Seal Jumbo Tag

6 Point Lock Metal Lock Security Seal Jumbo Tag 6 Point Lock Metal Lock Security Seal Jumbo Tag Technical Drawing 6 Point Lock Metal Lock Security Seal Jumbo Tag Application
6 Point Lock Metal Lock Security Seal Jumbo Tag
6 Point Lock Metal Lock Security Seal Jumbo Tag Technical Drawing
6 Point Lock Metal Lock Security Seal Jumbo Tag Application
  • Material : Polypropylene (PP) and Metal for Insert lock
  • Colour : Red, Yellow, Blue, Green, Orange, White (Other colors available upon request)
  • Operating Temperature : -40°C to +85°C
  • Unit : 100 Pcs/Pkt
  • Patented design in India & Abroad
  • Highly secure & robust 6-point lock design provides the highest level of security among all types of plastic seals
  • Two-piece construction allows seal to lock firmly at three spots, and ultrasonic welding makes it tamper-proof at another three spots, creating a true 6-point lock with no possibility of tampering
  • Alpha characters provided on the strap length to prevent cutting and re-gluing
  • Metal insert lock provides firm locking and much higher strength compared to normal seal
  • Gripping spike provided for use on canvas or plastic bags
  • Supplied in easy-to-use stripes of 5 with no plastic waste

Comprehensive range of 6 Point Lock Metal Lock Security Seal Jumbo Tag with varying lengths, widths, and tensile strengths for diverse applications.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Tensile Strength
Tensile Strength(kbs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Superior Performance

Patented 6 Point Lock Design

Patented in India & abroad, the highly secure and robust 6 point lock design provides the highest level of security amongst all types of plastic seals for logistics & couriers applications.

Dual Security Mechanism

Two-piece construction locks firmly at three spots plus ultrasonic welding secures at another three spots, creating a truly 6 point lock with no possibility of tampering for maximum security.

Anti-Tampering Alpha Characters

Alpha characters provided on the strap length prevent cutting and re-gluing attempts, ensuring any tampering is immediately visible and the seal's integrity cannot be compromised.

Metal Insert Lock Strength

Metal insert lock provides firm locking and much higher strength (45kg tensile) compared to normal seals, ensuring maximum security for high-value logistics and courier shipments.

Jumbo Dual-Side Marking Area

Extra-large 75mm x 61mm marking space on both front and back provides maximum area for detailed barcodes, QR codes, logos, serial numbers, and comprehensive shipment tracking information.

Eco-Friendly Packaging

Supplied in easy-to-use stripes of 5 with no plastic waste. Available in 2 sizes (346mm, 446mm) and 6 standard colors (Red, Yellow, Blue, Green, Orange, White) plus custom options.

Frequently Asked Questions

What are 6 Point Lock Metal Lock Security Seal Jumbo Tag and where are they used?
6 Point Lock Metal Lock Security Seal Jumbo Tag are patented premium high-security tamper-evident seals designed primarily for logistics & couriers industry. They feature a unique 6 point lock design that provides the highest level of security amongst all types of plastic seals, making tampering virtually impossible through dual locking mechanisms at six different points.
How does the 6 point lock design work?
The two-piece construction allows the seal to assemble and lock firmly at three spots through mechanical locking. Additionally, ultrasonic welding makes the seal more secure and tamper-proof at another three spots. This creates a truly 6 point lock with no possibility of tampering, providing the highest security level among plastic seals.
What makes the jumbo tag different from other 6 point lock seals?
The jumbo tag offers the largest marking area in the 6 point lock security seal series with 75mm x 61mm space on both front and back. This extra-large surface accommodates detailed information including multiple barcodes, QR codes, serial numbers, logos, and extensive tracking details while maintaining the patented 6 point lock security system and 45kg tensile strength.
What sizes are available for 6 Point Lock Metal Lock Security Seal Jumbo Tag?
Available in two sizes: 346mm x 7.0mm (Cat No. SSMJS-3467PL) and 446mm x 7.0mm (Cat No. SSMJS-4467PL), both with 45kg tensile strength. The jumbo tag features extra-large 75mm x 61mm marking space on both front and back. Standard colors include Red, Yellow, Blue, Green, Orange, and White, with other colors available upon request.
What material are these seals made from and what makes them so secure?
Made from polypropylene (PP) with a metal insert for the locking mechanism, providing 45kg tensile strength. Operating from -40°C to +85°C, they combine: (1) patented 6 point lock design, (2) metal insert for firm locking, (3) ultrasonic welding, (4) alpha characters to prevent cutting and re-gluing, and (5) gripping spike for canvas/plastic bags. Supplied in eco-friendly stripes of 5 with no plastic waste.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Chemicals

Chemicals & Refineries

Logistics & Couriers

Logistics & Couriers
