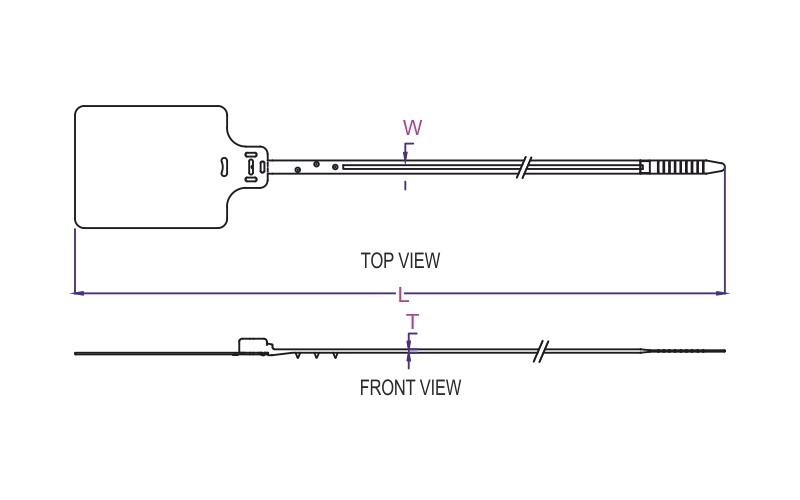

6 Point Lock Metal Lock Security Seal Big Tag Technical Drawing
6 Point Lock Metal Lock Security Seal Big Tag Application

6 Point Lock Metal Lock Security Seal Big Tag

6 Point Lock Metal Lock Security Seal Big Tag 6 Point Lock Metal Lock Security Seal Big Tag Technical Drawing 6 Point Lock Metal Lock Security Seal Big Tag Application
6 Point Lock Metal Lock Security Seal Big Tag
6 Point Lock Metal Lock Security Seal Big Tag Technical Drawing
6 Point Lock Metal Lock Security Seal Big Tag Application
  • Material : Polypropylene (PP) and Metal for Insert lock
  • Colour : Red, Yellow, Blue, Green, Orange, White (Other colors available upon request)
  • Operating Temperature : -40°C to +85°C
  • Unit : 100 Pcs/Pkt
  • Patented design in India & Abroad
  • Highly secure & robust 6-point lock design provides the highest level of security among all types of plastic seals
  • Two-piece construction allows seal to lock firmly at three spots, and ultrasonic welding makes it tamper-proof at another three spots, creating a true 6-point lock with no possibility of tampering
  • Alpha characters provided on the strap length to prevent cutting and re-gluing
  • Metal insert lock provides firm locking and much higher strength compared to normal seal
  • Gripping spike provided for use on canvas or plastic bags
  • Supplied in easy-to-use stripes of 5 with no plastic waste

Comprehensive range of 6 Point Lock Metal Lock Security Seal Big Tag with varying lengths, widths, and tensile strengths for diverse applications.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Tensile Strength
Tensile Strength(kbs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Superior Performance

Patented 6 Point Lock Design

Patented in India & abroad, the highly secure and robust 6 point lock design provides the highest level of security amongst all types of plastic seals for logistics & couriers applications.

Dual Security Mechanism

Two-piece construction locks firmly at three spots plus ultrasonic welding secures at another three spots, creating a truly 6 point lock with no possibility of tampering for maximum security.

Anti-Tampering Alpha Characters

Alpha characters provided on the strap length prevent cutting and re-gluing attempts, ensuring any tampering is immediately visible and the seal's integrity cannot be compromised.

Metal Insert Lock Strength

Metal insert lock provides firm locking and much higher strength (45kg tensile) compared to normal seals, ensuring maximum security for high-value logistics and courier shipments.

Large Dual-Side Marking Space

58mm x 35mm marking space on both front and back of big tag provides ample area for detailed identification, barcodes, logos, serial numbers, and comprehensive tracking information.

Eco-Friendly Packaging

Supplied in easy-to-use stripes of 5 with no plastic waste. Available in 2 sizes (330mm, 430mm) and 6 standard colors (Red, Yellow, Blue, Green, Orange, White) plus custom options.

Frequently Asked Questions

What are 6 Point Lock Metal Lock Security Seal Big Tag and where are they used?
6 Point Lock Metal Lock Security Seal Big Tag are patented high-security tamper-evident seals designed primarily for logistics & couriers industry. They feature a unique 6 point lock design that provides the highest level of security amongst all types of plastic seals, making tampering virtually impossible through dual locking mechanisms at six different points.
How does the 6 point lock design work?
The two-piece construction allows the seal to assemble and lock firmly at three spots through mechanical locking. Additionally, ultrasonic welding makes the seal more secure and tamper-proof at another three spots. This creates a truly 6 point lock with no possibility of tampering, providing the highest security level among plastic seals.
What are the alpha characters and how do they prevent tampering?
Alpha characters are provided along the strap length to prevent cutting and re-gluing attempts. If someone tries to cut the seal and rejoin it, the alpha character sequence will not align properly, making any tampering immediately visible. This adds an extra layer of security beyond the 6 point locking mechanism, ensuring complete tamper evidence.
What sizes and marking space are available for the big tag?
Available in two sizes: 330mm x 7.0mm (Cat No. SSMBS-3307PL) and 430mm x 7.0mm (Cat No. SSMBS-4307PL), both with 45kg tensile strength. The big tag features large 58mm x 35mm marking space on both front and back, providing ample area for detailed barcodes, logos, serial numbers, and tracking information. Standard colors include Red, Yellow, Blue, Green, Orange, and White, with other colors available upon request.
What material are these seals made from and what makes them so secure?
Made from polypropylene (PP) with a metal insert for the locking mechanism, providing 45kg tensile strength. Operating from -40°C to +85°C, they combine: (1) patented 6 point lock design, (2) metal insert for firm locking, (3) ultrasonic welding, (4) alpha characters to prevent re-gluing, and (5) gripping spike for canvas/plastic bags. Supplied in eco-friendly stripes of 5 with no plastic waste.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Chemicals

Chemicals & Refineries

Logistics & Couriers

Logistics & Couriers
