FIRE RETARDANT CABLE TIES

Applications

For cable / wire bunching in fire hazardous area or in public transport where safety from fire is important.

Key Industries:

Aviation

Locomotive

Oil, Gas & Offshore

Ship & Marines

FR Cable Ties

FR Cable Ties

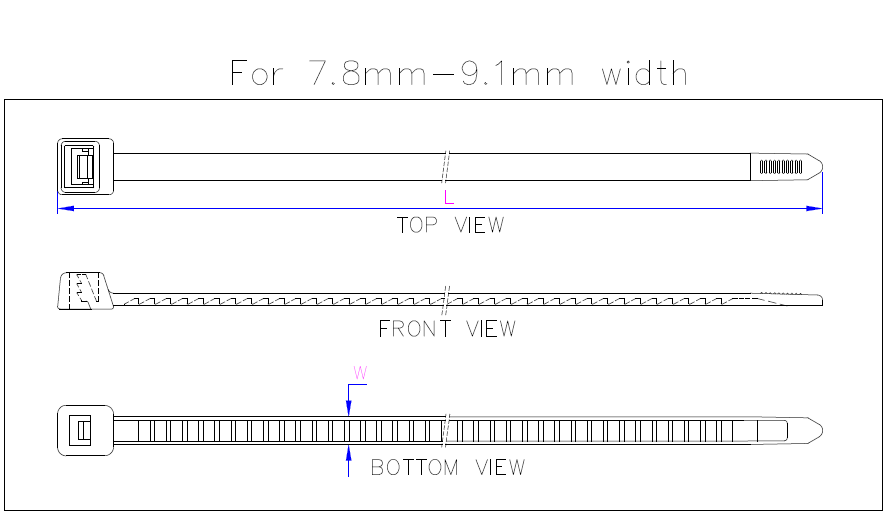

Line Drawing - Fire Retardant Cable Ties

Fire Resistant Cable Tie

Specifications

Material: Nylon 66
Color: Milky White
Operating Temp: -40°C to +85°C
Flammability Rating: UL 94V-0
Installation: By hand or tool cat .no TT-3, TT-4, TT-5
Test Certificate: UL & CE recognized / ROHS compliance
Packing: 100 pcs bag in all sizes & 1000 pcs. bag upto 200mm length
Unit: 100 Pcs/Pkt & 1000 Pcs/K

Tolerance:
Length: ±5mm
Width: ±0.4mm
Thickness: ±0.4mm

Features

* It is a self-locking, non-releasable, economical & versatile method of cable/wire bunching systems
* Its self extinguish property does not allow the fire to travel further

Download Brochure

Length (mm)

Width (mm)

Thickness (mm)

Length (inch)

Tensile Strength Kgs (lbs)

Maxi. Bundle Dia (mm)

Cat No. 100 pcs pack (PKT)

Cat No. 1000 pcs pack (K)

PDF Drawing

75

2.5

1.04

3

8 (18)

12

SL-75/F

SL-75K/F

104

2.5

1.06

4.1

8 (18)

22

SL-100/F

SL-100K/F

104

2.5

1.20

4.1

12 (27)

22

SL-100X/F

SL-100XK/F

120

2.5

1.10

4.7

8 (18)

27

SL-120/F

SL-120K/F

150

2.5

1.20

5.9

8 (18)

35

SL-150/F

SL-150K/F

200

2.5

1.15

7.9

8 (18)

53

SL-200/F

SL-200K/F

153

3.6

1.25

6.0

18 (40)

35

SL-150I/F

SL-150IK/F

153

3.7

1.35

6.0

22 (50)

35

SL-150IX/F

SL-150IXK/F

204

3.6

1.30

8.0

18 (40)

53

SL-200I/F

SL-200IK/F

250

3.6

1.40

9.8

18 (40)

68

SL-250I/F

300

3.6

1.45

11.8

18 (40)

80

SL-300I/F

368

3.6

1.60

14.5

18 (40)

104

SL-368I/F

200

4.8

1.45

8.0

30 (67)

53

SL-200SX/F

SL-200SXK/F

204

4.8

1.50

8.0

22 (50)

53

SL-200S/F

SL-200SK/F

254

4.8

1.45

10.0

22 (50)

68

SL-250S/F

300

4.8

1.3

11.8

22 (49)

84

SL-300S/F

315

4.8

1.55

12.4

22 (50)

86

SL-315S/F

373

4.8

1.55

14.7

22 (50)

104

SL-368S/F

455

4.8

1.55

17.9

22 (50)

130

SL-450S/F

550

4.8

1.55

21.7

22 (50)

165

SL-550S/F

206

7.8

1.82

8.1

55 (120)

53

SL-200LH/F

256

7.8

1.82

10.1

55 (120)

68

SL-250LH/F

312

7.8

1.82

12.3

55 (120)

82

SL-300LH/F

382

7.8

1.82

15.0

55 (120)

108

SL-380LH/F

430

7.8

1.8

16.9

54 (119)

125

SL-430LH/F

500

7.8

1.8

19.7

54 (119)

148

SL-500LH/F

550

7.8

1.8

21.7

54 (119)

162

SL-550LH/F

610

7.8

1.8

24.0

54 (119)

183

SL-610LH/F

453

8.1

1.95

17.8

55 (120)

130

SL-450LH/F

551

9.1

2.15

21.7

80 (175)

163

SL-550H/F

616

9.1

2.15

24.3

80 (175)

180

SL-610H/F

716

9.1

2.0

28.2

80 (175)

210

SL-710H/F

816

9.1

2.0

32.1

80 (175)

240

SL-810H/F

916

9.1

2.0

36.1

80 (175)

276

SL-910H/F

1016

9.1

2.0

40.0

80 (175)

305

SL-1010H/F
