SIDE WAY EDGE CLIP

Applications

Edge clip is used along with cable ties for end application where drilling holes or adhesive mounts can't be fix. Majorly used in automotive, wire harness, electrical and panel building etc.

Key Industries:

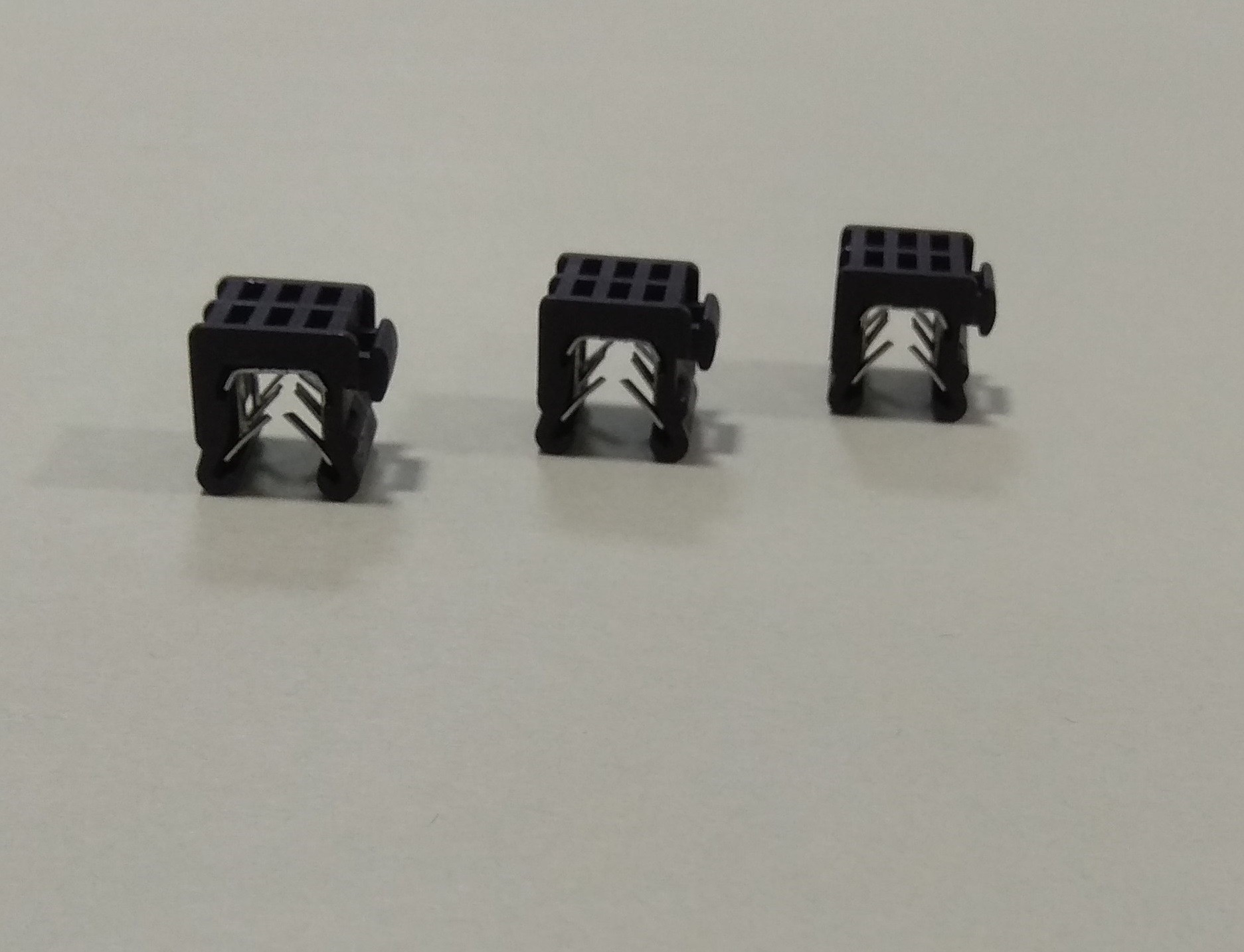

Nylon 66 Side Way Edge Clip

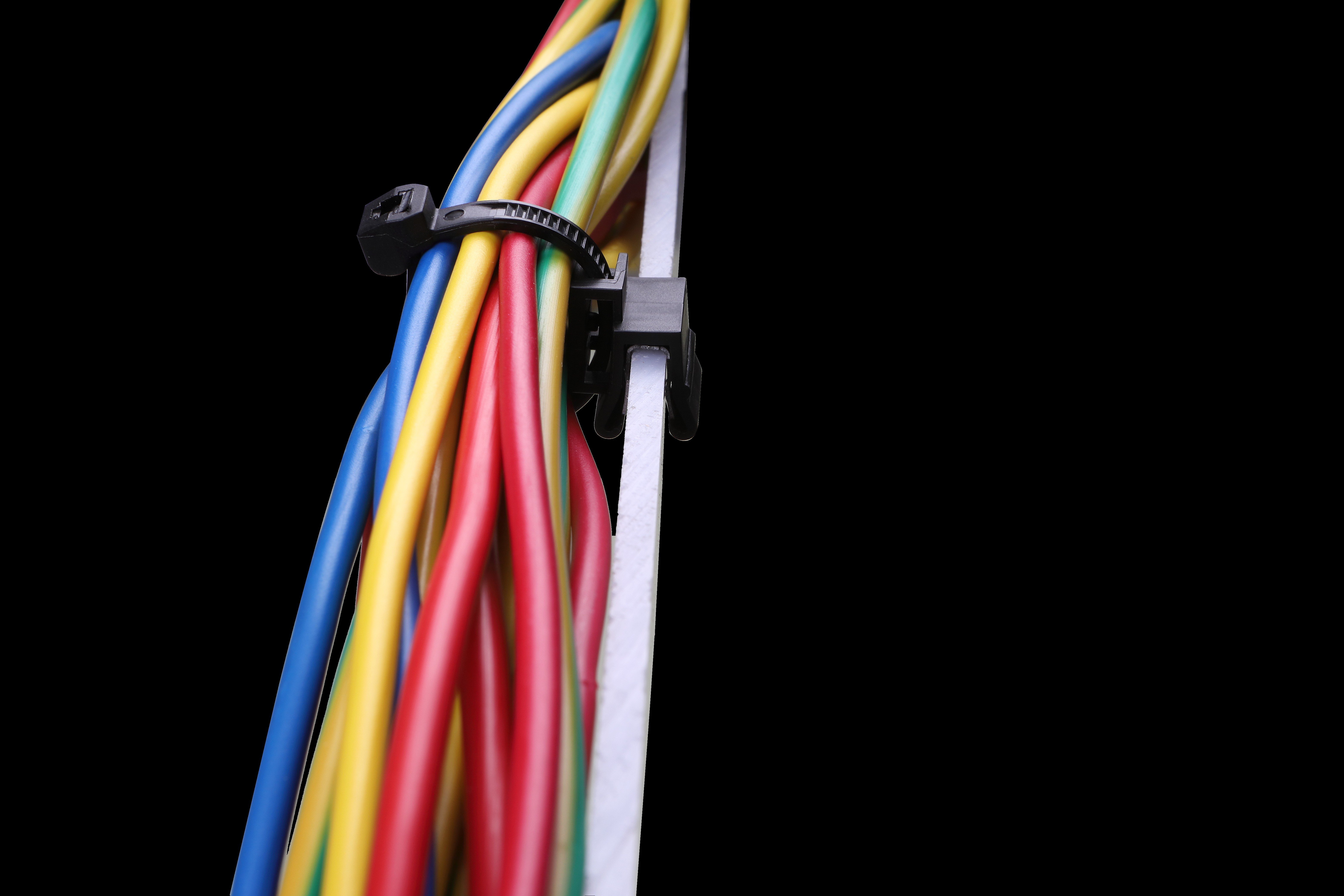

Nylon 66 Side Way Edge Clip Side Way Edge Clip with Cable Tie Nylon 66 Side Way Edge Clip for Cable Tie

Material: Nylon 66 and Spring Steel
Colour: Black
Operating Temp: -40ºC to +85ºC
Flammability Rating: UL 94V-2
Installation: BY hand
Test Certificate:
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±0.2 to 0.3mm
Width: ±0.2 to 0.4mm
Thickness: ±0.2 to 0.3mm

* Edge clip is two-piece assembly outside housing is nylon 66 body whereas inside metal clamp is assembled.
* Edge clip is used along with cable tie.
* Easy to push fit on any metal chassis.
* It is used to keep cables maintain vertical, horizontal or in any angle direction against the chassis.

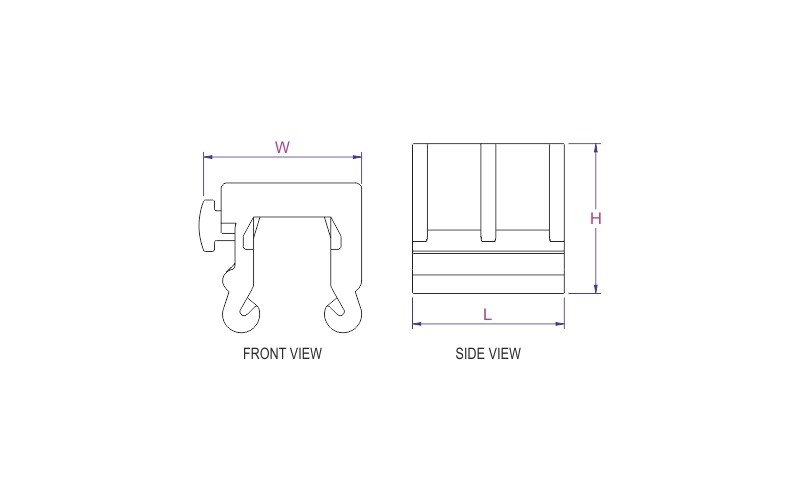

Length (mm) Width (mm) Height (mm) Cat No. PDF Drawing

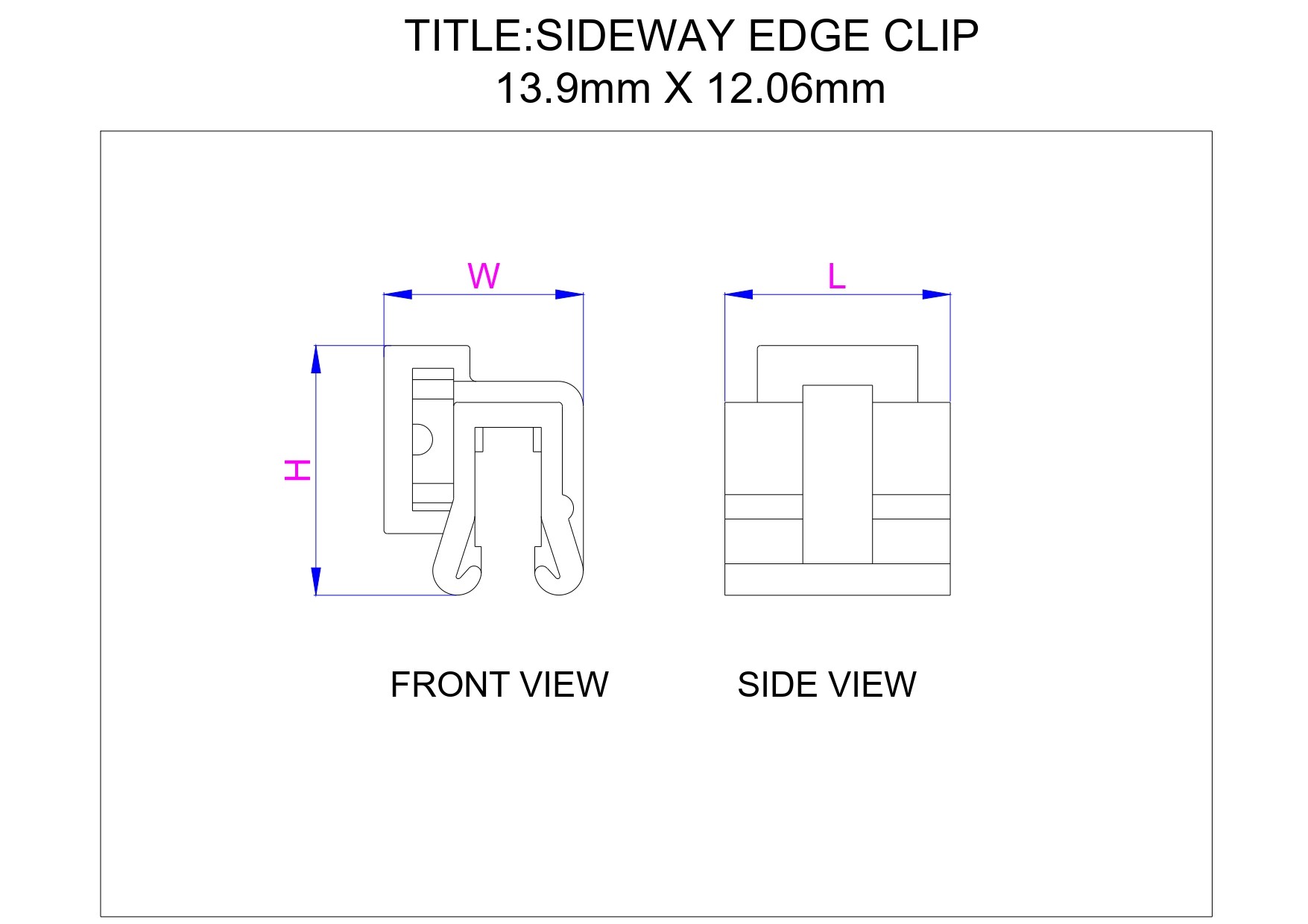

13.90 12.06 11.90
ACES-1213
14.75 15.80 14.55
ACES-1514
