PUSH MOUNT FIR TREE TIES

Applications

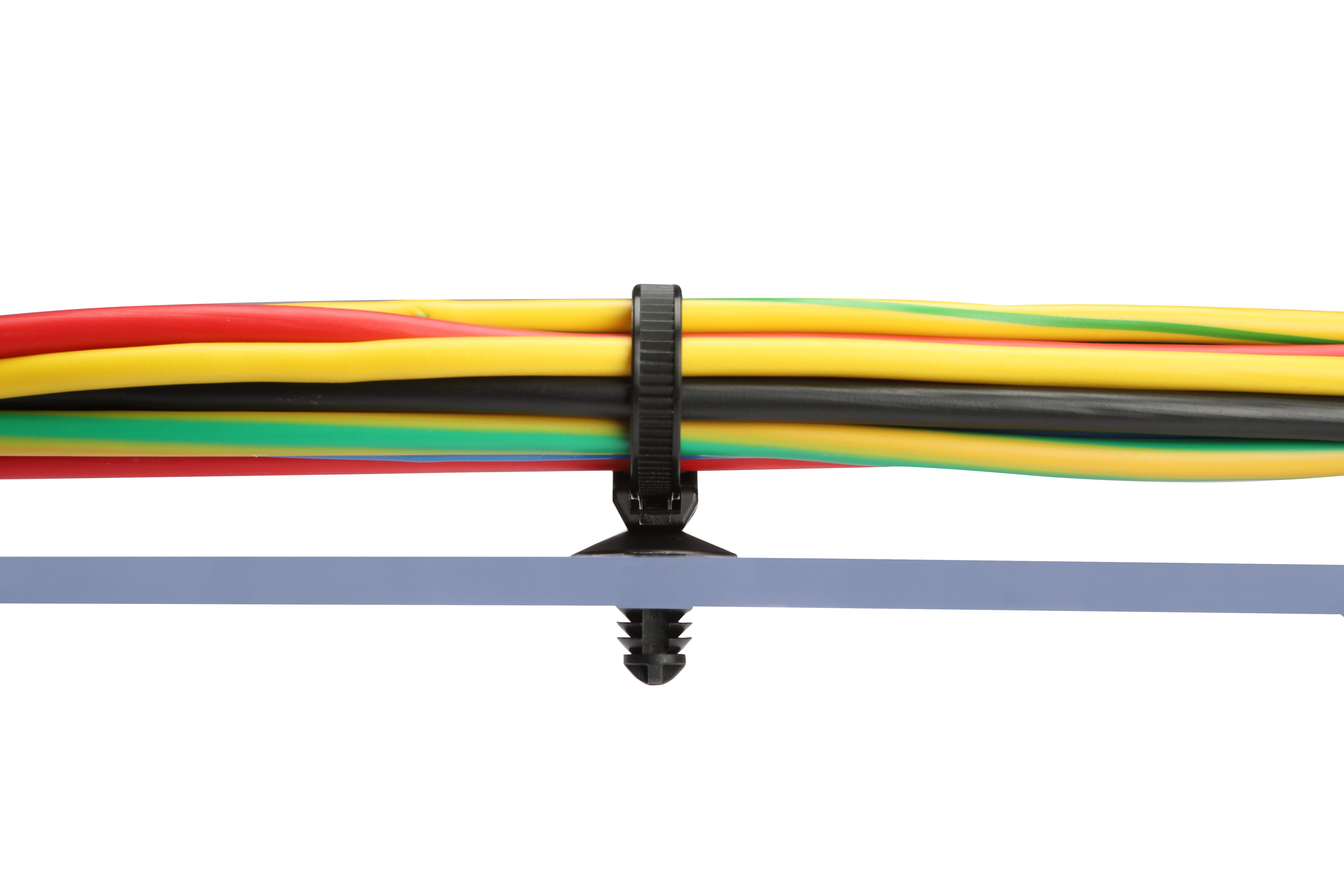

For fixing cable harness in automotive industries. Also used in aviation, white goods manufacturing & panel building.

Key Industries:

FIR Tree Ties

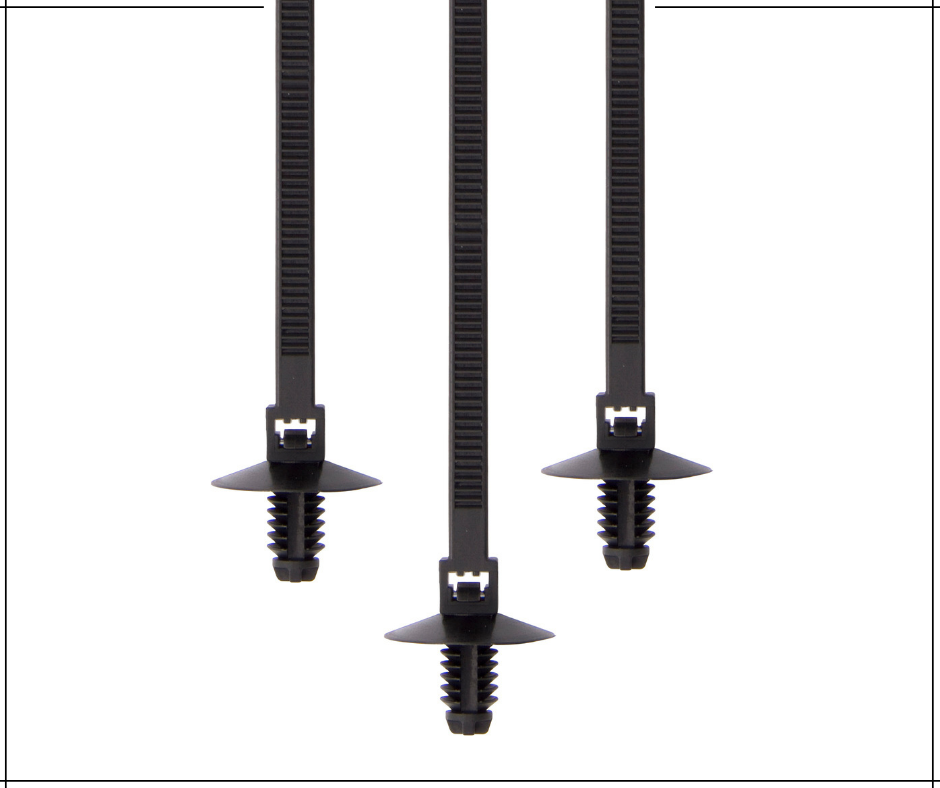

FIR Tree Ties Nylon 66 Push Mount FIR Tree Ties Push Mount FIR Tree Ties with Disc

Material: Nylon 66
Colour: Black
Operating Temp: -40ºC to +85ºC
Flammability Rating: UL 94V-2
Installation: By hand
Test Certificate:
Packing: 100 pcs bag in all sizes
Unit: 100 Pcs/Pkt

Tolerance:
Length: ±3mm
Width: ±0.2mm
Thickness: ±0.2mm
FIR Dia: ±0.3mm
Suitable for Hole Dia: ±0.1 to 0.5mm

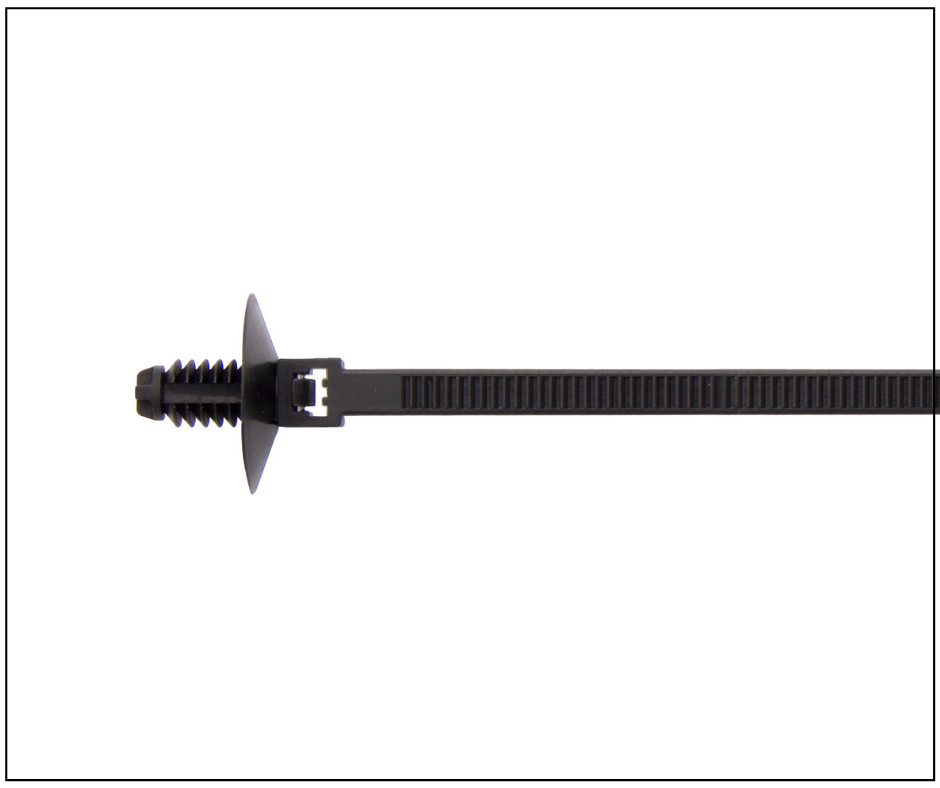

* FIR tree tie with disc secures wire harness firmly & minimize access of dust and water.
* It is suitable to a varied thickness of chassis or one side thread hole.
Length (mm) Width (mm) Thickness (mm) Length (inch) Tensile Strength Kgs(lbs) Max. Bundle Dia (mm) FIR Dia (mm) Suitable for Hole Dia (mm) Panel Thickness (mm) Disc Dia (mm) Cat No. PDF Drawing
161 4.7 1.35 6.33 22 (49) 38 9.1 8.0 - 8.5 0.6 - 6.0 16
ATPF-1617S
162 4.7 1.35 6.37 22 (49) 38 9.1 8.0 - 8.5 0.6 - 6.0 16
ATPF-1628S
165 4.7 1.35 6.49 22 (49) 38 7.5 6.3 - 7.0 0.7 - 7.0 16
ATPF-1657S
