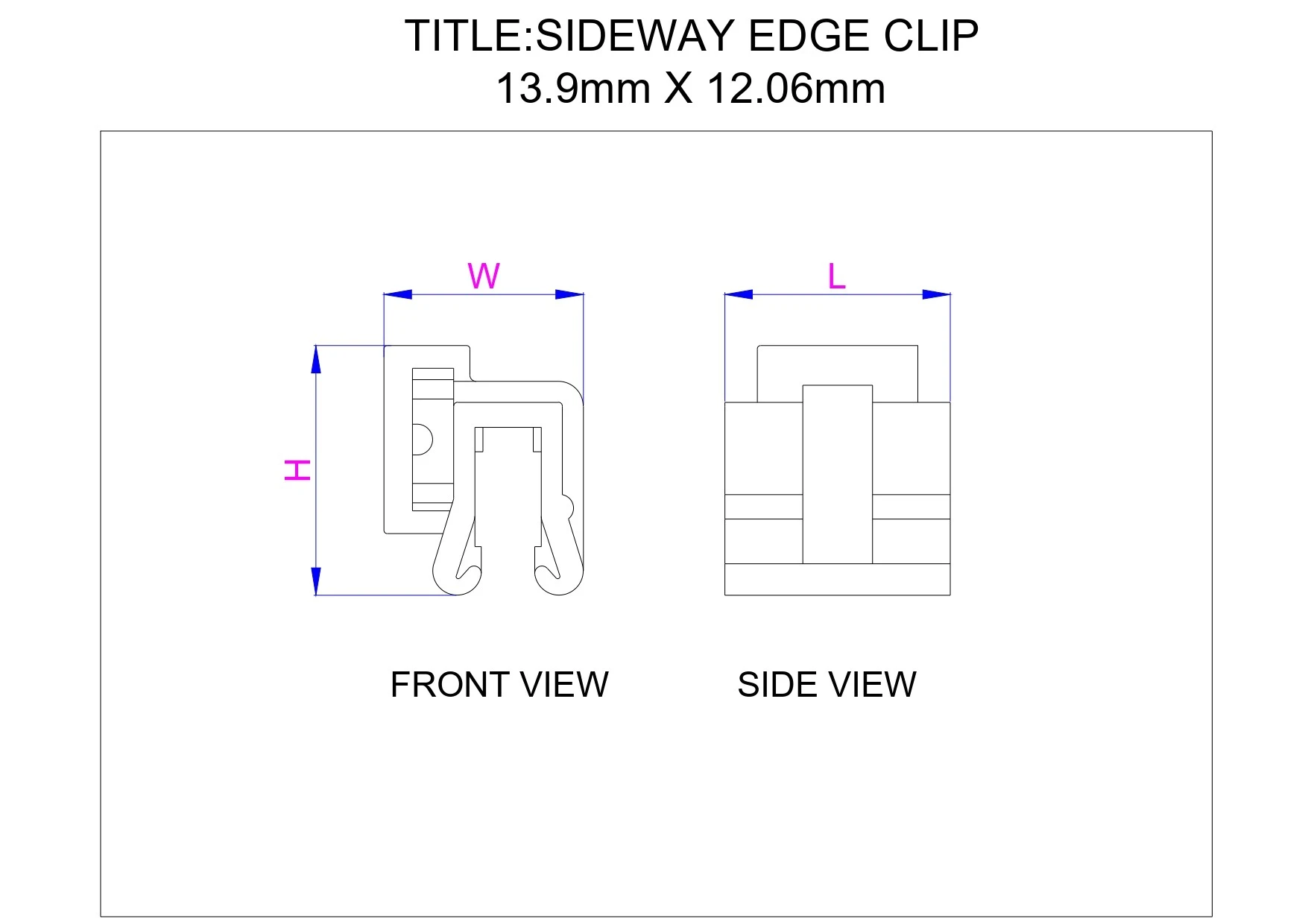

Side Way Edge Clip

Material : Nylon 66 (Body) + Steel (Insert)
Operating Temperature : -40°C to +85°C (-40°F to +185°F)
Colour : Black
Installation : By hand - Easy to push fit on any metal chassis
Packing : 100 pcs bag in all sizes
Unit : 100 Pcs/Pkt
Flammability Rating : UL 94V-2
Cable Tie Compatibility : 3.6mm and 4.8mm widths

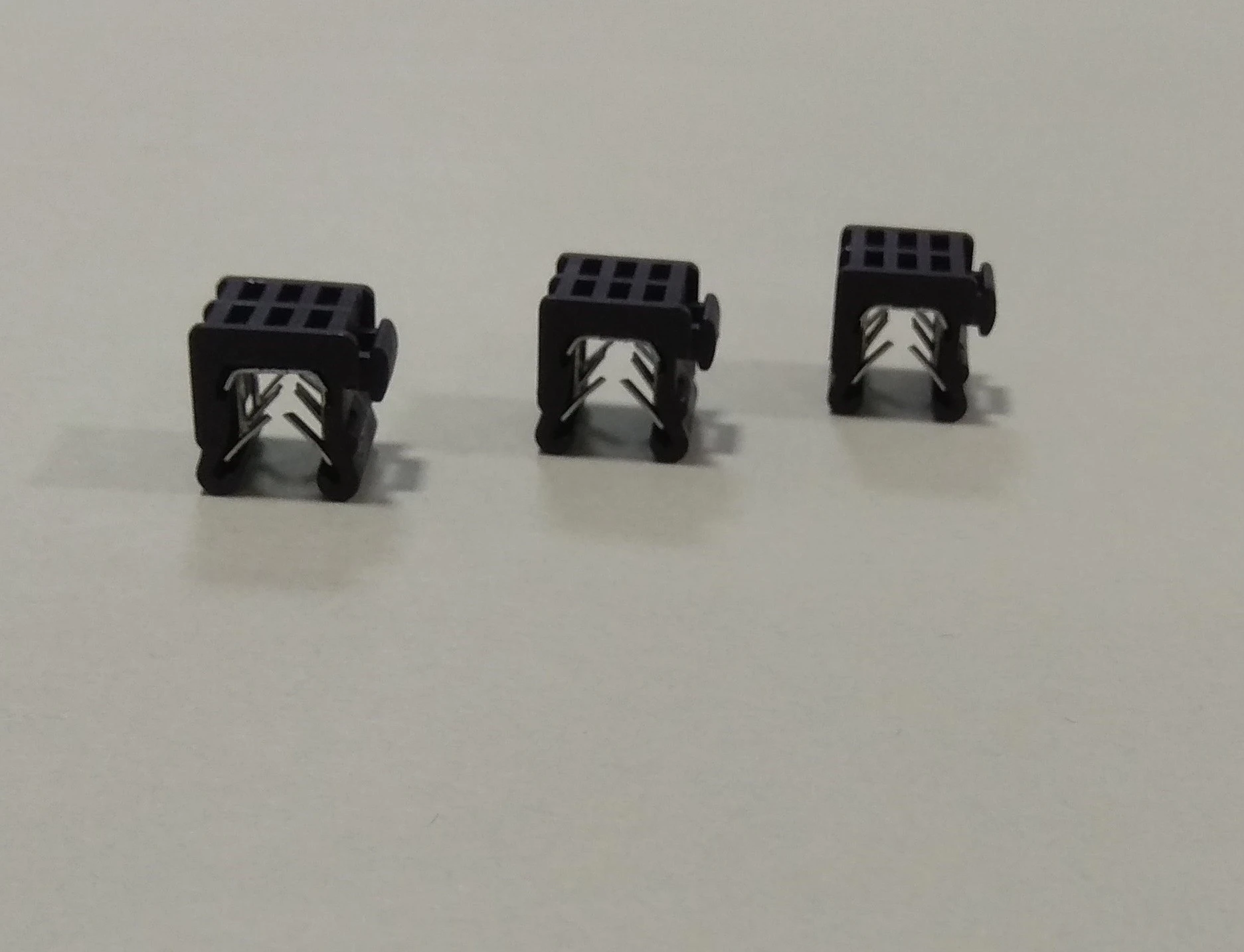

Two-piece assembly with outside housing of Nylon 66 body and inside metal clamp assembled
Used along with cable tie for secure fastening
Easy to push fit on any metal chassis without tools

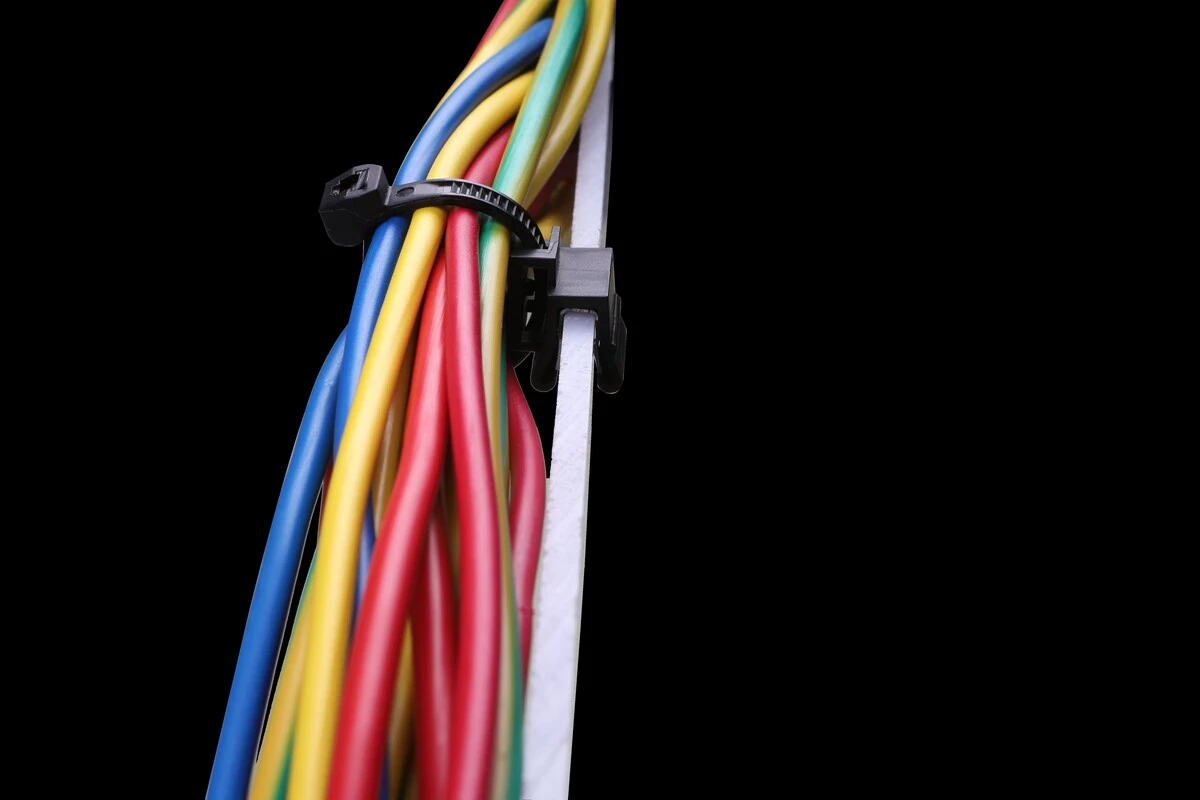

Keeps cables maintained in vertical, horizontal or any angle direction against the chassis
No drilling or adhesive mounting required
Compatible with 3.6mm and 4.8mm cable tie widths
Suitable for panel thickness ranging from 1-6mm
Ideal for wire harness management and electrical panel building

Comprehensive range of Center Edge Clips available in multiple sizes, widths, and panel thickness configurations for secure, reliable, and versatile edge-mount cable routing applications.

Engineered for Superior Cable Harness Management

Two-Piece Assembly Design

Combines Nylon 66 outside housing with steel insert for optimal strength and durability in demanding applications.

Easy Push-Fit Installation

No tools required - simply push fit onto any metal chassis by hand, eliminating the need for drilling or adhesive mounting.

Multi-Directional Cable Positioning

Maintains cables in vertical, horizontal or any angle direction against the chassis, providing flexible routing options.

Cable Tie Compatible

Works seamlessly with cable ties of 3.6mm and 4.8mm widths for secure and reliable cable management solutions.

Wide Temperature Range

Operating temperature from -40°C to +85°C ensures reliable performance in various environmental conditions.

UL 94V-2 Certified

Meets UL 94V-2 flammability rating standards for safe use in electrical and automotive applications.

Frequently Asked Questions

What are the key applications for Side Way Edge Clip?

Side Way Edge Clip is designed for use along with cable ties in applications where drilling holes or adhesive mounts cannot be fixed. It's ideal for automotive, wire harness, electrical, and panel building applications.

What is the operating temperature range for Side Way Edge Clip?

Side Way Edge Clip operates reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making them suitable for various environmental conditions in automotive and industrial applications.

What materials are Side Way Edge Clips made from?

Side Way Edge Clip features a two-piece assembly with Nylon 66 outside housing and a steel insert inside, providing excellent strength and durability for cable management applications.

How do I install the Side Way Edge Clip?

Installation is easy by hand - simply push fit the clip onto any metal chassis. No drilling or adhesive mounting is required, making it quick and convenient for cable management installations.

What cable tie widths are compatible with Side Way Edge Clip?

Side Way Edge Clip is compatible with cable ties of 3.6mm and 4.8mm widths, providing flexibility for various cable bundling and management requirements.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Automobile

Electrical / Electronics

Solar

What Our Clients Say About Us

Perfect for Automotive Applications

The side way edge clips are excellent for our wire harness installations. The push-fit design makes installation quick without needing to drill holes in the chassis.

Easy Installation

We use these clips extensively in our panel building projects. The fact that we can position cables in any direction makes cable routing very flexible and organized.

Durable Construction

The Nylon 66 body with steel insert provides excellent durability. These clips hold cables securely even in high-vibration automotive environments.

Multiple Size Options

Having different panel thickness options allows us to use them across various applications. The compatibility with standard cable tie widths is very convenient.

No Drilling Required

The push-fit mounting eliminates the need for drilling holes in our metal chassis, which saves time and maintains the integrity of our assemblies.

UL Certified Quality

The UL 94V-2 flammability rating gives us confidence in using these clips for electrical applications where safety standards are critical.
