Push Mount Fir Tree Holder Push Mount Fir Tree Holder Technical Drawing Push Mount Fir Tree Holder Application

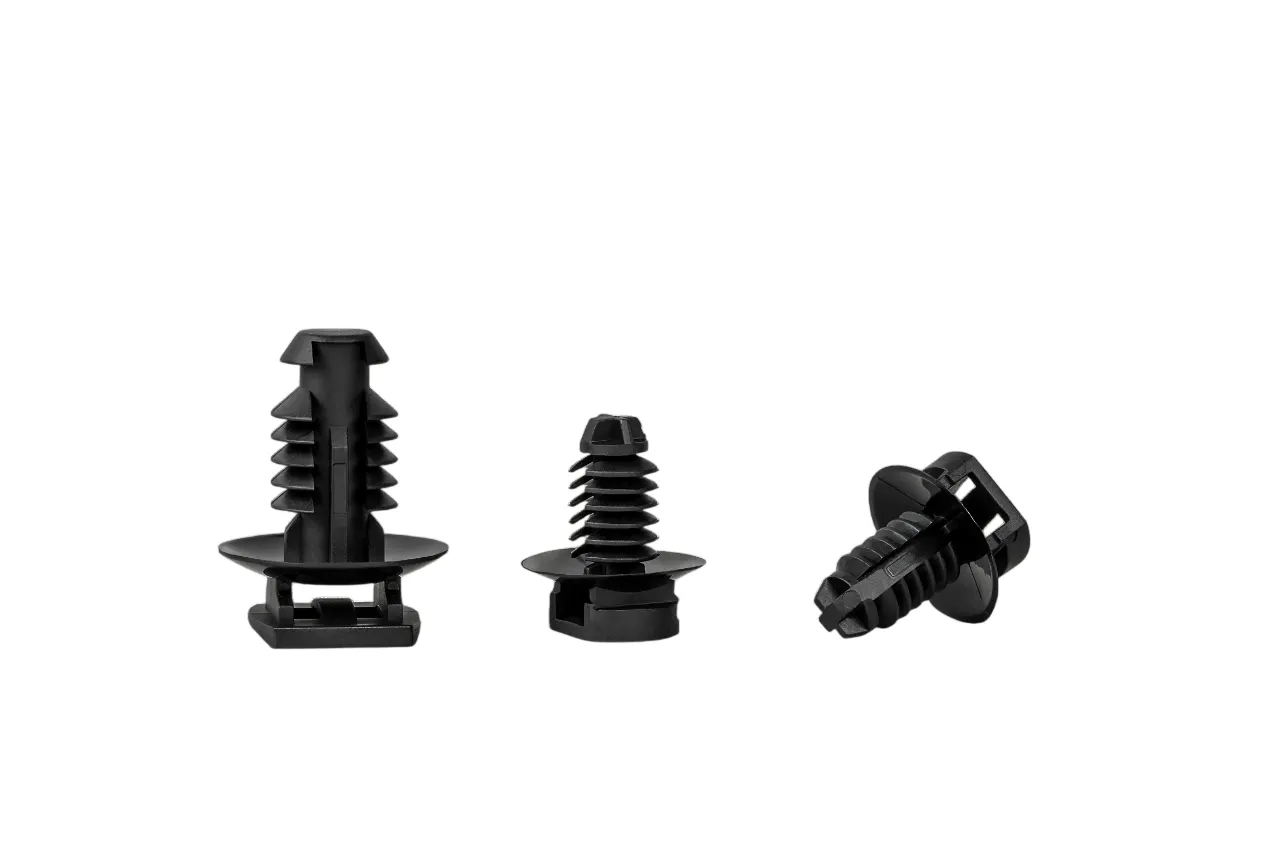

Push Mount Fir Tree Holder

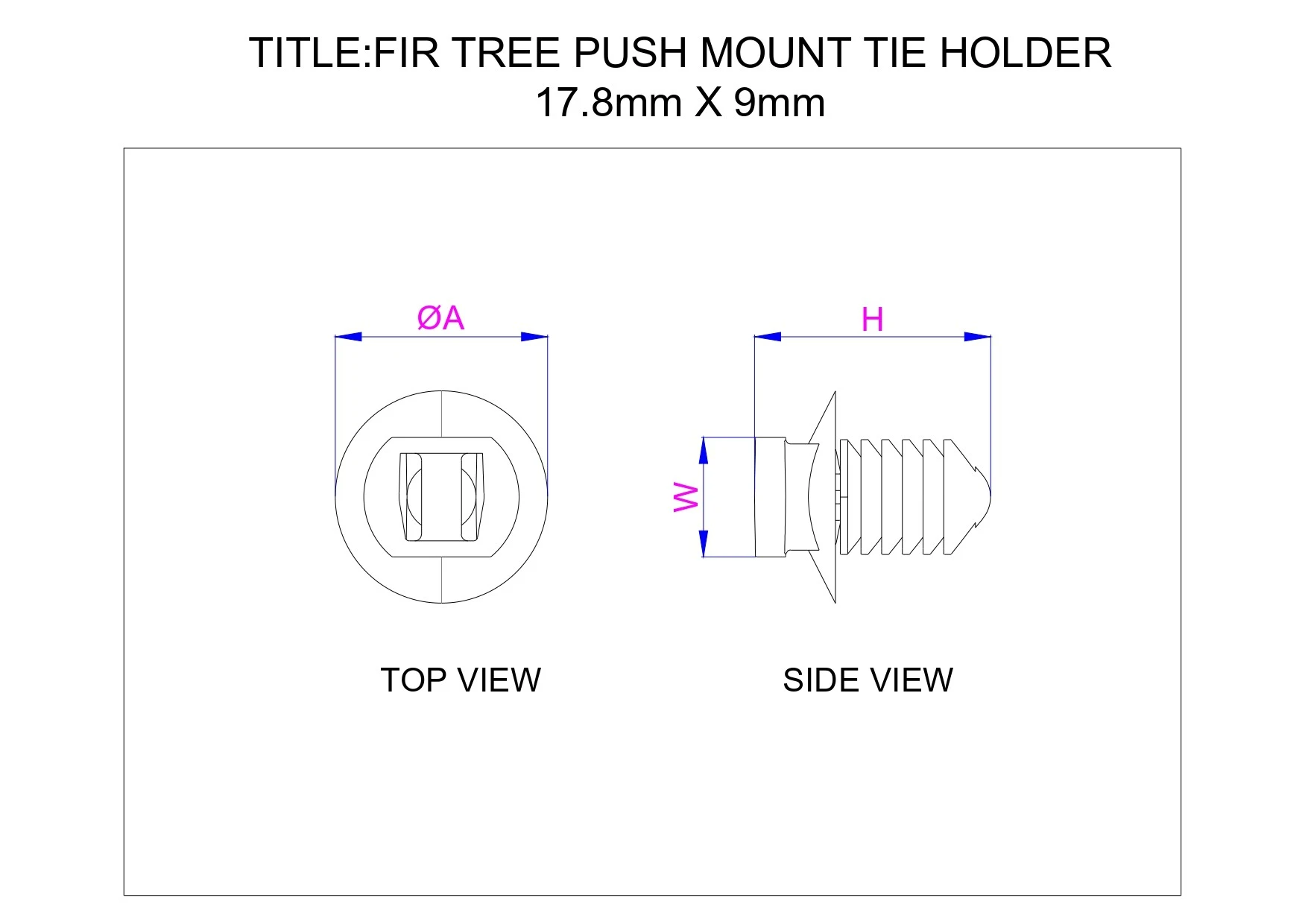

Push Mount Fir Tree Holder Technical Drawing
Push Mount Fir Tree Holder Application

Push Mount Fir Tree Holder

Push Mount Fir Tree Holder Push Mount Fir Tree Holder Technical Drawing Push Mount Fir Tree Holder Application
Push Mount Fir Tree Holder
Push Mount Fir Tree Holder Technical Drawing
Push Mount Fir Tree Holder Application
  • Material : Nylon 66 (Engineering thermoplastic)
  • Operating Temperature : -40°C to +85°C (-40°F to +185°F)
  • Colour : Black (Standard)
  • Installation : By hand - no tools required
  • Packing : 100 pcs bag in all sizes
  • Unit : 100 Pcs/Pkt
  • Flammability Rating : UL 94V-2
  • Tolerances : Fir Diameter ±0.2mm, Disc Diameter ±0.2mm, Height ±0.3mm
  • FIR tree holder with disc design for secure cable harness mounting
  • Compatible with cable ties for secure wire harness application
  • Minimizes access of dust and water in cable assemblies
  • Adjustable wire bundle positioning for optimal cable management
  • Can be allied with inline ties to reduce cable pressure
  • Push-mount installation for quick and easy assembly
  • Multiple size options for different panel thicknesses and hole diameters
  • No tools required for installation

Comprehensive range of non releasable cable ties with varying lengths, widths, and tensile strengths for diverse applications.

Fir Diameter
Fir Diameter(mm)
0 1010
Disc Diameter
Disc Diameter(mm)
0 13
Height
Height (kbs)
0 250

Apply Filters

Fir Diameter (mm)
0 1010
Disc Diameter (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Superior Cable Harness Management

FIR Tree Design

FIR tree holder with disc design provides secure mounting when combined with cable ties, ensuring wire harness stays firmly in place.

Dust & Water Protection

Minimizes access of dust and water in cable assemblies, protecting critical electrical connections in harsh automotive and industrial environments.

Adjustable Positioning

Allows adjustment of wire bundle position for optimal cable routing and management in confined spaces and complex assemblies.

No Tools Installation

Simple push-mount installation by hand without any tools required, enabling quick assembly and reducing installation time significantly.

Multiple Size Options

Available in three variants accommodating different panel thicknesses (0.8-11mm), hole diameters (6.3-10mm), and cable tie widths.

UL 94V-2 Rated

Made from Nylon 66 with UL 94V-2 flammability rating, ensuring safety and reliability in automotive and electrical applications.

Frequently Asked Questions

What are the key applications for Push Mount Fir Tree Holder?
Push Mount Fir Tree Holders are designed for fixing cable harness in automotive industries. They are also widely used in aviation, white goods manufacturing, and panel building applications for secure wire harness management.
What is the operating temperature range for Push Mount Fir Tree Holder?
Push Mount Fir Tree Holders operate reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making them suitable for various automotive and industrial environmental conditions.
What material are Push Mount Fir Tree Holders made from?
Push Mount Fir Tree Holders are made from Nylon 66, an engineering thermoplastic with excellent mechanical properties and UL 94V-2 flammability rating for safety in electrical applications.
How do I install Push Mount Fir Tree Holders?

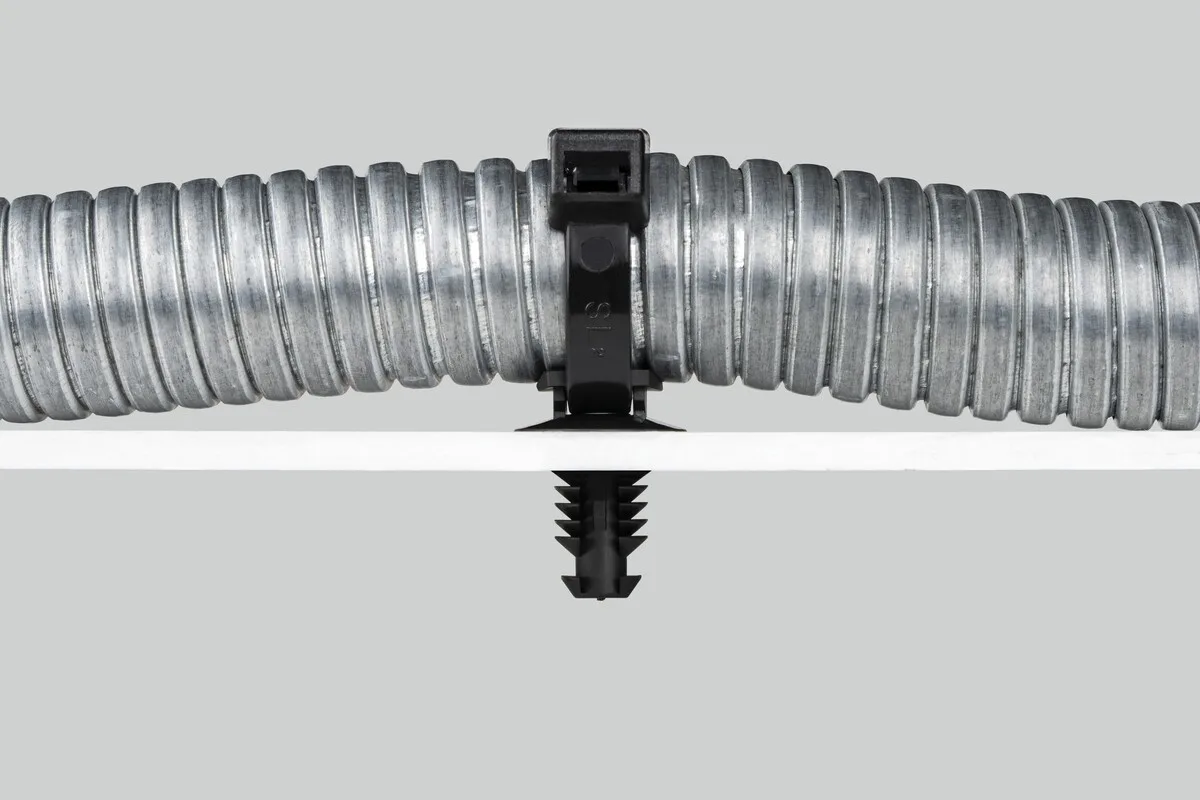

Installation is simple - just push the fir tree holder into the chassis hole by hand. No tools are required. Then secure the wire harness by threading a cable tie through the disc opening for a complete assembly.
What panel thickness ranges are supported?
Our Push Mount Fir Tree Holders support various panel thicknesses. The ACPF-1907/B and ACPF-1708/B variants accommodate 0.8-7.0mm panels, while the ACPF-2610/B variant supports thicker panels from 5.0-11mm.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Automobile

Automobile

Electrical / Electronics

Electrical / Electronics

White Goods & Appliances

White Goods & Appliances

What Our Clients Say About Us

Perfect for Automotive Harness

The fir tree holders work perfectly for our automotive wire harness assemblies. The push-mount design saves us significant installation time and the holders stay securely in place.

RK

Rajesh Kumar

Production Manager, Automotive Components

No Tools Required

We appreciate that these fir tree holders can be installed by hand without any tools. This speeds up our panel building process significantly and reduces labor costs.

AS

Amit Singh

Assembly Supervisor, Panel Manufacturing

Great Protection

The disc design effectively minimizes dust and water ingress around cable entry points. Essential for our white goods appliances that face moisture exposure.

MP

Meena Patel

Quality Engineer, Appliance Manufacturing

Multiple Size Options

Having three different size variants allows us to standardize on one product line for various panel thicknesses in our aviation cable harness assemblies.

VG

Vikram Gupta

Engineering Manager, Aviation Systems

UL Rated Material

The UL 94V-2 flammability rating gives us confidence in using these holders for electrical panel applications. The Nylon 66 material is robust and reliable.

SK

Suresh Kumar

Electrical Designer, Control Panels

Temperature Resistant

The wide operating temperature range from -40°C to +85°C makes these holders suitable for our automotive under-hood applications with extreme temperature variations.

NT

Neha Tiwari

Component Engineer, Automotive OEM
