Outside Push Mount Ties Outside Push Mount Ties Technical Drawing Outside Push Mount Ties Application

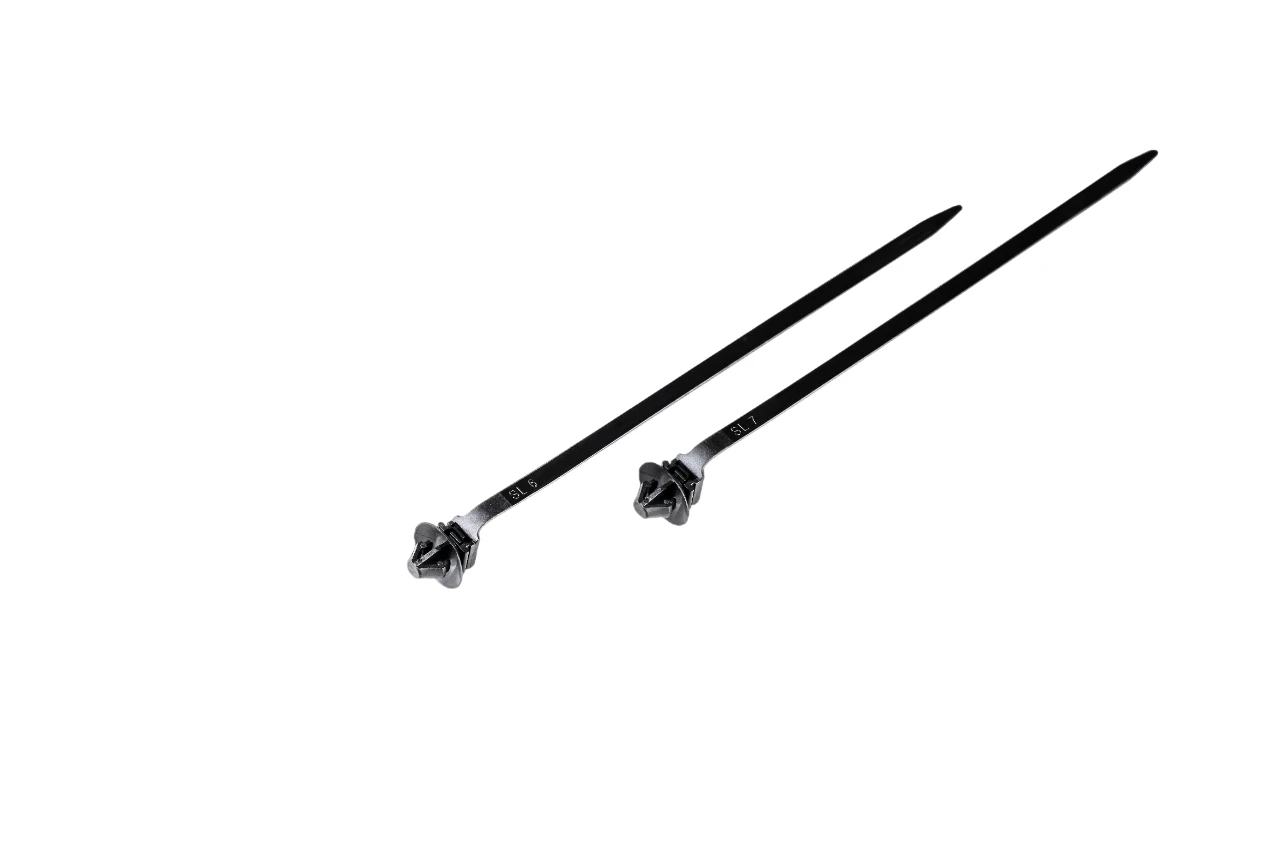

Outside Push Mount Ties

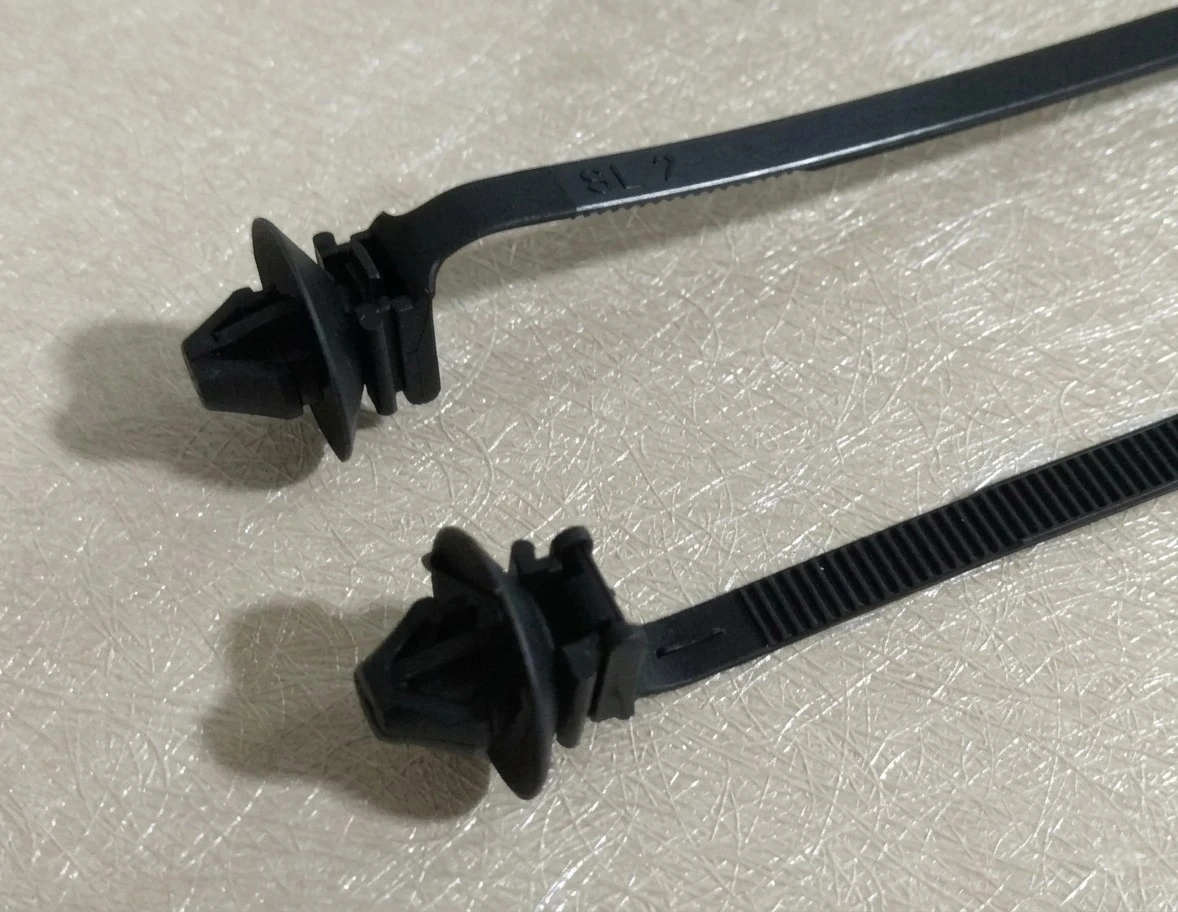

Outside Push Mount Ties Technical Drawing

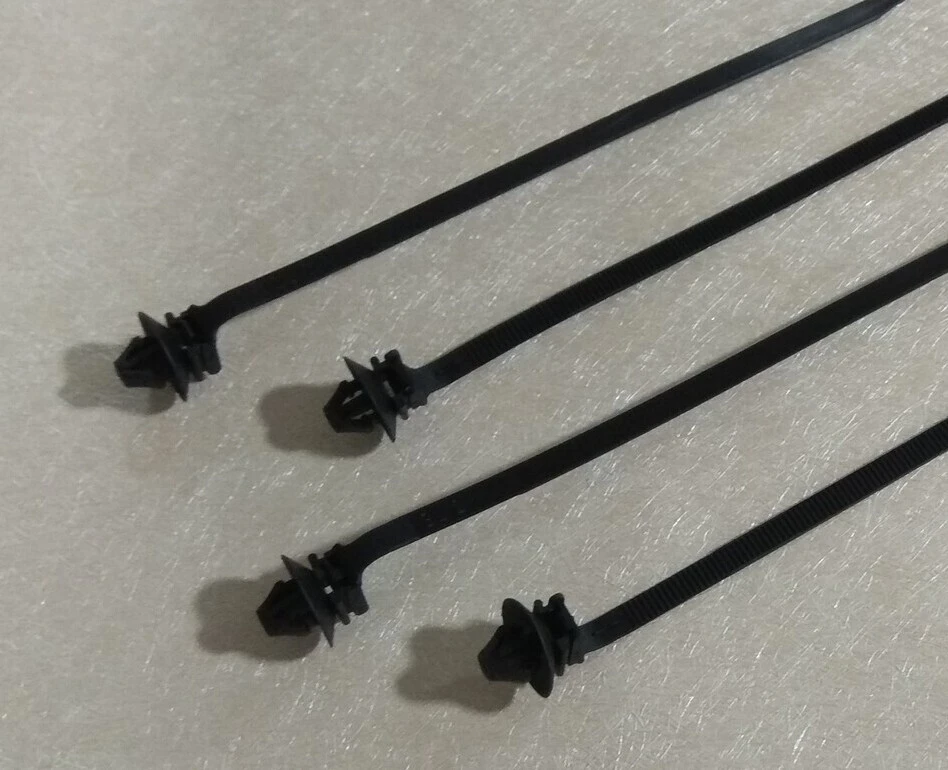

Outside Push Mount Ties Application

Outside Push Mount Ties

Outside Push Mount Ties Outside Push Mount Ties Technical Drawing Outside Push Mount Ties Application
Outside Push Mount Ties
Outside Push Mount Ties Technical Drawing
Outside Push Mount Ties Application
  • Material : Nylon 66 (UL approved)
  • Operating Temperature : -40°C to +85°C (-40°F to +185°F)
  • Colour : Black
  • Flammability Rating : UL 94V-2 (Self-extinguishing material)
  • Installation : By hand - Push mount tie head can be easily pressed into pre-drilled hole
  • Packing : 100 pcs bag in all sizes
  • Unit : 100 Pcs/Pkt
  • Tolerances : Length: ±3mm, Width: ±0.3mm, Thickness: ±0.2mm
  • Quick and simple cable mounting process for rapid cable management
  • One-piece construction design eliminates the use of screw or adhesive mounts to hold bundles on chassis
  • Push mount tie head can be easily pressed into pre-drilled hole and can hold wire bunch
  • No additional hardware required - self-contained design requires no screws or adhesives

Comprehensive range of Outside Push Mount Ties available in multiple lengths, widths, and bundle diameter options for secure and reliable

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Tensile Strength
Tensile Strength (kbs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Superior Performance

Quick Cable Mounting

Quick and simple cable mounting process enables rapid installation for efficient cable management on chassis, AC's, and coolers.

One-Piece Design

One-piece construction design eliminates the use of screws or adhesive mounts, simplifying installation and reducing material costs.

Easy Push Installation

Push mount tie head can be easily pressed into pre-drilled hole and securely holds wire bundles without tools or additional hardware.

Wide Temperature Range

Operating temperature range from -40°C to +85°C ensures reliable performance in various environmental conditions across automotive and appliance applications.

UL Approved Material

Made from UL approved Nylon 66 with UL 94V-2 flammability rating, providing self-extinguishing properties for enhanced safety.

No Hardware Required

Self-contained design requires no screws or adhesives, reducing installation time and eliminating the need for additional mounting components.

Frequently Asked Questions

What are the key applications for Outside Push Mount Ties?
Outside Push Mount Ties are designed for attaching cable bundles to surfaces such as chassis of vehicles, air conditioners (AC's), coolers, and other white goods applications. They are ideal for automotive, electrical/electronics, and appliance industries.
What is the operating temperature range for Outside Push Mount Ties?
Outside Push Mount Ties operate reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making them suitable for various automotive and appliance environmental conditions.
What material are Outside Push Mount Ties made from?
Outside Push Mount Ties are made from UL approved Nylon 66 material with UL 94V-2 flammability rating, providing excellent performance with self-extinguishing properties for enhanced safety in automotive and appliance applications.
How do I install Outside Push Mount Ties?
Installation is simple and requires no tools. The push mount tie head can be easily pressed by hand into a pre-drilled hole (7mm diameter) in the chassis or panel. The one-piece design eliminates the need for screws or adhesives.
What panel thickness range is compatible with these ties?
Outside Push Mount Ties are compatible with panel or chassis thickness ranging from 0.8mm to 2.7mm, making them suitable for most automotive and appliance mounting applications.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.
