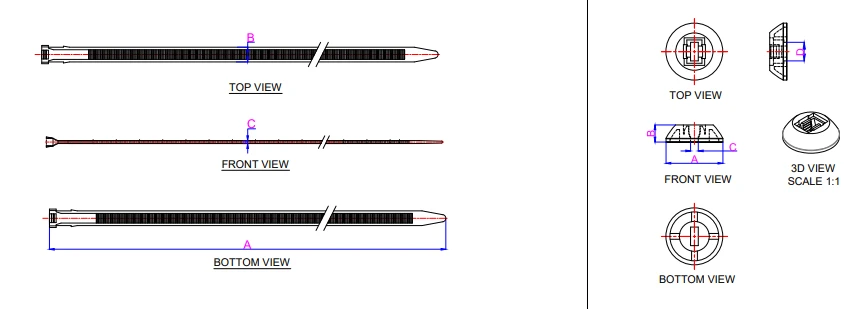

Chassis Tie HD & Holder Technical Drawing

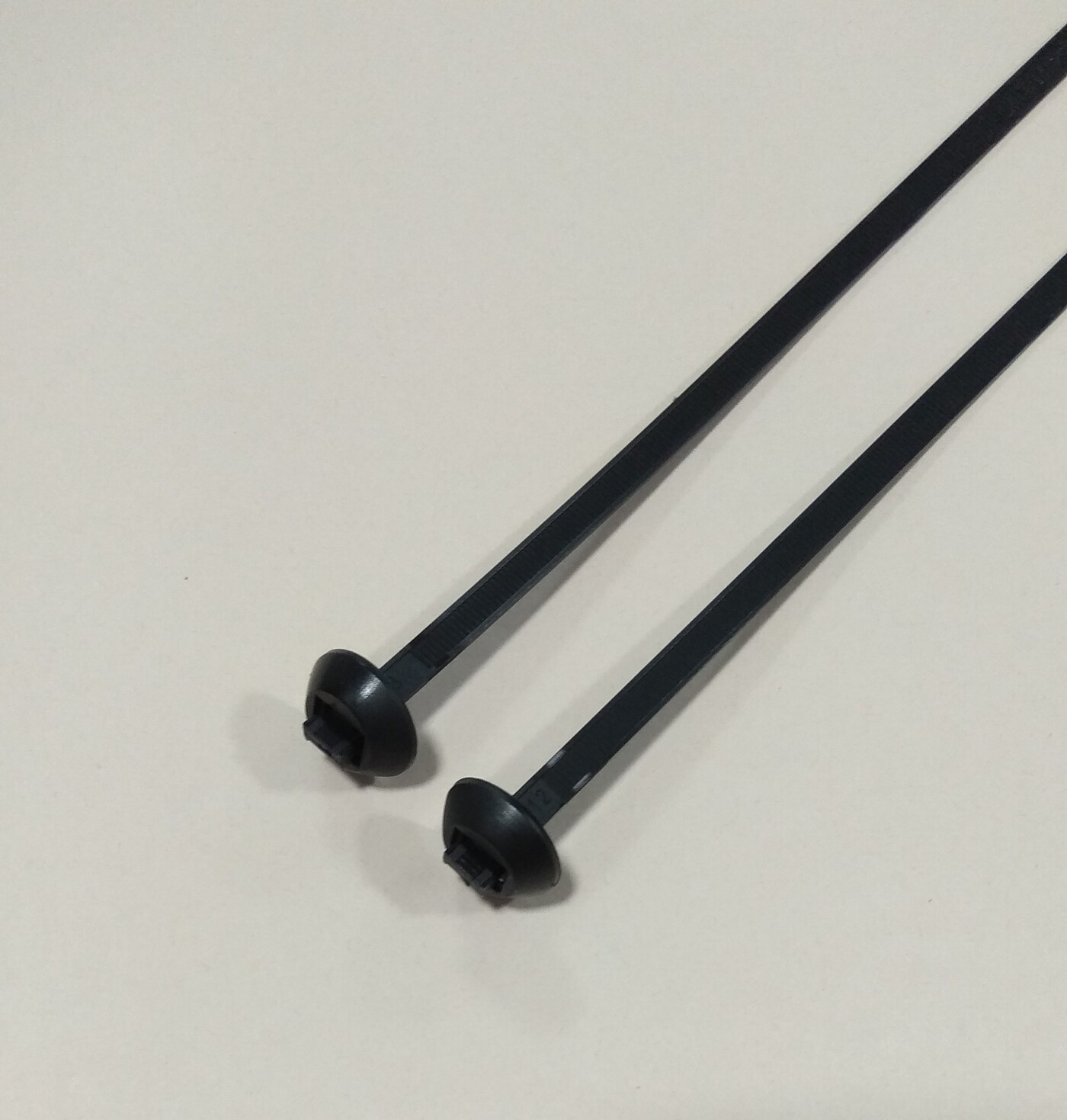

Chassis Tie HD & Holder

Material : Nylon 66
Operating Temperature : -40°C to +85°C
Colour : Black
Construction : Two piece construction (Holder and Tie)
Installation : By hand - Manual installation
Flammability Rating : UL 94V-2 (Self-extinguishing)
Packing : 100 pcs bag in all sizes
Unit : 100 Pcs/Pkt
Common Width : 7.6mm (0.30 inch)
Common Tensile Strength : 55kg (121 lbs)

Two piece construction with separate holder and tie for flexible installation
Both side serration on the cable tie for enhanced grip and secure fastening from both directions
Small head height - easily fits into compact areas with space constraints
Adjustable length prior to final installation - functions like releasable cable ties for positioning adjustments

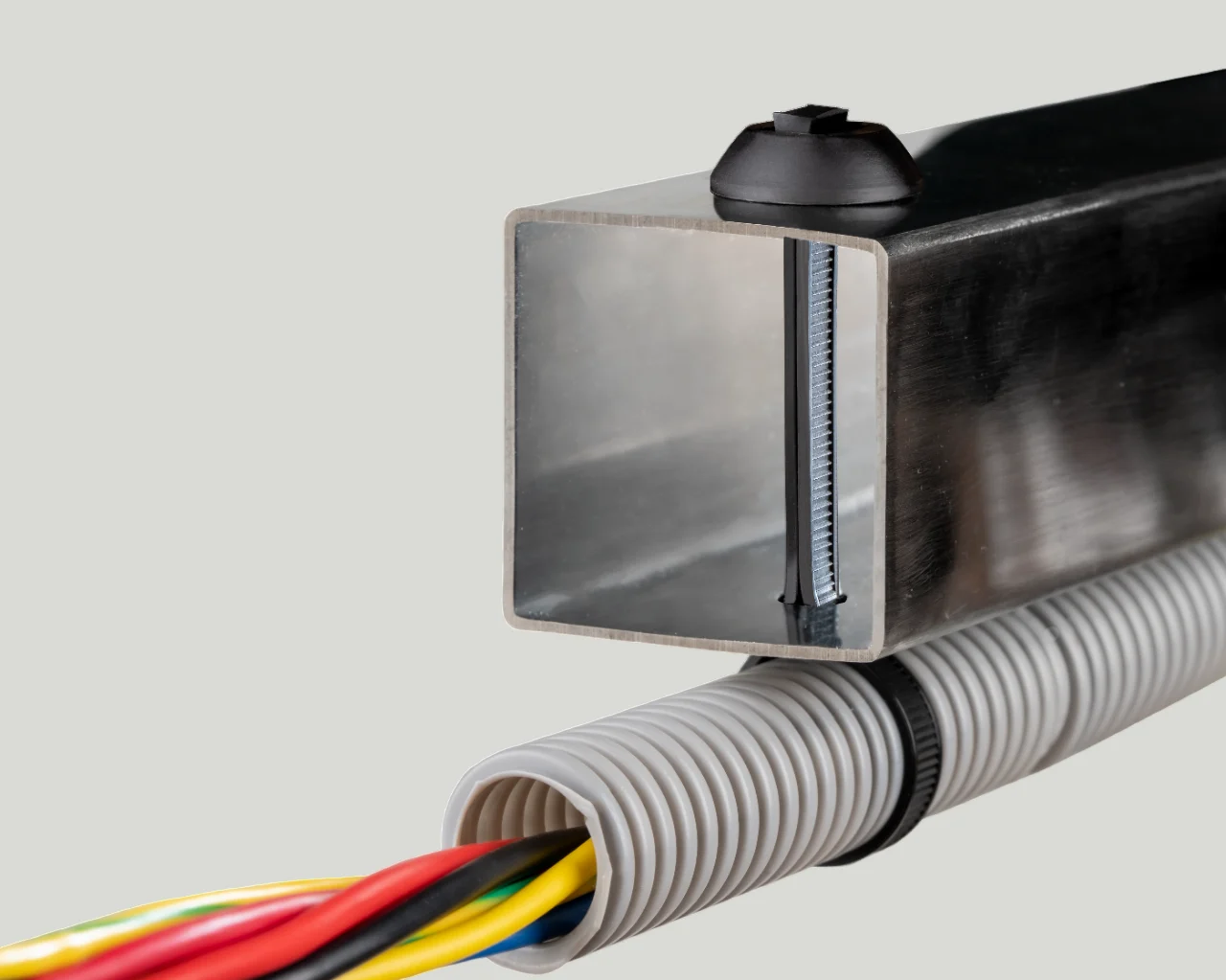

Designed specifically for heavy vehicle chassis wiring applications
High tensile strength of 55kg (121 lbs) for demanding automotive environments
Wide operating temperature range from -40°C to +85°C
UL 94V-2 flammability rating for safety compliance

Comprehensive range of Chassis Tie HD & Holder available in multiple lengths, widths, and bundle diameter options for secure and reliable heavy-duty cable fastening applications.

Engineered for Superior Automotive Performance

Two Piece Construction

Separate holder and tie system provides flexible installation options for various chassis mounting configurations in heavy vehicles.

Both Side Serration

Enhanced grip and secure fastening from both directions ensures cables stay firmly in place even under vibration and movement.

Small Head Height

Compact head design easily fits into tight spaces and compact areas with space constraints in vehicle chassis applications.

Adjustable Length

Cable tie length is adjustable prior to final installation like releasable cable ties, allowing perfect positioning before final securing.

Wide Temperature Range

Operating temperature range from -40°C to +85°C ensures reliable performance in extreme automotive environmental conditions.

High Tensile Strength

55kg (121 lbs) tensile strength provides robust holding power for demanding heavy vehicle chassis wiring and cable bundling applications.

Frequently Asked Questions

What are the key applications for Chassis Tie HD & Holder?

Chassis Tie HD & Holder is designed specifically for cable management and bundling in automotive chassis applications for heavy vehicles. It's ideal for heavy vehicle chassis wiring, automotive cable bundling, and vehicle electrical harness management in the automobile industry.

What is the operating temperature range for Chassis Tie HD & Holder?

Chassis Tie HD & Holder operates reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making them suitable for extreme automotive environmental conditions.

What materials are Chassis Tie HD & Holder made from?

Chassis Tie HD & Holder is made from Nylon 66 material in black color, providing excellent durability and performance for automotive applications with a UL 94V-2 flammability rating.

What is the two piece construction design?

The two piece construction consists of a separate holder and tie system. This design provides flexible installation options for various chassis mounting configurations, with both side serration for enhanced grip and secure fastening from both directions.

What sizes are available for Chassis Tie HD & Holder?

Chassis Tie HD & Holder is available in three length variants: 205mm (for max bundle diameter 58mm), 300mm (for max bundle diameter 88mm), and 380mm (for max bundle diameter 114mm). All variants share the same width of 7.6mm and tensile strength of 55kg (121 lbs).

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Automobile

Utility

What Our Clients Say About Us

Perfect for Heavy Vehicle Chassis

The chassis tie HD with holder is excellent for our heavy vehicle manufacturing. The two piece construction makes installation flexible and the both side serration keeps everything secure.

Small Head Height is Great

We work with tight spaces in our truck assembly. The small head height of these chassis ties allows us to fit them in compact areas where other ties won't work.

Adjustable and Reliable

The adjustable length feature is very practical during installation. We can position everything perfectly before final securing. The 55kg tensile strength handles our heavy duty requirements easily.

Wide Temperature Performance

Our vehicles operate in extreme temperatures. These chassis ties maintain performance from -40°C to +85°C without any issues. Very reliable for all weather conditions.

Multiple Length Options

Having three different length variants (205mm, 300mm, 380mm) covers all our cable bundling needs. The consistent 7.6mm width and 55kg strength across all sizes makes specification easy.

UL Certified Quality

The UL 94V-2 flammability rating and Nylon 66 material give us confidence in product quality. These meet all our safety requirements for automotive applications.
