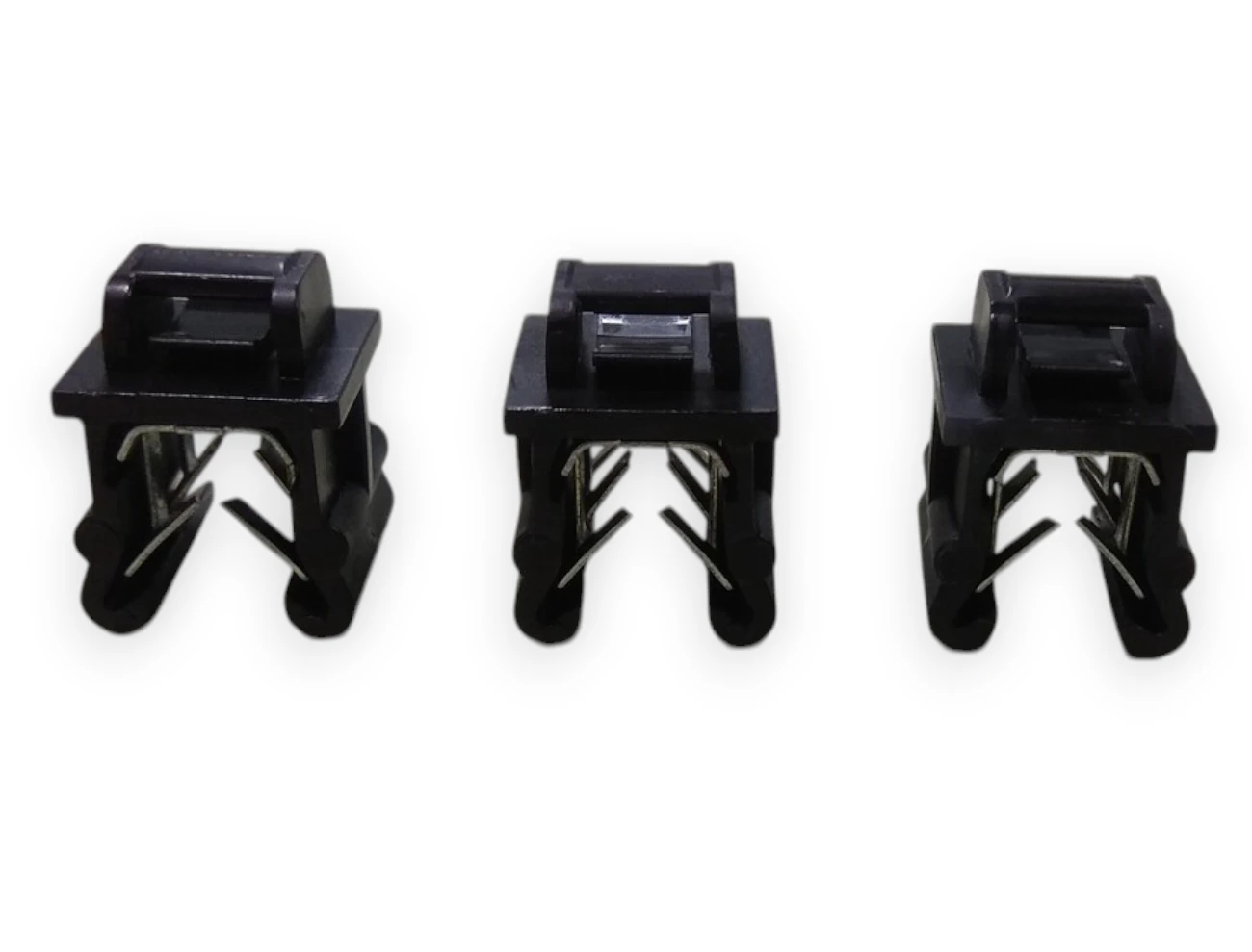

Center Edge Clip
Center Edge Clip Technical Drawing
Center Edge Clip Application

Center Edge Clip

Center Edge Clip Center Edge Clip Technical Drawing Center Edge Clip Application
Center Edge Clip
Center Edge Clip Technical Drawing
Center Edge Clip Application
  • Material : Clip - Nylon 66 and Insert - Steel
  • Operating Temperature : -40°C to +85°C (-40°F to +185°F)
  • Colour : Black
  • Installation : BY hand - Easy to push fit on any metal chassis
  • Packing : 100 pcs bag in all sizes
  • Unit : 100 Pcs/Pkt
  • Flammability Rating : UL 94V-2
  • Tolerances : Length ±0.2mm, Width ±0.3mm, Height ±0.3mm
  • Two-piece assembly with outside housing of Nylon 66 body and inside metal clamp assembled
  • Used along with cable tie for secure fastening
  • Easy to push fit on any metal chassis without tools
  • Keeps cables maintained in vertical, horizontal or any angle direction against the chassis
  • No drilling or adhesive mounting required
  • Compatible with 3.6mm and 4.8mm cable tie widths
  • Suitable for panel thickness ranging from 1-6mm
  • Ideal for wire harness management and electrical panel building

Comprehensive range of Center Edge Clips available in multiple sizes, widths, and panel thickness options for secure and versatile cable routing applications.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Height
Height (kbs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Superior Cable Harness Management

No Tools Required

Easy push-fit installation by hand on any metal chassis without the need for drilling holes or adhesive mounting, saving time and effort.

Two-Piece Assembly

Nylon 66 outside housing with assembled steel insert provides superior strength and durability for long-lasting cable management solutions.

Versatile Cable Positioning

Maintains cables in vertical, horizontal or any angle direction against the chassis, offering maximum flexibility for wire harness applications.

Wide Temperature Range

Operating temperature range from -40°C to +85°C ensures reliable performance in various environmental conditions across different applications.

UL Certified Quality

UL 94V-2 flammability rating ensures compliance with international safety standards for electrical and automotive applications.

Cable Tie Compatible

Designed to work seamlessly with 3.6mm and 4.8mm cable tie widths for secure and reliable cable bundling and routing solutions.

Frequently Asked Questions

What are the key applications for Center Edge Clip?
Center Edge Clip is designed for applications where drilling holes or adhesive mounts cannot be used. It's ideal for wire harness management, cable routing on metal chassis, electrical panel building, and maintaining cables in any direction against chassis in automotive and industrial applications.
What is the operating temperature range for Center Edge Clip?
Center Edge Clip operates reliably in temperatures from -40°C to +85°C (-40°F to +185°F), making them suitable for various environmental conditions in automotive and industrial applications.
What materials are Center Edge Clips made from?
Center Edge Clips feature a two-piece assembly with an outside housing made of Nylon 66 and an inside metal clamp made of Steel, providing excellent strength and durability for secure cable management.
What panel thickness and cable tie widths are compatible?
Center Edge Clips are available for panel thickness ranging from 1–6mm. They are compatible with cable tie widths of 3.6mm and 4.8mm, offering flexibility for various wire harness and cable management applications.
How do I install Center Edge Clips?
Installation is simple and requires no tools. The clips are designed for easy push-fit installation by hand on any metal chassis. No drilling or adhesive mounting is required, making installation quick and efficient.
