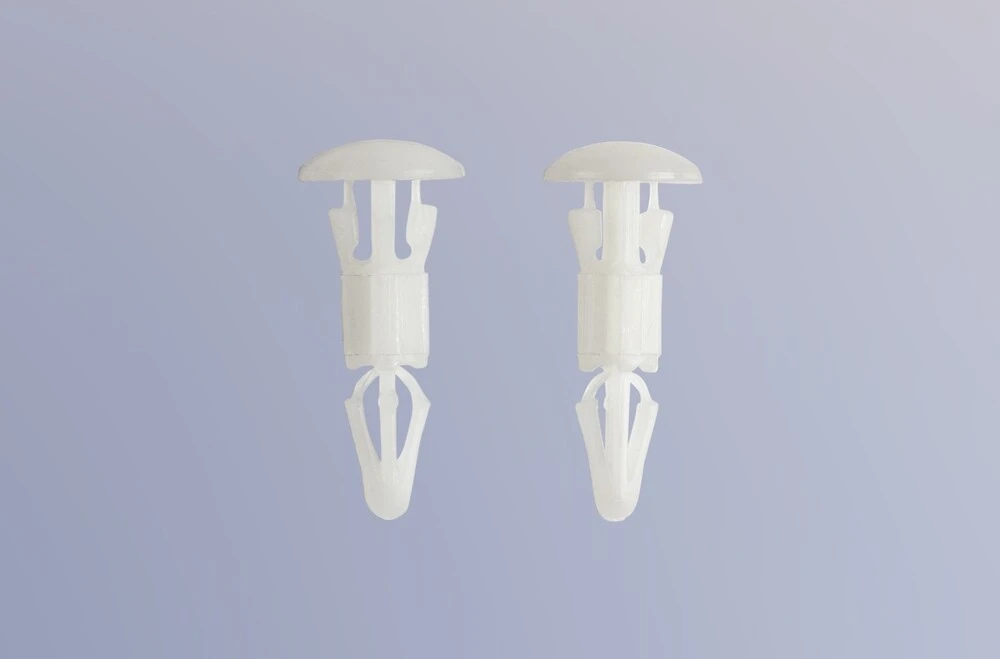

Reverse Locking PCB Support
Reverse Locking PCB Support Technical Drawing

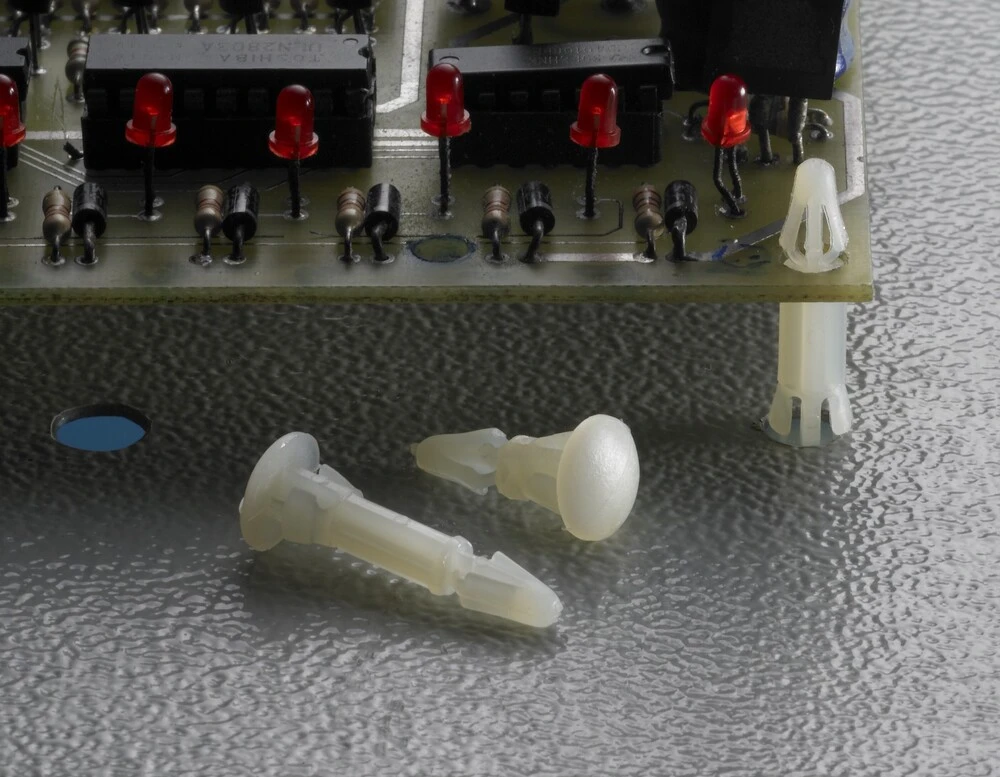

Reverse Locking PCB Support Application

Reverse Locking PCB Support

Reverse Locking PCB Support Reverse Locking PCB Support Technical Drawing Reverse Locking PCB Support Application
Reverse Locking PCB Support
Reverse Locking PCB Support Technical Drawing
Reverse Locking PCB Support Application
  • Material : Nylon 66, UL 94V-2
  • Color : Natural
  • Operating Temp : -40°C to +85°C
  • Packing : 100 Pcs. bag
  • Unit : 100 Pcs/Pkt
  • Tolerance : Spacing Height ±1mm, B ±0.5mm, C ±0.5mm, D ±0.5mm
  • Thin button head for minimum protrusion insert the supports through both holes from chassis underside

Precision-engineered perforated adjustable P clips with multiple size options for wide range of cable diameter clamping requirements.

A Spacing Height
A Spacing Height(mm)
0 1010
C Height
C Height(mm)
0 13
Height
Height (mm)
0 250

Apply Filters

A Spacing Height (mm)
0 1010
C Head Height (mm)
0 13
Height (mm)
0 250

Most Versatile Cable & Tube Clamps

Reverse Locking Design

Insert supports through both holes from chassis underside with reverse locking mechanism that secures from below, providing stable PCB mounting from underneath.

Thin Button Head

Thin button head design ensures minimum protrusion on the underside of chassis, maintaining a low profile for compact electronics and appliance assemblies.

PCB Spacing Solution

Designed to use between PCB to PCB or PCB to chassis as a spacer, maintaining proper clearance and preventing electrical shorts in electronic assemblies.

Fire-Retardant Material

Made from Nylon 66 with UL 94V-2 flammability rating, ensuring safety compliance for electrical/electronics and white goods & appliances applications.

Wide Temperature Range

Operating temperature from -40°C to +85°C ensures reliable performance in various electronics, appliances, and industrial environments.

Six Height Options

Available in 6 spacing heights from 6.4mm to 17.6mm to accommodate various PCB clearance requirements. Natural color, packaged 100 pieces per bag.

Frequently Asked Questions

What are Reverse Locking PCB Supports and how do they work?
Reverse Locking PCB Supports are spacers used between PCB to PCB or PCB to chassis. They feature a unique reverse locking design where you insert the supports through both holes from the chassis underside. The thin button head design ensures minimum protrusion underneath, making them ideal for electrical/electronics and white goods & appliances where low-profile mounting is required.
How do I install Reverse Locking PCB Supports?
Installation is done from the chassis underside: push the support up through the chassis hole and then through the PCB hole above it. The reverse locking mechanism secures the support from below, while the thin button head minimizes protrusion on the underside. This bottom-up installation approach is particularly useful when top access is limited.
What is the advantage of the thin button head design?
The thin button head provides minimum protrusion on the chassis underside, which is critical in compact electronics where space is limited. This low-profile design prevents interference with other components or enclosures while still providing secure PCB support. It's especially valuable in tight assemblies where clearance underneath is restricted.
What spacing heights are available?
Reverse Locking PCB Supports are available in 6 spacing heights: 6.4mm (PBR-6), 9.6mm (PBR-9), 11.6mm (PBR-12), 13.7mm (PBR-14), 15.5mm (PBR-16), and 17.6mm (PBR-17). All sizes come in Natural color, packaged 100 pieces per bag, made from Nylon 66 with UL 94V-2 rating.
When should I use reverse locking supports instead of dual locking supports?
Choose reverse locking supports when you need to install from the underside of the chassis or when you want minimal protrusion underneath due to space constraints. They're ideal when top access is limited or when the application requires a low-profile solution on the bottom side. Dual locking supports are better when you can access from the top and need maximum stability with barbed locking on both ends.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Electrical / Electronics

Electrical / Electronics

White Goods & Appliances

White Goods & Appliances
