Multi Lock Steel Tie Coated Multi Lock Steel Tie Coated Technical Drawing Multi Lock Steel Tie Coated Application

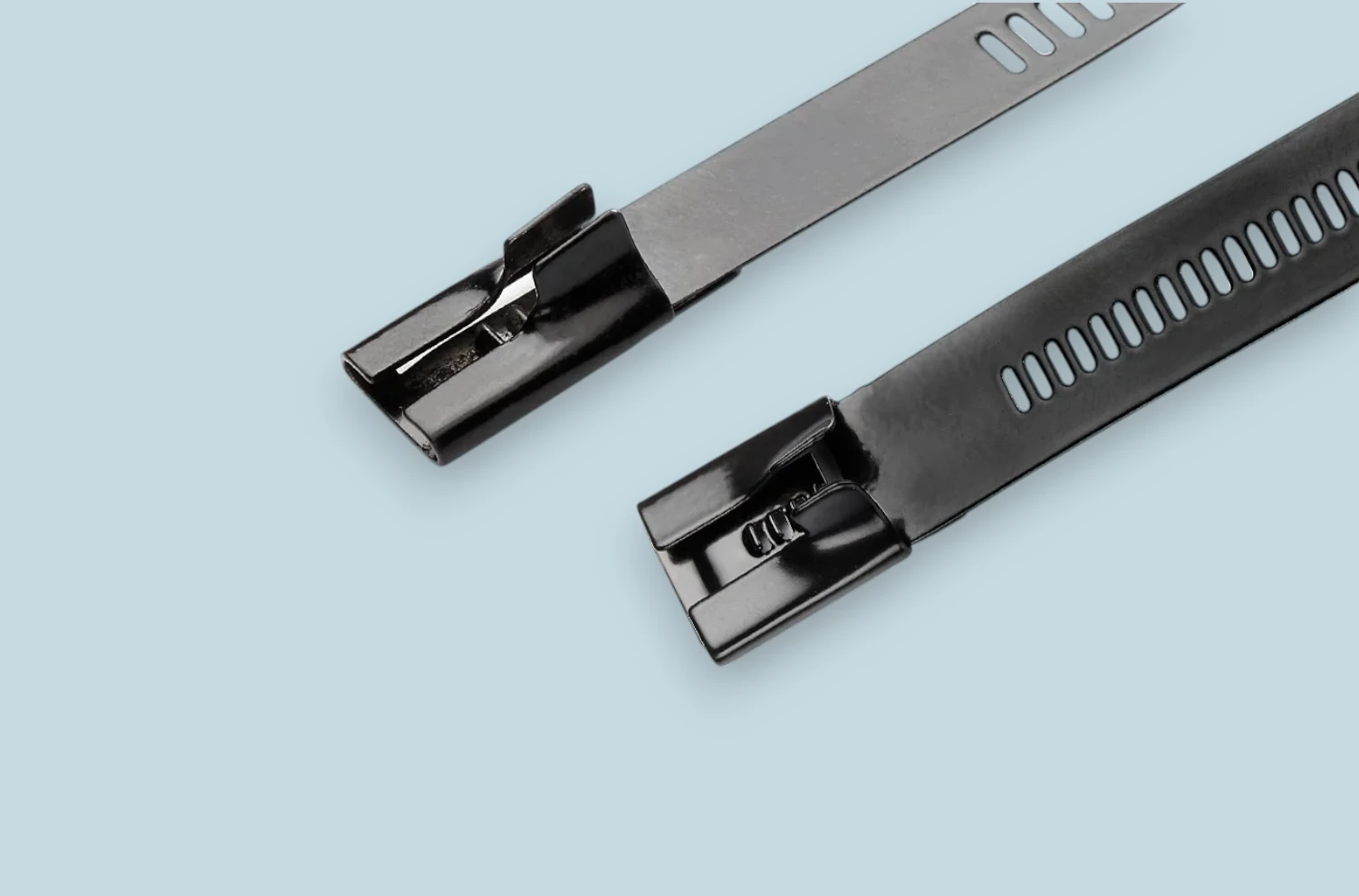

Multi Lock Steel Tie Coated

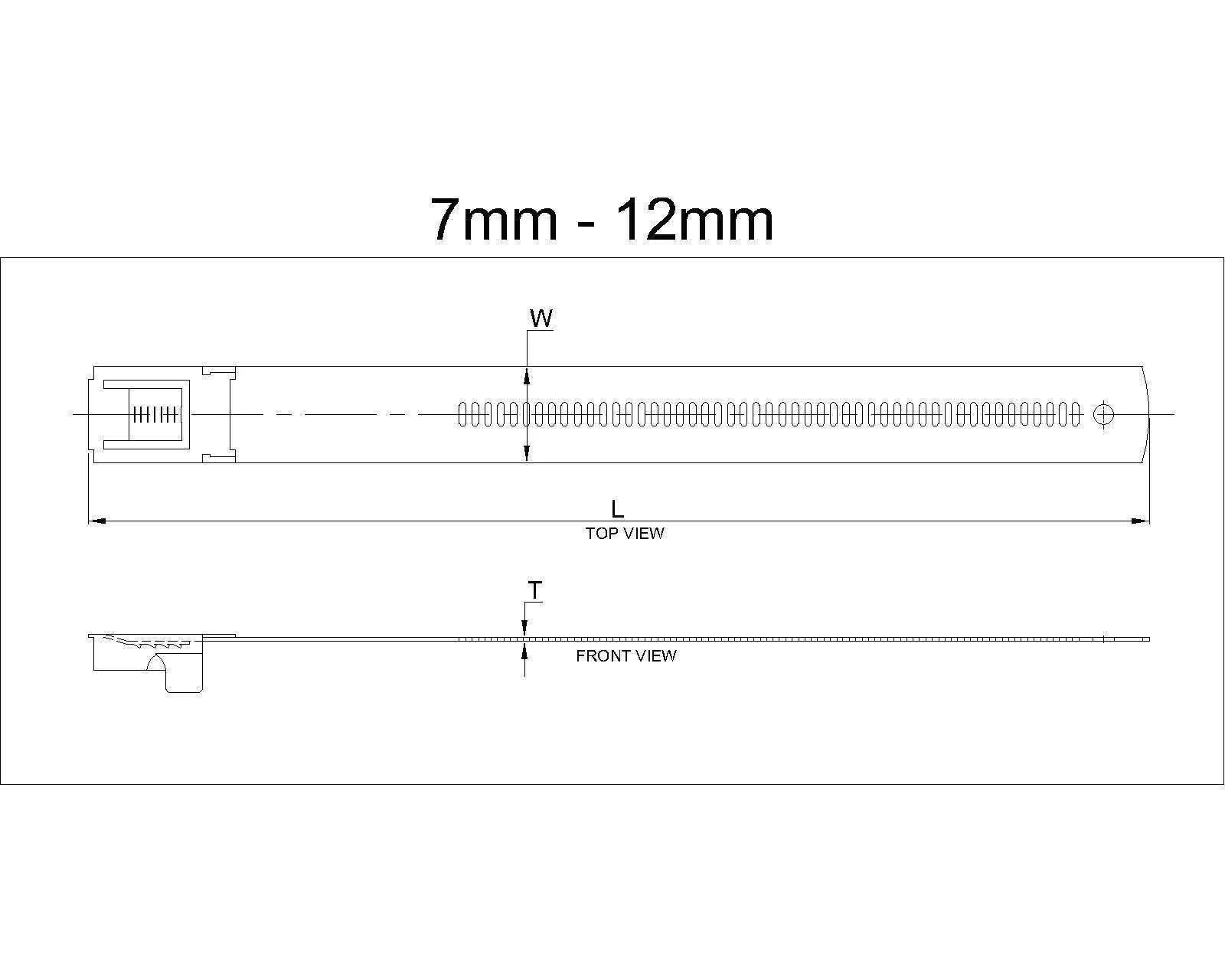

Multi Lock Steel Tie Coated Technical Drawing
Multi Lock Steel Tie Coated Application

Multi Lock Steel Tie Coated

Multi Lock Steel Tie Coated Multi Lock Steel Tie Coated Technical Drawing Multi Lock Steel Tie Coated Application
Multi Lock Steel Tie Coated
Multi Lock Steel Tie Coated Technical Drawing
Multi Lock Steel Tie Coated Application
  • Material : SS 316 or SS 304 Stainless Steel
  • Coating : Black Polyester or Black Nylon (Non-toxic, halogen free, low smoke and UV resistant)
  • Operating Temperature : -80°C to +150°C
  • Width Options : 7.0mm (Standard) and 12.0mm (Heavy Duty)
  • Tensile Strength : 60 kgs (7mm) / 130 kgs (12mm)
  • Installation : By Tie tools (STT 1 & 2) & hook (STT 3)
  • Packing : 100 pcs bag in all sizes
  • Unit : 100 Pcs/Pkt
  • Test Certificate : Available
  • Multi lock steel ties are self locking with multiple locking systems designed for strong and secure hold
  • It is designed to accommodate double wraps
  • Smooth edges of ties provide utmost safety while installation
  • Coating material is non-toxic, halogen free, low smoke and UV resistant
  • Coated ties provides long term life in corrosive climate condition

Comprehensive range of Multi Lock Steel Tie Coated with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Tensile Strength
Tensile Strength(kbs)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Tensile Strength (kbs)
0 250

Engineered for Superior Performance

Multi Lock Design

Self-locking with multiple locking systems designed for strong and secure hold, ensuring reliable cable management in demanding applications.

Double Wrap Capability

Designed to accommodate double wraps for enhanced bundling security and flexibility in various cable management scenarios.

Smooth Edges Safety

Smooth edges of ties provide utmost safety while installation, protecting both installers and cable insulation from damage.

Extreme Temperature Range

Operating temperature range from -80°C to +150°C ensures reliable performance in harsh environmental conditions across different applications.

UV Resistant Coating

Coating material is non-toxic, halogen free, low smoke and UV resistant, providing long-term durability and environmental safety.

Corrosion Protection

Coated stainless steel construction provides long term life in corrosive climate conditions, ideal for offshore and marine environments.

Frequently Asked Questions

What are the key applications for Multi Lock Steel Tie Coated?
Multi Lock Steel Tie Coated is designed for corrosive climate conditions, higher temperature and higher tensile strength requirements. It's ideal for aerospace, oil & gas, offshore, marine, solar, telecom, utility, and windmill industries.
What is the operating temperature range for Multi Lock Steel Tie Coated?
Multi Lock Steel Tie Coated operates reliably in extreme temperatures from -80°C to +150°C, making them suitable for harsh environmental conditions including offshore platforms and industrial facilities.
What materials and coatings are available for Multi Lock Steel Tie?
Multi Lock Steel Tie Coated is available in SS 316 or SS 304 stainless steel with two coating options: Black Polyester or Black Nylon. Both coatings are non-toxic, halogen free, low smoke and UV resistant.
What is the difference between 7mm and 12mm width variants?
The 7mm width series has a loop tensile strength of 60 kgs (132 lbs) for standard applications, while the 12mm width series (Heavy Duty) offers 130 kgs (287 lbs) tensile strength for more demanding applications requiring higher strength.
What installation tools are required for Multi Lock Steel Tie Coated?
Multi Lock Steel Tie Coated can be installed using Tie tools STT 1 & 2, or by hook using STT 3. These specialized tools ensure proper tensioning and secure locking for optimal performance.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Aerospace

Aerospace

Oil, Gas & Offshore

Oil, Gas & Offshore

Ship & Marines

Telecom

Telecom

Ship & Marines

Solar

Solar

Utility

Utility

windmill

windmill

What Our Clients Say About Us

Perfect for Offshore Applications

The coated stainless steel ties provide excellent corrosion resistance for our offshore installations. The protective coating withstands harsh marine environments perfectly.

RK

Robert Kane

Operations Manager, Offshore Oil & Gas

Excellent Temperature Range

We use these coated steel ties in extreme temperature conditions from -60°C to +130°C. The coating remains intact and the ties maintain their strength throughout.

AS

Anna Schmidt

Project Lead, Solar Energy Systems

Safe and Easy Installation

The smooth edges on these coated ties make installation much safer for our technicians. Combined with the STT tools, the installation process is fast and reliable.

MP

Michael Perez

Installation Supervisor, Telecom Infrastructure

Heavy Duty Strength

The 12mm heavy duty series with 111kg tensile strength is perfect for our wind turbine cable management. They handle the constant vibration without any issues.

VG

Victor Garcia

Maintenance Manager, Windmill Energy

Multiple Material Options

Having both SS 316 and SS 304 options with Polyester or Nylon coating allows us to choose based on specific corrosive environment requirements. Very versatile product line.

SK

Sarah Kim

Procurement Head, Ship & Marine

UV Resistant Coating

The UV resistant coating protects the ties in our outdoor utility installations. After two years of sun exposure, the coating still looks and performs like new.

NT

Nathan Taylor

Field Engineer, Utility Services

You May Also Be Interested In

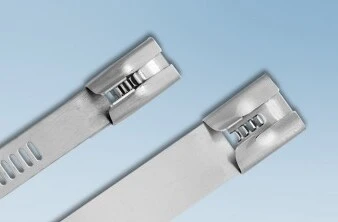

Multi Lock Steel Tie Uncoated
