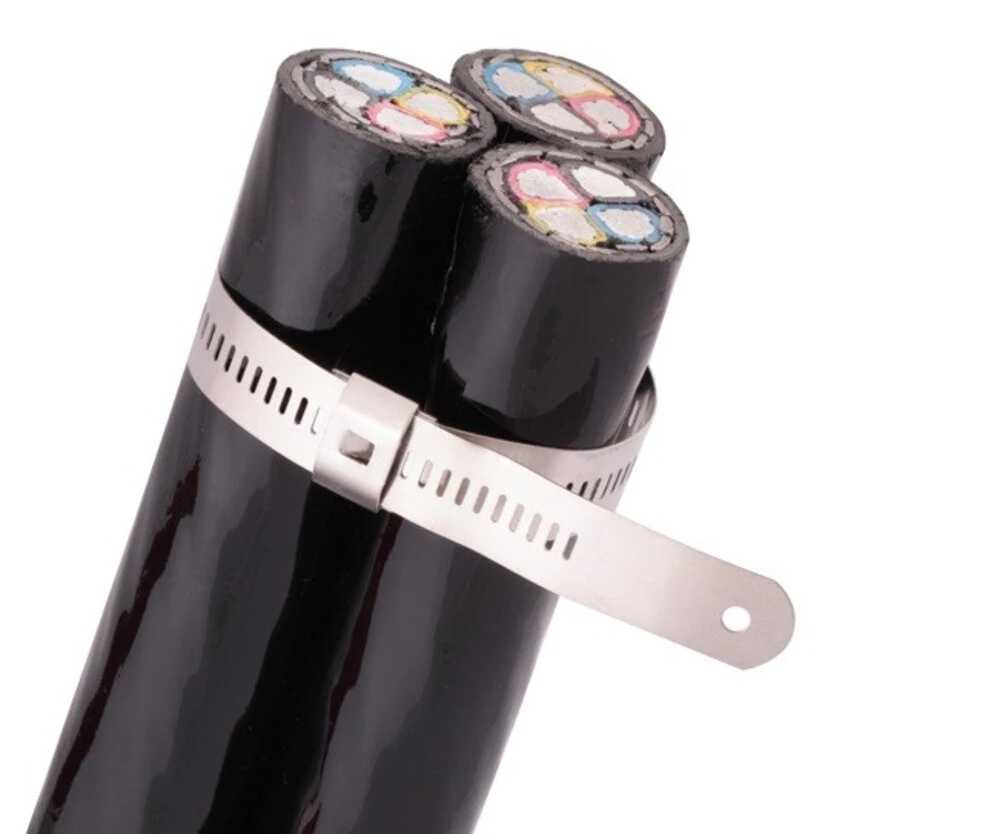

Easylock Steel Tie Uncoated Technical Drawing

Easylock Steel Tie Uncoated

Material : Stainless Steel (SS 316 / SS 304)
Operating Temperature : -80°C to +538°C (-112°F to +1000°F)
Width : 7mm (Standard Series) / 12mm (Heavy Duty Series)
Thickness : 0.25mm (0.010 inch)
Installation : By tie tools and hook
Packing : 100 pcs bag
Unit : 100 Pcs/Pkt
Certifications : Test Certificate Available

Self locking with multiple locking systems designed for fast, strong and secure installation
Smooth edges of ties provide utmost safety while installation
Easy lock mechanism for quick deployment
High tensile strength for demanding applications
Corrosion resistant stainless steel construction
Wide temperature range compatibility
Available in SS 316 and SS 304 grades
Suitable for corrosive climate conditions and higher temperature environments

Comprehensive range of Easylock Steel Tie Uncoated with varying lengths, widths, and tensile strengths for diverse wire bundling applications.

Engineered for Superior Performance

Self Locking System

Multiple locking systems designed for fast, strong and secure installation ensuring cables remain securely bundled in demanding environments.

Smooth Edges

Smooth edges of ties provide utmost safety while installation, protecting both the installer and the cables being secured.

Extreme Temperature Range

Operating temperature range from -80°C to +538°C (-112°F to +1000°F) ensures reliable performance in the harshest environmental conditions.

Corrosion Resistant

Uncoated stainless steel construction (SS 316 / SS 304) provides excellent resistance to corrosive climate conditions and harsh environments.

High Tensile Strength

Available in Standard Series (45kg) and Heavy Duty Series (111kg) for higher tensile strength requirements in critical applications.

Easy Installation

Easy lock mechanism for quick deployment using standard tie tools and hooks, enabling fast and efficient installation.

Frequently Asked Questions

What are the key applications for Easylock Steel Tie Uncoated?

Easylock Steel Tie Uncoated is designed for corrosive climate conditions, higher temperature environments, and higher tensile strength requirements. It's ideal for aerospace, oil & gas offshore, ship & marines, solar, telecom, utility, and windmill industries.

What is the operating temperature range for Easylock Steel Tie Uncoated?

Easylock Steel Tie Uncoated operates reliably in temperatures from -80°C to +538°C (-112°F to +1000°F), making them suitable for extreme temperature conditions.

What materials are Easylock Steel Tie Uncoated made from?

Easylock Steel Tie Uncoated is available in two stainless steel grades: SS 316 and SS 304, both providing excellent corrosion resistance and durability for demanding applications.

What's the difference between Standard Series and Heavy Duty Series?

The Standard Series (EL) has 7mm width with 45kg tensile strength, while the Heavy Duty Series (ELH) has 12mm width with 111kg tensile strength. Both have 0.25mm thickness and are available in lengths from 150mm to 1000mm.

What tools are required for installation?

Installation requires tie tools and hook. Compatible tools include STT 1 (Tie Tensioning/Cutting Tool), STT 2 (Tie Tensioning/Cutting Tool), and STT 3 (Tie Tensioning Hook) for fast and secure installation.

Get Our Product Catalog

Subscribe to receive our latest product updates and technical specifications directly.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Aerospace

Oil, Gas & Offshore

Telecom

Ship & Marines

Solar

Utility

windmill

What Our Clients Say About Us

Perfect for Offshore Applications

The coated stainless steel ties provide excellent corrosion resistance for our offshore installations. The protective coating withstands harsh marine environments perfectly.

Excellent Temperature Range

We use these coated steel ties in extreme temperature conditions from -60°C to +130°C. The coating remains intact and the ties maintain their strength throughout.

Safe and Easy Installation

The smooth edges on these coated ties make installation much safer for our technicians. Combined with the STT tools, the installation process is fast and reliable.

Heavy Duty Strength

The 12mm heavy duty series with 111kg tensile strength is perfect for our wind turbine cable management. They handle the constant vibration without any issues.

Multiple Material Options

Having both SS 316 and SS 304 options with Polyester or Nylon coating allows us to choose based on specific corrosive environment requirements. Very versatile product line.

UV Resistant Coating

The UV resistant coating protects the ties in our outdoor utility installations. After two years of sun exposure, the coating still looks and performs like new.

You May Also Be Interested In

Reusable Steel Tie Coated

Reusable Steel Tie Uncoated

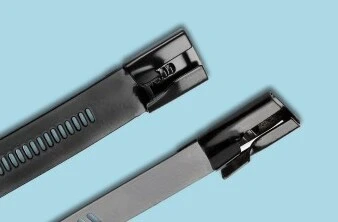

Multi Lock Steel Tie Coated
