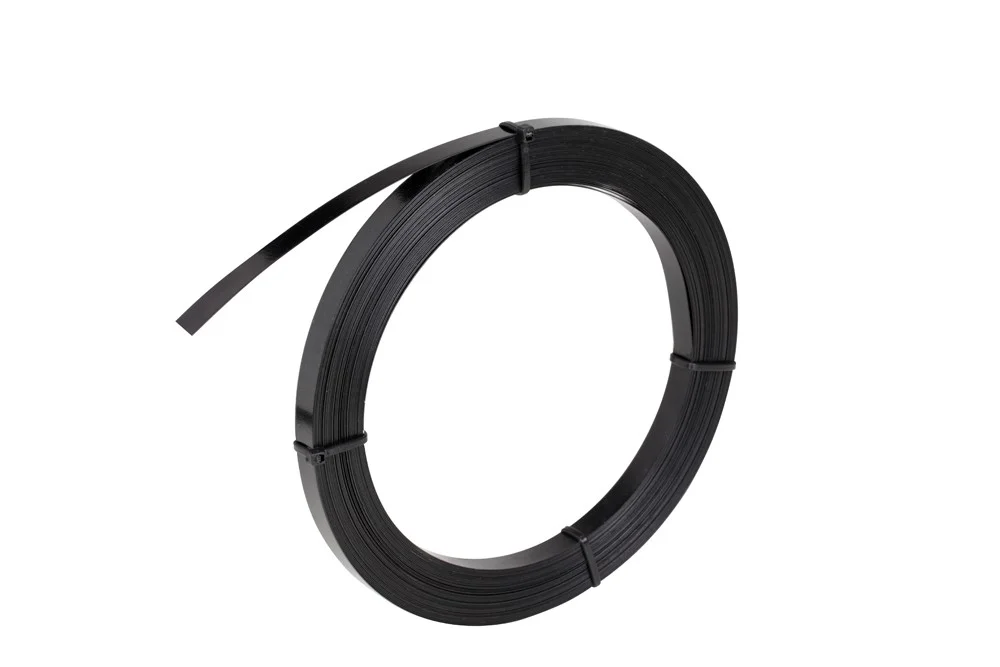

SS BAND LD COATED

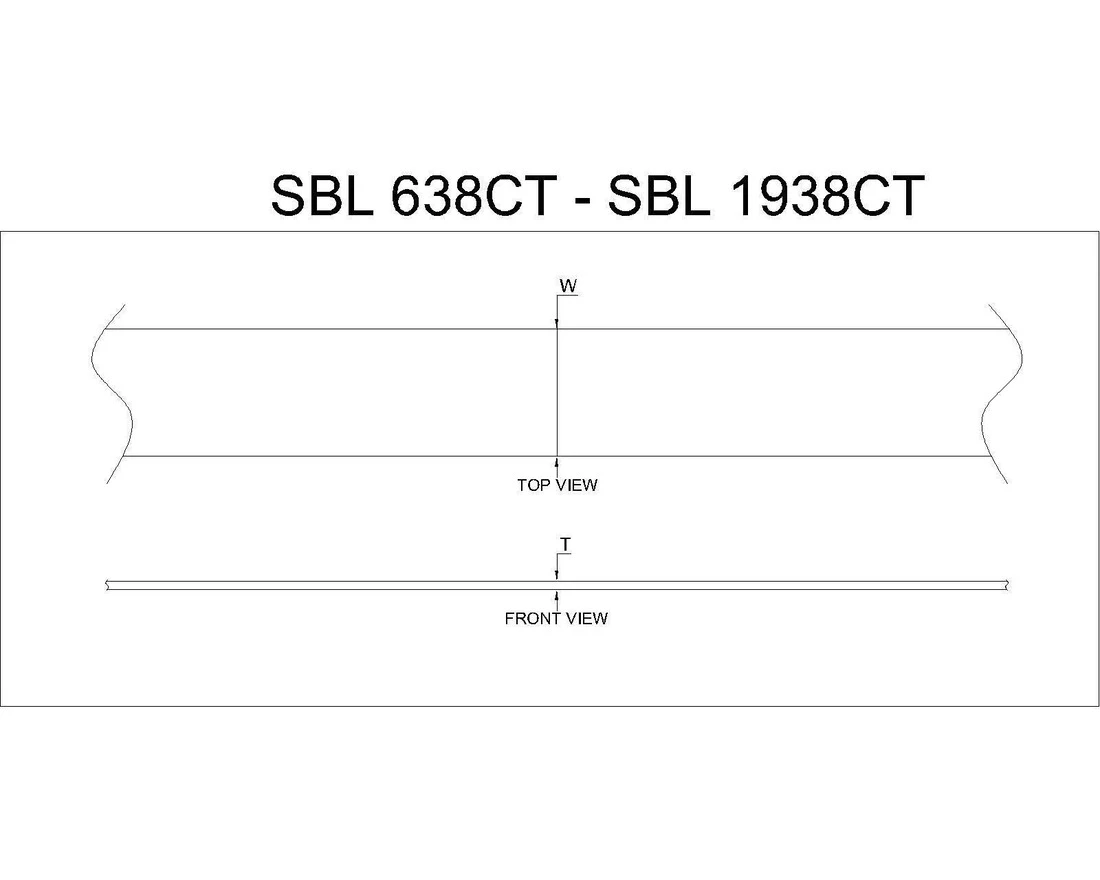

SS BAND LD COATED Technical Drawing
SS BAND LD COATED Application

SS BAND LD COATED

SS BAND LD COATED SS BAND LD COATED Technical Drawing SS BAND LD COATED Application
SS BAND LD COATED
SS BAND LD COATED Technical Drawing
SS BAND LD COATED Application
  • Material : Stainless Steel (SS 316 / SS 304 / SS 201)
  • Coating Type : Black PPA - Thermoplastic or Polyester
  • Coating Properties : Non-toxic, Halogen free, Low smoke, UV resistant
  • Thickness : 0.048 inch (1.22 mm)
  • Installation : By tool (TB-1)
  • Packing : Roll in box (25m / 82.5 ft)
  • Packaging Options : Cardboard box, Plastic totes
  • Test Certificate : Available
  • Coated band provides long term life in corrosive climate condition
  • Provides higher tensile strength
  • Ideal for use in high vibration application
  • Available in cardboard box as well as in plastic totes for easy to carry & use
  • Smooth edges of band provide utmost safety while installation
  • Coating material is non-toxic, halogen free, low smoke and UV resistant

Coated stainless steel banding solution for cable bundling applications requiring higher tensile load capacity and resistance to high vibration environments.

Length
Length(mm)
0 1010
Width
Width(mm)
0 13
Thickness
Thickness (mm)
0 250

Apply Filters

Length (mm)
0 1010
Width (mm)
0 13
Thickness (mm)
0 250

Engineered for Superior Performance

Corrosion Resistant Coating

Coated band provides long term life in corrosive climate conditions with non-toxic, halogen-free, low smoke, and UV resistant properties.

Higher Tensile Strength

Provides superior tensile strength ranging from 152 kgs to 453 kgs, ensuring secure cable bundling for higher load applications.

High Vibration Resistance

Ideal for use in high vibration applications, maintaining secure bundling even in demanding environments.

Safe Installation

Smooth edges of band provide utmost safety while installation, reducing the risk of injury during handling and application.

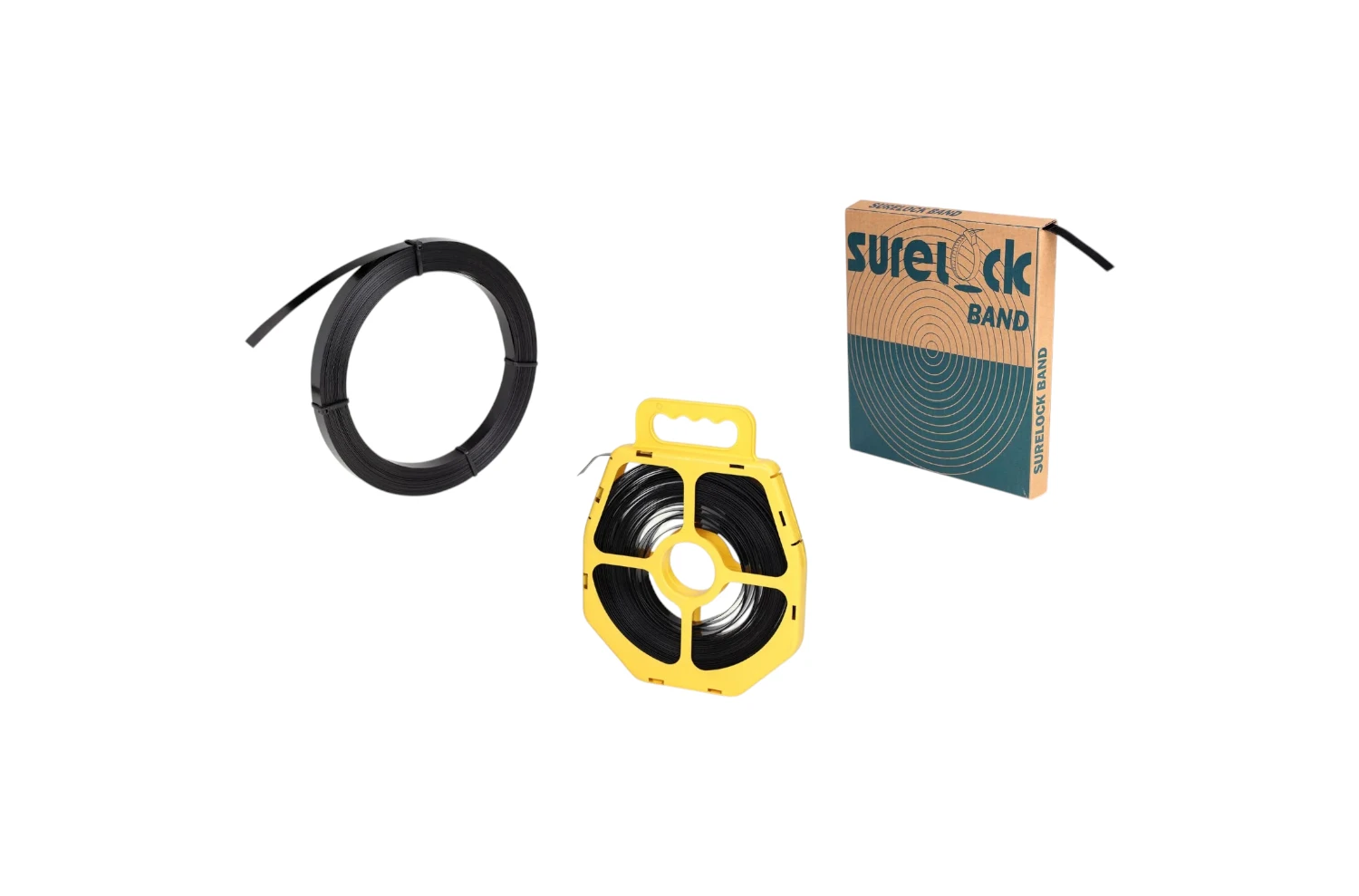

Convenient Packaging

Available in cardboard box as well as plastic totes for easy to carry and use, with 25m (82.5 ft) roll per box.

Multiple Width Options

Available in five width options from 1/4 inch (6.3mm) to 3/4 inch (19.0mm) to accommodate various cable diameter requirements.

Frequently Asked Questions

What are the key applications for SS BAND LD COATED?
SS BAND LD COATED is designed for cable bundling applications requiring higher tensile load capacity and high vibration resistance. It's ideal for oil & gas offshore, ship & marines, and utility industries where corrosion resistance is critical.
What material grades are SS BAND LD COATED available in?
SS BAND LD COATED is available in SS 316, SS 304, and SS 201 stainless steel grades. SS 316 is primarily used for its superior corrosion resistance in harsh environments.
What coating is used on the SS BAND LD COATED?
The band features Black PPA (Thermoplastic or Polyester) coating that is non-toxic, halogen-free, low smoke, and UV resistant, providing long-term life in corrosive climate conditions.
What tools are required for installation?
SS BAND LD COATED requires installation by tool TB-1, a specialized installation tool designed for proper band tensioning and securing.
What width options and tensile strengths are available?
Available in five widths: 1/4" (152 kgs), 3/8" (228 kgs), 1/2" (303 kgs), 5/8" (380 kgs), and 3/4" (453 kgs). Each width is supplied in 25m (82.5 ft) rolls with compatible clips.

Key Applications

For indoor cable bunching and durable locking in adverse conditions like humidity, heat, cold, vibration & external shocks.

Oil, Gas & Offshore

Oil, Gas & Offshore

Ship & Marines

Ship & Marines

Utility

Utility
