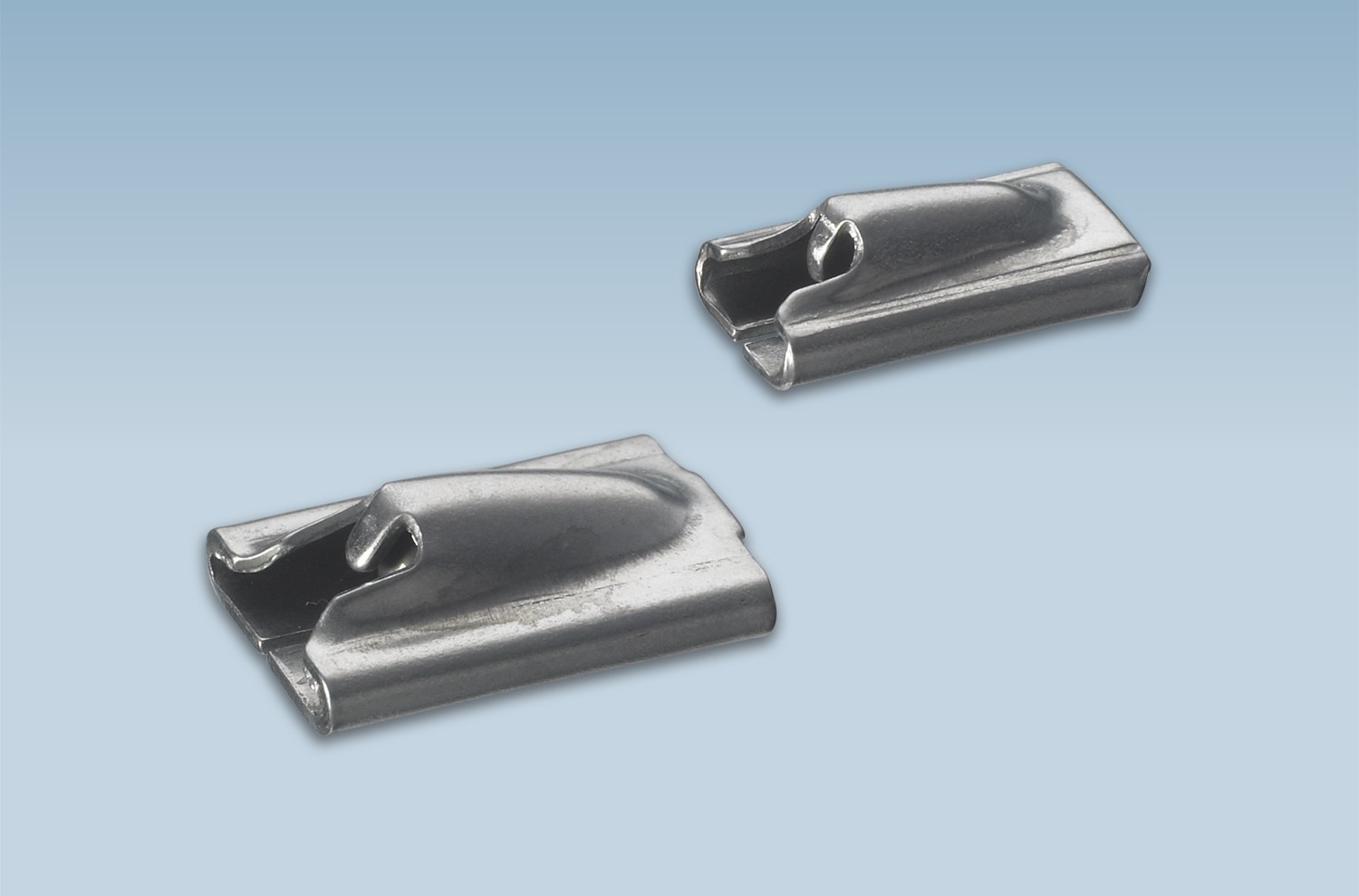

SS HEAD FOR BALL LOCK BAND UNCOATED

Applications

Designed to be used with SS band ball lock only

Key Industries:

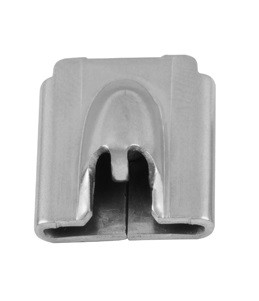

SS Head
SS Head Head for Ball Lock Band Uncoated Line Drawing - SS Head for Ball Lock Band Uncoated

Material: SS 316, SS 304, SS 201
Packing: 100 Pcs. bag
* To install ball lock head over the band
* Take one end of the cut length of band & bend 1/2" (13mm) completely from the end of the corner.
* Take a self - locking head & slide it over the entire length of the band until it reaches the corner.
* Bend tail flat against bottom of banding head to complete assembly
Download Brochure
Suitable for Band Width (Inches) Suitable for Band Width (mm) L Length (mm) W Width (mm) H Height (mm) W1 Width (mm) H1 Height (mm) SS Grade Package Qty. per Box G.wt. Std. Pkg. (100 Pcs.) (Kgs.) G.wt. Std. Pkg. (100 Pcs.) (Lbs.) Cat No. PDF Drawing
0.18 4.6 11.50 6.70 4.25 4.70 0.95 SS 316 100 Pcs. 0.10 0.22
SBBLH-4
0.18 4.6 11.50 6.70 4.25 4.70 0.95 SS 304 100 Pcs. 0.10 0.22
SBBLH-4/4
0.18 4.6 11.50 6.70 4.25 4.70 0.95 SS 201 100 Pcs. 0.10 0.22
SBBLH-4/1
0.31 7.9 14.00 9.60 5.30 8.00 0.95 SS 316 100 Pcs. 0.18 0.40
SBBLH-7
0.31 7.9 14.00 9.60 5.30 8.00 0.95 SS 304 100 Pcs. 0.18 0.40
SBBLH-7/4
0.31 7.9 14.00 9.60 5.30 8.00 0.95 SS 201 100 Pcs. 0.18 0.40
SBBLH-7/1
0.50 12.7 16.85 15.63 6.67 14.13 1.26 SS 316 100 Pcs. 0.80 1.76
SBBLH-12
0.50 12.7 16.85 15.63 6.67 14.13 1.26 SS 304 100 Pcs. 0.80 1.76
SBBLH-12/4
0.50 12.7 16.85 15.63 6.67 14.13 1.26 SS 201 100 Pcs. 0.80 1.76
SBBLH-12/1
0.63 15.9 21.23 19.58 8.19 17.69 1.38 SS 316 100 Pcs. 0.89 1.96
SBBLH-15
0.63 15.9 21.23 19.58 8.19 17.69 1.38 SS 304 100 Pcs. 0.89 1.96
SBBLH-15/4
0.63 15.9 21.23 19.58 8.19 17.69 1.38 SS 201 100 Pcs. 0.89 1.96
SBBLH-15/1
