Surelock logo

SS EASY BAND COATED

Applications

Applied where high vibration is the concern

Key Industries:

Aerospace
Chemicals & Refineries
Dairy & Food Processing
Oil, Gas & Offshore
Ship & Marines
Signage & Signals
Solar
Telecom
Utility
Windmill

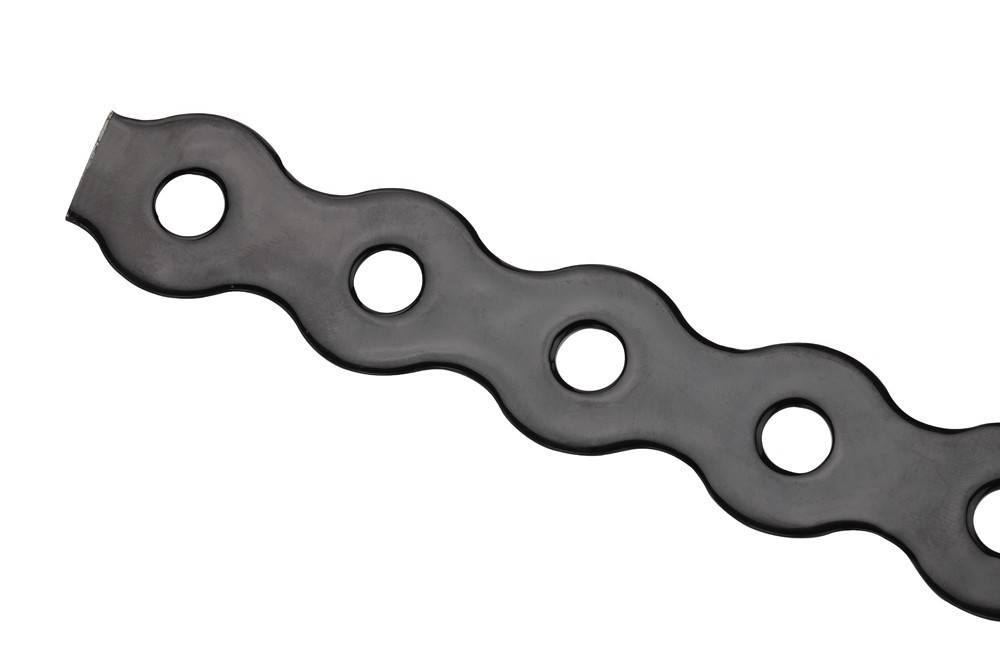

Coated SS Easy Band

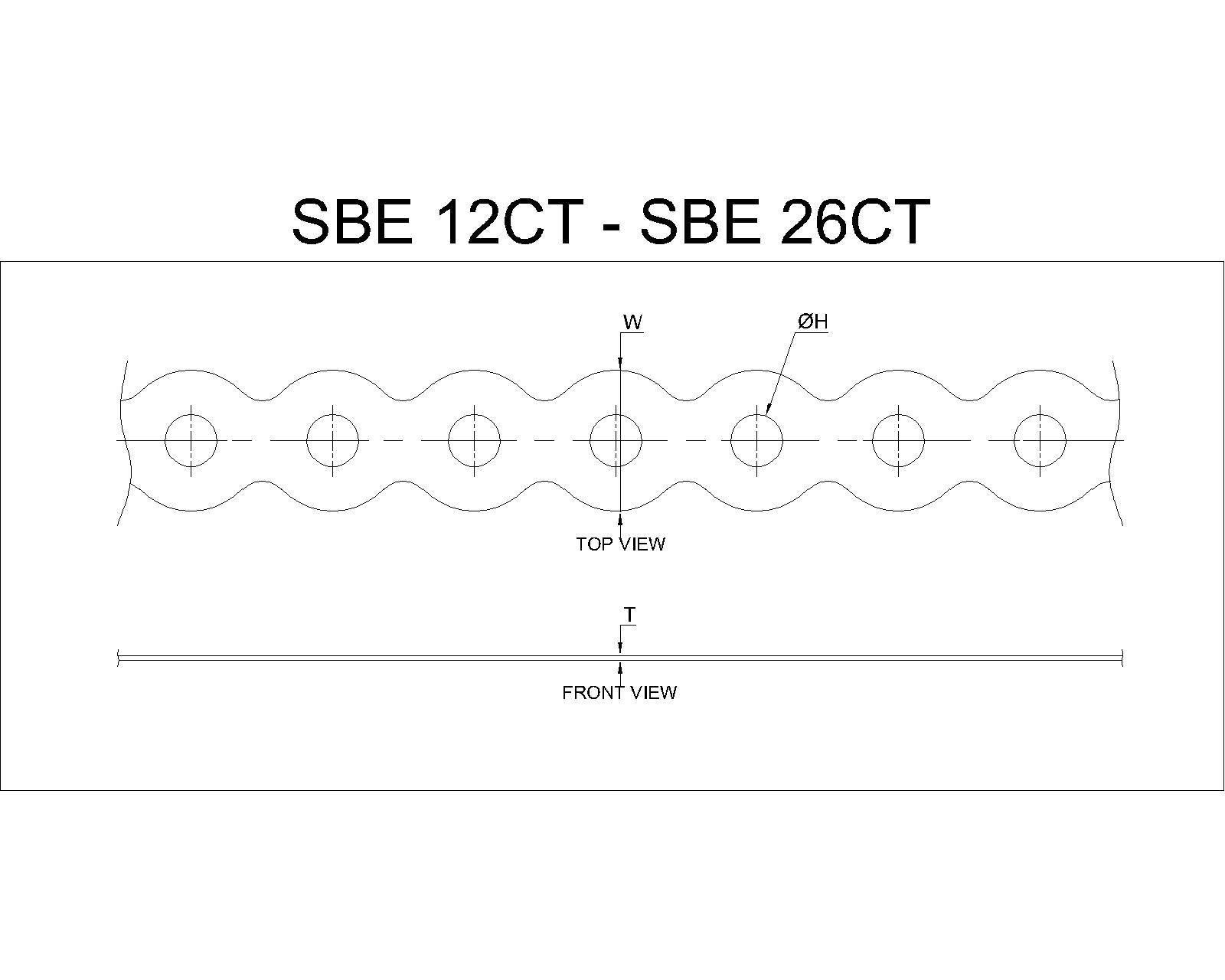

Coated SS Easy Band Line Drawing - SS Easy Band Coated SS Easy Band Coated

Material: SS 316, SS 304, SS 201
Coating: Black PPA - Thermoplastic or Polyester
Installation: By tool cat. no. TB-1
Test Certificate:
Packing: 25 Mtrs (82.5 Ft.)/Roll in box
* Ideal for bending & forming any shape pre punch holes make speedy and easy installation with use of nut & bolt
* Coated band provides long term life in corrosive climate condition
* Available in cardboard box as well as in plastic totes for easy to carry & use.
* Smooth edges of band provide utmost safety while installation
* Coating material is non-toxic, halogen free, low smoke and UV resistant
Download Brochure
Width (Inches) Width (mm) Thickness (Inches) Thickness (mm) SS Grade Hole Dia (Ø) (Inches) Hole Dia (Ø) (mm) Package Qty. per Box G.wt. / Std. Pkg. (Kgs.) G.wt. / Std. Pkg. (Lbs.) Cat No. PDF Drawing
1/2 12.7 0.05 1.3 SS 316 3/16 5 25 Mtrs (82.5 Ft.) 1.4 3.1
SBE-12CT
1/2 12.7 0.05 1.3 SS 304 3/16 5 25 Mtrs (82.5 Ft.) 1.4 3.1
SBE-12CT/4
1/2 12.7 0.05 1.3 SS 201 3/16 5 25 Mtrs (82.5 Ft.) 1.4 3.1
SBE-12CT/1
3/4 19.0 0.05 1.3 SS 316 9/32 7 25 Mtrs (82.5 Ft.) 2.4 5.3
SBE-17CT
3/4 19.0 0.05 1.3 SS 304 9/32 7 25 Mtrs (82.5 Ft.) 2.4 5.3
SBE-17CT/4
3/4 19.0 0.05 1.3 SS 201 9/32 7 25 Mtrs (82.5 Ft.) 2.4 5.3
SBE-17CT/1
1 25.4 0.05 1.3 SS 316 5/16 8 25 Mtrs (82.5 Ft.) 3.3 7.3
SBE-26CT
1 25.4 0.05 1.3 SS 304 5/16 8 25 Mtrs (82.5 Ft.) 3.3 7.3
SBE-26CT/4
1 25.4 0.05 1.3 SS 201 5/16 8 25 Mtrs (82.5 Ft.) 3.3 7.3
SBE-26CT/1
