SS BAND BALL LOCK UNCOATED STRIP

Applications

* The application which require various bundle diameters, is not possible to tie with standard range of ball lock ties which can be bundled with ball lock band & head.

Key Industries:

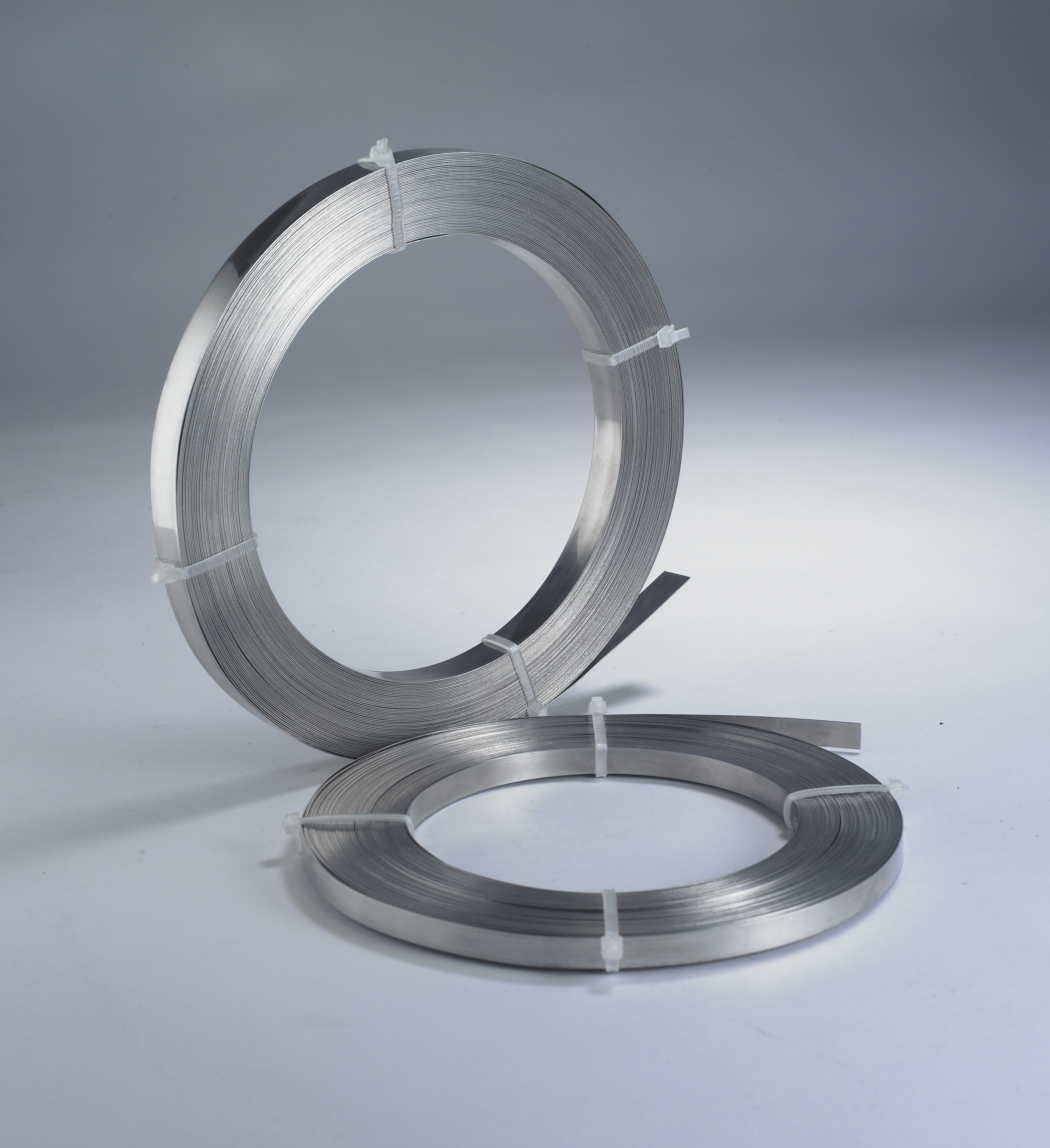

Uncoated SS Band Ball Lock
Uncoated SS Band Ball Lock SS Band Ball Lock Uncoated Strip Line Drawing - SS Band Ball Lock Uncoated

Material: SS 316, SS 304, SS 201
Packing: 61 Mtrs (200 Ft.)/Roll in box
Download Brochure
Width (Inches) Width (mm) Thickness (Inches) Thickness (mm) SS Grade Tensile Strength (Kgs.) Tensile Strength (Lbs.) Used with Ball Lock Head Package Qty. per Box G.wt. / Std. Pkg. (100 pcs.) (Kgs.) G.wt. / Std. Pkg. (100 pcs.) (Lbs.) Cat No. PDF Drawing
0.18 4.6 0.01 0.25 SS 316 60 132 SBBLH-46 61 Mtrs (200 Ft.) 0.65 1.43
SBBL-4
0.18 4.6 0.01 0.25 SS 304 60 132 SBBLH-46 61 Mtrs (200 Ft.) 0.65 1.43
SBBL-4/4
0.18 4.6 0.01 0.25 SS 201 60 132 SBBLH-46 61 Mtrs (200 Ft.) 0.65 1.43
SBBL-4/1
0.31 7.9 0.01 0.25 SS 316 170 375 SBBLH-79 61 Mtrs (200 Ft.) 1.06 2.33
SBBL-7
0.31 7.9 0.01 0.25 SS 304 170 375 SBBLH-79 61 Mtrs (200 Ft.) 1.06 2.33
SBBL-7/4
0.31 7.9 0.01 0.25 SS 201 170 375 SBBLH-79 61 Mtrs (200 Ft.) 1.06 2.33
SBBL-7/1
0.50 12.7 0.01 0.25 SS 316 267 589 SBBLH-127 61 Mtrs (200 Ft.) 1.65 3.63
SBBL-12
0.50 12.7 0.01 0.25 SS 304 267 589 SBBLH-127 61 Mtrs (200 Ft.) 1.65 3.63
SBBL-12/4
0.50 12.7 0.01 0.25 SS 201 267 589 SBBLH-127 61 Mtrs (200 Ft.) 1.65 3.63
SBBL-12/1
0.63 15.9 0.01 0.25 SS 316 400 882 SBBLH-159 61 Mtrs (200 Ft.) 3.04 6.70
SBBL-15
0.63 15.9 0.01 0.25 SS 304 400 882 SBBLH-159 61 Mtrs (200 Ft.) 3.04 6.70
SBBL-15/4
0.63 15.9 0.01 0.25 SS 201 400 882 SBBLH-159 61 Mtrs (200 Ft.) 3.04 6.70
SBBL-15/1
